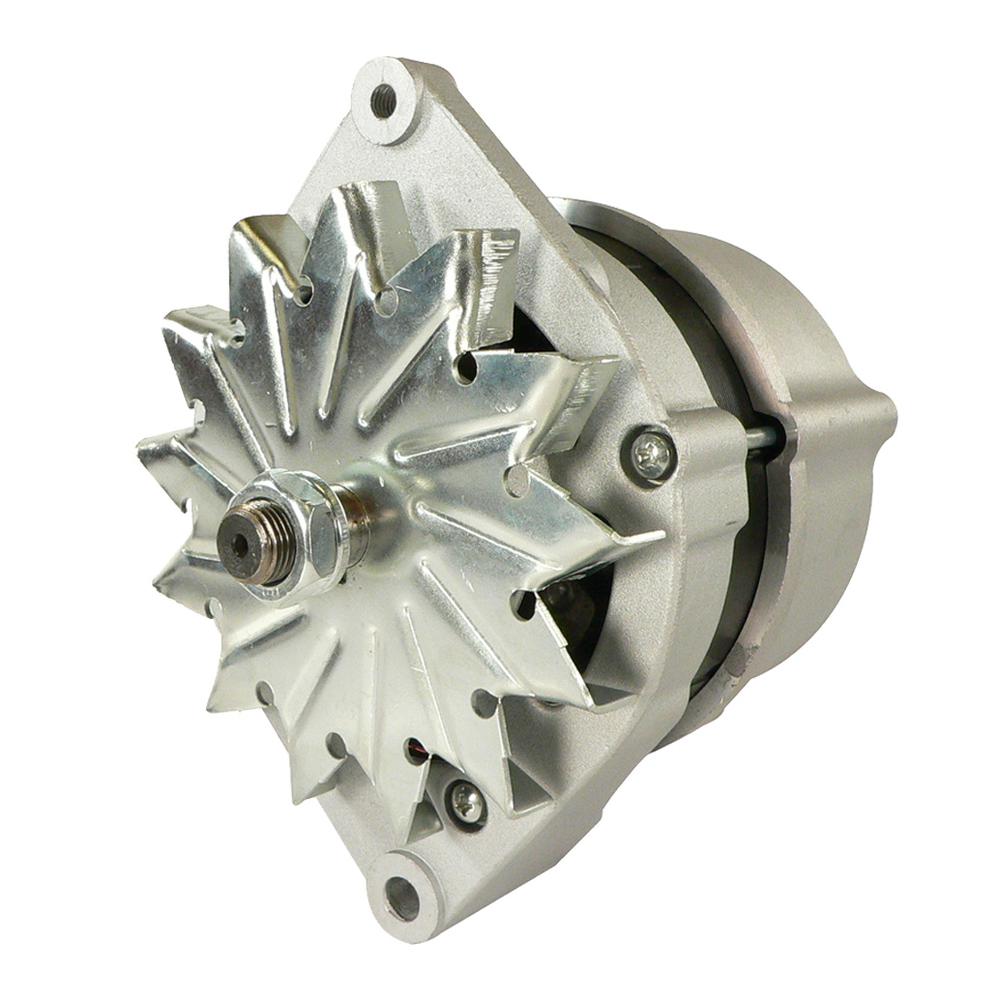

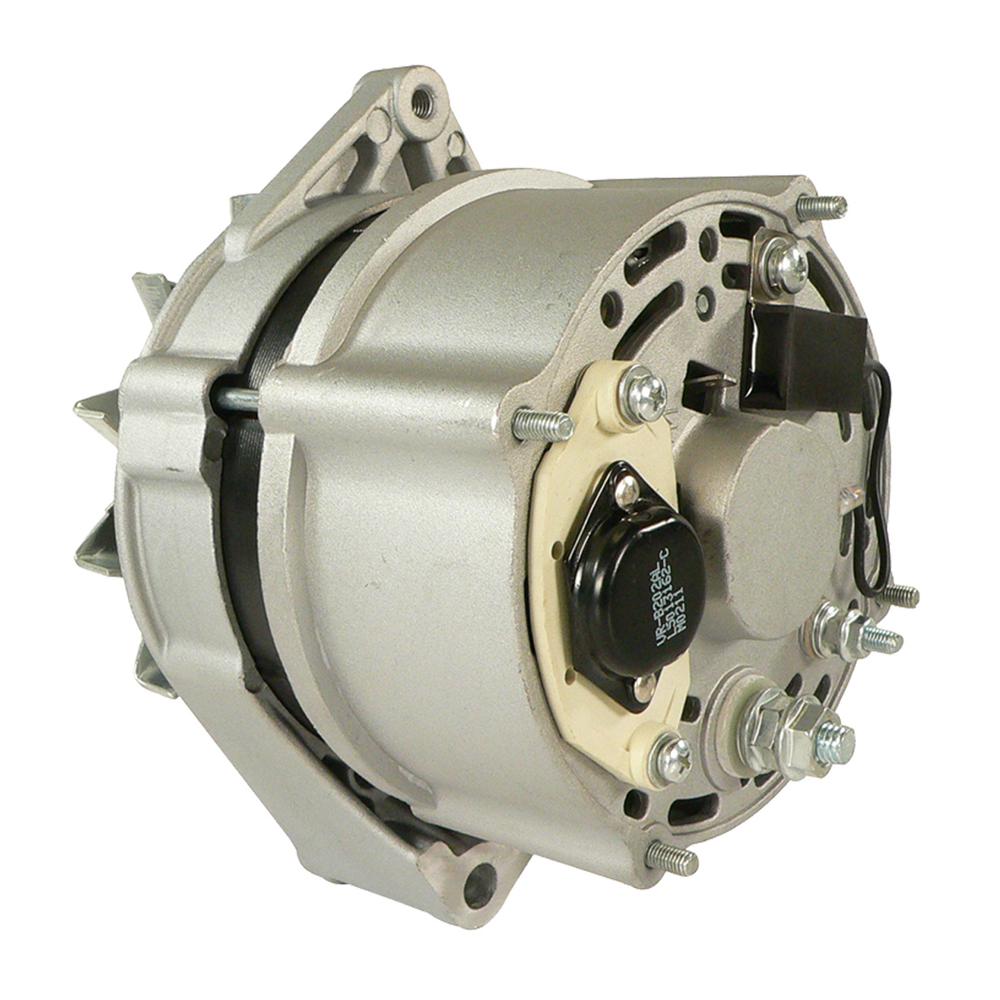

0 120 488 205 Alternator Fits Hesston 8400
0 120 488 205 Alternator Fits Hesston 8400
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket AlternatorTech Info:
-VOLT 12
-AMPS 65
-REGULATOR CLOCK 9:00
-ROTATION DIRECTION Clockwise
-MOUNT HOLE ID 1 M8x1.25
-MOUNT HOLE 1 TYPE Threaded
-MOUNT HOLE ID 2 10.300mm
-MOUNT HOLE 2 TYPE Unthreaded
-MOUNTING EAR THICKNESS 0.630"
-MOUNTING EAR THICKNESS 16mm
-MOUNTING EAR 2 THICKNESS 1.988"
-MOUNTING EAR 2 THICKNESS 50.500mm
-FAN LOCATION External
-REGULATOR LOCATION Internal
-TERMINAL ID B+
-TERMINAL SIZE M8-1.25
-TERMINAL ID 2 D+
-TERMINAL 2 SIZE M5-0.8
-TERMINAL ID 3 W
-TERMINAL 3 SIZE Spade
-POLARITY Negative
-SHAFT PULLEY OD 0.669"
-SHAFT PULLEY OD 17mm
-SHAFT M16x1.50
-FOR 95A, SEE PART #A187873Fits Hesston:
Swather/Windrower Models: 8400
Replaces Part Number(s): 0-120-488-205, 0 120 488 205, 0-120-488-293, 0120488205, 0120488293, 0120489475, 120488293, 9120060040, AL9959X, F005A00023, 0 120 488 285, 0 120 488 293, 9 120 060 040, 9 120 060 041, 9 120 060 044, F 005 A00 023, 111888, 140290, CA1197IR, 132000090065, 87297231, A186125, A187823, A187873, AR187873, A 187873, AR186125, A 187 873, A181873, 3E7285, 3E 7285, 3E-7295, 3E7295, 3604448RX, 3920679, 3 920 679, 3604480RX, 3675270NW, 3911248, 39206791, 46550712, AT173624, AT220393, RE509106, SE501835, SE502626, TY6799, 69X 519 07A, 69X 519 08A, 69X56677B, AT 17 362 4, AT173625, RE505895, RE506196, RE519629, RE533516, RE553516, REX51907B, SE501387, 12146, 12161, 12158, 12595, 12753, 90-15-6170, 90-23-6524, 90-23-6524N, 44-8499, AAK1363, AAK3330, IA 0595, IA 0727, IA0595, IA0727, 11.204.382, 11.204.395, AAK1808, AAK3359, AAK4825, AAK4830, AAK5123, 11.203.641, IA 1299, 11.201.595, 11.201.935, 11.201.998, MG279, MG482, A1057, ALT10105, AL-12161, AB-00156R, 47321, 50951, 12161N, LRB305, VA-12161, 9-515-170, 9-515-241, 9-515-765, 9515.170, 191-2326-01, 20110305, LRB00305, 8M6007485, 1-2237-00BO, 1100-0602, 11000602, 14000586, 17000539, 3500-0505, 36-12161, 400-24009, 400-24191, 700710688, 71-12161, ABO0051, AL-6185, AL-6339, AL-6353, HAR187873
-VOLT 12
-AMPS 65
-REGULATOR CLOCK 9:00
-ROTATION DIRECTION Clockwise
-MOUNT HOLE ID 1 M8x1.25
-MOUNT HOLE 1 TYPE Threaded
-MOUNT HOLE ID 2 10.300mm
-MOUNT HOLE 2 TYPE Unthreaded
-MOUNTING EAR THICKNESS 0.630"
-MOUNTING EAR THICKNESS 16mm
-MOUNTING EAR 2 THICKNESS 1.988"
-MOUNTING EAR 2 THICKNESS 50.500mm
-FAN LOCATION External
-REGULATOR LOCATION Internal
-TERMINAL ID B+
-TERMINAL SIZE M8-1.25
-TERMINAL ID 2 D+
-TERMINAL 2 SIZE M5-0.8
-TERMINAL ID 3 W
-TERMINAL 3 SIZE Spade
-POLARITY Negative
-SHAFT PULLEY OD 0.669"
-SHAFT PULLEY OD 17mm
-SHAFT M16x1.50
-FOR 95A, SEE PART #A187873Fits Hesston:
Swather/Windrower Models: 8400
Replaces Part Number(s): 0-120-488-205, 0 120 488 205, 0-120-488-293, 0120488205, 0120488293, 0120489475, 120488293, 9120060040, AL9959X, F005A00023, 0 120 488 285, 0 120 488 293, 9 120 060 040, 9 120 060 041, 9 120 060 044, F 005 A00 023, 111888, 140290, CA1197IR, 132000090065, 87297231, A186125, A187823, A187873, AR187873, A 187873, AR186125, A 187 873, A181873, 3E7285, 3E 7285, 3E-7295, 3E7295, 3604448RX, 3920679, 3 920 679, 3604480RX, 3675270NW, 3911248, 39206791, 46550712, AT173624, AT220393, RE509106, SE501835, SE502626, TY6799, 69X 519 07A, 69X 519 08A, 69X56677B, AT 17 362 4, AT173625, RE505895, RE506196, RE519629, RE533516, RE553516, REX51907B, SE501387, 12146, 12161, 12158, 12595, 12753, 90-15-6170, 90-23-6524, 90-23-6524N, 44-8499, AAK1363, AAK3330, IA 0595, IA 0727, IA0595, IA0727, 11.204.382, 11.204.395, AAK1808, AAK3359, AAK4825, AAK4830, AAK5123, 11.203.641, IA 1299, 11.201.595, 11.201.935, 11.201.998, MG279, MG482, A1057, ALT10105, AL-12161, AB-00156R, 47321, 50951, 12161N, LRB305, VA-12161, 9-515-170, 9-515-241, 9-515-765, 9515.170, 191-2326-01, 20110305, LRB00305, 8M6007485, 1-2237-00BO, 1100-0602, 11000602, 14000586, 17000539, 3500-0505, 36-12161, 400-24009, 400-24191, 700710688, 71-12161, ABO0051, AL-6185, AL-6339, AL-6353, HAR187873
Models This Part Fits:
8400Additional Information:
Volt 12 Amps 65 Regulator Clock 9:00 Rotation Direction Clockwise Mount Hole Id 1 M8x1.25 Mount Hole 1 Type Threaded Mount Hole Id 2 10.300mm Mount Hole 2 Type Unthreaded Mounting Ear Thickness 0.630" Mounting Ear Thickness 16mm Mounting Ear 2 Thickness 1.988" Mounting Ear 2 Thickness 50.500mm Fan Location External Regulator Location Internal Terminal Id B+ Terminal Size M8-1.25 Terminal Id 2 D+ Terminal 2 Size M5-0.8 Terminal Id 3 W Terminal 3 Size Spade Polarity Negative Shaft Pulley Od 0.669" Shaft Pulley Od 17mm Shaft M16x1.50 AlternatorReference Numbers:
0-120-488-205, 0 120 488 205, 0-120-488-293, 0120488205, 0120488293, 0120489475, 120488293, 9120060040, AL9959X, F005A00023, 0 120 488 285, 0 120 488 293, 9 120 060 040, 9 120 060 041, 9 120 060 044, F 005 A00 023, 111888, 140290, CA1197IR, 132000090065, 87297231, A186125, A187823, A187873, AR187873, A 187873, AR186125, A 187 873, A181873, 3E7285, 3E 7285, 3E-7295, 3E7295, 3604448RX, 3920679, 3 920 679, 3604480RX, 3675270NW, 3911248, 39206791, 46550712, AT173624, AT220393, RE509106, SE501835, SE502626, TY6799, 69X 519 07A, 69X 519 08A, 69X56677B, AT 17 362 4, AT173625, RE505895, RE506196, RE519629, RE533516, RE553516, REX51907B, SE501387, 12146, 12161, 12158, 12595, 12753, 90-15-6170, 90-23-6524, 90-23-6524N, 44-8499, AAK1363, AAK3330, IA 0595, IA 0727, IA0595, IA0727, 11.204.382, 11.204.395, AAK1808, AAK3359, AAK4825, AAK4830, AAK5123, 11.203.641, IA 1299, 11.201.595, 11.201.935, 11.201.998, MG279, MG482, A1057, ALT10105, AL-12161, AB-00156R, 47321, 50951, 12161N, LRB305, VA-12161, 9-515-170, 9-515-241, 9-515-765, 9515.170, 191-2326-01, 20110305, LRB00305, 8M6007485, 1-2237-00BO, 1100-0602, 11000602, 14000586, 17000539, 3500-0505, 36-12161, 400-24009, 400-24191, 700710688, 71-12161, ABO0051, AL-6185, AL-6339, AL-6353, HAR187873Makes This Part Fits:
