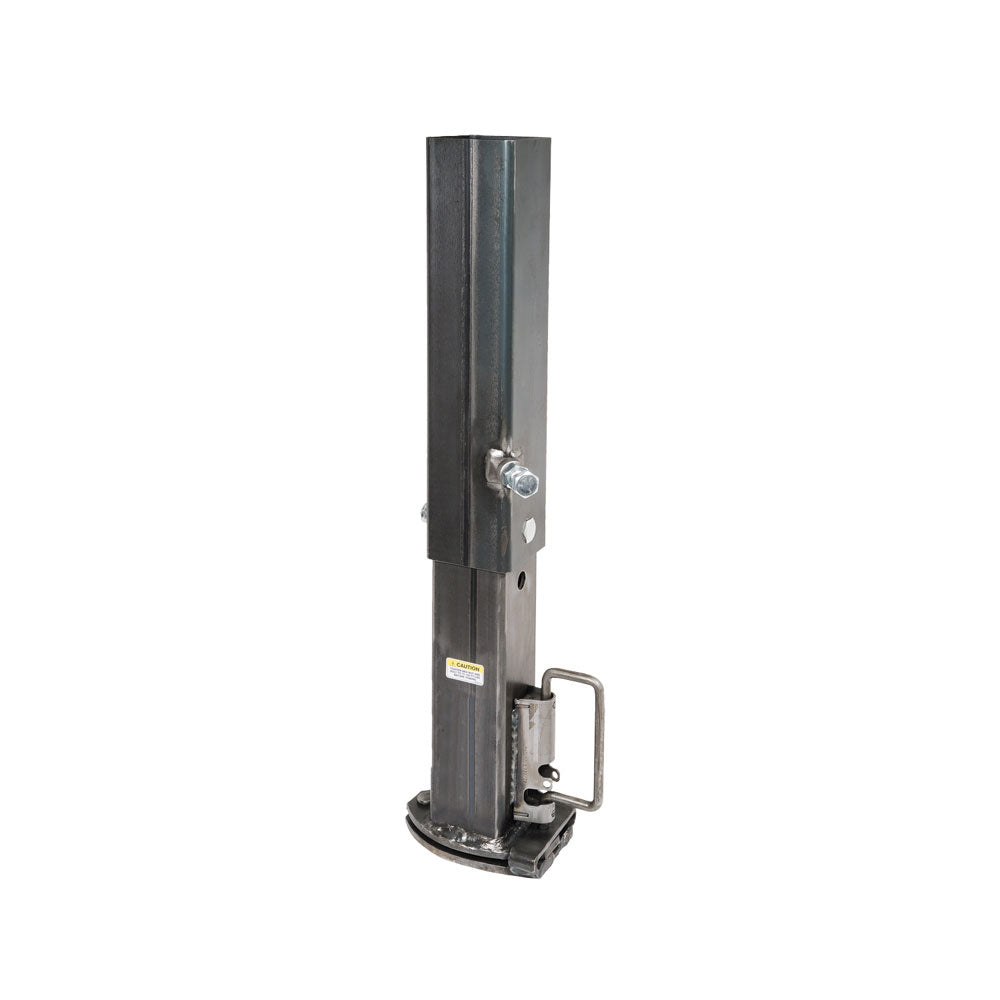

0289600300 Square Tube Gooseneck Trailer Coupler for 2-5/16 Inch Ball (28960)

0289600300 Square Tube Gooseneck Trailer Coupler for 2-5/16 Inch Ball (28960)

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement 25,000 lb. Capacity Square Tube Gooseneck Coupler with Pin


Made For: Gooseneck Trailers

Tech Info:
  • 4-1/2 Inch Square Outer Tube, 4 Inch Square Inner Tube with Cast Locking Plates
  • 3/4 Inch Load Bearing Pin and Single Set Screw.
  • Easy-Grip Handle Is Accessible from Any Position
  • Self-Centering Locking Plate Lets You Miss the Ball My More Than an Inch
  • Tight Ball Fit Reduces Jarring When Changing Speeds or on Rough Roads
  • 32 to 40 Inch Vertical Adjustment
  • Set Screw and 3/4 Inch Load Bearing Pin - Pinch Bolt Design
  • Includes 4-1/2" Outer, 4" Inner Tubes - Unpainted
  • Ball Size: 2-5/16 Inch
  • Rating: 25,000 Lbs.

Replaces Part Numbers: 0289600300

Models This Part Fits:

Gooseneck trailers (2-5/16" ball)

Additional Information:

Ball Size: 2-5/16" Capacity: 25,000 lbs Range of Adjustment: 8" Inner Tube Diameter: 4" OD Outer Tube Diameter: 4-1/2" OD Retracted Height: 32" Extended Height: 40" Set Screw Diameter: 3/4" Square Gooseneck Coupler (with Pin)

Reference Numbers:

0289600300

Makes This Part Fits:

Product Category:

Trailer Replacement Parts

Product Group:

Product Sub Group:
