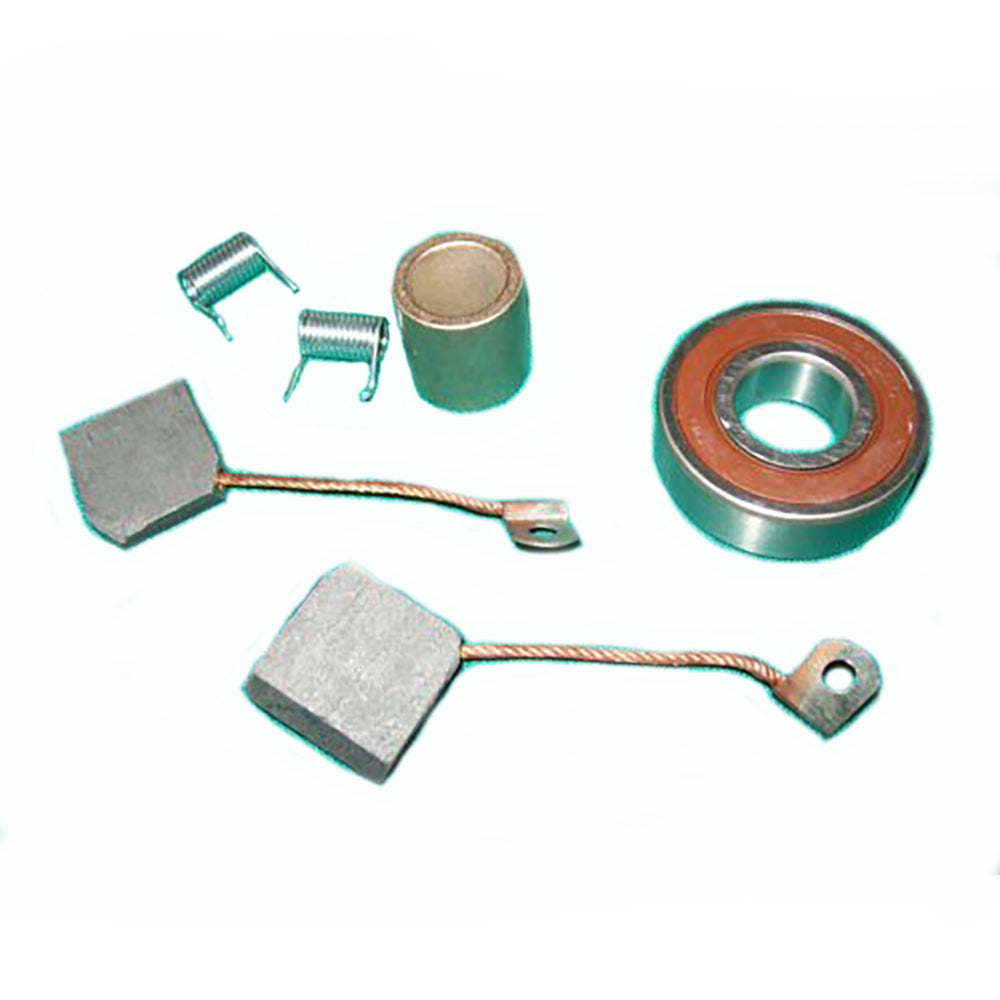

Aftermarket Delco Generator Brush Kit

Tech Info:
 -(1) Sealed Ball Bearing (Econ Version)
 -ID: 0.669" (17mm)
 -OD: 1.575" (40mm)
 -Width: 0.472" (12mm)
 -Bearing Type: Double Sealed
 -Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
 -
 -(2) Delco Brush Spring
 -Description: Brush Spring
 -Unit Type: Generators
 -Notes: For Use with OEM Brush Holders
 -Application: Delco Generators
 -Replaces Part Numbers: 1856992,1903720,1908829
 -
 -(1) Generator Bushing
 -Commuter End Housing Bushing
 -
 -ID: .56"
 -OD: .78"
 -Width: .8"
 -Replaces Part Numbers: 133-12053-5, GDR7100
 -
 -
 -(2) Generator Brush
 -Length: 0.925in / 23.5mm
 -Width: 0.866in / 22mm
 -Height: 0.256in / 6.5mm
 -Lead Length: 1.72in / 43.7mm
 -Replaces Part Numbers: 142-12003-4

Fits Delco:
 Generator Models: 1100021, 1100323, 1100402, 1102113, 1102776, 1102777, 1102819
 Model Breaks: 1100021 (35 Amps, Clockwise Rotation, 6 Volt),1100323 (25 Amps, Clockwise Rotation, 12 Volt),1100402 (25 Amps, Clockwise Rotation, 12 Volt),1102113 (30 Amps, Clockwise Rotation, 12 Volt),1102776 (30 Amps, Clockwise Rotation, 6 Volt),1102777 (45 Amps, Clockwise Rotation, 6 Volt),1102819 (30 Amps, Clockwise Rotation, 6 Volt)
 Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 1856992, 1903720, 1908829, 1916324, 1924349, D3950, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705
