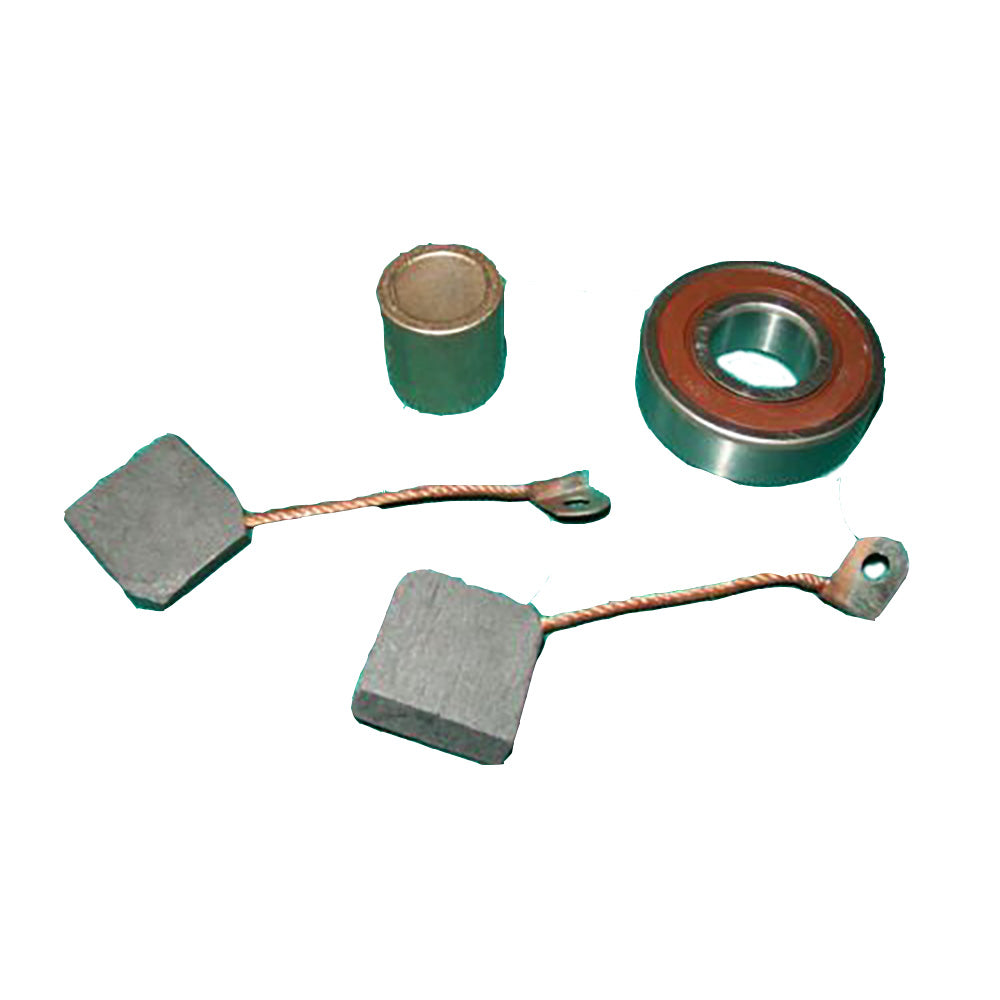

01000340 Fits Delco Fits FARMALL 2 Brush Generator Kit Fits MTD 074 084 114 314
01000340 Fits Delco Fits FARMALL 2 Brush Generator Kit Fits MTD 074 084 114 314
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket 2 Brush Generator KitsTech Info:
-(1) Generator Bushing:
-Bushing Size: Standard
-Inner Diameter: 0.563" (14.300 mm)
-Location Used: CE Housing
-Outer Diameter: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Replaces Part Numbers:
-1850786, 812823, D1634, GDR7100
-
-(1) Sealed Ball Bearing (Econ Version):
-Inner Diameter: 0.669" (17mm)
-Outer Diameter: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C
-
-(2) Generator Brush:
-Height: 0.256" (6.500 mm)
-Lead Length: 1.720" (43.700mm)
-Length: 0.925" (23.500 mm)
-Width: 0.866" (22 mm)
-Replaces Part Numbers:
-1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Fits MTD:
Models: 074, 084, 114 314
Replaces Part Number(s): 01000340, 095406, 137760, 706-085336, 741-0124, 741-0124A, 941-0124, 941-0600
-(1) Generator Bushing:
-Bushing Size: Standard
-Inner Diameter: 0.563" (14.300 mm)
-Location Used: CE Housing
-Outer Diameter: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Replaces Part Numbers:
-1850786, 812823, D1634, GDR7100
-
-(1) Sealed Ball Bearing (Econ Version):
-Inner Diameter: 0.669" (17mm)
-Outer Diameter: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C
-
-(2) Generator Brush:
-Height: 0.256" (6.500 mm)
-Lead Length: 1.720" (43.700mm)
-Length: 0.925" (23.500 mm)
-Width: 0.866" (22 mm)
-Replaces Part Numbers:
-1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Fits MTD:
Models: 074, 084, 114 314
Replaces Part Number(s): 01000340, 095406, 137760, 706-085336, 741-0124, 741-0124A, 941-0124, 941-0600
Models This Part Fits:
084, 114 314, 074Additional Information:
(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version): Inner Diameter: 0.669" (17mm) Outer Diameter: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (2) Generator Brush: Height: 0.256" (6.500 mm) Lead Length: 1.720" (43.700mm) Length: 0.925" (23.500 mm) Width: 0.866" (22 mm) Replaces Part Numbers: 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Reference Numbers:
01000340, 095406, 137760, 706-085336, 741-0124, 741-0124A, 941-0124, 941-0600Makes This Part Fits:
