1012490 Tune Up Kit w/ Filters Fits IH Fits FARMALL 100 130 140 200 230
1012490 Tune Up Kit w/ Filters Fits IH Fits FARMALL 100 130 140 200 230
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

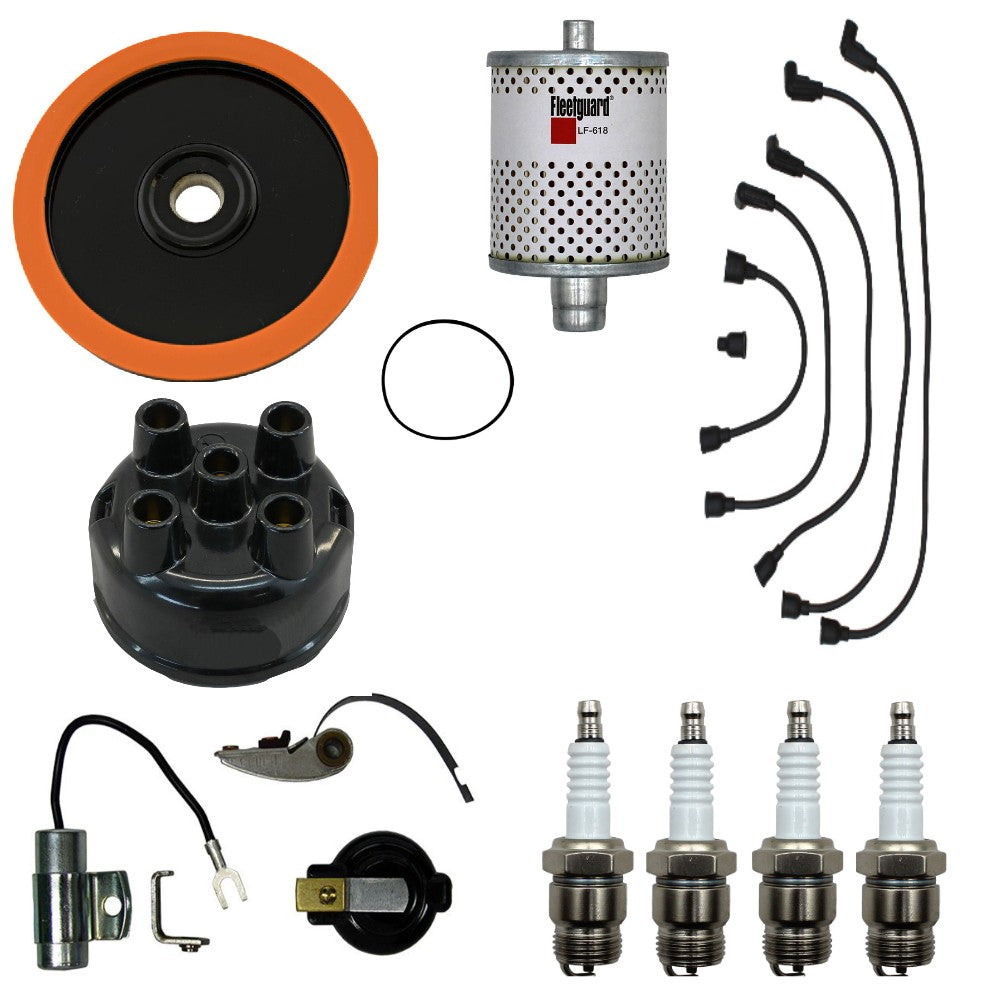

Aftermarket Tune Up Kit w/ Filters
Tech Info:
-(1) Custom Spark Plug Wire Set
-Pre-Assembled Spark Plug Wire Set
-For Models Using a Distributer or Magneto
-Waterproof Neoprene Covering
-Copper Core with Aluminum Coating to Prevent Corrosion
-Replaces Part Number(s): 325951R1, 352947R91
-
-(1) Tune-Up Kit
-Includes Points, Condenser & Rotor
-Replaces Part Number(s): 353896R1, R1937
-
-(1) Distributor Cap
-For 4-Cylinder Models
-Clip Style
-Replaces Part Number(s): 351693R1, 351693R92
-
-(1) Oil Filter
-Outer Diameter: 3-15/32"
-Top Inner Diameter: 31/32"
-Bottom I.D.: 17/32"
-Height: 5-5/8"
-Replaces Part Number(s): 376374R1
-
-(1) Distributer Dust Cover
-For Models Using IHC Horizontal Distributer 353898R11
-Cannot Be Used on Models That Have a J4 Magneto
-Will Also Fit Distributors 368051R1 and 401107R1
-Replaces Part Number(s): 384831R91
-
-(4) Spark Plugs
-Thread Size: 18 mm
-Reach: 1/2"
-Hex Size: 7/8"
-Replaces Part Number(s): 834242M1Fits International/Farmall:
Tractor Models: A, AV, B, BN, C, H, HV, O4, OS4, W4, 100, 130, 140, 200, 230, 240, 300, 330, 350, 404, 424, 444, 504, Super A, Super AV, Super C, Super H, Super W4
Model Breaks: A (w/ IHC Distributor, SN: 97398 and Up),AV (w/ IHC Horizontal Distributor #IH353898R11, SN: 97398 and Up),B (w/ IHC Distributor, SN: 97398 and Up),BN (w/ IHC Horizontal Distributor #IH353898R11, SN: 97398 and Up),C (w/ IHC Distributor),H (w/ IHC Distributor, SN: 121022 and Up),HV (w/ IHC Horizontal Distributor #IH353898R11, SN: 121022 and Up),O4 (w/ IHC Horizontal Distributor #IH353898R11, SN: 4958 and Up),OS4 (SN: 4958 and Up),W4 (w/ IHC Distributor, SN: 4958 and Up),100 (w/ IHC Distributor),130 (w/ IHC Distributor),140 (w/ IHC Distributor),200 (w/ IHC Distributor),230 (w/ IHC Distributor),240 (w/ IHC Distributor),300 (w/ IHC Distributor),330 (w/ IHC Distributor),350 (w/ IHC Distributor),404 (w/ IHC Distributor),424 (w/ IHC Distributor),444 (w/ IHC Distributor),504 (w/ IHC Distributor),Super A (w/ IHC Distributor),Super AV (w/ IHC Horizontal Distributor #IH353898R11),Super C (w/ IHC Distributor),Super H (w/ IHC Distributor),Super W4 (w/ IHC Distributor)
Replaces Part Number(s): 1012490, 325951R1, 325951R91, 356689R2, 356691R92, 407487R1GV, 352947R91, 352951R91, 352954R91, 352956R91, 356687R92, 356689R92, 356691R91, 356694R92, 356695R92, 356697R93, 362439R91, 362789R91, 407487R1, 45327DA, 46277DA, 50075D, 52794D, 65352D, 65357D, 65358D, 65359D, 3116, 3035, 3136, 376, 378, D15, D15Y, D18, D18Y, RD15Y, RD18Y, AL3116, AL386, 353982R91, 21A808, G44840, AB-2, AB2, AB6, A6, 585F, C86, C87, S85F, 375, 377, AC 285F, D10, D14, D16, D16J, D21, D9, D9J, K13, K15J, 2910, M17, M14, RD14, RD16, UD16, D89D, 353172R91, 353896R91, 353903R92, 351693R91, 351693R92, 13728D, 355009R91, 360430R91, 376374R91, 63855D, LF618, MC376374R91, 323842R91, 355009R91, 352284R2, 353900R11, 353901R2, 384831R91
-(1) Custom Spark Plug Wire Set
-Pre-Assembled Spark Plug Wire Set
-For Models Using a Distributer or Magneto
-Waterproof Neoprene Covering
-Copper Core with Aluminum Coating to Prevent Corrosion
-Replaces Part Number(s): 325951R1, 352947R91
-
-(1) Tune-Up Kit
-Includes Points, Condenser & Rotor
-Replaces Part Number(s): 353896R1, R1937
-
-(1) Distributor Cap
-For 4-Cylinder Models
-Clip Style
-Replaces Part Number(s): 351693R1, 351693R92
-
-(1) Oil Filter
-Outer Diameter: 3-15/32"
-Top Inner Diameter: 31/32"
-Bottom I.D.: 17/32"
-Height: 5-5/8"
-Replaces Part Number(s): 376374R1
-
-(1) Distributer Dust Cover
-For Models Using IHC Horizontal Distributer 353898R11
-Cannot Be Used on Models That Have a J4 Magneto
-Will Also Fit Distributors 368051R1 and 401107R1
-Replaces Part Number(s): 384831R91
-
-(4) Spark Plugs
-Thread Size: 18 mm
-Reach: 1/2"
-Hex Size: 7/8"
-Replaces Part Number(s): 834242M1Fits International/Farmall:
Tractor Models: A, AV, B, BN, C, H, HV, O4, OS4, W4, 100, 130, 140, 200, 230, 240, 300, 330, 350, 404, 424, 444, 504, Super A, Super AV, Super C, Super H, Super W4
Model Breaks: A (w/ IHC Distributor, SN: 97398 and Up),AV (w/ IHC Horizontal Distributor #IH353898R11, SN: 97398 and Up),B (w/ IHC Distributor, SN: 97398 and Up),BN (w/ IHC Horizontal Distributor #IH353898R11, SN: 97398 and Up),C (w/ IHC Distributor),H (w/ IHC Distributor, SN: 121022 and Up),HV (w/ IHC Horizontal Distributor #IH353898R11, SN: 121022 and Up),O4 (w/ IHC Horizontal Distributor #IH353898R11, SN: 4958 and Up),OS4 (SN: 4958 and Up),W4 (w/ IHC Distributor, SN: 4958 and Up),100 (w/ IHC Distributor),130 (w/ IHC Distributor),140 (w/ IHC Distributor),200 (w/ IHC Distributor),230 (w/ IHC Distributor),240 (w/ IHC Distributor),300 (w/ IHC Distributor),330 (w/ IHC Distributor),350 (w/ IHC Distributor),404 (w/ IHC Distributor),424 (w/ IHC Distributor),444 (w/ IHC Distributor),504 (w/ IHC Distributor),Super A (w/ IHC Distributor),Super AV (w/ IHC Horizontal Distributor #IH353898R11),Super C (w/ IHC Distributor),Super H (w/ IHC Distributor),Super W4 (w/ IHC Distributor)
Replaces Part Number(s): 1012490, 325951R1, 325951R91, 356689R2, 356691R92, 407487R1GV, 352947R91, 352951R91, 352954R91, 352956R91, 356687R92, 356689R92, 356691R91, 356694R92, 356695R92, 356697R93, 362439R91, 362789R91, 407487R1, 45327DA, 46277DA, 50075D, 52794D, 65352D, 65357D, 65358D, 65359D, 3116, 3035, 3136, 376, 378, D15, D15Y, D18, D18Y, RD15Y, RD18Y, AL3116, AL386, 353982R91, 21A808, G44840, AB-2, AB2, AB6, A6, 585F, C86, C87, S85F, 375, 377, AC 285F, D10, D14, D16, D16J, D21, D9, D9J, K13, K15J, 2910, M17, M14, RD14, RD16, UD16, D89D, 353172R91, 353896R91, 353903R92, 351693R91, 351693R92, 13728D, 355009R91, 360430R91, 376374R91, 63855D, LF618, MC376374R91, 323842R91, 355009R91, 352284R2, 353900R11, 353901R2, 384831R91
Models This Part Fits:
Super A, 130, AV, BN, A, 424, H, Super W4, O4, 444, 140, 200, Super AV, Super C, OS4, C, 100, W4, HV, 240, 230, Super H, 330, 300, B, 350, 504, 404Additional Information:
(1) Custom Spark Plug Wire Set Pre-Assembled Spark Plug Wire Set For Models Using a Distributor or Magneto Waterproof Neoprene Covering Copper Core with Aluminum Coating to Prevent Corrosion Replaces Part Number(s): 325951R1, 352947R91 (1) Tune-Up Kit Includes Points, Condenser & Rotor Replaces Part Number(s): 353896R1, R1937 (1) Distributor Cap For 4-Cylinder Models Clip Style Replaces Part Number(s): 351693R1, 351693R92 (1) Oil Filter Outer Diameter: 3-15/32" Top Inner Diameter: 31/32" Bottom Inner Diameter: 17/32" Height: 5-5/8" Replaces Part Number(s): 376374R1 (1) Distributer Dust Cover For Models Using IHC Horizontal Distributer 353898R11 Cannot Be Used on Models That Have a J4 Magneto Will Also Fit Distributors 368051R1 and 401107R1 Replaces Part Number(s): 384831R91 (4) Spark Plugs Thread Size: 18 mm Reach: 1/2" Hex Size: 7/8" Replaces Part Number(s): 834242M1Reference Numbers:
1012490, 325951R1, 325951R91, 356689R2, 356691R92, 407487R1GV, 352947R91, 352951R91, 352954R91, 352956R91, 356687R92, 356689R92, 356691R91, 356694R92, 356695R92, 356697R93, 362439R91, 362789R91, 407487R1, 45327DA, 46277DA, 50075D, 52794D, 65352D, 65357D, 65358D, 65359D, 3116, 3035, 3136, 376, 378, D15, D15Y, D18, D18Y, RD15Y, RD18Y, AL3116, AL386, 353982R91, 21A808, G44840, AB-2, AB2, AB6, A6, 585F, C86, C87, S85F, 375, 377, AC 285F, D10, D14, D16, D16J, D21, D9, D9J, K13, K15J, 2910, M17, M14, RD14, RD16, UD16, D89D, 353172R91, 353896R91, 353903R92, 351693R91, 351693R92, 13728D, 355009R91, 360430R91, 376374R91, 63855D, LF618, MC376374R91, 323842R91, 355009R91, 352284R2, 353900R11, 353901R2, 384831R91Makes This Part Fits:
