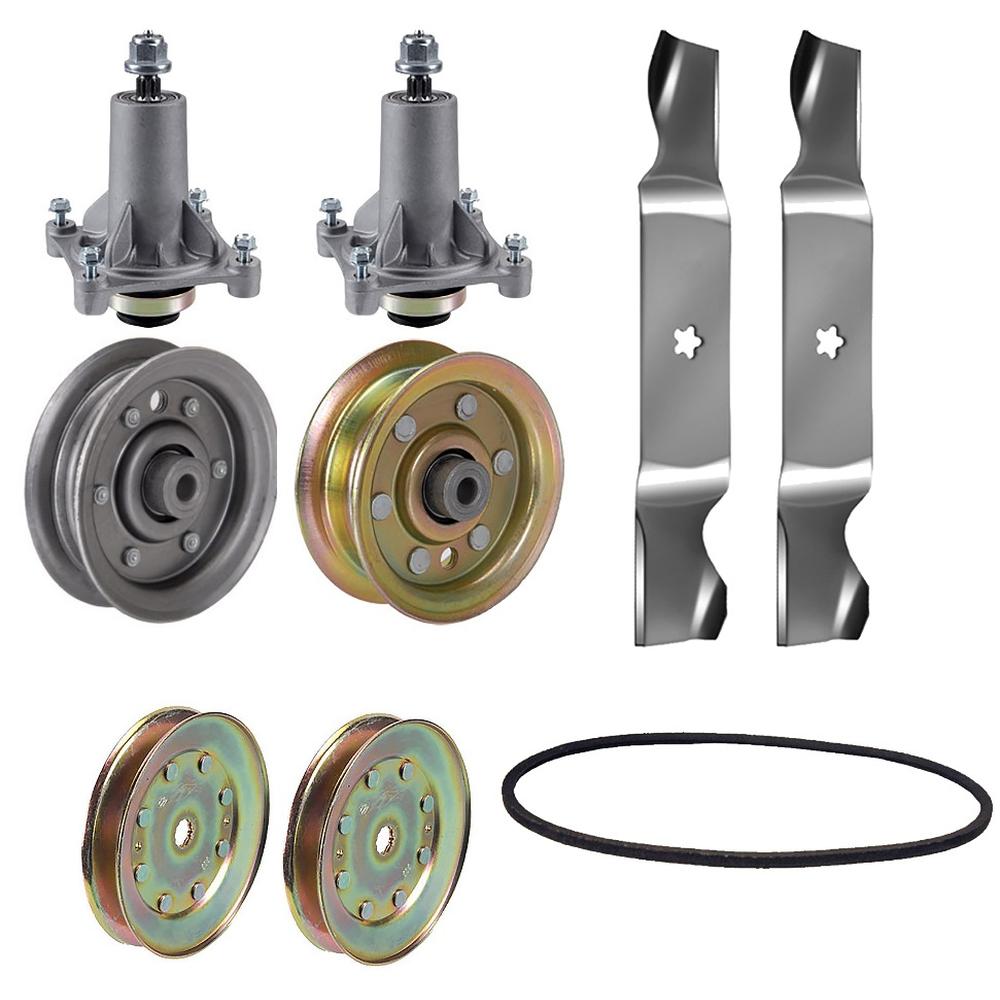

104360X 42" Rebuild Kit Fits AYP 42" Mower Decks

104360X 42" Rebuild Kit Fits AYP 42" Mower Decks

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket 42" Rebuild Kit

Tech Info:
 -Kit Contains:
 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -Replaces Part Number(s):
 -192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -
 -(2) Drive Pullies
 -Outer Diameter: 5-1/6"
 -Inner Diameter: 9/16"
 -Steel
 -Replaces Part Number(s):
 -532129861, 532153535, 532173436, 539112171
 -
 -(2) Lawn Mower Blades
 -Type: Notched HI-Lift Blade
 -Length: 21"
 -Center Hole: 5 Point Star
 -Width: 2-1/4"
 -Thickness: 0.149"
 -Replaces Part Number(s):
 -532127843, 532138498, 532138971
 -
 -(1) Belt
 -Color Gray
 -Length 97.5
 -Material Polyester Cord
 -Thickness 0.444
 -Type Wrapped
 -Width 5/8
 -Replaces Part Number(s):
 -174883, 531300767, 532174883
 -
 -(1) Flat Idler Pulley
 -Flat Idler w/ Flanges.
 -Steel.
 -Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors.
 -3.875" (3 7/8'') OD,
 -.375'' (3/8") ID.
 -Replaces Part Number(s):
 -532131494, 532173438, 597025001
 -
 -(1) Flat Idler Pulley
 -Flat Idler w/ Flanges.
 -Steel.
 -3.06" OD not including flange,
 -3-7/8" Outside diameter with flanges,
 -3/8" ID.
 -Replaces Part Number(s):
 -532 17 34-37, 532 17 34 37, 532173437

Fits AYP:
 Lawn/Garden Tractor Models: 42" Mower Decks
 Replaces Part Number(s): 104360X, 131494, 173438, 532173438, 173437, 532173437, 174883, 532174883, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 129861, 153535, 173436, 177865, 532173436, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301

Models This Part Fits:

42" Mower Decks

Additional Information:

(2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Lock Nut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (2) Drive Pulleys Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Number(s): 532129861, 532153535, 532173436, 539112171 (2) Lawn Mower Blades Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Number(s): 532127843, 532138498, 532138971 (1) Belt Color Gray Length: 97.5" Material: Polyester Cord Thickness: 0.444" Type: Wrapped Width: 5/8" Replaces Part Number(s): 174883, 531300767, 532174883 (1) Flat Idler Pulley Flat Idler w/ Flanges Steel Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors. 3.875" (3 7/8'') Outer Diameter .375'' (3/8") Inner Diameter Replaces Part Number(s): 532131494, 532173438, 597025001 (1) Flat Idler Pulley Flat Idler w/ Flanges Steel 3.06" Outer Diameter not including flange 3-7/8" Outside diameter with flanges 3/8" Inner Diameter Replaces Part Number(s): 532 17 34-37, 532 17 34 37, 532173437 42" Rebuild Kit

Reference Numbers:

104360X, 131494, 173438, 532173438, 173437, 532173437, 174883, 532174883, 127843, 134149, 138498, 138971, 138971X431, 531307224, 532134149, 532138971, 594892701, 917127843, 917131323, 917138498MS, 917532138498, 129861, 153535, 173436, 177865, 532173436, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301
