6 Volt Generator Repair kit Fits Delco Replaces 10467830
6 Volt Generator Repair kit Fits Delco Replaces 10467830
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

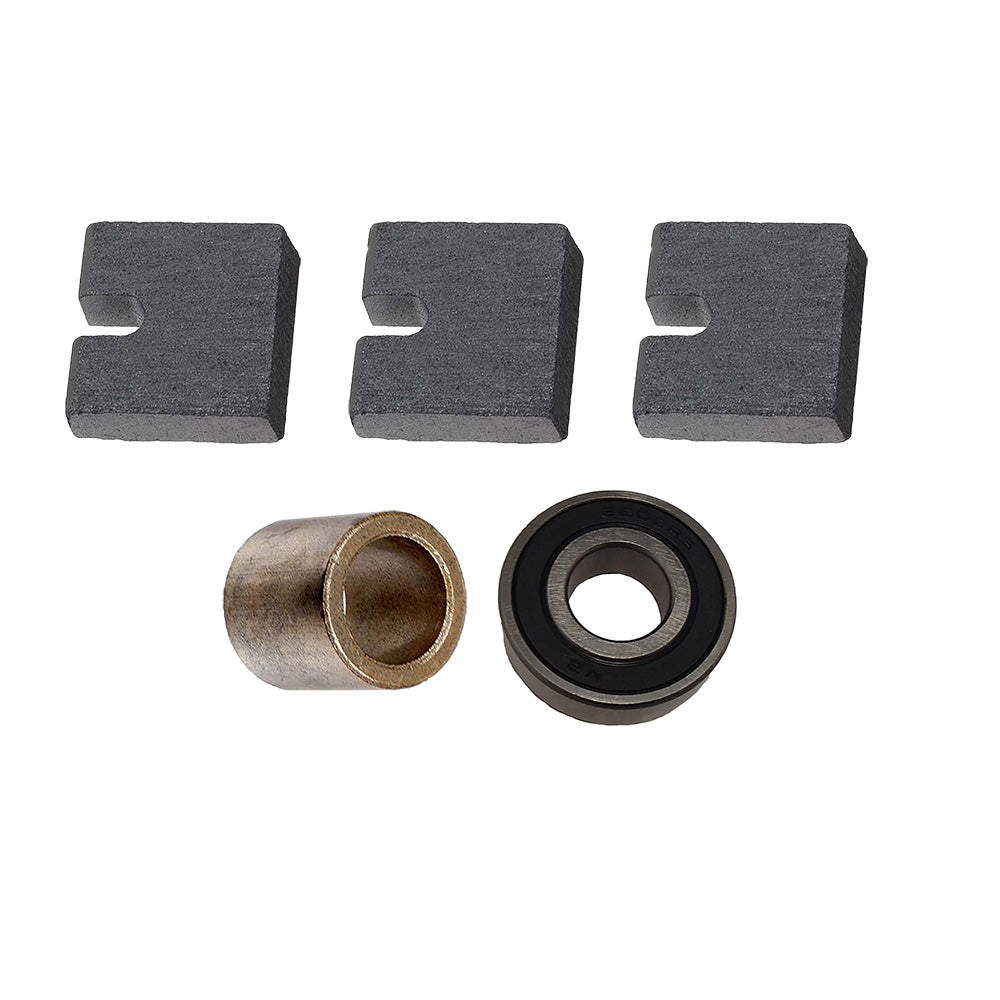

One New Aftermarket 6 Volt Generator Repair kitTech Info:
-Includes:
-
-(3) Generator Brush:
-Height: 0.256" (6.500mm)
-Length: 0.709" (18 mm)
-Width: 0.728" (18.500mm)
-Replaces Part Numbers:
-1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
-
-(1) Generator Bushing:
-ID: 0.563" (14.300 mm)
-OD: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Location Used: CE Housing
-Replaces Part Numbers:
-1850786, 812823, D1634
-
-(1) Sealed Ball Bearing (Econ Version):
-ID: 0.669" (17mm)
-OD: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1CMade to Fit Delco:
Generator Models: 1100504, 1100505, 1100506, 1100507, 1100508, 1100509, 1100516, 1100517, 1100523, 1100528, 1100529, 1100530, 1101354, 1101355, 1101356, 1101357, 1101358, 1101363, 1101366, 1101369, 1101371, 1101373, 1101377, 1101378, 1101379, 1101382, 1101383, 1101384, 1101385, 1101386, 1101387, 1101390, 1101391, 1101393, 1101397, 1101398, 1101401, 1101402, 1101403, 1101404, 1101406, 1101411, 1101413, 1101414, 1101415, 1101416, 1101419, 1101421, 1101422, 1101423, 1101425, 1101426, 1101430, 1101431, 1101651, 1101652, 1101657, 1101659, 1101673, 1101688, 1101851, 1101852, 1101853, 1101854, 1101855, 1101857, 1101858, 1101860
Model Breaks: 1100504 (25 Amps, Clockwise Rotation, 6-Volt),1100505 (25 Amps, Clockwise Rotation, 6-Volt),1100506 (25 Amps, Clockwise Rotation, 6-Volt),1100507 (25 Amps, Clockwise Rotation, 6-Volt),1100508 (25 Amps, Clockwise Rotation, 6-Volt),1100509 (25 Amps, Clockwise Rotation, 6-Volt),1100516 (25 Amps, Clockwise Rotation, 6-Volt),1100517 (25 Amps, Clockwise Rotation, 6-Volt),1100523 (25 Amps, Clockwise Rotation, 6-Volt),1100528 (25 Amps, Counter Clockwise Rotation, 6-Volt),1100529 (25 Amps, Clockwise Rotation, 6-Volt),1100530 (25 Amps, Clockwise Rotation, 6-Volt),1101354 (16 Amps, Clockwise Rotation, 6-Volt),1101355 (16 Amps, Clockwise Rotation, 6-Volt),1101356 (13 Amps, Clockwise Rotation, 6-Volt),1101357 (17 Amps, Clockwise Rotation, 6-Volt),1101358 (16 Amps, Clockwise Rotation, 6-Volt),1101363 (13 Amps, Clockwise Rotation, 6-Volt),1101366 (13 Amps, Clockwise Rotation, 6-Volt),1101369 (16 Amps, Clockwise Rotation, 6-Volt),1101371 (13 Amps, Clockwise Rotation, 6-Volt),1101373 (13 Amps, Clockwise Rotation, 6-Volt),1101377 (13 Amps, Clockwise Rotation, 6-Volt),1101378 (16 Amps, Clockwise Rotation, 6-Volt),1101379 (17 Amps, Clockwise Rotation, 6-Volt),1101382 (13 Amps, Clockwise Rotation, 6-Volt),1101383 (16 Amps, Clockwise Rotation, 6-Volt),1101384 (13 Amps, Clockwise Rotation, 6-Volt),1101385 (13 Amps, Clockwise Rotation, 6-Volt),1101386 (13 Amps, Clockwise Rotation, 6-Volt),1101387 (13 Amps, 6-Volt),1101390 (17 Amps, Clockwise Rotation, 6-Volt),1101391 (17 Amps, Clockwise Rotation, 6-Volt),1101393 (17 Amps, 6-Volt),1101397 (17 Amps, Clockwise Rotation, 6-Volt),1101398 (17 Amps, Clockwise Rotation, 6-Volt),1101401 (17 Amps, 6-Volt), 1101402 (17 Amps, Clockwise Rotation, 6-Volt),1101403 (17 Amps, 6-Volt),1101404 (17 Amps, Clockwise Rotation, 6-Volt),1101406 (17 Amps, 6-Volt),1101411 (17 Amps, 6-Volt),1101413 (17 Amps, Clockwise Rotation, 6-Volt),1101414 (13 Amps, Clockwise Rotation, 6-Volt),1101415 (13 Amps, 6-Volt),1101416 (13 Amps, Clockwise Rotation, 6-Volt),1101419 (17 Amps, Clockwise Rotation, 6-Volt),1101421 (13 Amps, Clockwise Rotation, 6-Volt),1101422 (16 Amps, Clockwise Rotation, 6-Volt),1101423 (15 Amps, Clockwise Rotation, 6-Volt),1101425 (16 Amps, 6-Volt),1101426 (13 Amps, 6-Volt),1101430 (17 Amps, Clockwise Rotation, 6-Volt),1101431 (17 Amps, 6-Volt),1101651 (21 Amps, 6-Volt),1101652 (17 Amps, 6-Volt),1101657 (11 Amps, 6-Volt),1101659 (17 Amps, 6-Volt),1101673 (22 Amps, 6-Volt),1101688 (13 Amps, Clockwise Rotation, 6-Volt),1101851 (12 Amps, Clockwise Rotation, 6-Volt),1101852 (12 Amps, Clockwise Rotation, 6-Volt),1101853 (12 Amps, Clockwise Rotation, 6-Volt),1101854 (12 Amps, Clockwise Rotation, 6-Volt),1101855 (16 Amps, Clockwise Rotation, 6-Volt),1101857 (13 Amps, Clockwise Rotation, 6-Volt),1101858 (13 Amps, Clockwise Rotation, 6-Volt),1101860 (6 Amps, Clockwise Rotation, 6-Volt)
Replaces Part Number(s): 1850786, 812823, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
Generator Models: 1100952, 1100965, 1100966, 1100968, 1100991, 1100992, 1100998, 1101003, 1101705, 1101710, 1101723, 1101732, 1101733, 1101739, 1101741, 1101748, 1101757, 1101769, 1101771, 1102501
Model Breaks: 1100952 (13 Amps, Counter Clockwise Rotation, 12-Volt),1100965 (10 Amps, Clockwise Rotation, 12-Volt),1100966 (10 Amps, Clockwise Rotation, 12-Volt),1100968 (13 Amps, Clockwise Rotation, 12-Volt),1100991 (13 Amps, Clockwise Rotation, 12-Volt),1100992 (13 Amps, Clockwise Rotation, 12-Volt),1100998 (16 Amps, Clockwise Rotation, 12-Volt),1101003 (11 Amps, Clockwise Rotation, 12-Volt),1101705 (10 Amps, Clockwise Rotation, 12-Volt),1101710 (10 Amps, Clockwise Rotation, 12-Volt),1101723 (10 Amps, Clockwise Rotation, 12-Volt),1101732 (10 Amps, Clockwise Rotation, 12-Volt),1101733 (10 Amps, Counter Clockwise Rotation, 12-Volt),1101739 (10 Amps, Clockwise Rotation, 12-Volt),1101741 (10 Amps, Counter Clockwise Rotation, 12-Volt),1101748 (10 Amps, Clockwise Rotation, 12-Volt),1101757 (10 Amps, Clockwise Rotation, 12-Volt),1101769 (10 Amps, Clockwise Rotation, 12-Volt),1101771 (10 Amps, Clockwise Rotation, 12-Volt),1102501 (26 Amps, Clockwise Rotation, 12-Volt)
Replaces Part Number(s): 812823, 1850786, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
-Includes:
-
-(3) Generator Brush:
-Height: 0.256" (6.500mm)
-Length: 0.709" (18 mm)
-Width: 0.728" (18.500mm)
-Replaces Part Numbers:
-1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
-
-(1) Generator Bushing:
-ID: 0.563" (14.300 mm)
-OD: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Location Used: CE Housing
-Replaces Part Numbers:
-1850786, 812823, D1634
-
-(1) Sealed Ball Bearing (Econ Version):
-ID: 0.669" (17mm)
-OD: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1CMade to Fit Delco:
Generator Models: 1100504, 1100505, 1100506, 1100507, 1100508, 1100509, 1100516, 1100517, 1100523, 1100528, 1100529, 1100530, 1101354, 1101355, 1101356, 1101357, 1101358, 1101363, 1101366, 1101369, 1101371, 1101373, 1101377, 1101378, 1101379, 1101382, 1101383, 1101384, 1101385, 1101386, 1101387, 1101390, 1101391, 1101393, 1101397, 1101398, 1101401, 1101402, 1101403, 1101404, 1101406, 1101411, 1101413, 1101414, 1101415, 1101416, 1101419, 1101421, 1101422, 1101423, 1101425, 1101426, 1101430, 1101431, 1101651, 1101652, 1101657, 1101659, 1101673, 1101688, 1101851, 1101852, 1101853, 1101854, 1101855, 1101857, 1101858, 1101860
Model Breaks: 1100504 (25 Amps, Clockwise Rotation, 6-Volt),1100505 (25 Amps, Clockwise Rotation, 6-Volt),1100506 (25 Amps, Clockwise Rotation, 6-Volt),1100507 (25 Amps, Clockwise Rotation, 6-Volt),1100508 (25 Amps, Clockwise Rotation, 6-Volt),1100509 (25 Amps, Clockwise Rotation, 6-Volt),1100516 (25 Amps, Clockwise Rotation, 6-Volt),1100517 (25 Amps, Clockwise Rotation, 6-Volt),1100523 (25 Amps, Clockwise Rotation, 6-Volt),1100528 (25 Amps, Counter Clockwise Rotation, 6-Volt),1100529 (25 Amps, Clockwise Rotation, 6-Volt),1100530 (25 Amps, Clockwise Rotation, 6-Volt),1101354 (16 Amps, Clockwise Rotation, 6-Volt),1101355 (16 Amps, Clockwise Rotation, 6-Volt),1101356 (13 Amps, Clockwise Rotation, 6-Volt),1101357 (17 Amps, Clockwise Rotation, 6-Volt),1101358 (16 Amps, Clockwise Rotation, 6-Volt),1101363 (13 Amps, Clockwise Rotation, 6-Volt),1101366 (13 Amps, Clockwise Rotation, 6-Volt),1101369 (16 Amps, Clockwise Rotation, 6-Volt),1101371 (13 Amps, Clockwise Rotation, 6-Volt),1101373 (13 Amps, Clockwise Rotation, 6-Volt),1101377 (13 Amps, Clockwise Rotation, 6-Volt),1101378 (16 Amps, Clockwise Rotation, 6-Volt),1101379 (17 Amps, Clockwise Rotation, 6-Volt),1101382 (13 Amps, Clockwise Rotation, 6-Volt),1101383 (16 Amps, Clockwise Rotation, 6-Volt),1101384 (13 Amps, Clockwise Rotation, 6-Volt),1101385 (13 Amps, Clockwise Rotation, 6-Volt),1101386 (13 Amps, Clockwise Rotation, 6-Volt),1101387 (13 Amps, 6-Volt),1101390 (17 Amps, Clockwise Rotation, 6-Volt),1101391 (17 Amps, Clockwise Rotation, 6-Volt),1101393 (17 Amps, 6-Volt),1101397 (17 Amps, Clockwise Rotation, 6-Volt),1101398 (17 Amps, Clockwise Rotation, 6-Volt),1101401 (17 Amps, 6-Volt), 1101402 (17 Amps, Clockwise Rotation, 6-Volt),1101403 (17 Amps, 6-Volt),1101404 (17 Amps, Clockwise Rotation, 6-Volt),1101406 (17 Amps, 6-Volt),1101411 (17 Amps, 6-Volt),1101413 (17 Amps, Clockwise Rotation, 6-Volt),1101414 (13 Amps, Clockwise Rotation, 6-Volt),1101415 (13 Amps, 6-Volt),1101416 (13 Amps, Clockwise Rotation, 6-Volt),1101419 (17 Amps, Clockwise Rotation, 6-Volt),1101421 (13 Amps, Clockwise Rotation, 6-Volt),1101422 (16 Amps, Clockwise Rotation, 6-Volt),1101423 (15 Amps, Clockwise Rotation, 6-Volt),1101425 (16 Amps, 6-Volt),1101426 (13 Amps, 6-Volt),1101430 (17 Amps, Clockwise Rotation, 6-Volt),1101431 (17 Amps, 6-Volt),1101651 (21 Amps, 6-Volt),1101652 (17 Amps, 6-Volt),1101657 (11 Amps, 6-Volt),1101659 (17 Amps, 6-Volt),1101673 (22 Amps, 6-Volt),1101688 (13 Amps, Clockwise Rotation, 6-Volt),1101851 (12 Amps, Clockwise Rotation, 6-Volt),1101852 (12 Amps, Clockwise Rotation, 6-Volt),1101853 (12 Amps, Clockwise Rotation, 6-Volt),1101854 (12 Amps, Clockwise Rotation, 6-Volt),1101855 (16 Amps, Clockwise Rotation, 6-Volt),1101857 (13 Amps, Clockwise Rotation, 6-Volt),1101858 (13 Amps, Clockwise Rotation, 6-Volt),1101860 (6 Amps, Clockwise Rotation, 6-Volt)
Replaces Part Number(s): 1850786, 812823, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
Generator Models: 1100952, 1100965, 1100966, 1100968, 1100991, 1100992, 1100998, 1101003, 1101705, 1101710, 1101723, 1101732, 1101733, 1101739, 1101741, 1101748, 1101757, 1101769, 1101771, 1102501
Model Breaks: 1100952 (13 Amps, Counter Clockwise Rotation, 12-Volt),1100965 (10 Amps, Clockwise Rotation, 12-Volt),1100966 (10 Amps, Clockwise Rotation, 12-Volt),1100968 (13 Amps, Clockwise Rotation, 12-Volt),1100991 (13 Amps, Clockwise Rotation, 12-Volt),1100992 (13 Amps, Clockwise Rotation, 12-Volt),1100998 (16 Amps, Clockwise Rotation, 12-Volt),1101003 (11 Amps, Clockwise Rotation, 12-Volt),1101705 (10 Amps, Clockwise Rotation, 12-Volt),1101710 (10 Amps, Clockwise Rotation, 12-Volt),1101723 (10 Amps, Clockwise Rotation, 12-Volt),1101732 (10 Amps, Clockwise Rotation, 12-Volt),1101733 (10 Amps, Counter Clockwise Rotation, 12-Volt),1101739 (10 Amps, Clockwise Rotation, 12-Volt),1101741 (10 Amps, Counter Clockwise Rotation, 12-Volt),1101748 (10 Amps, Clockwise Rotation, 12-Volt),1101757 (10 Amps, Clockwise Rotation, 12-Volt),1101769 (10 Amps, Clockwise Rotation, 12-Volt),1101771 (10 Amps, Clockwise Rotation, 12-Volt),1102501 (26 Amps, Clockwise Rotation, 12-Volt)
Replaces Part Number(s): 812823, 1850786, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
Models This Part Fits:
1101403, 1101406, 1101358, 1100516, 1101371, 1100952, 1101401, 1100505, 1100528, 1101383, 1101748, 1101757, 1101651, 1101369, 1100509, 1101003, 1101739, 1100991, 1101391, 1100998, 1101402, 1101852, 1101657, 1100506, 1100529, 1101673, 1101363, 1101378, 1101356, 1101354, 1101858, 1101851, 1101393, 1101659, 1101855, 1101373, 1100966, 1100507, 1101398, 1100965, 1102501, 1101411, 1100992, 1101771, 1101384, 1101404, 1100530, 1101416, 1101741, 1100517, 1101397, 1101421, 1101854, 1101705, 1100508, 1101357, 1101387, 1101426, 1101769, 1101857, 1101379, 1101430, 1101422, 1101414, 1101423, 1101377, 1101413, 1101733, 1101366, 1101688, 1101386, 1100968, 1100504, 1101425, 1101415, 1101652, 1100523, 1101355, 1101419, 1101853, 1101385, 1101860, 1101723, 1101431, 1101710, 1101732, 1101390, 1101382Additional Information:
Includes: (3) Generator Brush: Height: 0.256" (6.500mm) Length: 0.709" (18 mm) Width: 0.728" (18.500mm) Replaces Part Numbers: 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709 (1) Generator Bushing: ID: 0.563" (14.300 mm) OD: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Location Used: CE Housing Replaces Part Numbers: 1850786, 812823, D1634 (1) Sealed Ball Bearing (Econ Version): ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1CReference Numbers:
1850786, 812823, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709, 812823, 1850786, D1634, 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709Makes This Part Fits:
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
