2 Brush Generator Kits Fits Delco Replaces 10467830
2 Brush Generator Kits Fits Delco Replaces 10467830
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

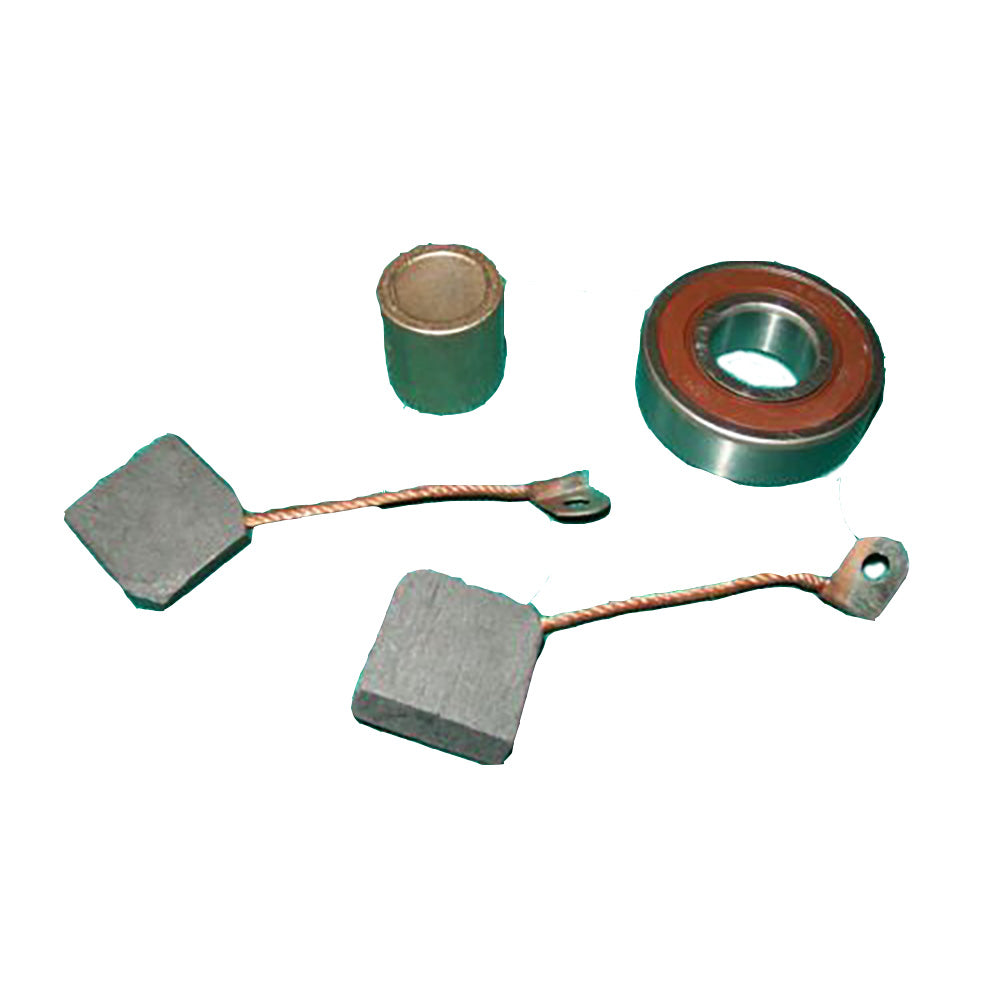

One New Aftermarket 2 Brush Generator KitsTech Info:
-(1) Generator Bushing:
-Bushing Size: Standard
-Inner Diameter: 0.563" (14.300 mm)
-Location Used: CE Housing
-Outer Diameter: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Replaces Part Numbers:
-1850786, 812823, D1634, GDR7100
-
-(1) Sealed Ball Bearing (Econ Version):
-Inner Diameter: 0.669" (17mm)
-Outer Diameter: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C
-
-(2) Generator Brush:
-Height: 0.256" (6.500 mm)
-Lead Length: 1.720" (43.700mm)
-Length: 0.925" (23.500 mm)
-Width: 0.866" (22 mm)
-Replaces Part Numbers:
-1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Made to Fits Delco:
Other (Misc) Models: 1100021, 1100323, 1101866, 1102113, 1102661, 1102662, 1102663, 1102664, 1102665, 1102667, 1102668, 1102669, 1102670, 1102671, 1102672, 1102673, 1102674, 1102677, 1102678, 1102679, 1102680, 1102688, 1102691, 1102692, 1102693, 1102694, 1102697, 1102701, 1102708, 1102709, 1102712, 1102713, 1102714, 1102716, 1102718, 1102721, 1102722, 1102723, 1102724, 1102726, 1102730, 1102731, 1102732, 1102736, 1102738, 1102739, 1102741, 1102743, 1102746, 1102748, 1102751, 1102752, 1102754, 1102757, 1102761, 1102774, 1102776, 1102777, 1102799, 1102819, 1102976, 1102981, 1102985, 1102987, 1102996, 1103000, 1105851, 1105854, 1105855
Model Breaks: 1100021 (35 AMPS, Clockwise Rotation, 6 VOLT),1100323 (25 AMPS, Clockwise Rotation, 12 VOLT),1101866 (8 AMPS, Clockwise Rotation, 12 VOLT),1102113 (30 AMPS, Clockwise Rotation, 12 VOLT),1102661 (30 AMPS, Clockwise Rotation, 6 VOLT),1102662 (30 AMPS, Clockwise Rotation, 6 VOLT),1102663 (30 AMPS, Clockwise Rotation, 6 VOLT),1102664 (30 AMPS, Clockwise Rotation, 6 VOLT),1102665 (30 AMPS, Clockwise Rotation, 6 VOLT),1102667 (30 AMPS, Clockwise Rotation, 6 VOLT),1102668 (30 AMPS, Clockwise Rotation, 6 VOLT),1102669 (30 AMPS, Clockwise Rotation, 6 VOLT),1102670 (30 AMPS, Clockwise Rotation, 6 VOLT),1102671 (30 AMPS, Clockwise Rotation, 6 VOLT),1102672 (30 AMPS, Clockwise Rotation, 6 VOLT),1102673 (30 AMPS, Clockwise Rotation, 6 VOLT),1102674 (30 AMPS, Clockwise Rotation, 6 VOLT),1102677 (25 AMPS, Clockwise Rotation, 6 VOLT),1102678 (30 AMPS, Clockwise Rotation, 6 VOLT),1102679 (30 AMPS, Clockwise Rotation, 6 VOLT),1102680 (30 AMPS, Clockwise Rotation, 6 VOLT),1102688 (25 AMPS, Clockwise Rotation, 6 VOLT),1102691 (30 AMPS, Clockwise Rotation, 6 VOLT),1102692 (30 AMPS, Clockwise Rotation, 6 VOLT),1102693 (30 AMPS, Clockwise Rotation, 6 VOLT),1102694 (30 AMPS, Clockwise Rotation, 6 VOLT),1102697 (30 AMPS, Clockwise Rotation, 6 VOLT),1102701 (30 AMPS, Clockwise Rotation, 6 VOLT),1102708 (40 AMPS, Clockwise Rotation, 6 VOLT),1102709 (40 AMPS, Clockwise Rotation, 6 VOLT),1102712 (30 AMPS, Clockwise Rotation, 6 VOLT),1102713 (30 AMPS, Clockwise Rotation, 6 VOLT),1102714 (30 AMPS, Clockwise Rotation, 6 VOLT),1102716 (30 AMPS, Clockwise Rotation, 6 VOLT),1102718 (40 AMPS, Clockwise Rotation, 6 VOLT),1102721 (30 AMPS, Clockwise Rotation, 6 VOLT),1102722 (30 AMPS, Clockwise Rotation, 6 VOLT),1102723 (30 AMPS, Clockwise Rotation, 6 VOLT),1102724 (30 AMPS, Clockwise Rotation, 6 VOLT),1102726 (25 AMPS, Clockwise Rotation, 6 VOLT),1102730 (30 AMPS, Clockwise Rotation, 6 VOLT),1102731 (45 AMPS, Clockwise Rotation, 6 VOLT),1102732 (30 AMPS, Clockwise Rotation, 6 VOLT),1102736 (30 AMPS, Clockwise Rotation, 6 VOLT),1102738 (30 AMPS, Clockwise Rotation, 6 VOLT),1102739 (30 AMPS, Clockwise Rotation, 6 VOLT),1102741 (40 AMPS, Clockwise Rotation, 6 VOLT),1102743 (30 AMPS, Clockwise Rotation, 6 VOLT),1102746 (40 AMPS, Clockwise Rotation, 6 VOLT),1102748 (40 AMPS, Clockwise Rotation, 6 VOLT),1102751 (30 AMPS, Clockwise Rotation, 6 VOLT),1102752 (40 AMPS, Clockwise Rotation, 6 VOLT),1102754 (40 AMPS, Clockwise Rotation, 6 VOLT),1102757 (40 AMPS, Clockwise Rotation, 6 VOLT),1102761 (30 AMPS, Clockwise Rotation, 6 VOLT),1102774 (45 AMPS, Clockwise Rotation, 6 VOLT),1102776 (30 AMPS, Clockwise Rotation, 6 VOLT),1102777 (45 AMPS, Clockwise Rotation, 6 VOLT),1102799 (18 AMPS, Clockwise Rotation, 6 VOLT),1102819 (30 AMPS, Clockwise Rotation, 6 VOLT),1102976 (20 AMPS, Clockwise Rotation, 12 VOLT),1102981 (20 AMPS, Clockwise Rotation, 12 VOLT),1102985 (20 AMPS, Clockwise Rotation, 12 VOLT),1102987 (20 AMPS, Clockwise Rotation, 12 VOLT),1102996 (20 AMPS, Clockwise Rotation, 12 VOLT),1103000 (20 AMPS, Clockwise Rotation, 12 VOLT),1105851 (40 AMPS, Clockwise Rotation, 6 VOLT),1105854 (25 AMPS, Clockwise Rotation, 6 VOLT),1105855 (25 AMPS, Clockwise Rotation, 6 VOLT)
Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705
-(1) Generator Bushing:
-Bushing Size: Standard
-Inner Diameter: 0.563" (14.300 mm)
-Location Used: CE Housing
-Outer Diameter: 0.783" (19.900 mm)
-Width: 0.801" (20.350 mm)
-Replaces Part Numbers:
-1850786, 812823, D1634, GDR7100
-
-(1) Sealed Ball Bearing (Econ Version):
-Inner Diameter: 0.669" (17mm)
-Outer Diameter: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers:
-100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C
-
-(2) Generator Brush:
-Height: 0.256" (6.500 mm)
-Lead Length: 1.720" (43.700mm)
-Length: 0.925" (23.500 mm)
-Width: 0.866" (22 mm)
-Replaces Part Numbers:
-1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Made to Fits Delco:
Other (Misc) Models: 1100021, 1100323, 1101866, 1102113, 1102661, 1102662, 1102663, 1102664, 1102665, 1102667, 1102668, 1102669, 1102670, 1102671, 1102672, 1102673, 1102674, 1102677, 1102678, 1102679, 1102680, 1102688, 1102691, 1102692, 1102693, 1102694, 1102697, 1102701, 1102708, 1102709, 1102712, 1102713, 1102714, 1102716, 1102718, 1102721, 1102722, 1102723, 1102724, 1102726, 1102730, 1102731, 1102732, 1102736, 1102738, 1102739, 1102741, 1102743, 1102746, 1102748, 1102751, 1102752, 1102754, 1102757, 1102761, 1102774, 1102776, 1102777, 1102799, 1102819, 1102976, 1102981, 1102985, 1102987, 1102996, 1103000, 1105851, 1105854, 1105855
Model Breaks: 1100021 (35 AMPS, Clockwise Rotation, 6 VOLT),1100323 (25 AMPS, Clockwise Rotation, 12 VOLT),1101866 (8 AMPS, Clockwise Rotation, 12 VOLT),1102113 (30 AMPS, Clockwise Rotation, 12 VOLT),1102661 (30 AMPS, Clockwise Rotation, 6 VOLT),1102662 (30 AMPS, Clockwise Rotation, 6 VOLT),1102663 (30 AMPS, Clockwise Rotation, 6 VOLT),1102664 (30 AMPS, Clockwise Rotation, 6 VOLT),1102665 (30 AMPS, Clockwise Rotation, 6 VOLT),1102667 (30 AMPS, Clockwise Rotation, 6 VOLT),1102668 (30 AMPS, Clockwise Rotation, 6 VOLT),1102669 (30 AMPS, Clockwise Rotation, 6 VOLT),1102670 (30 AMPS, Clockwise Rotation, 6 VOLT),1102671 (30 AMPS, Clockwise Rotation, 6 VOLT),1102672 (30 AMPS, Clockwise Rotation, 6 VOLT),1102673 (30 AMPS, Clockwise Rotation, 6 VOLT),1102674 (30 AMPS, Clockwise Rotation, 6 VOLT),1102677 (25 AMPS, Clockwise Rotation, 6 VOLT),1102678 (30 AMPS, Clockwise Rotation, 6 VOLT),1102679 (30 AMPS, Clockwise Rotation, 6 VOLT),1102680 (30 AMPS, Clockwise Rotation, 6 VOLT),1102688 (25 AMPS, Clockwise Rotation, 6 VOLT),1102691 (30 AMPS, Clockwise Rotation, 6 VOLT),1102692 (30 AMPS, Clockwise Rotation, 6 VOLT),1102693 (30 AMPS, Clockwise Rotation, 6 VOLT),1102694 (30 AMPS, Clockwise Rotation, 6 VOLT),1102697 (30 AMPS, Clockwise Rotation, 6 VOLT),1102701 (30 AMPS, Clockwise Rotation, 6 VOLT),1102708 (40 AMPS, Clockwise Rotation, 6 VOLT),1102709 (40 AMPS, Clockwise Rotation, 6 VOLT),1102712 (30 AMPS, Clockwise Rotation, 6 VOLT),1102713 (30 AMPS, Clockwise Rotation, 6 VOLT),1102714 (30 AMPS, Clockwise Rotation, 6 VOLT),1102716 (30 AMPS, Clockwise Rotation, 6 VOLT),1102718 (40 AMPS, Clockwise Rotation, 6 VOLT),1102721 (30 AMPS, Clockwise Rotation, 6 VOLT),1102722 (30 AMPS, Clockwise Rotation, 6 VOLT),1102723 (30 AMPS, Clockwise Rotation, 6 VOLT),1102724 (30 AMPS, Clockwise Rotation, 6 VOLT),1102726 (25 AMPS, Clockwise Rotation, 6 VOLT),1102730 (30 AMPS, Clockwise Rotation, 6 VOLT),1102731 (45 AMPS, Clockwise Rotation, 6 VOLT),1102732 (30 AMPS, Clockwise Rotation, 6 VOLT),1102736 (30 AMPS, Clockwise Rotation, 6 VOLT),1102738 (30 AMPS, Clockwise Rotation, 6 VOLT),1102739 (30 AMPS, Clockwise Rotation, 6 VOLT),1102741 (40 AMPS, Clockwise Rotation, 6 VOLT),1102743 (30 AMPS, Clockwise Rotation, 6 VOLT),1102746 (40 AMPS, Clockwise Rotation, 6 VOLT),1102748 (40 AMPS, Clockwise Rotation, 6 VOLT),1102751 (30 AMPS, Clockwise Rotation, 6 VOLT),1102752 (40 AMPS, Clockwise Rotation, 6 VOLT),1102754 (40 AMPS, Clockwise Rotation, 6 VOLT),1102757 (40 AMPS, Clockwise Rotation, 6 VOLT),1102761 (30 AMPS, Clockwise Rotation, 6 VOLT),1102774 (45 AMPS, Clockwise Rotation, 6 VOLT),1102776 (30 AMPS, Clockwise Rotation, 6 VOLT),1102777 (45 AMPS, Clockwise Rotation, 6 VOLT),1102799 (18 AMPS, Clockwise Rotation, 6 VOLT),1102819 (30 AMPS, Clockwise Rotation, 6 VOLT),1102976 (20 AMPS, Clockwise Rotation, 12 VOLT),1102981 (20 AMPS, Clockwise Rotation, 12 VOLT),1102985 (20 AMPS, Clockwise Rotation, 12 VOLT),1102987 (20 AMPS, Clockwise Rotation, 12 VOLT),1102996 (20 AMPS, Clockwise Rotation, 12 VOLT),1103000 (20 AMPS, Clockwise Rotation, 12 VOLT),1105851 (40 AMPS, Clockwise Rotation, 6 VOLT),1105854 (25 AMPS, Clockwise Rotation, 6 VOLT),1105855 (25 AMPS, Clockwise Rotation, 6 VOLT)
Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705
Models This Part Fits:
1102751, 1102674, 1105854, 1102985, 1102714, 1102718, 1102754, 1102693, 1102724, 1102757, 1102716, 1102799, 1103000, 1102664, 1102722, 1102688, 1102987, 1102774, 1102670, 1102694, 1102776, 1102671, 1101866, 1102663, 1102662, 1105855, 1102697, 1102732, 1102996, 1102680, 1102819, 1100021, 1102679, 1102709, 1102113, 1102665, 1102701, 1102981, 1102743, 1102736, 1102691, 1102726, 1102746, 1102713, 1102672, 1102738, 1105851, 1102741, 1102673, 1102661, 1102708, 1102667, 1102677, 1102721, 1102723, 1102730, 1102752, 1102976, 1102731, 1102777, 1102669, 1102748, 1102692, 1102678, 1102712, 1102668, 1102739, 1100323, 1102761Additional Information:
(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version): Inner Diameter: 0.669" (17mm) Outer Diameter: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (2) Generator Brush: Height: 0.256" (6.500 mm) Lead Length: 1.720" (43.700mm) Length: 0.925" (23.500 mm) Width: 0.866" (22 mm) Replaces Part Numbers: 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58Reference Numbers:
1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705Makes This Part Fits:
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
