One New Aftermarket Replacement Bearing Cup Fits Case (Fits Case/IH) Crawlers and Dozers

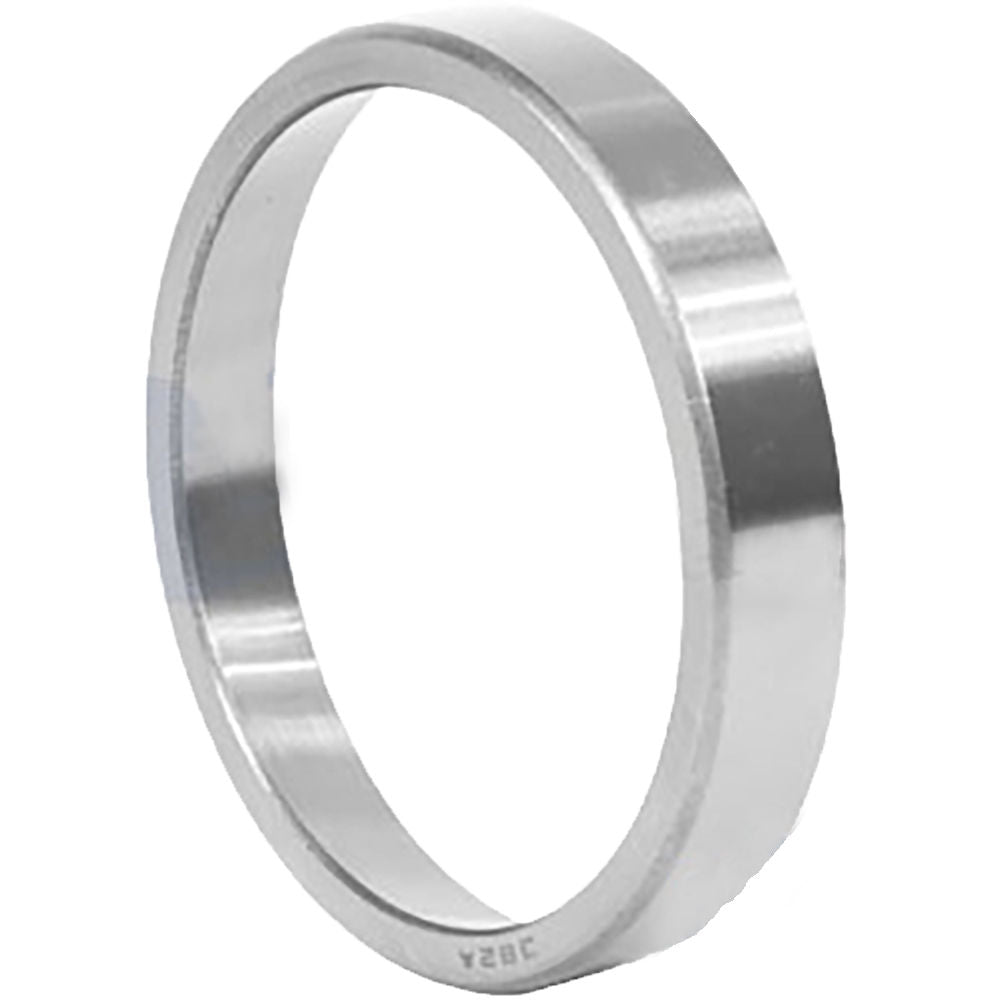

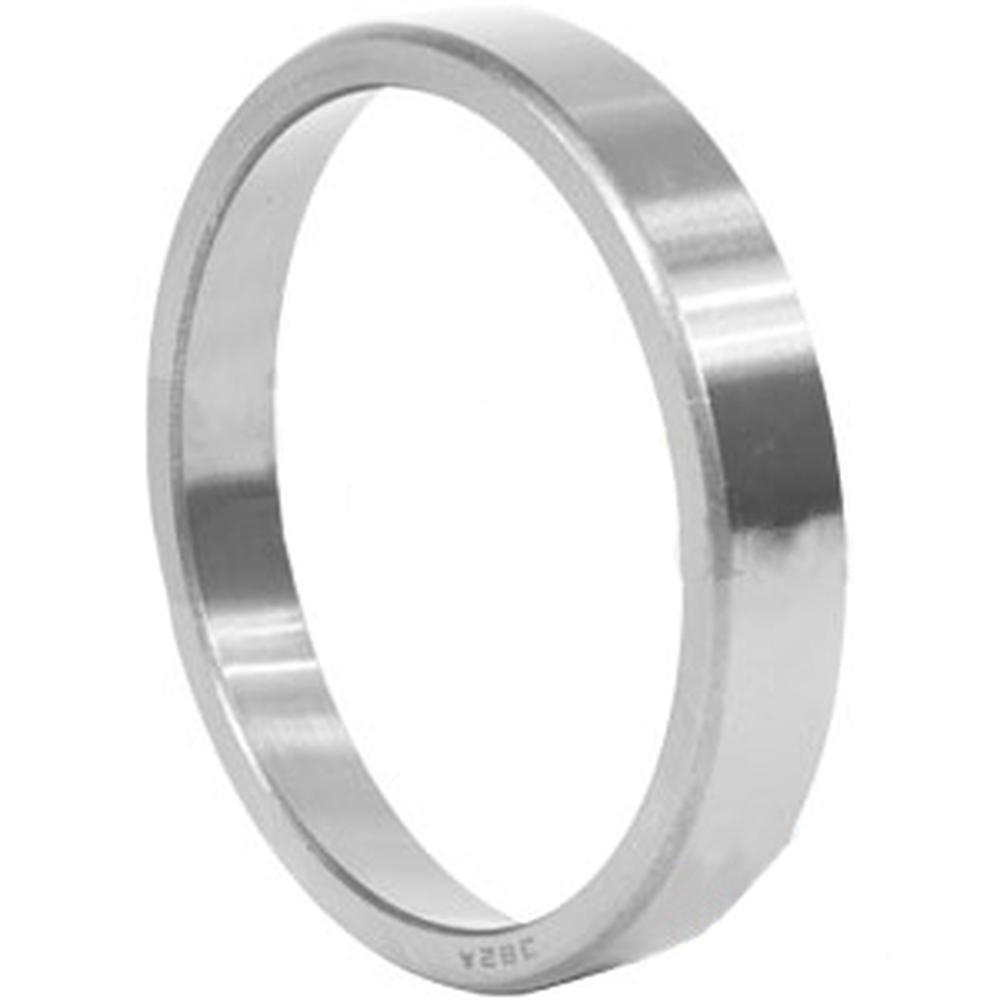

This tapered roller bearing cup (outer ring) fits the final drive assembly on Fits Case 450C and 455C machines - standard gauge models only. Does NOT fit LGP (Low Ground Pressure) models. The bearing cup works with the 382A tapered roller bearing set and is used in the final drive housing. Each machine requires 2 of this bearing cup (Drawing Ref #13 on the Fits Case 450C/455C final drive diagram).

Specifications

• Outer Diameter: 3.8125 in. (96.838 mm / approx. 96.85 mm)
• Width: 0.6250 in. (15.875 mm / approx. 15.77 mm)
• Standout/Chamfer: 0.03 in. (0.8 mm)
• Bore/Inner Shoulder: 0.8268 in. (21.000 mm)
• Bearing Series: Timken 382A tapered roller bearing cup
• Quantity Required Per Machine: 2

Compatible Models

Fits Case Crawlers/Dozers (Non-LGP only): 450C, 455C, 55

Replaces Part Number(s):

105497H, 114523H, 1500910C1, 15845, 167717C1, 207234H1, 2724629R1, 384350R1, 388533R1, 388533R91, 392689R1, 826925C1, 890132H1, 91674C1, 970801C1, 984363C1, A50179, 7H4566, 70048313, 70212037, 73010578, 010578, 0212037, 10578, 212037, 3010578, 382A-TIM, 7425, 913-382A, 851-IM382A

Aftermarket Interchange Numbers

Timken 382A; also cross-references to IH/Fits International Harvester, Fits Allis Chalmers, Fits Caterpillar, and Fits Ford/New Holland applications via shared bearing dimensions.

New aftermarket replacement part - not remanufactured, not used.
