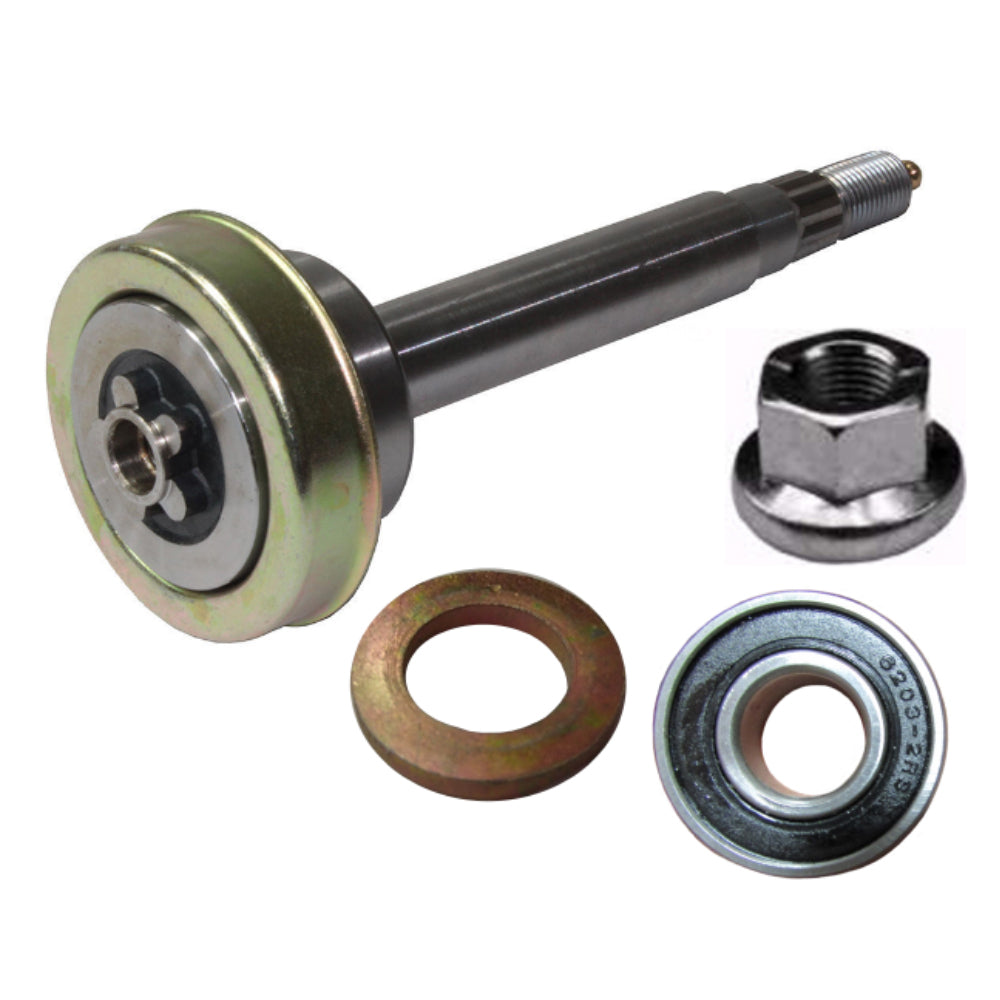

110485X Spindle Shaft w/ Pilot Bearing, Nut & Washer Fits AYP
110485X Spindle Shaft w/ Pilot Bearing, Nut & Washer Fits AYP
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Spindle Shaft w/ Pilot Bearing, Nut & WasherTech Info:
-Set Contains:
-
-(1) Spindle Washer
-I.D.: 11/16"
-O.D.: 1-1/8"
-Thickness: 5/32"
-Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053
-
-(1) Pulley Lock Nut
-Thread Length: 9/16"-18
-OD: 1-1/4"
-Thickness: 3/4"
-Type: Flange
-Hex: 7/8"
-Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801
-
-(1) Spindle Shaft
-Approx. 7-1/2" Length
-5 Point Star Center Hole
-Fits 46", 48" and 54" Decks
-Replaces Part Number(s): 532187291, 532192872, 192872
-
-(1) Pilot Bearing
-Has rubber seals on both sides of bearing
-I.D.: 21/32"
-Height: 15/32"
-O.D.: 1-9/16"
-Replaces Part Number(s): 110485X, 532110485, 532 11 04-85, 5853239-01Fits AYP:
Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053, 137266, 139729, 178342, 400234, 532137266, 532139729, 532187291, 532192872, 192872, 110485X, 532110485, 532 11 04-85, 5853239-01
-Set Contains:
-
-(1) Spindle Washer
-I.D.: 11/16"
-O.D.: 1-1/8"
-Thickness: 5/32"
-Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053
-
-(1) Pulley Lock Nut
-Thread Length: 9/16"-18
-OD: 1-1/4"
-Thickness: 3/4"
-Type: Flange
-Hex: 7/8"
-Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801
-
-(1) Spindle Shaft
-Approx. 7-1/2" Length
-5 Point Star Center Hole
-Fits 46", 48" and 54" Decks
-Replaces Part Number(s): 532187291, 532192872, 192872
-
-(1) Pilot Bearing
-Has rubber seals on both sides of bearing
-I.D.: 21/32"
-Height: 15/32"
-O.D.: 1-9/16"
-Replaces Part Number(s): 110485X, 532110485, 532 11 04-85, 5853239-01Fits AYP:
Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053, 137266, 139729, 178342, 400234, 532137266, 532139729, 532187291, 532192872, 192872, 110485X, 532110485, 532 11 04-85, 5853239-01
Models This Part Fits:
187291, 192872, 532187291Additional Information:
Set Contains: (1) Spindle Washer I.D.: 11/16" O.D.: 1-1/8" Thickness: 5/32" Replaces Part Number(s): 532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053 (1) Pulley Lock Nut Thread Length: 9/16"-18 OD: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Number(s): 137266, 139729, 178342, 400234, 532137266, 532139729, 73040900, 73050900, 532400234, 596134801 (1) Spindle Shaft Approx. 7-1/2" Length 5 Point Star Center Hole Fits 46", 48" and 54" Decks Replaces Part Number(s): 532187291, 532192872, 192872 (1) Pilot Bearing Has rubber seals on both sides of bearing I.D.: 21/32" Height: 15/32" O.D.: 1-9/16" Replaces Part Number(s): 110485X, 532110485, 532 11 04-85, 5853239-01Reference Numbers:
532187690, 129963, 171245, 532129963, 187690, 539107520, 129963X053, 137266, 139729, 178342, 400234, 532137266, 532139729, 532187291, 532192872, 192872, 110485X, 532110485, 532 11 04-85, 5853239-01Makes This Part Fits:
Shop Ayp Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
