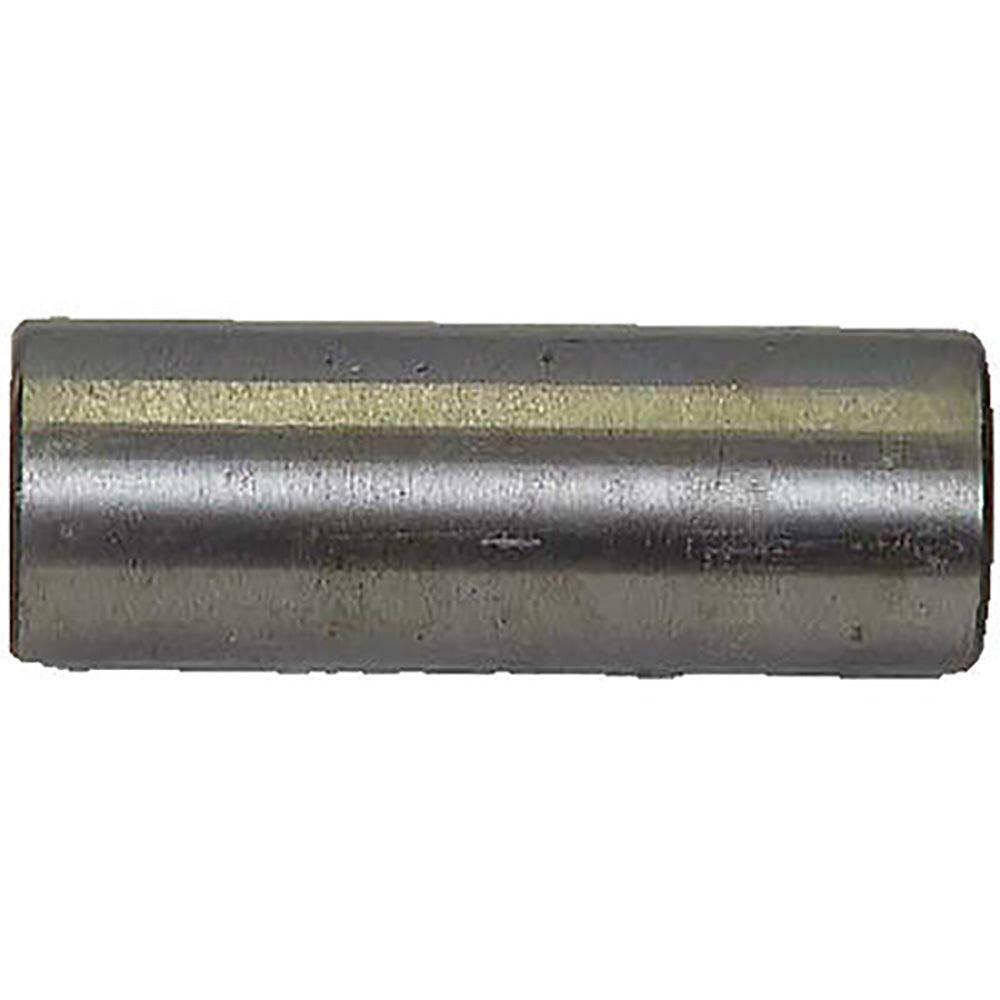

124-5741 Pin Angle Cylinder to C-Frame Fits CAT D4H, D5M, D5H, D6M, D6N

124-5741 Pin Angle Cylinder to C-Frame Fits CAT D4H, D5M, D5H, D6M, D6N

AIC Replacement Parts - FEDEX2DAY


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Angle Cylinder Linkage Pin Fits Caterpillar (Fits CAT) Dozers

This aftermarket replacement linkage pin connects the angle cylinder tube end to the C-frame on Fits Caterpillar power angling dozer blades. It is a straight, hard chrome-plated steel pin that provides secure and precise positioning within C-frame assemblies for power angling systems. Diameter: 1.73 in. (44mm), Length: 4.84 in. (123mm).

Specifications

  • Diameter: 1.73 in. (44mm)
  • Length: 4.84 in. (123mm)
  • Position: Angle Cylinder Tube End to C-Frame
  • Material: Steel, hard chrome plated

Compatible Models

Fits Caterpillar D4H Series: D4H, D4H XL, D4H LGP

Fits Caterpillar D5H Series: D5H, D5H XL, D5H LGP

Fits Caterpillar D5M Series: D5M, D5M XL, D5M LGP

Fits Caterpillar D6M Series: D6M, D6M XL, D6M LGP

Fits Caterpillar D6N Series: D6N, D6N XL, D6N LGP

Replaces Part Number(s):

1245741, 124-5741

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

CBL, Z2N, AKD, JPH, EL7, Z2K, NCF, NJN, Z6A, ST6, ALH, D6K (6S6, RKR, SGG, RPR, GB6, JAH, CCS, DJA, NKW, H3C, CCK, D5R2 (WDZ, D5R (D5L, NKX, JTR, 4GS, MG5, FBH), LJR, K3G), 4JN, STT, 5WR, MTT, RLT, AKM, KTA, CBF, DHA, GHS, D5X), KML, 2YS, WRE), P5T, D4 (AX9, 5ES, ALR, 5FS, 9ZM, D6M (2RN, CBJ, 6GN, MXK, D6K2 (7PS, D5N ( AGG, HMG, D5M (4JS, 3DR, MGM, RG9, PBA, P5W, ZDA), 4BR, DFR, KWM, 4HS, CFH, WMR), 6LR), PER), FRP, S4A, D5 (HL9, 3WN, 3CR, DJY, 5NR, ZLJ, 6AS), RST, CCG, D6N (MLW, CKT), MP7, ALY, EJK

Additional Information:

Provides Secure and Precise Positioning Within C-Frame Assemblies for Power Angling Systems Diameter: 1.73" Length: 4.84" Linkage Pin

Reference Numbers:

1245741, 124-5741

Makes This Part Fits:

Shop Caterpillar Wholesale Parts

Product Category:

Construction Replacement Parts

Product Group:

Product Sub Group:
