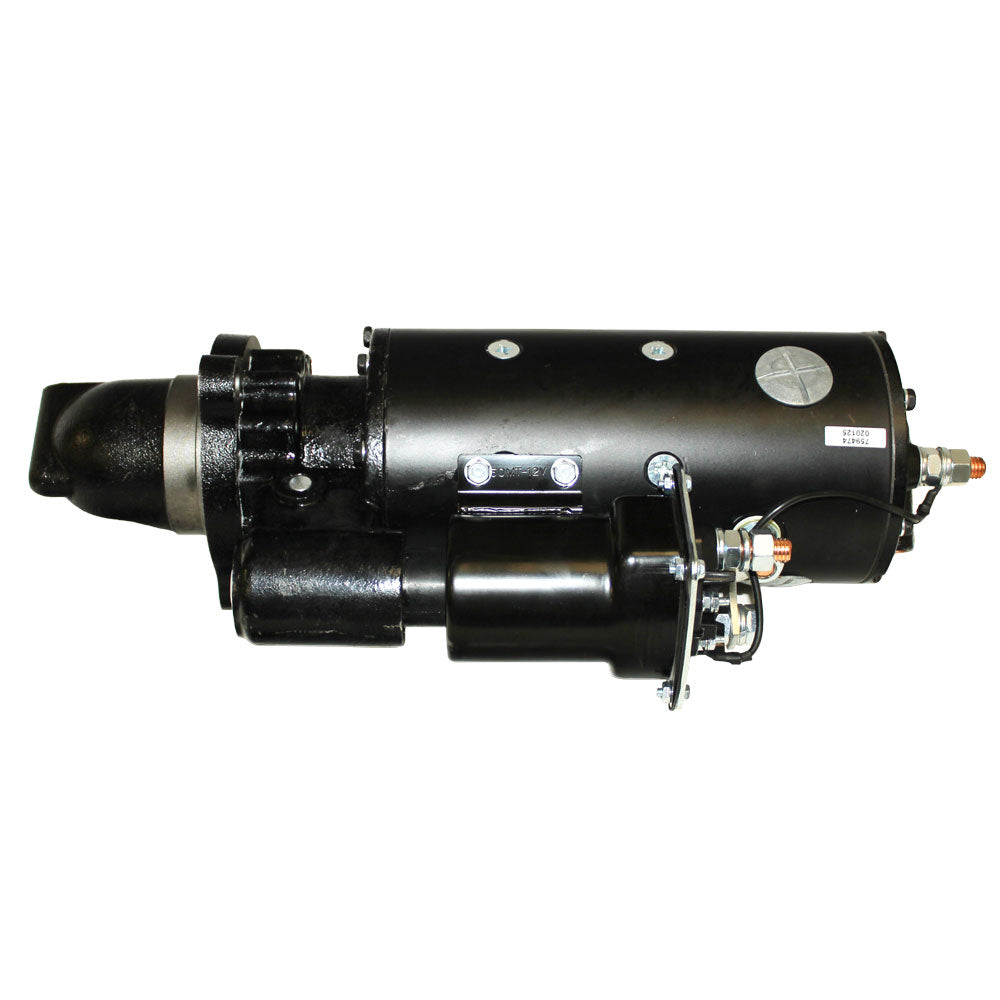

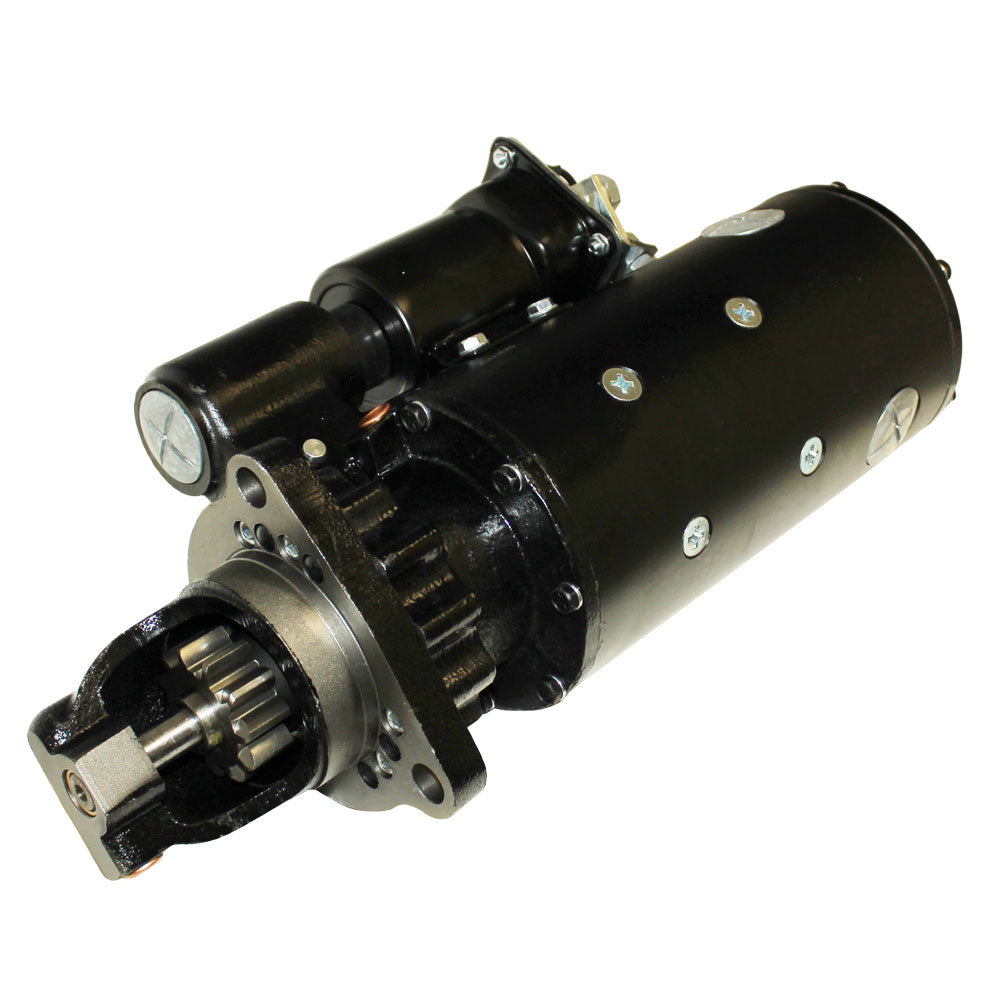

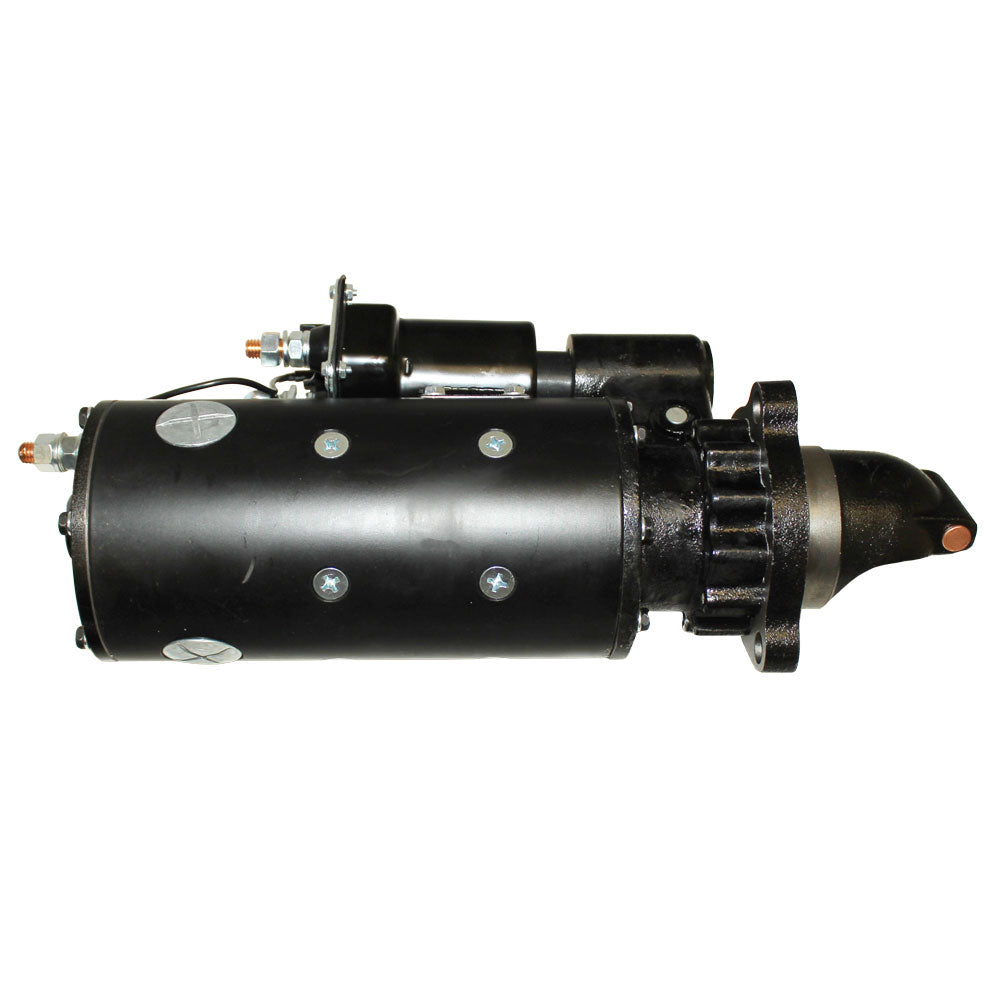

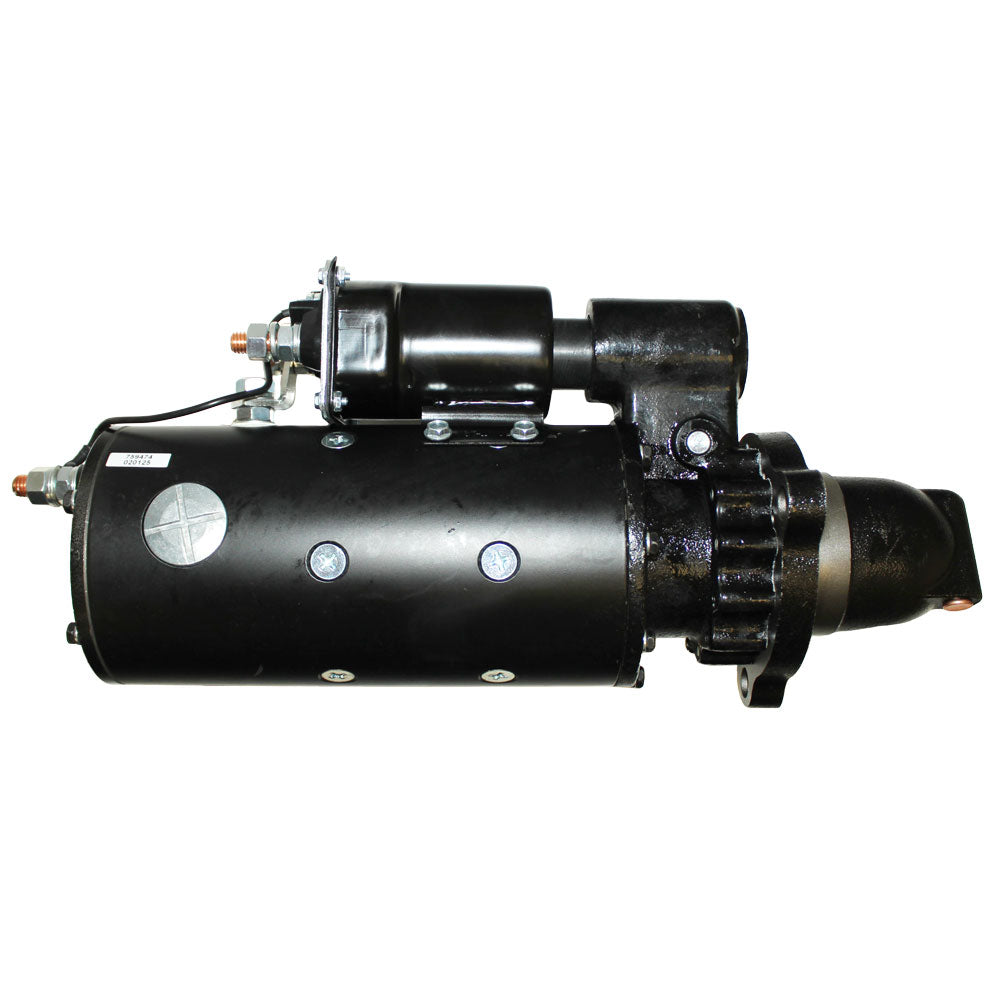

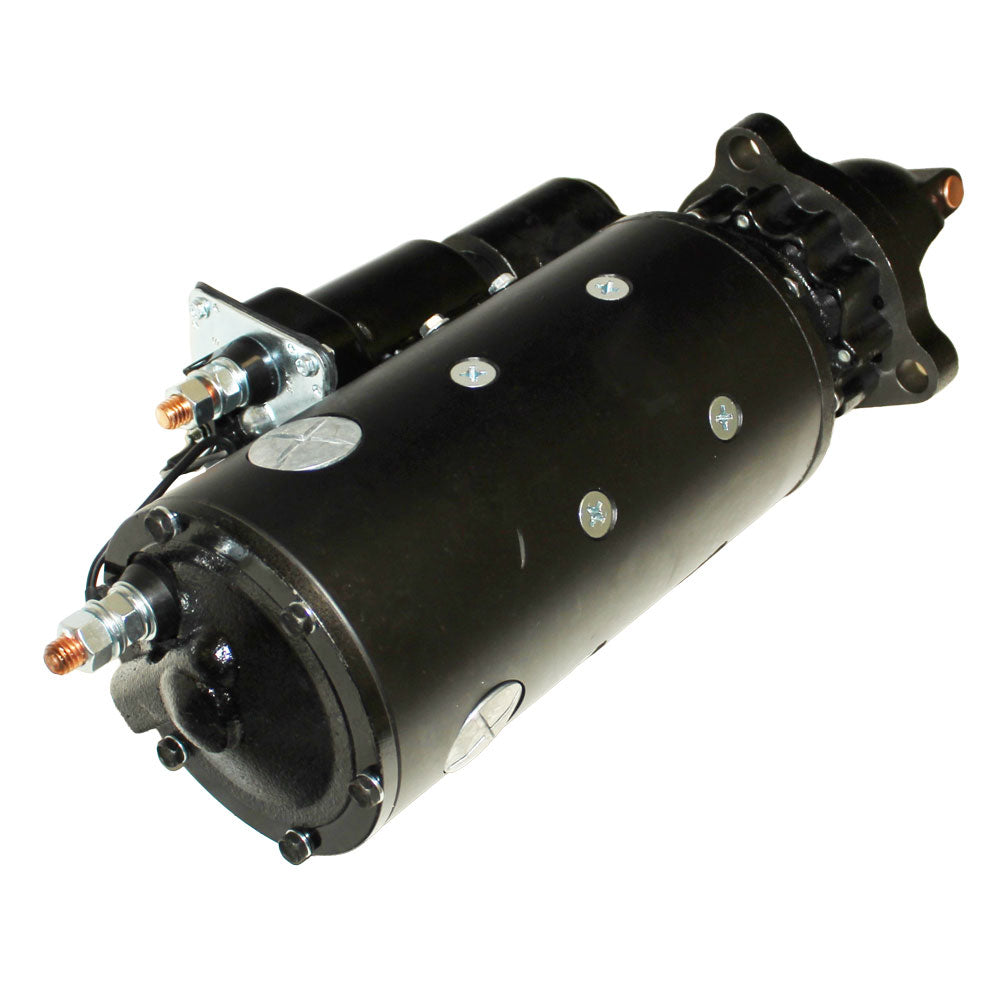

12V CW Starter Fits GMC, Chevrolet, Mack, Freightliner, Volvo, Ford 410-12555

12V CW Starter Fits GMC, Chevrolet, Mack, Freightliner, Volvo, Ford 410-12555



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


New Aftermarket Starter

Tech Info:
Volt - 12
Power - 8.500 kw
HP - 11.399
Rotation Direction - Clockwise
Electric Starter Type - Direct Drive (DD)
Number of Teeth - 11
Gear OD - 2.201" (55.900mm)
Solenoid Position - 68
Length - 16.417" (417 mm)
Mount Hole ID 1 - 0.660"
Mount Hole 1 Type - Unthreaded
Mount Hole ID 2 - 0.660"
Mount Hole 2 Type - Unthreaded
Mount Hole 3 Type - Unthreaded
Semi Solid Link - TRUE
Standard Version, with Semi Solid Link
Solenoid Position - 68

Fits Chevrolet medium-duty trucks and chassis: 8.2L V8 Diesel Series
B-Series (School Bus): 1983 B60
C-Series (Conventional): 1983 C60, C70
P-Series (Step Van/Forward Control): 1983 P60
Bruin (J-Series): 1984–1988 J8C & J9C models (covers both Naturally Aspirated "N" and Turbocharged "T")

Fits Chevrolet heavy-duty Class 8 trucks: 8V-92T Diesel Series
Titan (D-Series): 1980–1988 D9K & D9L Titan
Bison (N-Series): 1980–1988 N9E & N9F Bison
Bruin (J-Series): 1983–1986 J8C & J9C Bruin

Fits Chevrolet/GMC heavy-duty "Class 8": 8V-92 (T) Series (1980–1988)
Titan (D9K / D9L): Full range 1980–1988.
Bison (N9E / N9F): Full range 1980–1988.
Bruin (J8C / J9C): 1983–1986.
General Fleet: All GMC/Chevrolet models explicitly labeled "Detroit Diesel Engines" from 1980–1988

Fits Chevrolet/GMC medium-to-heavy applications: 8.2L (N / T) Series (1984–1988)
Bruin (J8C / J9C): 1984–1988 (includes both Naturally Aspirated and Turbo versions)

Fits Ford  heavy-duty "9000 series" trucks: 3406 (14.6L L6) Series
CL-Series (Cabover): 1982 CL9000, CLT9000
L-Series (Conventional): 1982–1985 L9000, LN9000, LNT9000, LT9000, LTL9000, LTS9000

Fits Ford  heavy-duty conventional trucks: 8V-92 Series
L-Series: 1984–1988 (Commonly found in L9000 and LTL9000 chassis)

Fits Freightliner Engines: 3406 (14.6L): Classic, FLC 112/120 (1986–1992), 3176 (10.3L): Classic, FLC 112/120 (1990–1993), 8V-92 (V8 Two-Stroke): FLC 112/120 (1982–1993), Series 60 (11.1L / 12.7L): Classic, FLC 112/120, FLA086 (1986–1993), N14 (14.0L): Classic, FLC 112/120 (1986–1992), L-10 (10.0L): FLC 112/120 (1986–1992)

Fits GMC heavy-duty "Class 8" truck Engines: 8V-92 / 12.1L Series
Astro & General: 1981–1988
Brigadier: 1982–1984
Titan (D9K / D9L): 1980–1988
Bison (N9E / N9F): 1980–1988
Bruin (J8C / J9C): 1983–1986

Fits GMC medium-duty trucks and bus chassis: 8.2L "Fuel Pincher" Series
Medium-Duty Chassis (B6000, C6000, C7000, P6000): 1983
Bruin (J8C / J9C): 1984–1988
Brigadier: 1988

Fits Kenworth Engines: 10.0L / 10.8L (L-10 / M11): C500, K100, K100E, T450, T600A (1984–1994), 14.0L (N14 / NTC-855 / 855): C500, C540, C550, K100, K100E, L700, T400, T600A (1984–1994), 6V-92 (9.2L V6): C500, K100, L700 (1984–1985), 8V-92 / 12.1L (V8): C500, K100, K100E, L700 (1984–1990)

Fits Mack E7 Series (11.0L / 11.9L / 12.0L), E9 Series (16.4L V8), (9.8L)
Models: CL, DM, DMM, FDM, MR, RB, RD

Fits Peterbilt 8V-92 (12.1L V8) Series
Model 359 (Conventional): 1986–1987
Model 362 (Cabover): 1986–1988
General Fleet: All other Peterbilt models (including the 379 and 357) spec'd with this engine from 1986–1990

Fits Volvo N14 (14.0L L6) Series
Highway Series (VN, VNL, VNM): 1998–2002
Vocational/Legacy Series (ACL, WG, WI): 1996–2001
Short-Run/Specialty (WC, WH): 1996–1998

Fits Western Star Detroit Diesel Series
12.1L V8 (8V-92): 3800, 4800, 4900 (1981–1990)
Series 60 (11.1L / 12.7L): 3800, 4800, 4900 (1989–1999)
18.0L V8 (12V-71): 4800, 4900 (1982–1985)
Caterpillar Series
10.3L (3176 / C-10): 3800, 4800 (1989–1997)
14.6L (3406 Series): 4800, 4900 (1981–1984)
Cummins Series
10.0L (L-10): 3800, 4800, 4900 (1984–1998)
14.0L (N14 / NTC-855): 3800, 4800, 4900 (1985–2001)

Fits White Medium and Heavy Duty Truck Engines: 8V-92 (12.1L V8) Series
Models: WCL, WCM, WHL, WHS, WIM
Years: 1981–1984

Replaces Part Number(s): 410-12555, 3604680RX, E4HZ-11002-A, E4HZ-11002-B, SA750A, 10478877, 1109295, TS1613, 323-789, 10461056, 10478813, 1109295, 1109545, 1109554, 1109790, 1990261, 1990277, 1990298, 1993864, 1993968, 820013417

Interchange Numbers: AC DELCO 323-789
ARROWHEAD SDR0081, 410-12555
CUMMINS 3604680RX
DELCO10461056, 10478813, 1109295, 1109545, 1109554, 1109790, 1990261, 1990277, 1990298, 1993864, 1993968
FORD E4HZ-11002-A, E4HZ-11002-BJ & N410-12102, 410-12102R, 410-12555
LESTER 3905
MOTORCRAFT S A-750, SA-750A
WAI 2-2473-DR
WESTERN STAR 820013417

Models This Part Fits:

K100, K100E, 10.0L / 10.8L (L-10 / M11): C500, T600A (1984–1994), CLT9000 L-Series (Conventional): 1982–1985 L9000, (9.8L) Models: CL, 4900 (1985–2001), DMM, 4900 (1981–1990); Series 60 (11.1L / 12.7L): 3800, WCM, WIM (1981–1984), E9 Series (16.4L V8), P6000): 1983 Bruin (J8C / J9C): 1984–1988 Brigadier: 1988; 8V-92 / 12.1L Series Astro & General: 1981–1988 Brigadier: 1982–1984 Titan (D9K / D9L): 1980–1988 Bison (N9E / N9F): 1980–1988 Bruin (J8C / J9C): 1983–1986, 12.1L V8 (8V-92): 3800, 4800 (1989–1997); 14.6L (3406 Series): 4800, 14.0L (N14 / NTC-855 / 855): C500, C7000, 8.2L V8 Diesel Series B-Series (School Bus): 1983 B60 C-Series (Conventional): 1983 C60, RB, C6000, 4900 (1982–1985); 10.3L (3176 / C-10): 3800, MR, L700, 6V-92 (9.2L V6): C500, N14 (14.0L L6) Series Highway Series (VN, VNL, WI): 1996–2001 Short-Run/Specialty (WC, WH): 1996–1998, T400, 3406 (14.6L L6) Series CL9000, 8V-92 (12.1L V8) Series: WCL, 4900 (1981–1984); 10.0L (L-10): 3800, WHS, 8.2L "Fuel Pincher" Series Medium-Duty Chassis (B6000, DM, RD, FDM, 4900 (1984–1998); 14.0L (N14 / NTC-855): 3800, LNT9000, LN9000, C550, T450, E7 Series (11.0L / 11.9L / 12.0L), C540, 4800, WHL, WG, 8V-92 / 12.1L (V8): C500, LTL9000, L700 (1984–1985), 4900 (1989–1999); 18.0L V8 (12V-71): 4800, LT9000, VNM): 1998–2002 Vocational/Legacy Series (ACL, L700 (1984–1990), LTS9000; 8V-92 Series L-Series: 1984–1988 (Commonly found in L9000 and LTL9000 chassis), C70 P-Series (Step Van/Forward Control): 1983 P60 Bruin (J-Series): 1984–1988 J8C & J9C models (covers both Naturally Aspirated "N" and Turbocharged "T"); 8V-92T Diesel Series Titan (D-Series): 1980–1988 D9K & D9L Titan Bison (N-Series): 1980–1988 N9E & N9F Bison Bruin (J-Series): 1983–1986 J8C & J9C Bruin; 8V-92 (T) Series (1980–1988) Titan (D9K / D9L): Full range 1980–1988. Bison (N9E / N9F): Full range 1980–1988. Bruin (J8C / J9C): 1983–1986. General Fleet: All GMC/Chevrolet models explicitly labeled "Detroit Diesel Engines" from 1980–1988; 8.2L (N / T) Series (1984–1988) Bruin (J8C / J9C): 1984–1988 (includes both Naturally Aspirated and Turbo versions), 8V-92 (12.1L V8) Series Model 359 (Conventional): 1986–1987 Model 362 (Cabover): 1986–1988 General Fleet: All other Peterbilt models (including the 379 and 357) spec'd with this engine from 1986–1990

Additional Information:

Volt - 12 Power - 8.500 kw HP - 11.399 Rotation Direction - Clockwise Electric Starter Type - Direct Drive (DD) Number of Teeth - 11 Gear OD - 2.201" (55.900mm) Solenoid Position - 68 Length - 16.417" (417 mm) Mount Hole ID 1 - 0.660" Mount Hole 1 Type - Unthreaded Mount Hole ID 2 - 0.660" Mount Hole 2 Type - Unthreaded Mount Hole 3 Type - Unthreaded Semi Solid Link - TRUE Standard Version, with Semi Solid Link Solenoid Position - 68 Starter

Reference Numbers:

SA-750, SA-750A, 3604680RX, 10461056, 10478813, 1109295, 1109545, 1109554, 1109790, 1990261, 1990277, 1990298, 1993864, 1993968, 323-789, E4HZ-11002-A, E4HZ-11002-B
