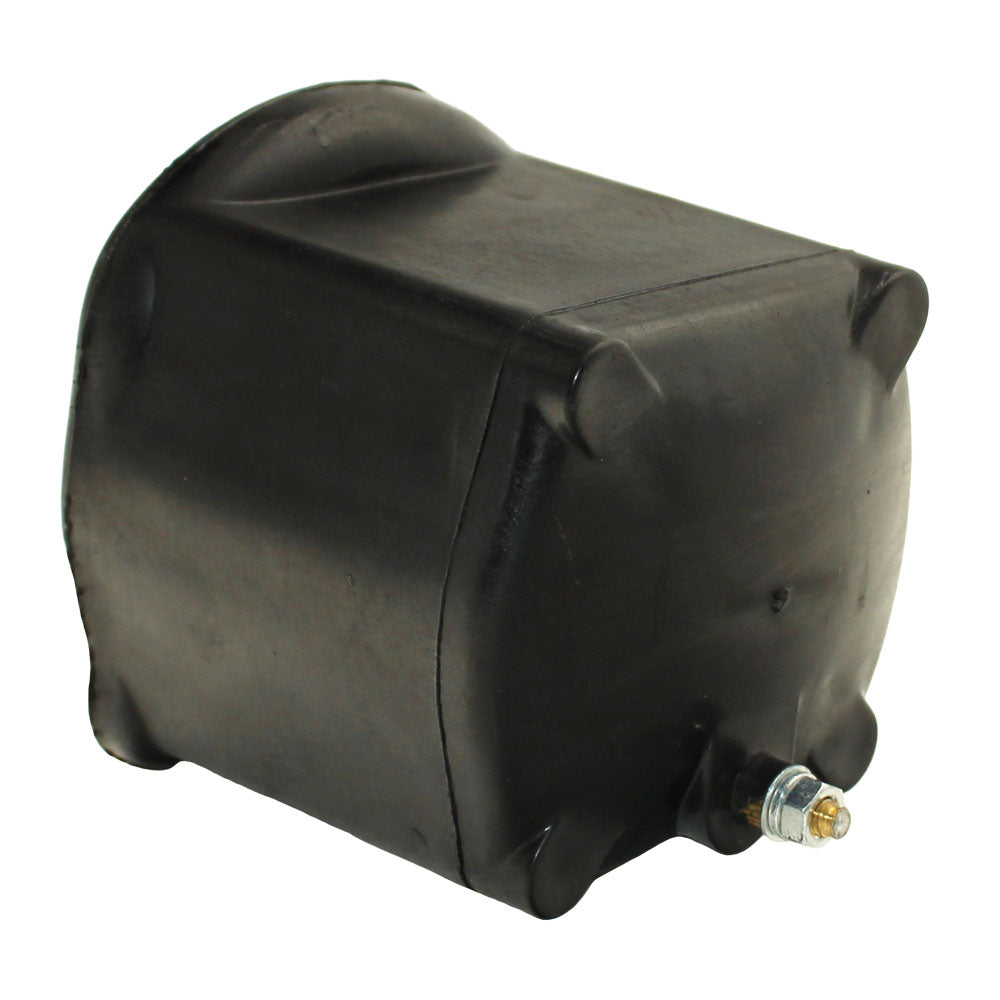

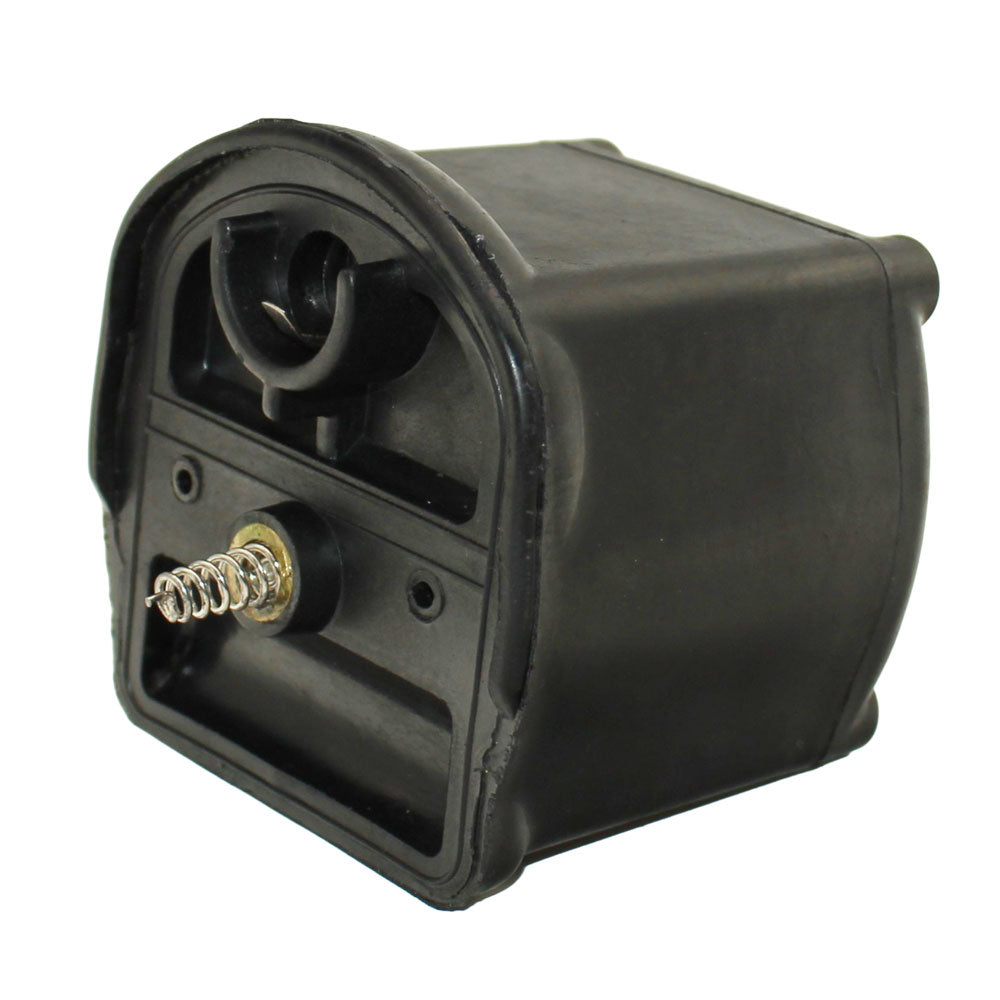

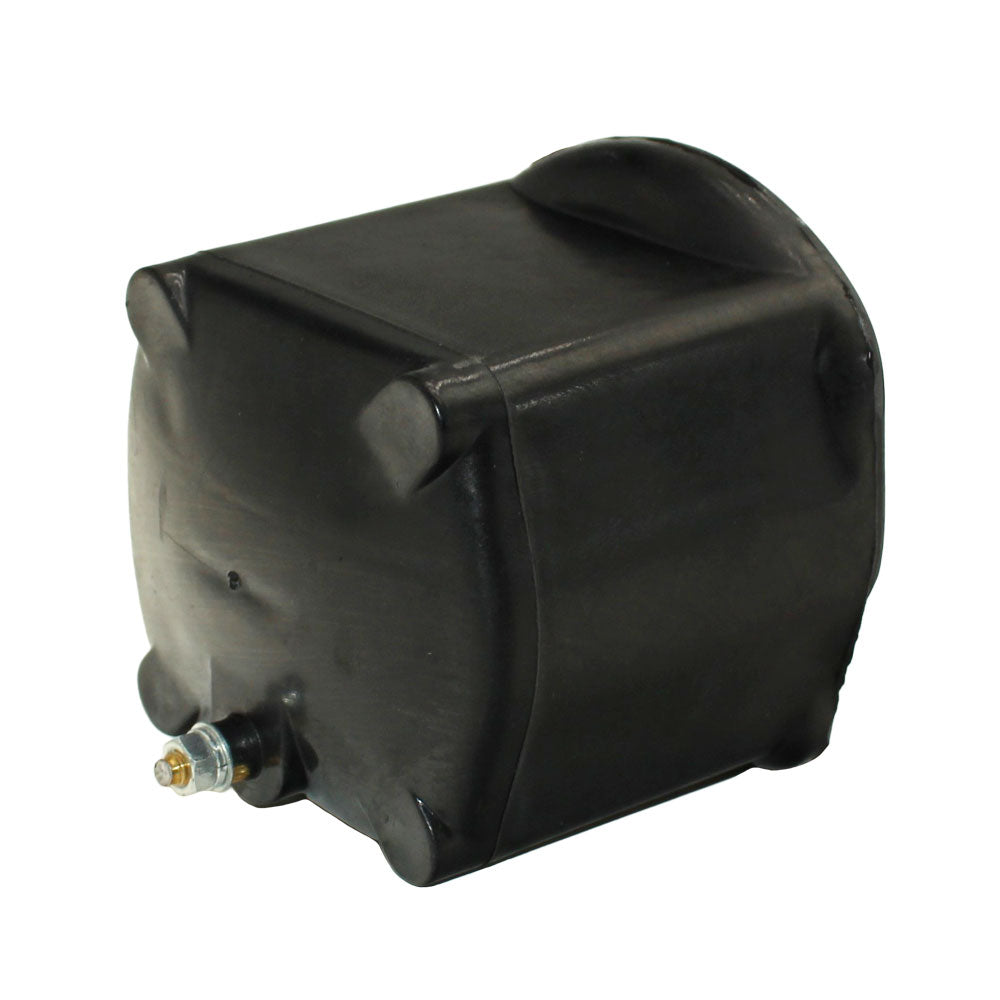

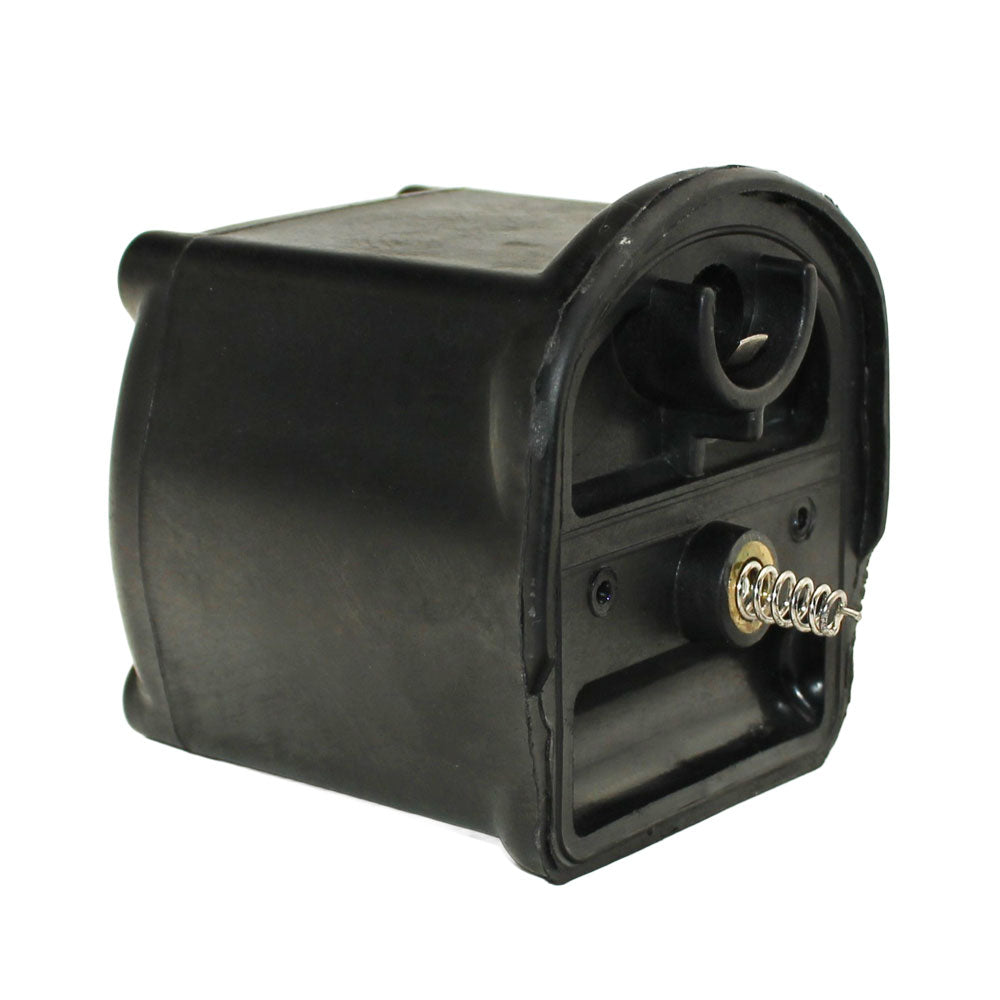

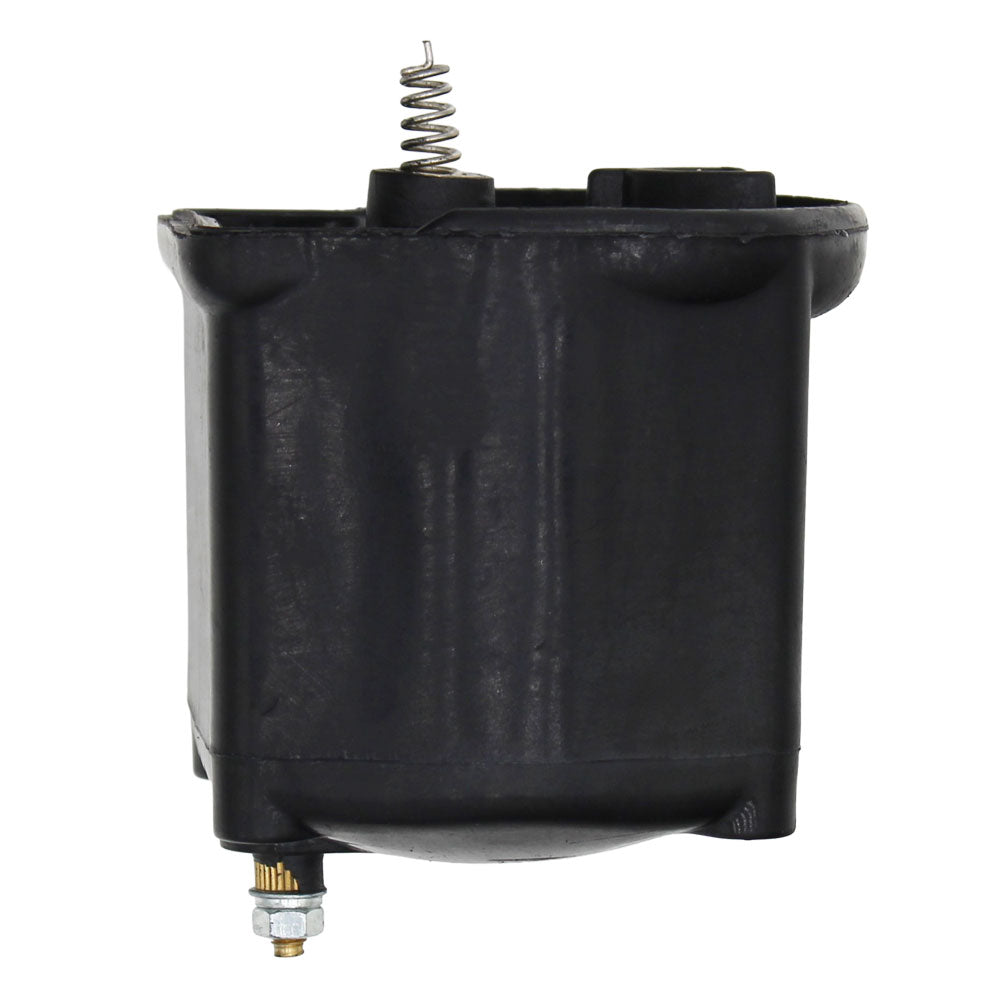

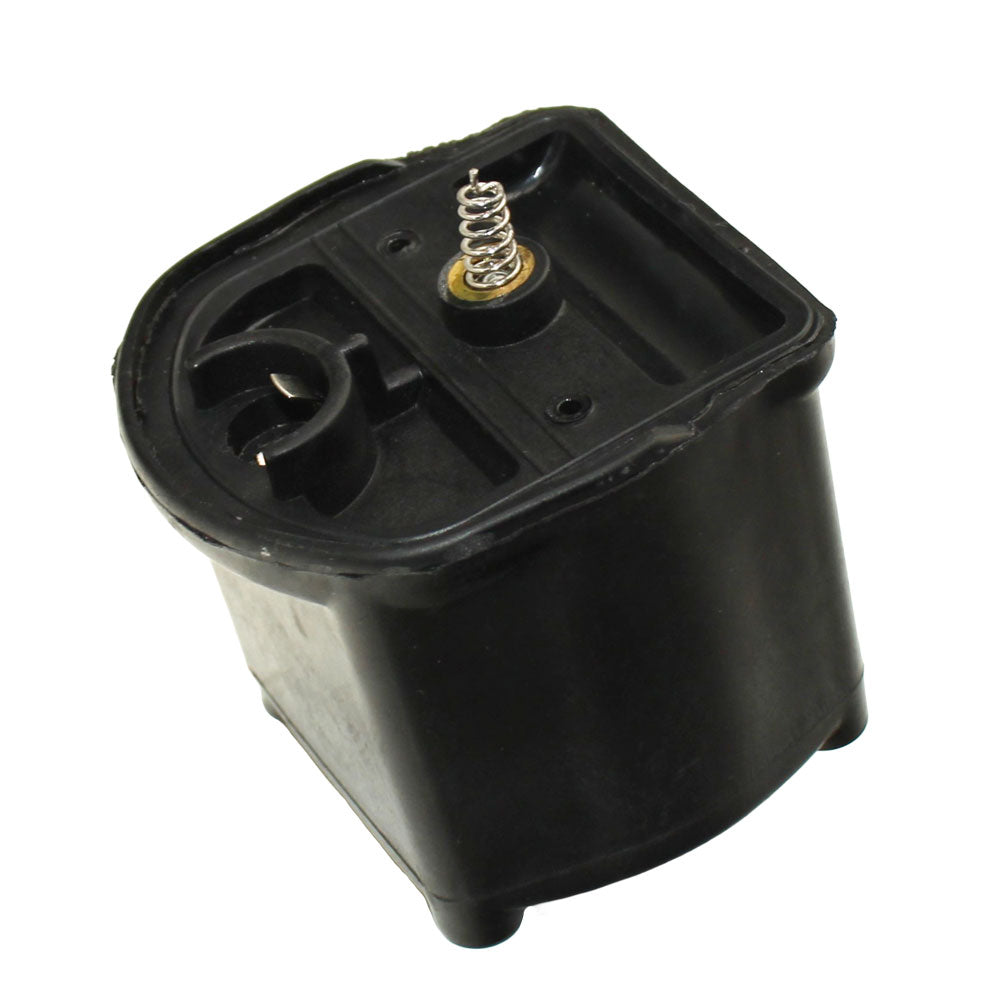

12V Ignition Coil Fits Ford Replaces 9N12024
12V Ignition Coil Fits Ford Replaces 9N12024
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket 12V Ignition CoilTech Info:
-2.4 Ohms Primary Resistance
-6.60 Kiloohms Secondary Resistance
-Amp Draw - 4.5 Amp Cold, Within 20 to 30 Seconds Drop to 4.0 Amps After Coil Is Warm
-
-For Tractors with Generator/alternator Mounted on the Right Side as Sitting in the Seat.
-For N-Series Tractors with Front Mount Distributor 1939-1950
-For Engines with Distributor Mounted Behind the Fan Blade (Clips to Top of Distributor)
-Note: Other Than the Factory Dash Mount Resistor FDS264, No Additional (External) Resistor Is Needed.
-Order ABC064 for the Mounting GasketsMade to Fit Ford:
Models: 9N, 2N
Replaces Part Number(s): 9N12024
Models: 8N
Model Breaks: up to SN: 263843
Replaces Part Number(s): 9N12024
-2.4 Ohms Primary Resistance
-6.60 Kiloohms Secondary Resistance
-Amp Draw - 4.5 Amp Cold, Within 20 to 30 Seconds Drop to 4.0 Amps After Coil Is Warm
-
-For Tractors with Generator/alternator Mounted on the Right Side as Sitting in the Seat.
-For N-Series Tractors with Front Mount Distributor 1939-1950
-For Engines with Distributor Mounted Behind the Fan Blade (Clips to Top of Distributor)
-Note: Other Than the Factory Dash Mount Resistor FDS264, No Additional (External) Resistor Is Needed.
-Order ABC064 for the Mounting GasketsMade to Fit Ford:
Models: 9N, 2N
Replaces Part Number(s): 9N12024
Models: 8N
Model Breaks: up to SN: 263843
Replaces Part Number(s): 9N12024
Models This Part Fits:
8N, 2N, 9NAdditional Information:
2.4 Ohms Primary Resistance 6.60 Kiloohms Secondary Resistance Amp Draw - 4.5 Amp Cold, Within 20 to 30 Seconds Drop to 4.0 Amps After Coil Is Warm For Tractors with Generator/alternator Mounted on the Right Side as Sitting in the Seat. For N-Series Tractors with Front Mount Distributor 1939-1950 For Engines with Distributor Mounted Behind the Fan Blade (Clips to Top of Distributor) Note: Other Than the Factory Dash Mount Resistor FDS264, No Additional (External) Resistor Is Needed. Order ABC064 for the Mounting Gaskets 12V Ignition CoilReference Numbers:
9N12024Makes This Part Fits:
