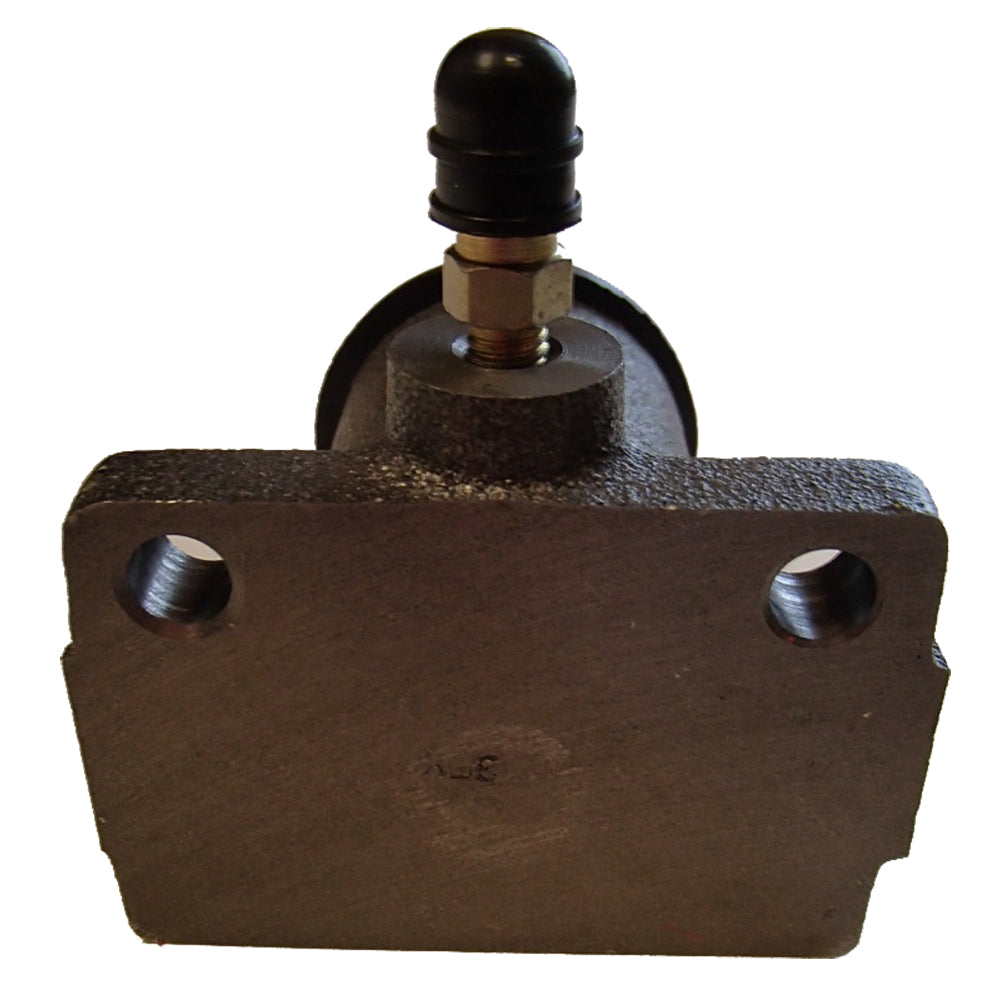

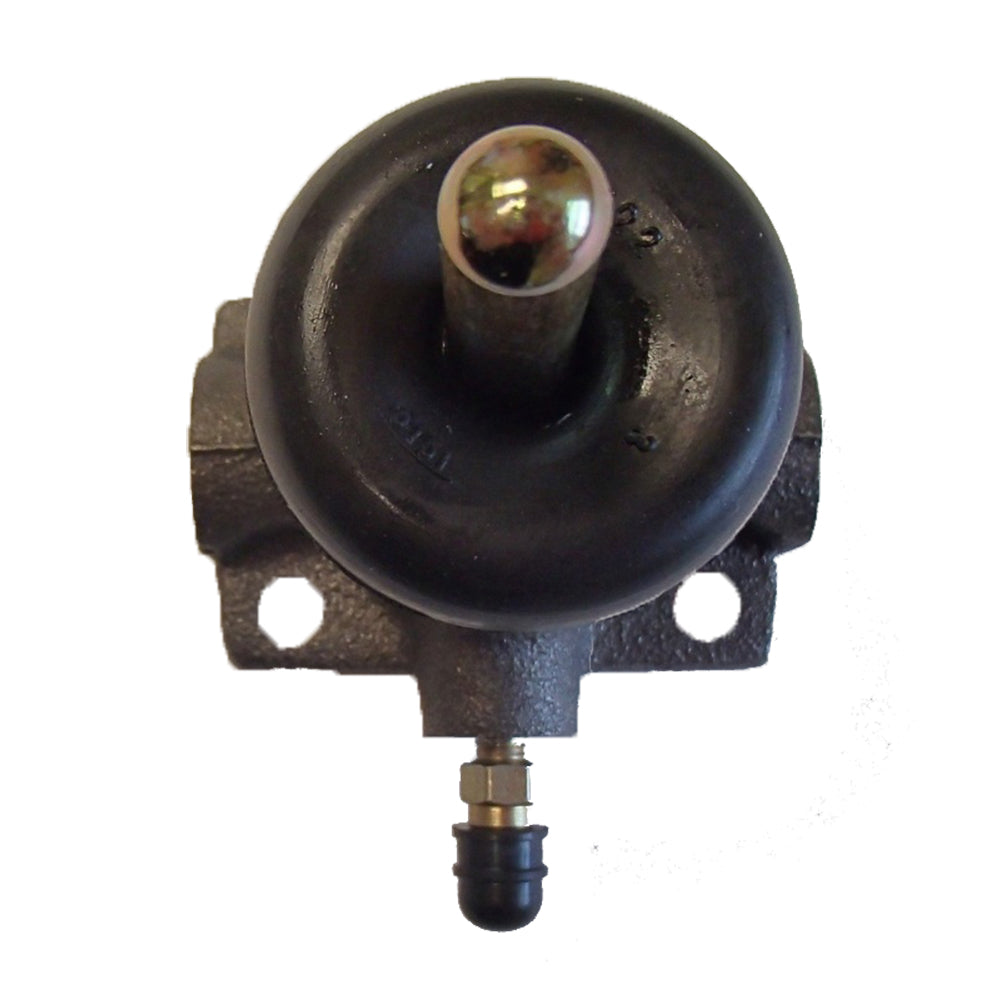

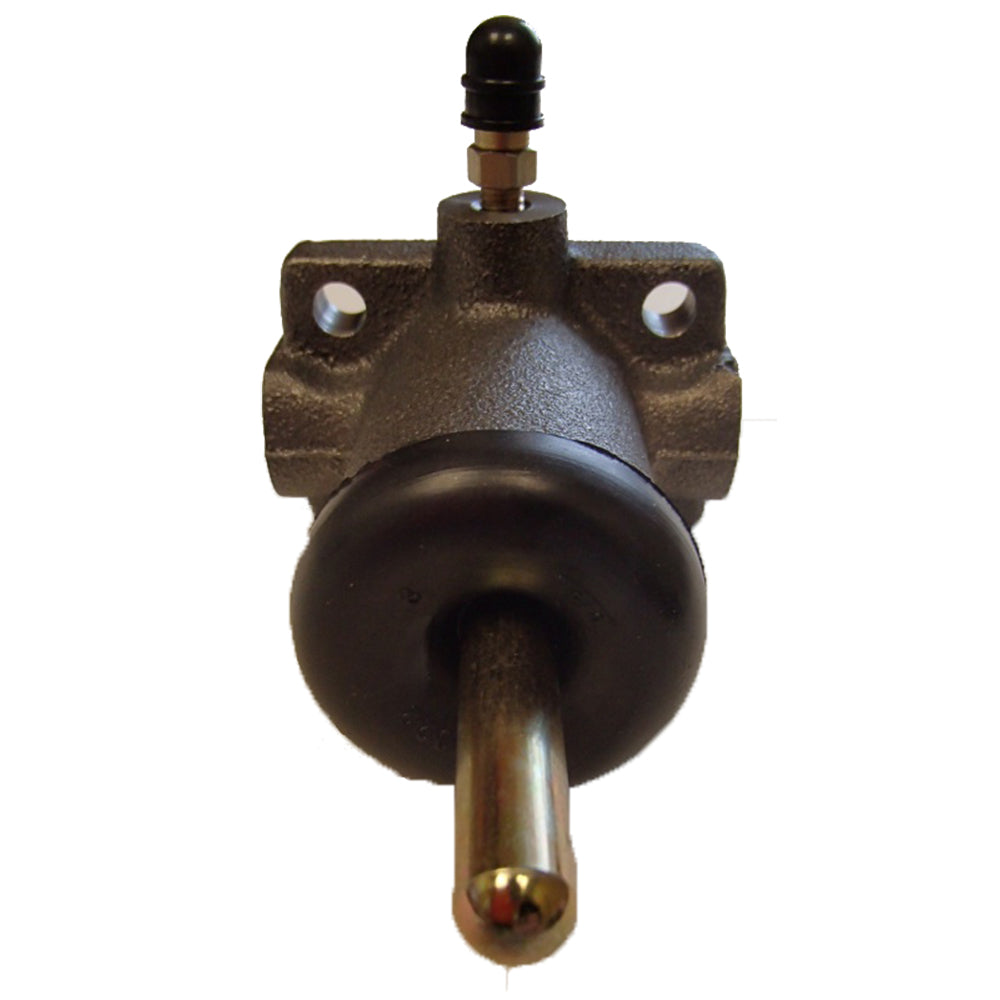

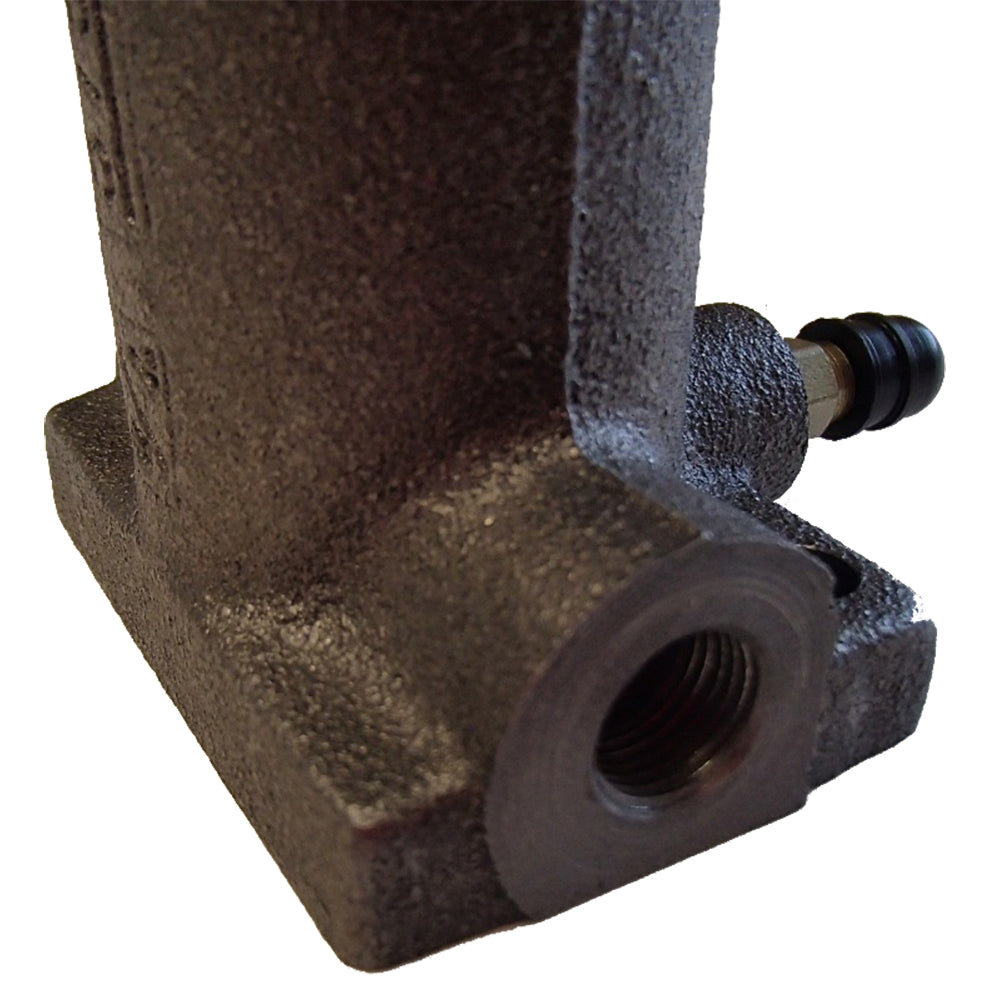

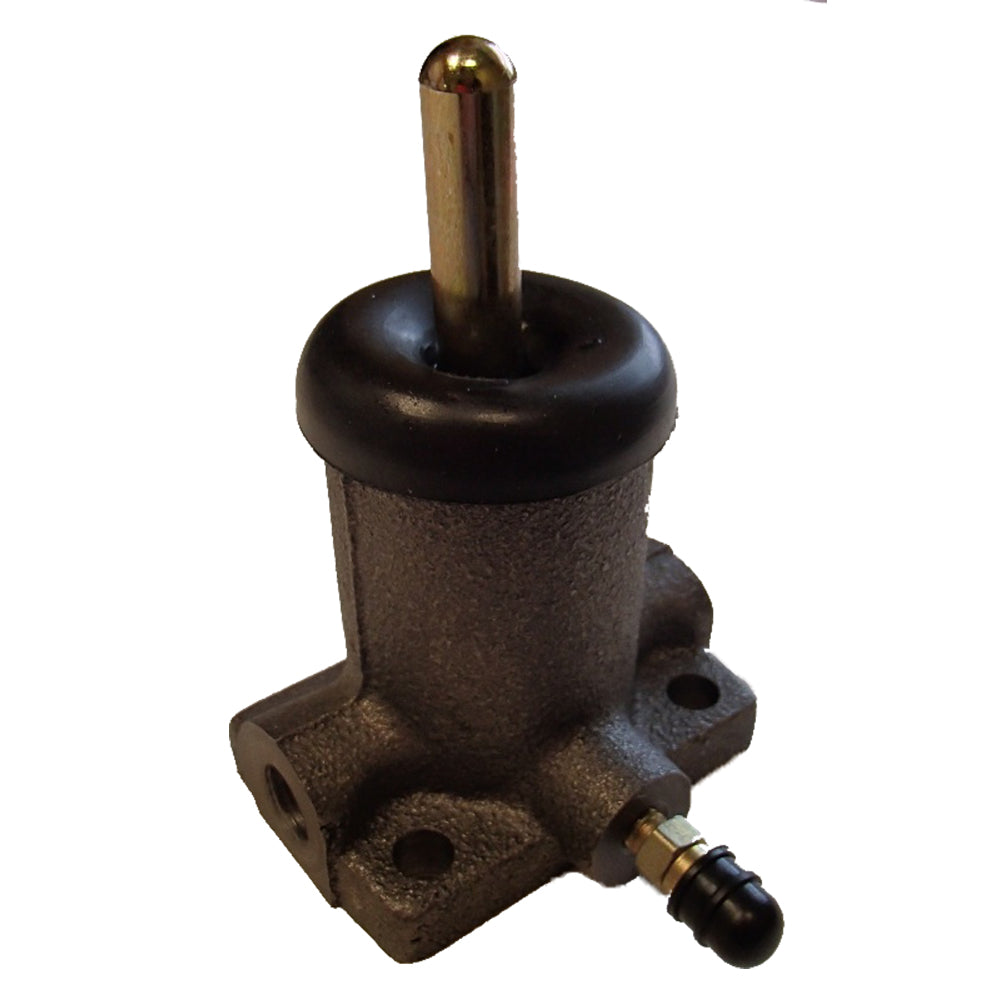

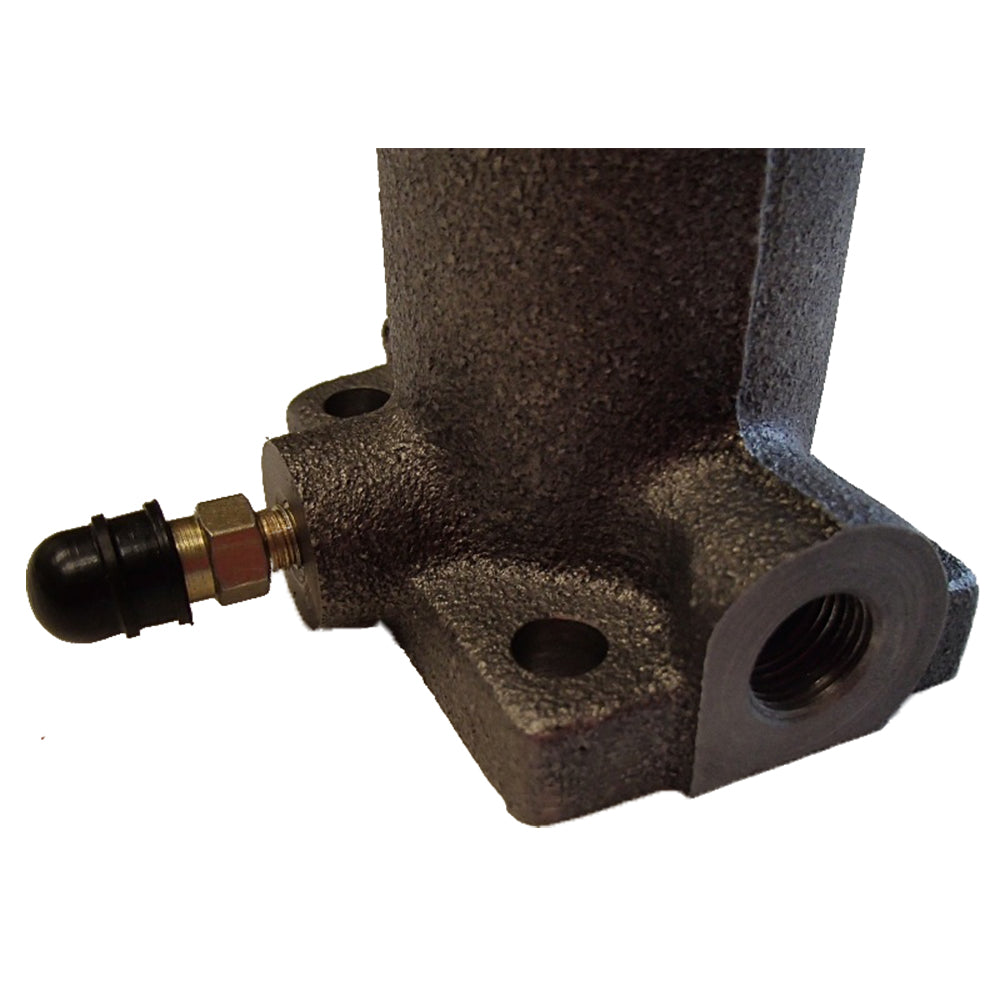

One New Aftermarket Replacement Brake Slave Cylinder Fits Case (Fits Case IH) Crawler Dozers, Backhoe Loaders, and Forklifts

This aftermarket replacement brake slave cylinder fits a wide range of Fits Case and Fits Case IH crawler dozers, backhoe loaders, and forklifts. The cylinder is part of the hydraulic brake system and actuates braking force at the wheel end. Important: Use DOT-approved brake fluid only. Do NOT use hydraulic oil or mineral oil -- doing so will damage the cylinder and void any warranty. Note: This cylinder does NOT include brake line plug part number 222-1062; reuse the original or source a replacement from Fits Case.

Specifications

• Bore Diameter: 7/8"
• Rod Length: 2-3/4"
• Mounting Hole Center-to-Center: 1-3/4"
• Mounting Hole Diameter: 1/4"

Compatible Models

Fits Case / Fits Case IH Crawler Dozers: 450C, 455C, 550, 650, 850B, 850C, 850D, 855C, 855D

Fits Case / Fits Case IH Backhoe Loaders: 450, 450B, 450C, 455B, 480, 480B, 480C, 480D, 580, 580B, 580C, 580D (without turbo)

Fits Case / Fits Case IH Forklifts / Telehandlers: 584D, 584E, 585D, 585E, 586D, 586E

Fits Case / Fits Case IH Tractors: 260, 290, 4494, 4694, 4894

Replaces Part Number(s):

1348800C1, A51976, A50557, G109413, G109412, 3186482M91, 2226169

New aftermarket replacement part - not remanufactured, not used.
