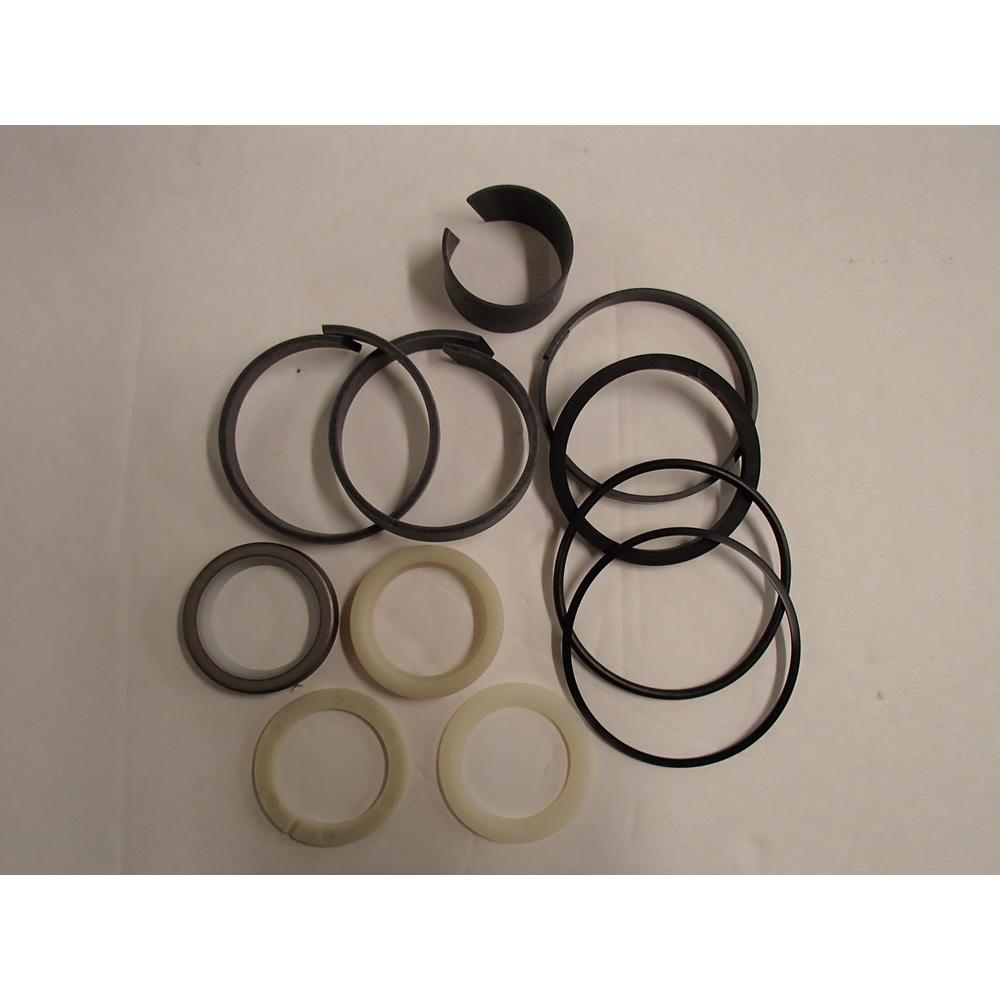

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits Case/International Harvester Equipment

This hydraulic cylinder seal kit (1-piece piston type) is a direct replacement Fits Case OEM part number 1543252C1. Designed for loader bucket tilt, bucket ripper, and dipper cylinders, it restores hydraulic performance on a wide range of Fits Case backhoes, loaders, dozers, and skid steers. Supersedes G109452 and G105548.

Important: This kit is for cylinders with a 1-piece piston. The Fits Case 580CK was originally equipped with 2-piece rod pistons unless upgraded. Verify your cylinder piston type before ordering.

Specifications

• Rod Diameter: 1-1/2"
• Bore: 3"
• Piston Type: 1-Piece
• Rod Seal Type: U-Seal and Buffer
• Piston Seal Type: Piston Seal
• Wiper Type: Press-In

Compatible Models

Fits Case Backhoe/Loader: 580CK (1-piece piston cylinders only), 580B, 580C, 580D, 580E, 580 Super E, 480, 480C, 480DLL, 480E, 480ELL, 480F, 480FLL, 460

Fits Case Crawler/Dozer: 350, 350B, 450, 450B, 550, 550G, 850, 855, 855E

Fits Case Skid Steer Loader: 1838, 1840, 1845C, 40XT, 60XT

Use with OEM Cylinder Numbers: G100936, G101183, G101189, G101203, G101217, G101230

Replaces Part Number(s):

1543252C1

Aftermarket Interchange Numbers

G109452, G105548

New aftermarket replacement part - not remanufactured, not used.
