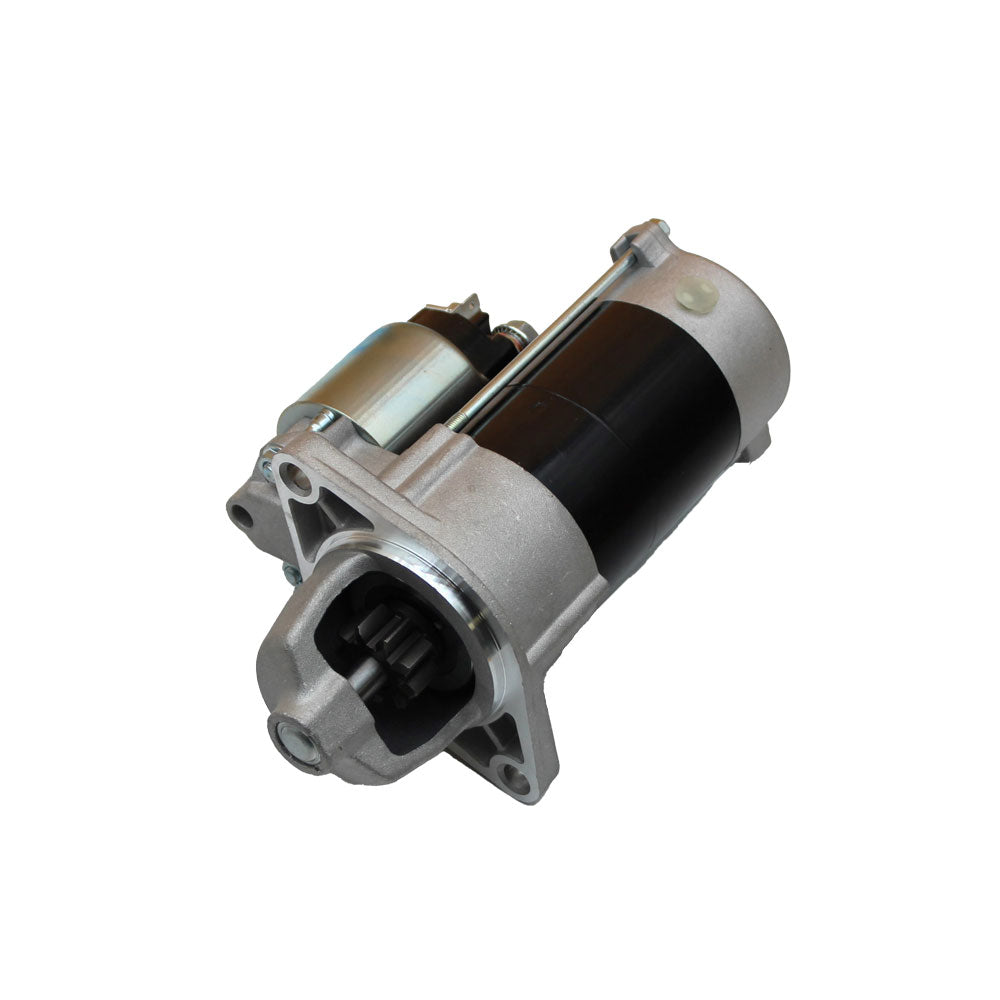

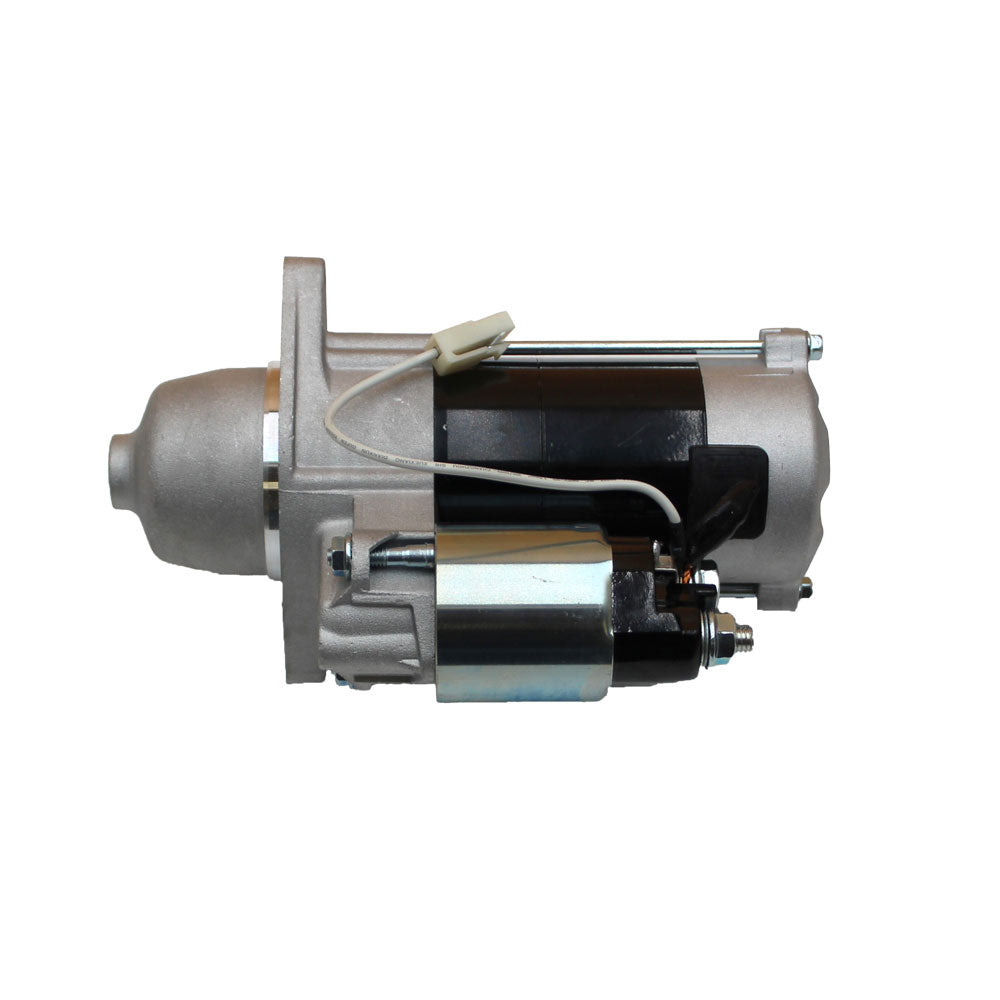

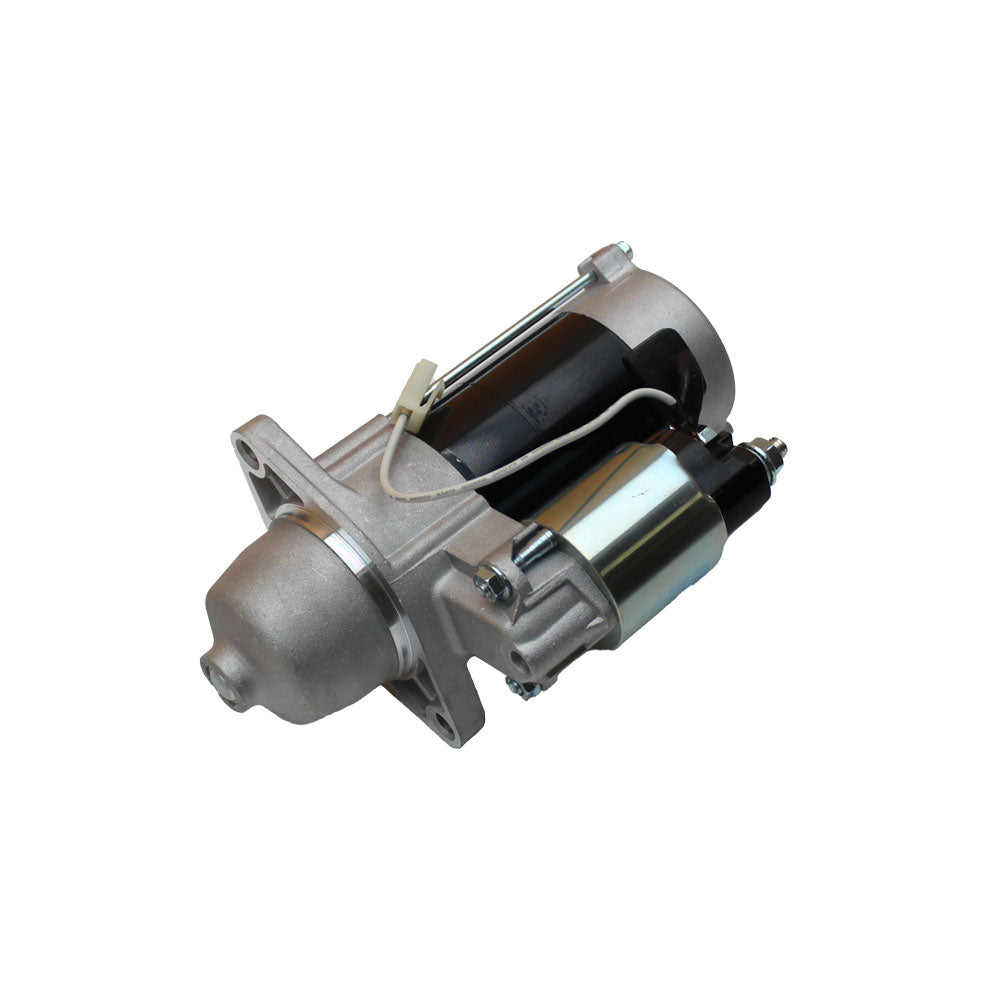

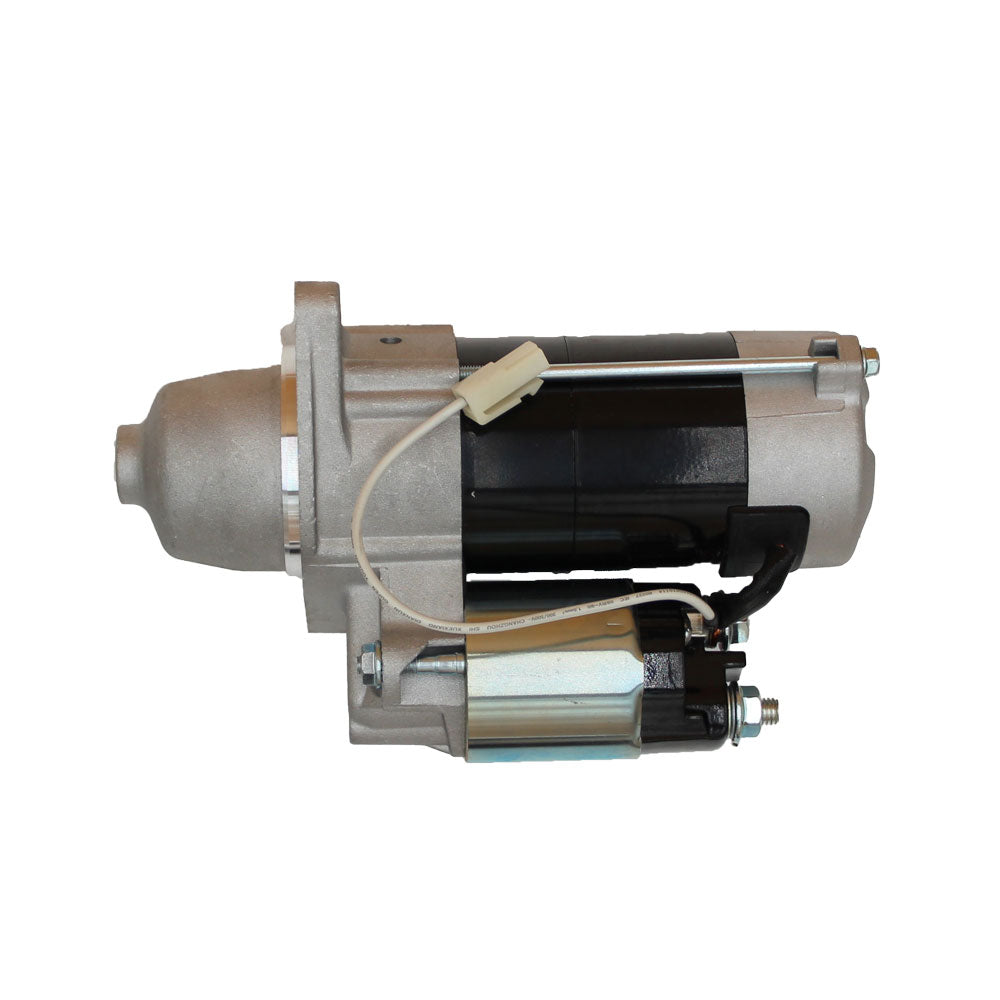

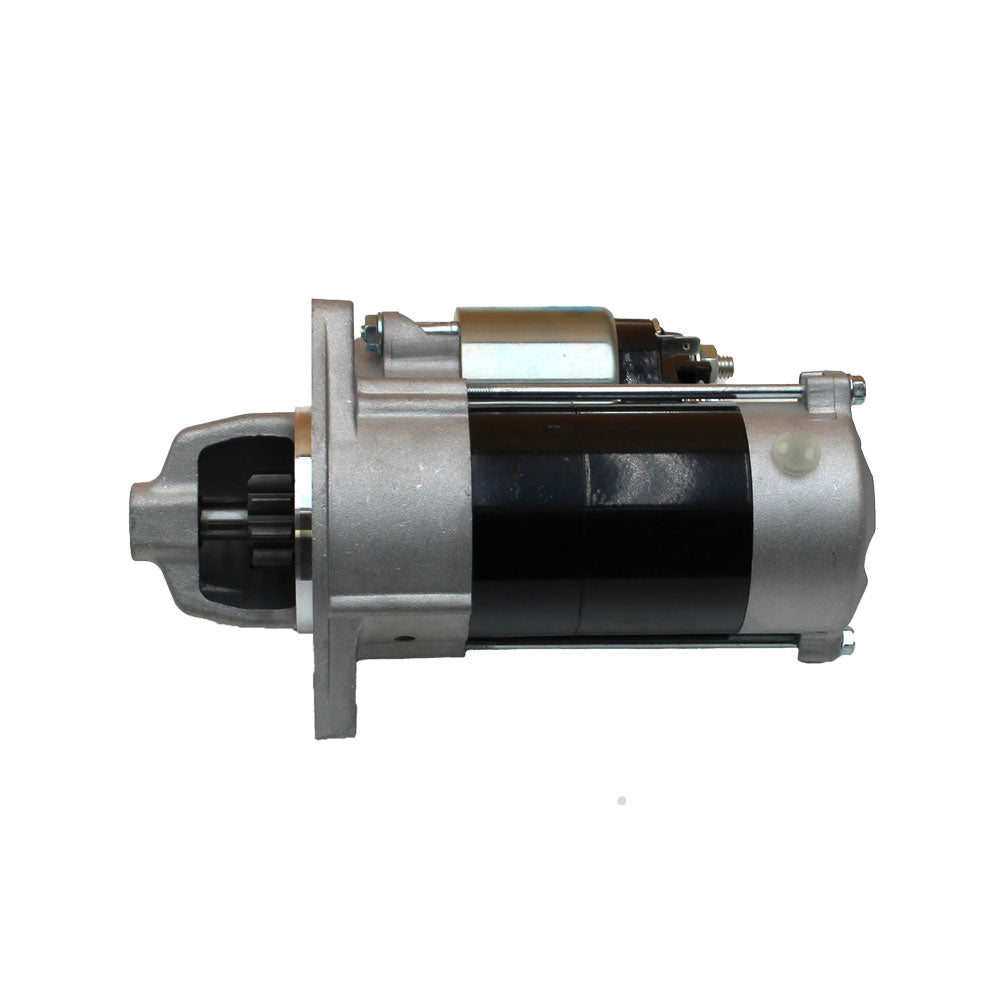

Starter (PLGR Type) Fits Kubota Replaces 15471-63011

Starter (PLGR Type) Fits Kubota Replaces 15471-63011

AIC Replacement Parts - FEDEX2DAY


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Starter (PLGR Type)

Tech Info:
 -Volt 12
 -Power 1 Kw
 -Hp 1.341
 -Rotation Direction Clockwise
 -Electric Starter Type Planetary Gear Reduction (Plgr)
 -Number of Teeth 9
 -Gear OD 1.142"
 -Gear OD 29mm
 -Mount Hole ID 1 9mm
 -Mount Hole 1 Type Unthreaded
 -Mount Hole 2 Type Unthreaded

Made to Fits Kubota:
 Front Mount Mower Models: F2260, F2560, F2560E, F3060
 Replaces Part Number(s): 15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16235-63010, 16325-63012, 16612-63012, 16871-63010, 16871-63011, 16871-63012, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 1G069-63010, 67980-31151, 70000-65461, 77700-02596, 77700-02602, 77700-06123, K3311-96300, K7561-61810, K7561-61811, K7571-61811, K7571-96800, K7711-61800, K7711-96800

 Riding Mower Models: GR2100, GR2110, GR2120, GR2120B, TG1860
 Replaces Part Number(s): 15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16235-63010, 16325-63012, 16612-63012, 16871-63010, 16871-63011, 16871-63012, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 1G069-63010, 67980-31151, 70000-65461, 77700-02596, 77700-02602, 77700-06123, K3311-96300, K7561-61810, K7561-61811, K7571-61811, K7571-96800, K7711-61800, K7711-96800

 Zero-Turn Mower Models: ZD18, ZD18F, ZD21, ZD21F, ZD221, ZD321, ZD321N, ZD323, ZD331
 Replaces Part Number(s): 15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16235-63010, 16325-63012, 16612-63012, 16871-63010, 16871-63011, 16871-63012, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 1G069-63010, 67980-31151, 70000-65461, 77700-02596, 77700-02602, 77700-06123, K3311-96300, K7561-61810, K7561-61811, K7571-61811, K7571-96800, K7711-61800, K7711-96800

Models This Part Fits:

ZD18, ZD21F, ZD321, ZD331, ZD323, F2560E, GR2120, ZD21, F2560, GR2100, TG1860, GR2120B, ZD221, GR2110, F3060, F2260, ZD18F, ZD321N

Additional Information:

Volt 12 Power 1 Kw Hp 1.341 Rotation Direction Clockwise Electric Starter Type Planetary Gear Reduction (Plgr) Number of Teeth 9 Gear OD 1.142" Gear OD 29mm Mount Hole ID 1 9mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded Starter (PLGR Type)

Reference Numbers:

K3511-81410, K3511-81411, 1G023-63010, 1G023-63011, 67980-31150, 77700-02595, 77700-07930, K3511-81410, K3511-81411, 1G023-63010, 1G023-63011, 67980-31150, 77700-02595, 77700-07930
