158238C1 Bearing cone 450C & 455C (not for LGP machines) Fits Case 450C, 455C,
158238C1 Bearing cone 450C & 455C (not for LGP machines) Fits Case 450C, 455C,
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

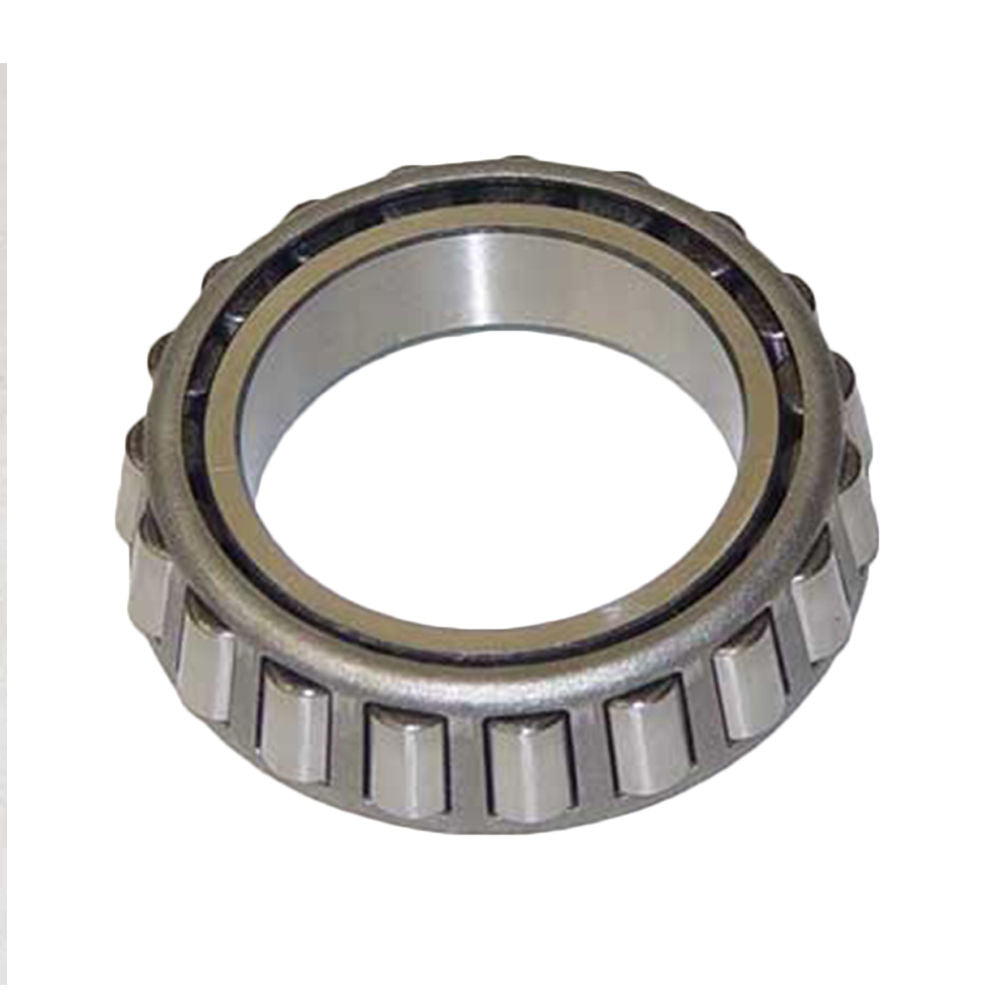

One New Aftermarket Replacement Bearing Cone Fits Case (Fits Case/IH) 450C and 455C Crawlers
This tapered roller bearing cone is a final drive replacement part Fits Case 450C and 455C crawler dozers and loaders. The bearing cone (inner ring and roller assembly) works with a mating cup to support radial and axial loads within the final drive assembly. Important: This part does NOT fit LGP (Low Ground Pressure) machines. Each machine requires 2 cones.
Specifications
- Bearing Type: Tapered Roller Bearing Cone
- Bearing Material: Chrome Steel
- Cage Material: Steel
- Finish Coating: Uncoated
- Bore Diameter: 2.2650"
- Inner Ring Width: 0.864"
- Overall Width: 0.8640"
- Height: 1.4"
- Length: 4.1"
- Width: 4.2"
- Operating Temperature Range: -65 to +250 degrees F
Compatible Models
Fits Case (Fits Case/International Harvester) Crawlers: 450C (non-LGP), 455C (non-LGP)
Replaces Part Number(s):
158238C1, G10414, 388A
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
Additional Information:
Bearing Material: Chrome Steel Bore Diameter: 2.2650" Cage Material: Steel Finish Coating: Uncoated Height: 1.4" Inner Ring Width: 0.864" Length: 4.1" Operating Temperature Range: -65 to +250 °F Overall Width: 0.8640" Width: 4.2" Cone BearingReference Numbers:
158238C1,G10414Makes This Part Fits:
