159830 50" Deck Rebuild Kit Fits MTD
159830 50" Deck Rebuild Kit Fits MTD
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket 50" Deck Rebuild KitTech Info:

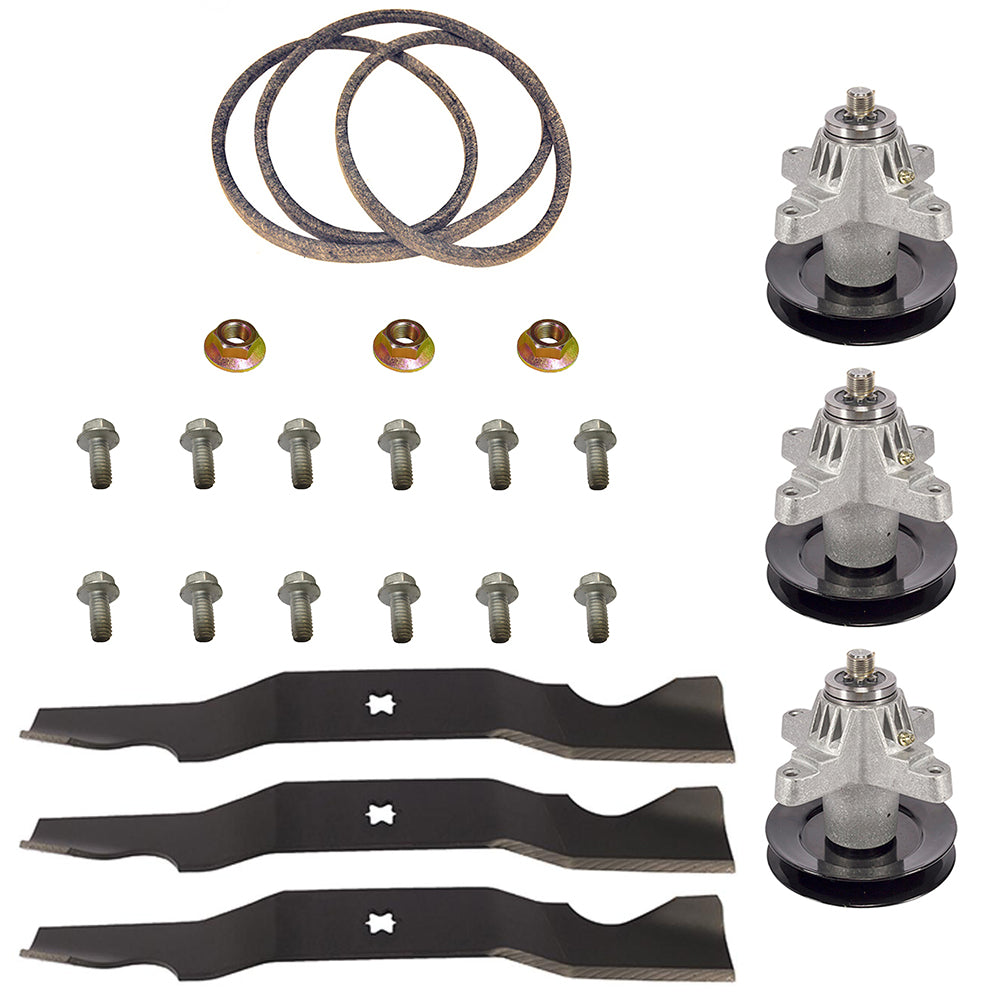

-Kit Contains:

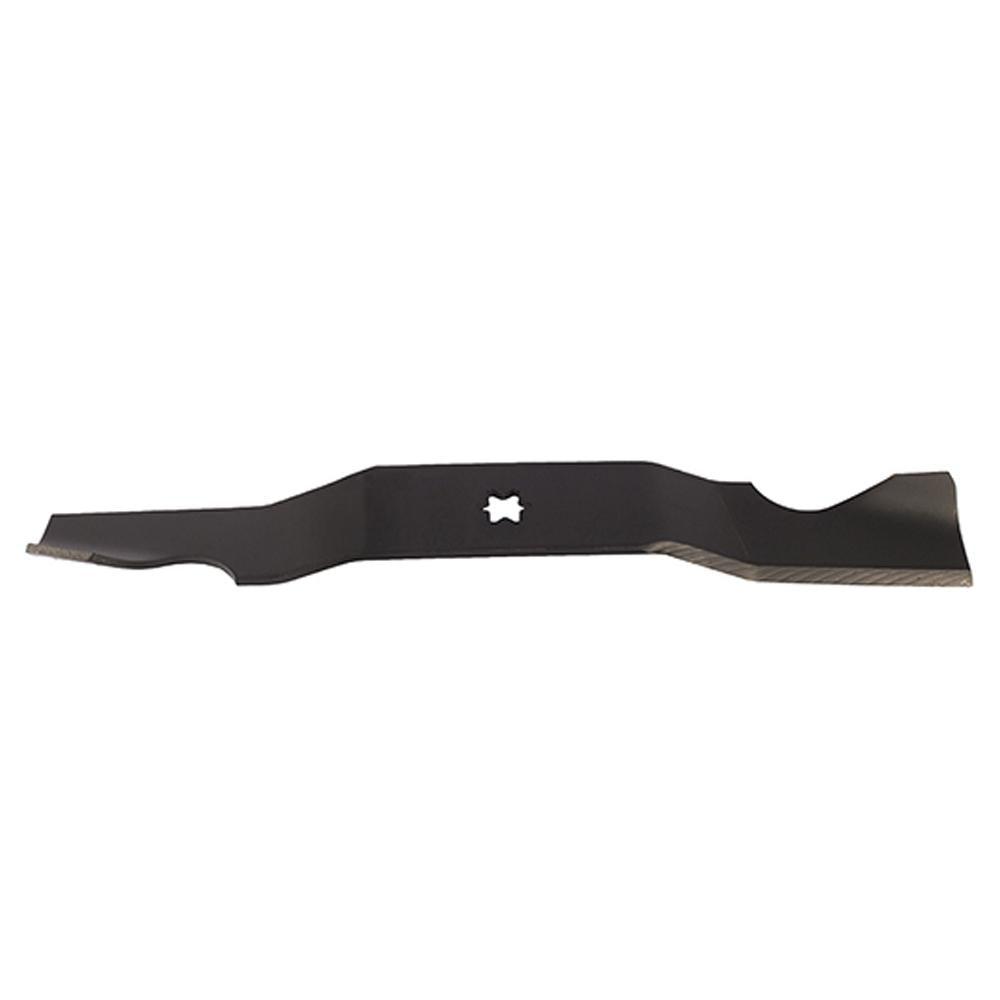

-(3) Heavy Duty Blade
-Length: 17-29/32"
-Width: 2-1/2"
-Thickness: 0.1870"
-CH Diameter: 6 Point Star
-
-Replaces Part Number(s):
-942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C
-

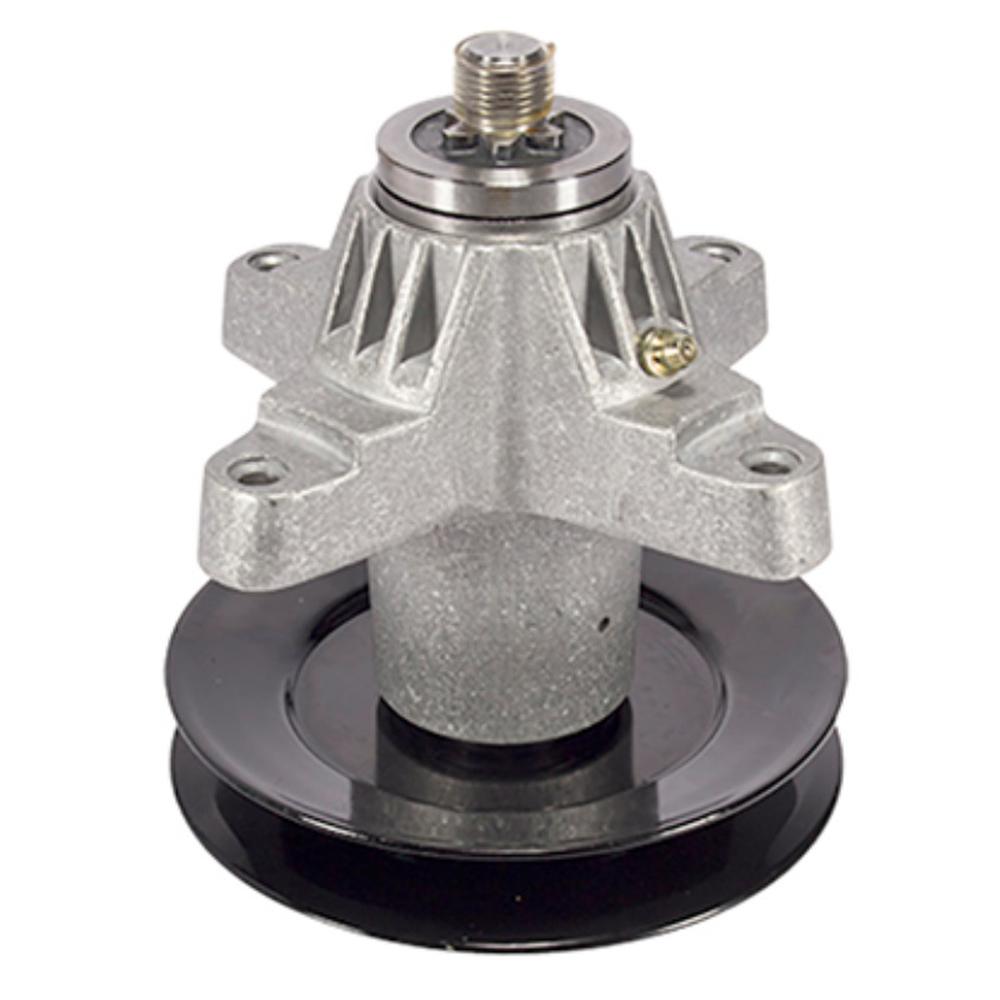

-(3) Spindle Assembly
-"H" pattern center hole.
-6-1/8" Height
-5-1/2" Pulley Diameter
-6PT. STAR DESIGN Center Hole
-
-Replaces Part Number(s):
-618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B
-

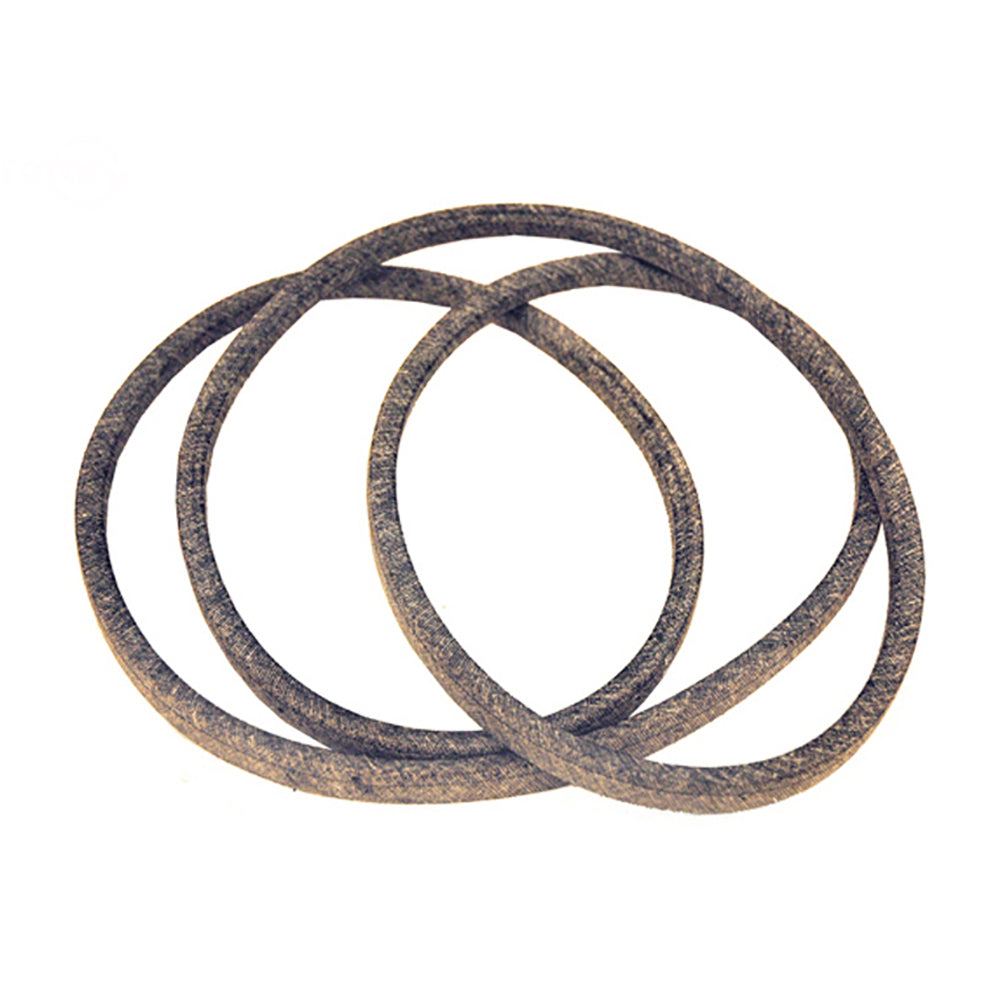

-(1) Belt
-1/2" x 134"
-Made With Aramid Cord
-
-Replaces Part Number(s):
-754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A
-

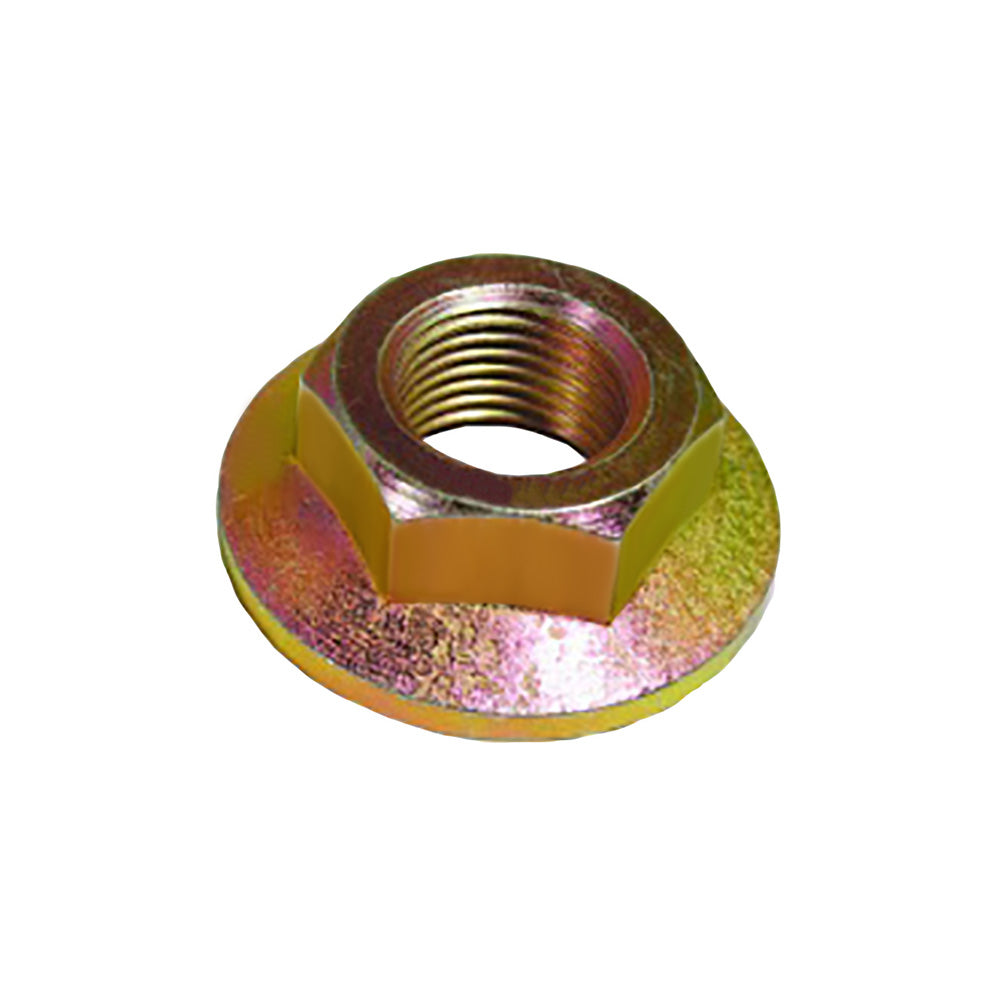

-(3) Spindle Blade Nut
-5/8"-18
-
-Replaces Part Number(s):
-7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417A
-

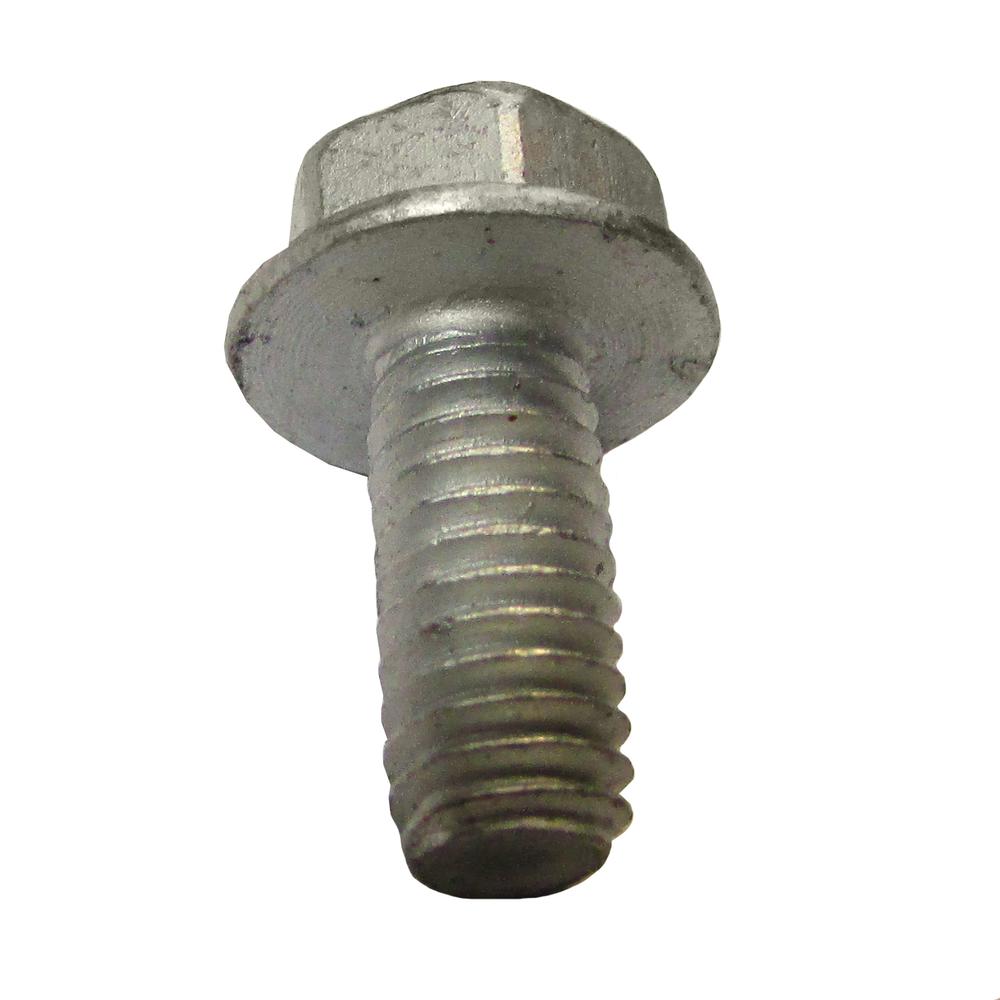

-(12) Thread Cutting Bolt
-5/16"-18
-3/4" Long
-
-Replaces Part Number(s):
-159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484Fits MTD:
Replaces Part Number(s): 159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484, 754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A, 942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C, 618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B, 7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417A
-Kit Contains:
-(3) Heavy Duty Blade
-Length: 17-29/32"
-Width: 2-1/2"
-Thickness: 0.1870"
-CH Diameter: 6 Point Star
-
-Replaces Part Number(s):
-942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C
-
-(3) Spindle Assembly
-"H" pattern center hole.
-6-1/8" Height
-5-1/2" Pulley Diameter
-6PT. STAR DESIGN Center Hole
-
-Replaces Part Number(s):
-618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B
-
-(1) Belt
-1/2" x 134"
-Made With Aramid Cord
-
-Replaces Part Number(s):
-754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A
-
-(3) Spindle Blade Nut
-5/8"-18
-
-Replaces Part Number(s):
-7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417A
-
-(12) Thread Cutting Bolt
-5/16"-18
-3/4" Long
-
-Replaces Part Number(s):
-159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484Fits MTD:
Replaces Part Number(s): 159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484, 754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A, 942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C, 618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B, 7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417A
Models This Part Fits:
mowers for cutting grass, lawn equipment for precision workAdditional Information:
(3) Heavy Duty Blades Length: 17-29/32" Width: 2-1/2" Thickness: 0.1870" CH Diameter: 6 Point Star Replaces Part Number(s): 942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C (3) Spindle Assemblies "H" pattern center hole. 6-1/8" Height 5-1/2" Pulley Diameter 6PT. STAR DESIGN Center Hole Replaces Part Number(s): 618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B (1) Belt 1/2" x 134" Made With Aramid Cord Replaces Part Number(s): 754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A (3) Spindle Blade Nuts 5/8"-18 Replaces Part Number(s): 7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417A (12) Thread Cutting Bolts 5/16"-18 3/4" Long Replaces Part Number(s): 159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484Reference Numbers:
159830, 1724491, 710-0650, 7100650, 710-1260A, 7101260A, 710-04484, 71004484, 754-04044, 75404044, 954-04044, 95404044, 954-04044A, 95404044A, 942-04053A, 94204053A, 942-04053C, 94204053C, 942-04053B, 94204053B, 742-04053, 74204053, 742-04053A, 74204053A, 742-04053B, 74204053B, 742-04053C, 74204053C, 618-04125, 61804125, 618-04125A, 61804125A, 618-04125B, 618-04125B, 618-04125C, 61804125C, 618-04126, 61804126, 618-04126A, 61804126A, 918-04125, 91804125, 918-04125B, 91804125B, 918-04125C, 91804125C, 918-04126, 91804126, 918-04126A, 91804126A, 918-04126B, 91804126B, 7120417, 712-0417, 712-0417A, 7120417A, 712-0417AP, 7120417AP, 753-05549, 75305549, 912-0417A, 9120417A, GW-7120417A, GW7120417AMakes This Part Fits:
Shop Mtd Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
