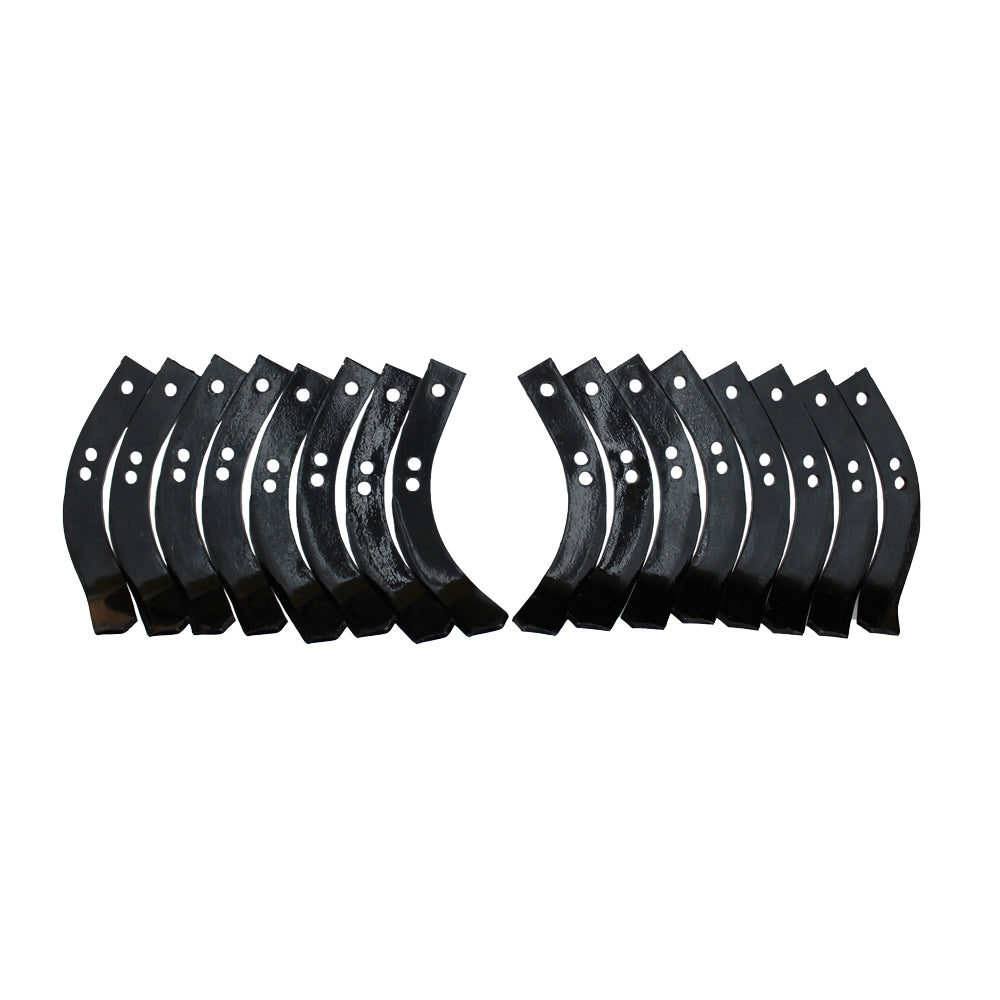

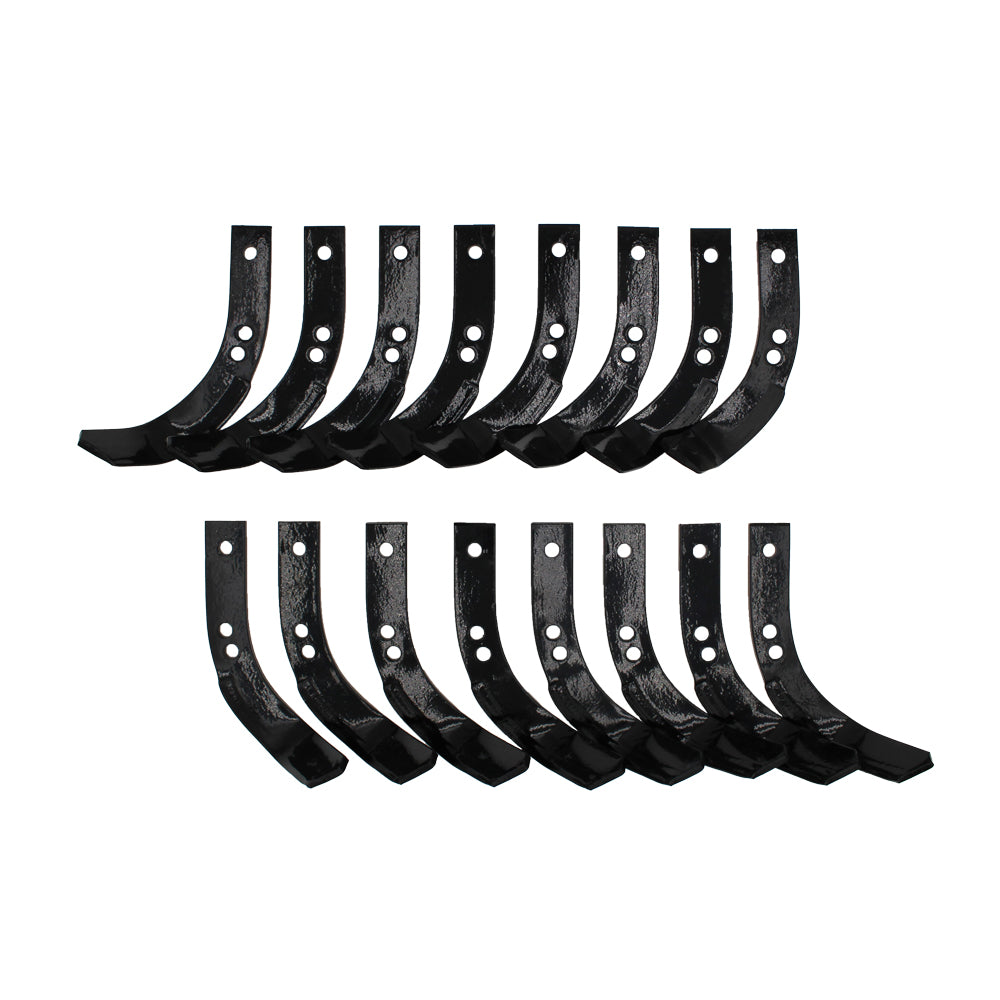

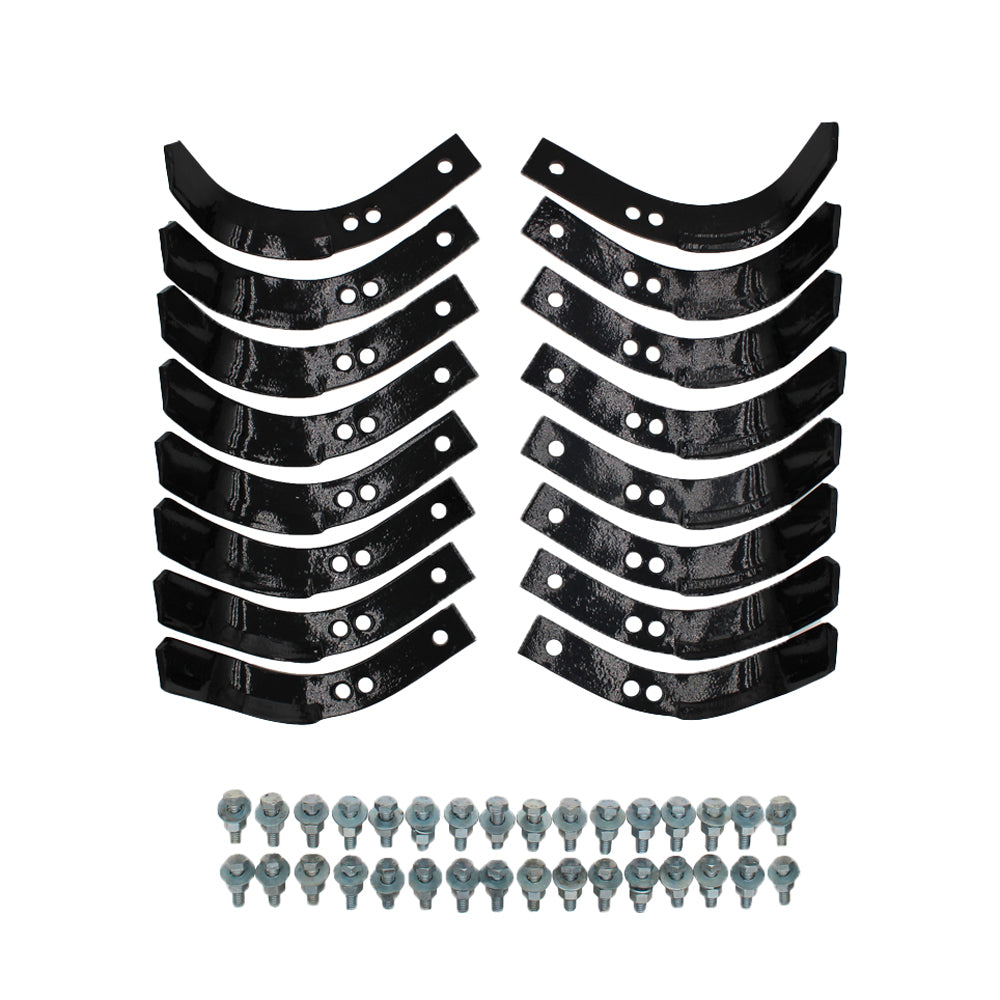

A complete sixteen tine set for the rear tine tiller, eight left hand and eight right hand, supplied with the cap screws, lock washers and hex nuts to mount them all.

Specifications

• Tines: sixteen total, eight left hand and eight right hand
• Style: 12 in bolo tine
• Mounting: three 3/8 in holes, 2-5/8 in and 3-1/8 in on center
• Hardware: 3/8 in grade 5 cap screws, zinc hex nuts, lock washers included

Cross reference

• 1901118
• 1901118A
• 1270-1A
• 1270-2A
• 10802

Fitting

Left and right hand tines alternate along the shaft and curve toward each other so they feed soil to the center. Lay the old tines out in order before removing them so each new one goes back the same hand and the same way round.

Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.
