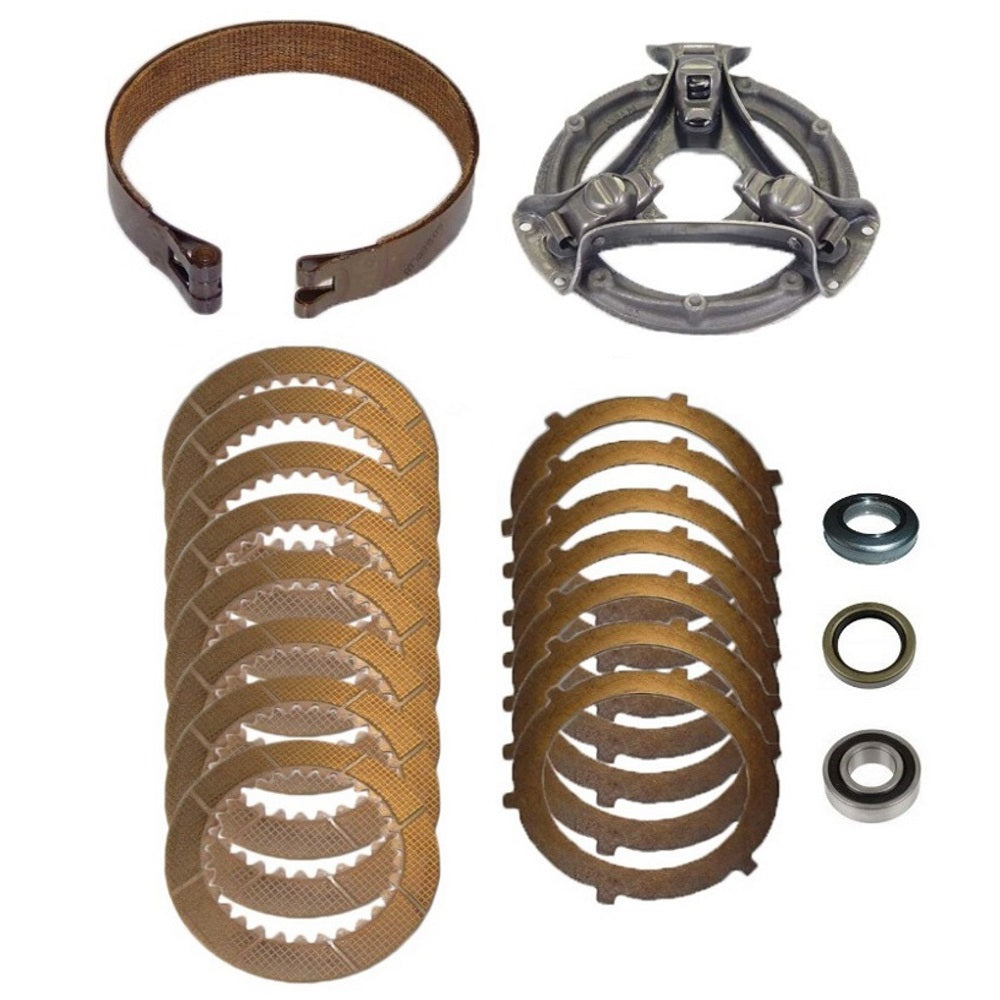

168253A Metallic Clutch Kit w/ Seal Fits White

168253A Metallic Clutch Kit w/ Seal Fits White



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket Metallic Clutch Kit w/ Seal

Tech Info:
 -(8) Metallic Clutch Discs
 -O.D.: 8.936"
 -I.D.: 5.831"
 -Thickness: .178"
 -Number of teeth: 30
 -Replaces Part Number: AT117553
 -
 -(1) Release Bearing
 -Bearing Type Sealed Roller
 -Grease Non-greaseable
 -I.D.: 2.060"
 -I.D.: Type Round
 -O.D.: 3.560"
 -Width Overall: 0.795"
 -Replaces Part Number: AM3983T
 -
 -(1) Brake Band
 -Width: 2"
 -Replaces Part Number: AT129805
 -
 -(1) 9" Pressure Plate
 -3 Lever
 -Replaces Part Number: AT18886
 -
 -(7) Steel Steering Discs
 -O.D: 9.682"
 -I.D.: 6.882"
 -6 external ears
 -Replaces part Number: T21315
 -
 -(1) Pilot Bearing
 -I.D.: 15mm
 -O.D.: 35mm
 -Width: 0.5?
 -Replaces part Number: 87502
 -
 -(1) Rear Axle Inner Seal
 -I.D.: 2.000?
 -O.D.: 2.876?
 -Width: .468?
 -Replaces Part Number: AM1717T


Fits White:
 Replaces Part Number(s): 168253A, 1DS5022, DS5022, 30-3056295

Models This Part Fits:

3600, I600, 544, 770, A, 686, 4410, 821, 444, 2150, 640, 2111, 641, 664, TO30, D17, 450, C, 8N, 102 Sr, TO20, 3300, 600, Super 88, 1550, Super MDV-TA, 44 Special, 230, Super W6TA, Super H, 350B, 3120, 4030 3 Cylinder, 880, F14, 404, 460, 1650, 4031, 1600, D14, 180, 660, 2131, 555, I400, 3020, 2100, L, Jubilee, 3610, 631, Super C, 541, 101 Sr, NAA, 840, 55, 2610, 941, 4000 3 cylinder, MTA, 185, 4000, 820, D12, 2300, 800, 4100, 40, 2N, Super 77, 741, 333, 504, 630, 4000 4 cylinder, 666, 2031, 320, 66, 130, Super 66, AV, Super MTA, 4230, H, 4010, 435, 606, 560, 2510, ED40, 656, 2000 3 cylinder, 400, 100, 77, HV, F12, MC, 190, 88, D10, 4140, 420, 4200, W14, TE20, TEA20, 330, 44-6, B, 3100, 4040, H3, Super MDTA, 500, 4340, 4110, G750, 4320, 2520, 1655, W12, 190XT, D19, 2000 4 cylinder, T5, 1555, 140, D15, 740, 200, 4020, 620, 1010, 303, 2600, MT, 430, 3055, 700, 240, 841, 4330, Super MVTA, 340, 300, 3000, 3310, 350, M, 4240, 900, 44, 4430, 3330, CA, 9N

Additional Information:

(8) Metallic Clutch Discs Outer Diameter: 8.936" Inner Diameter: 5.831" Thickness: .178" Number of teeth: 30 Replaces Part Number: AT117553 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces Part Number: AM3983T (1) Brake Band Width: 2" Replaces Part Number: AT129805 (1) 9" Pressure Plate 3 Lever Replaces Part Number: AT18886 (7) Steel Steering Discs Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces part Number: T21315 (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces part Number: 87502 (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces Part Number: AM1717T

Reference Numbers:

70235079, 70211273, 235079 , 211273, ABC496, 787580AB, 787580A8, 787580, AR41942, 78-7580A, CONN7580A, 81718025, EIADKN7580B, C0NN7580A, 18567D, 362028R91, 362028R92, 55211D, 55212D, 195207M1, 18171A, AL2116, AL2116T, AM3983T, AR41942, 70235079, 70211273, 235079, 211273, 168253A, 1DS5022, DS5022, 30-3056295, Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983T
