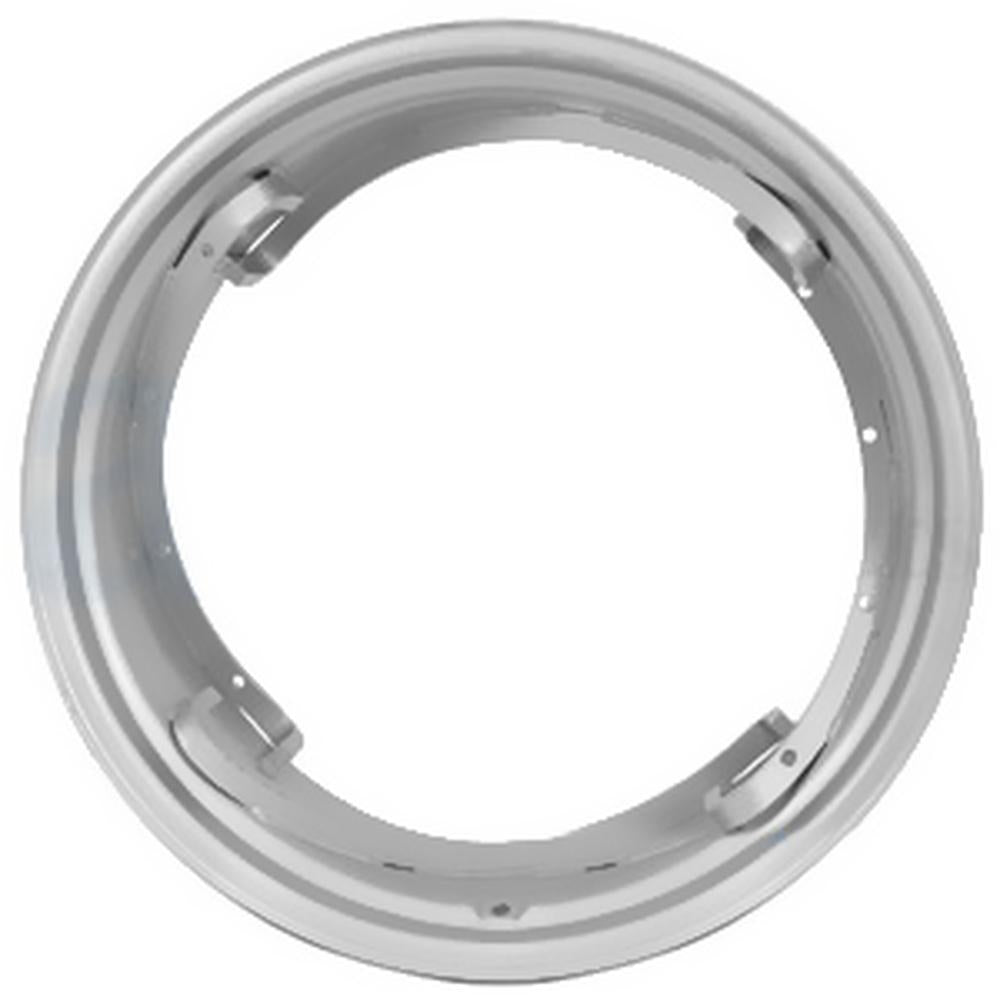

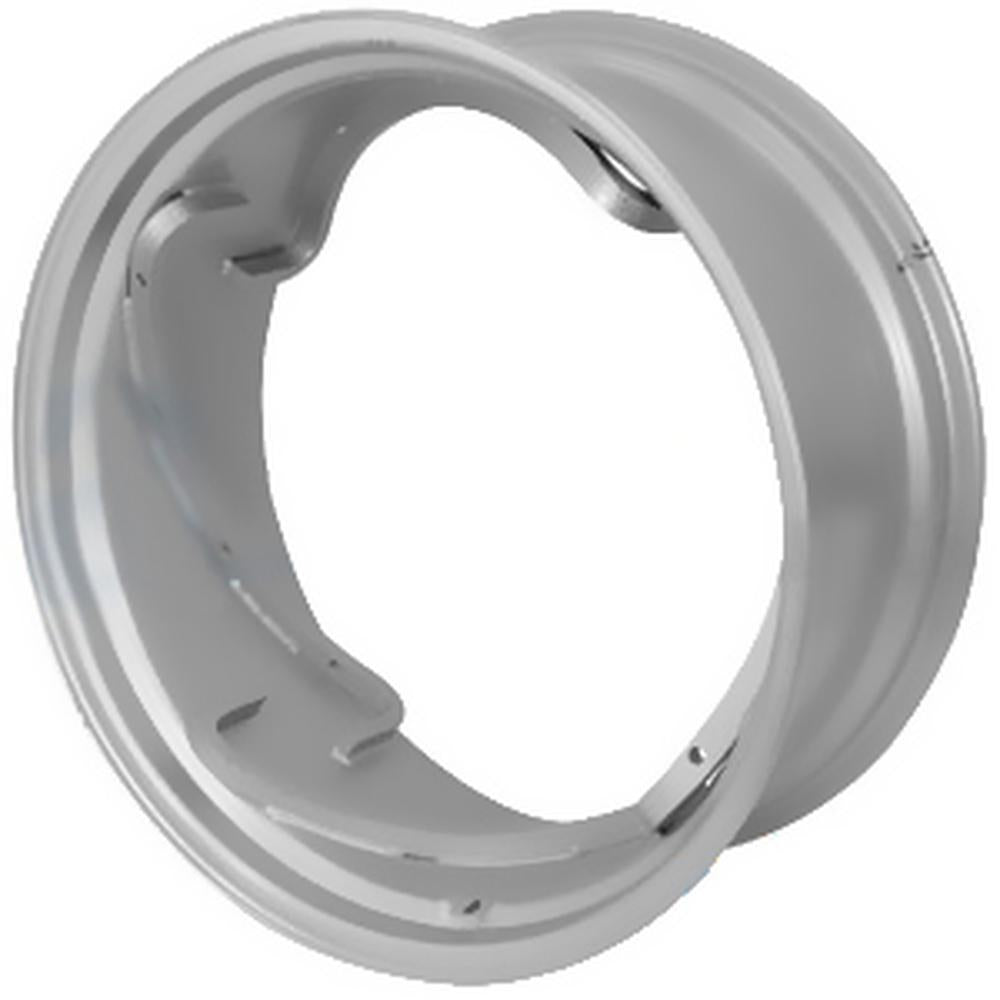

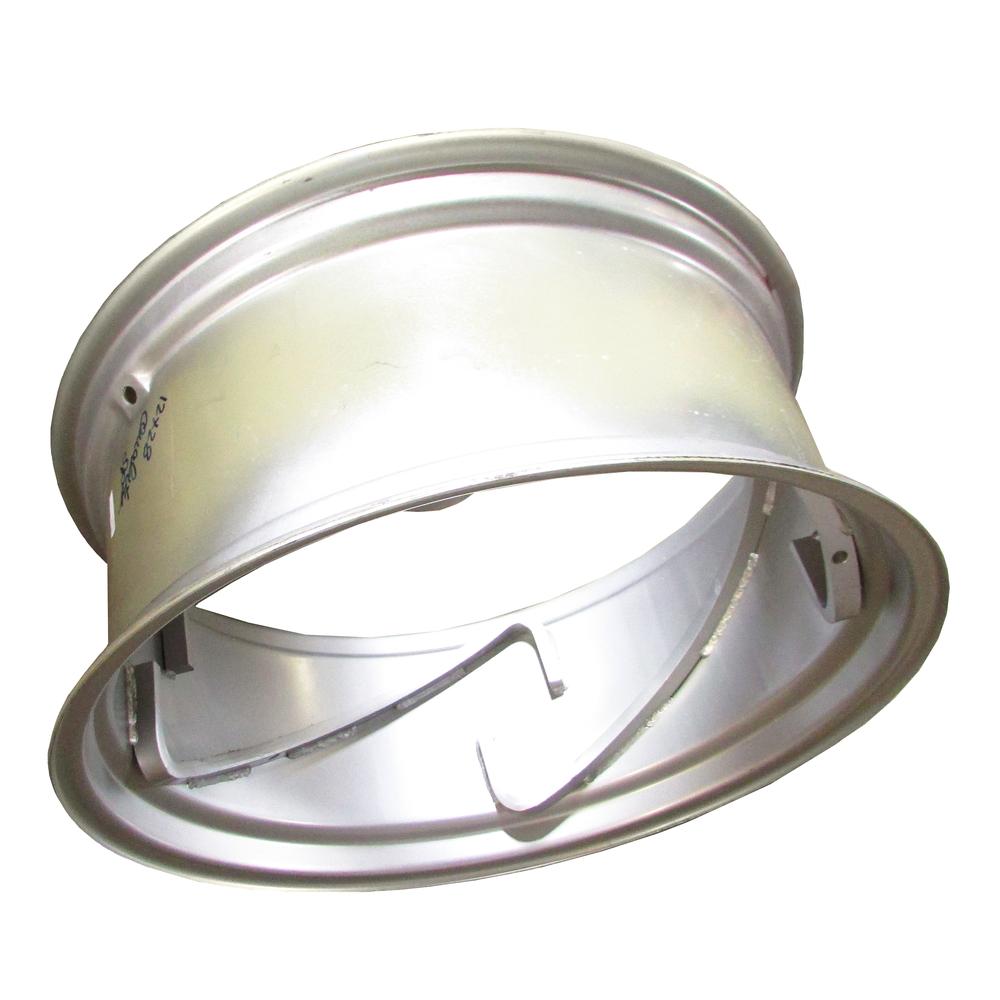

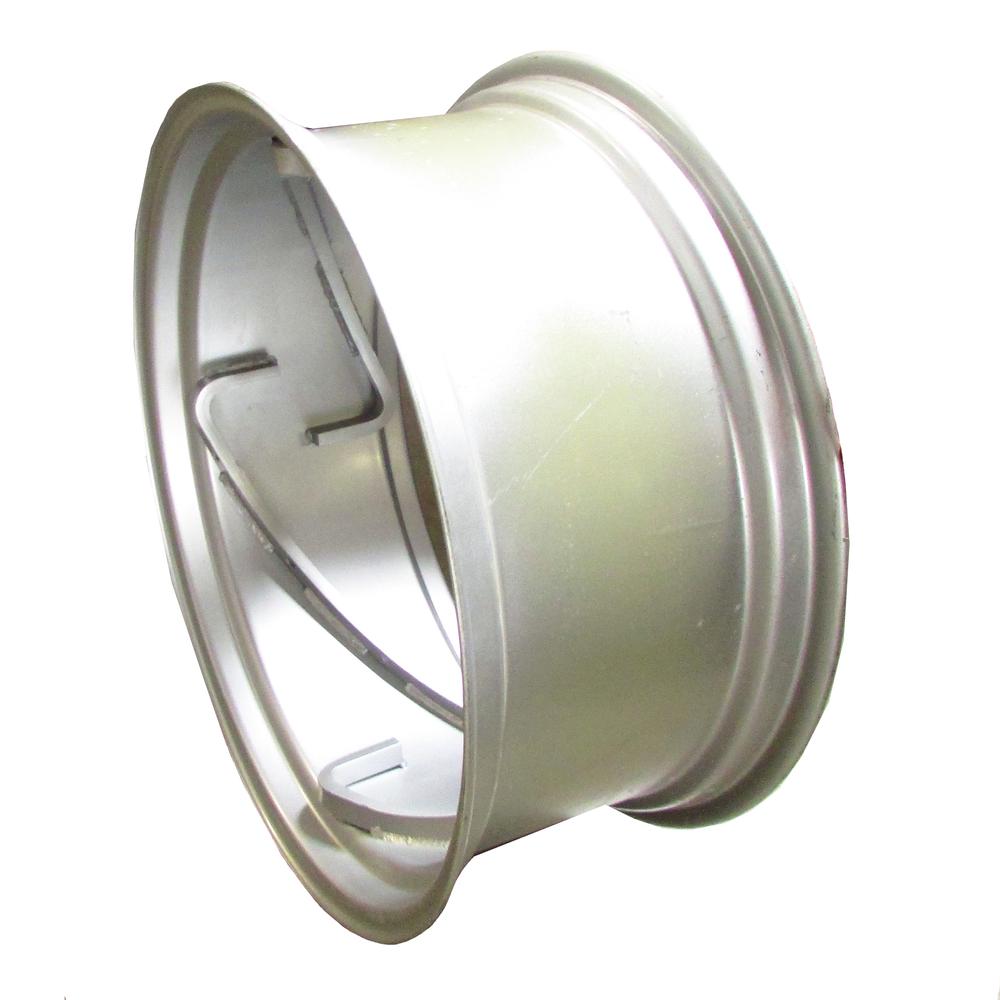

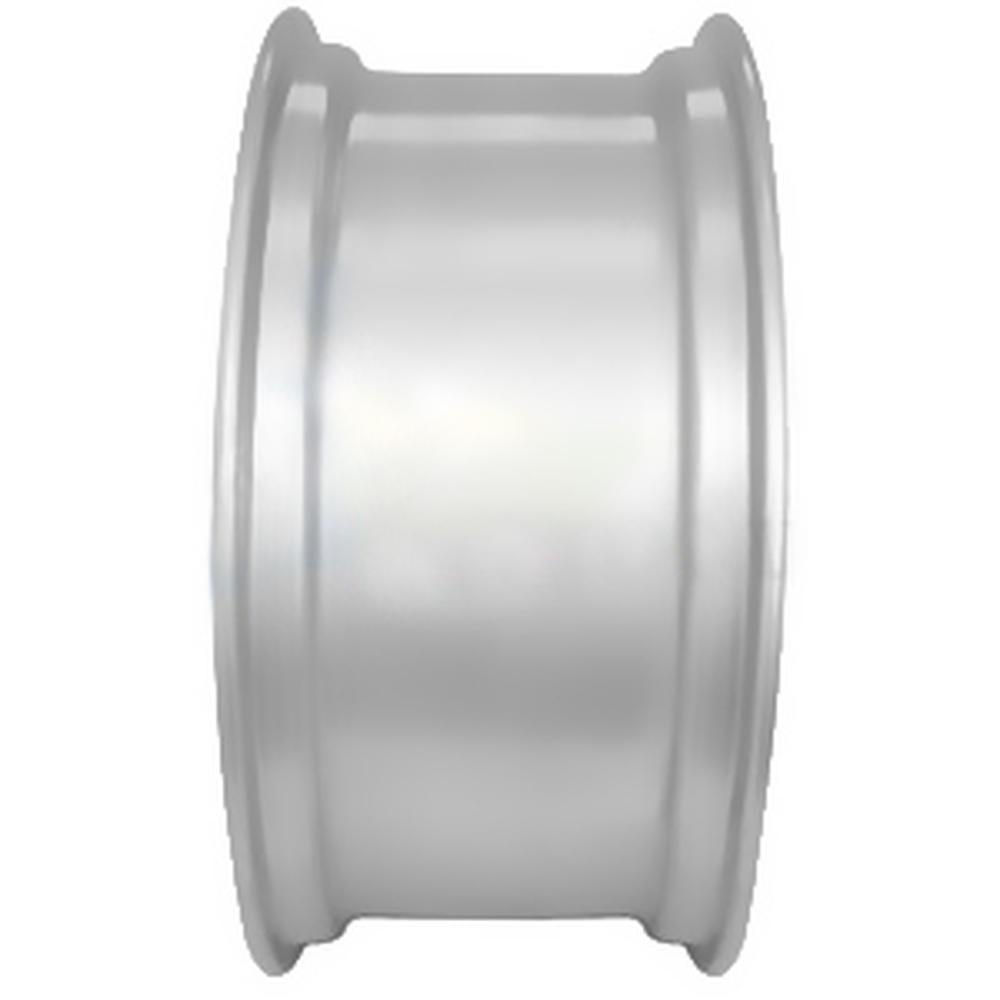

Rear Rim 12" x 28" Fits Massey Ferguson Replaces 1687615M91
Rear Rim 12" x 28" Fits Massey Ferguson Replaces 1687615M91
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

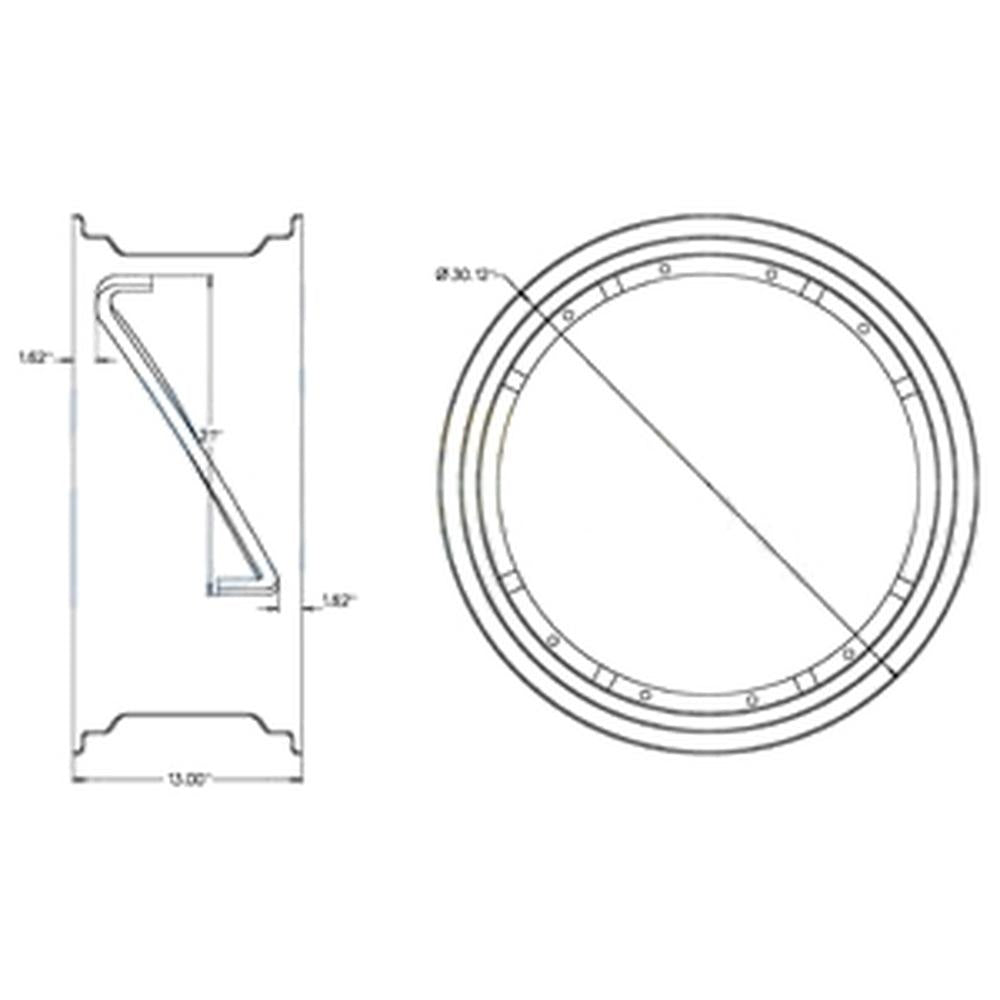

One New Aftermarket Rear Rim 12" x 28"Tech Info:
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Massey Ferguson:
Tractor Models: 135, 150, 165, 175, 230, 235, 245, 240, 250, 253, 255, 360, 362, 65
Replaces Part Number(s): 1687615M91
Utility Tractor Models: 235, 135, 65, 245, 165, 150, 255, 240, 250, 175, 230
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 1687615M91
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit Massey Ferguson:
Tractor Models: 135, 150, 165, 175, 230, 235, 245, 240, 250, 253, 255, 360, 362, 65
Replaces Part Number(s): 1687615M91
Utility Tractor Models: 235, 135, 65, 245, 165, 150, 255, 240, 250, 175, 230
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): 1687615M91
Models This Part Fits:
175, 253, 362, 360, 165, 235, 65, 150, 245, 135, 240, 250, 230, 255Additional Information:
4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time Rear Rim 12" x 28"Reference Numbers:
1687615M91Makes This Part Fits:
Shop Massey Ferguson Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Rims/Wheels/Tires Replacement PartsProduct Sub Group:
