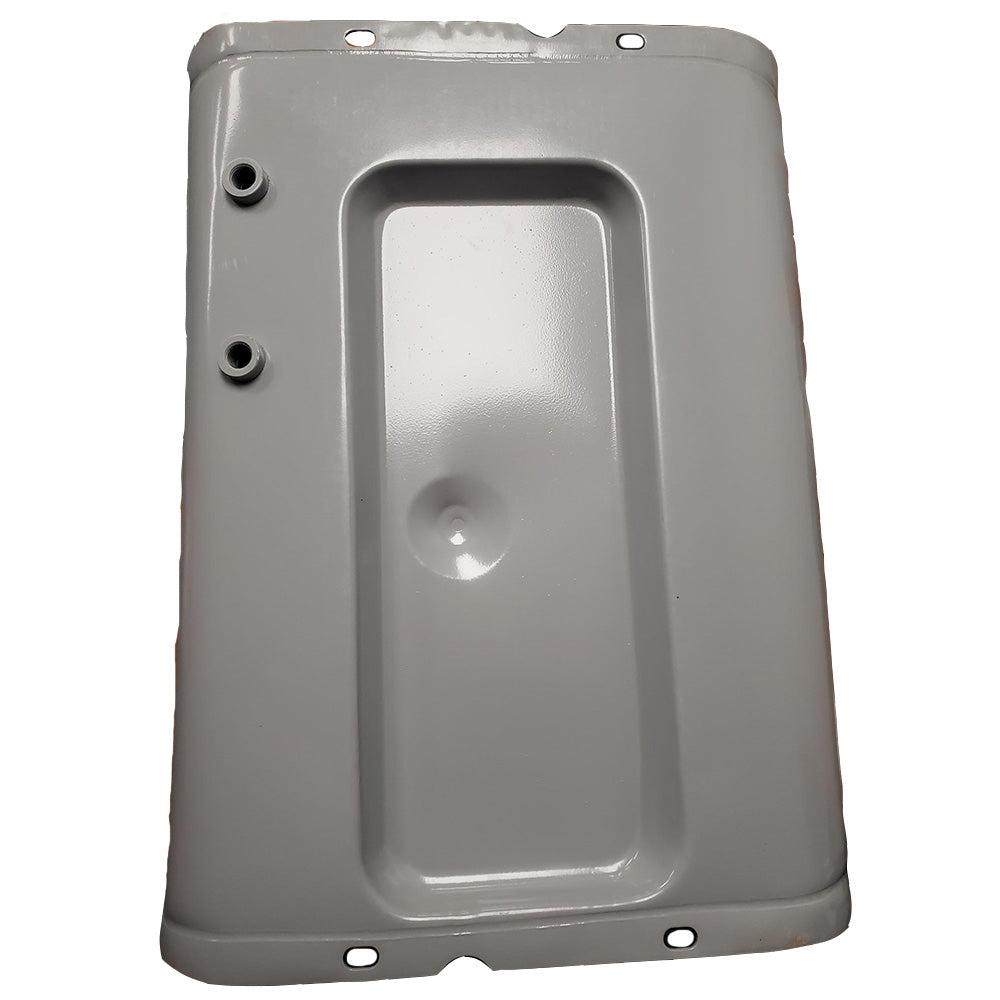

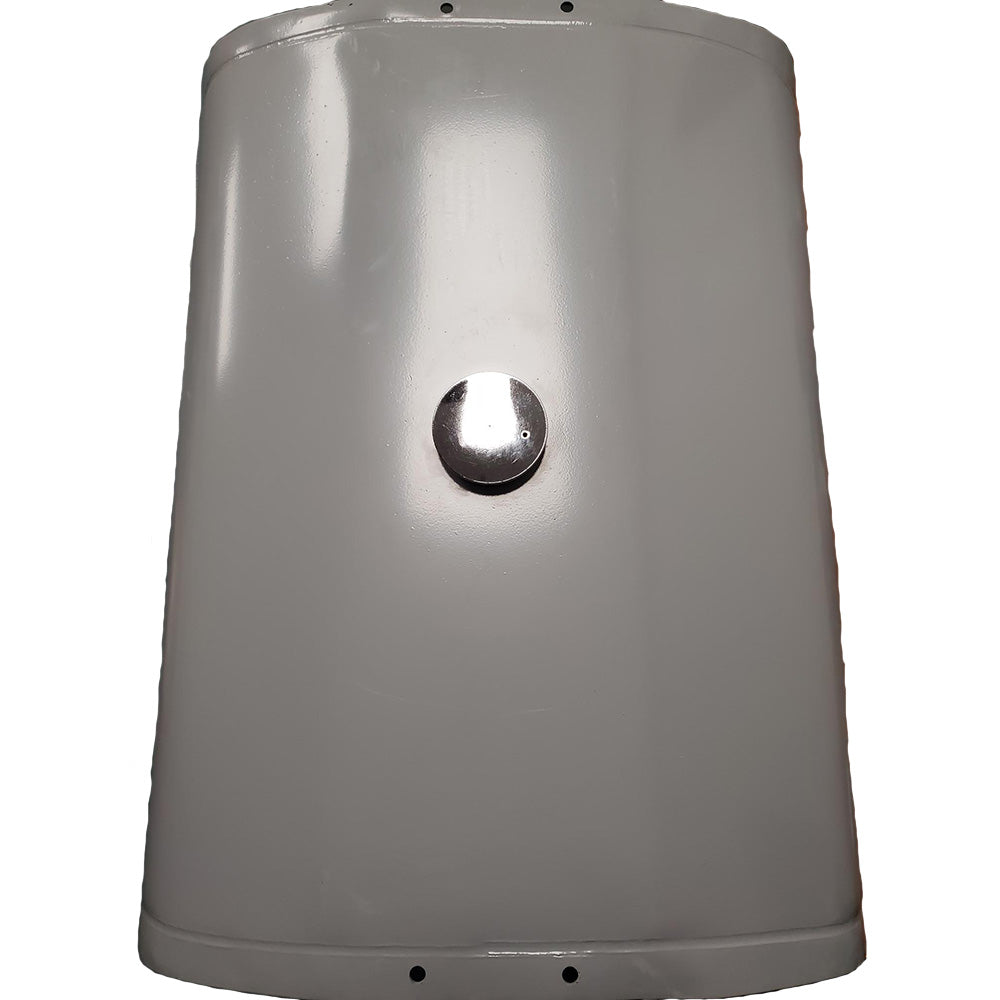

181637M91-2PORTS Fuel Tank Fits Massey Ferguson TE20 TO20 TO30
181637M91-2PORTS Fuel Tank Fits Massey Ferguson TE20 TO20 TO30
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Fuel TankTech Info:
-Includes cap
-Tank Length: 23"
-Tank Width: 17 1/4"
-Tank Height: 7 1/2"
-Bottom Bolts holes: 7" center to center
-Top Bolt holes: 3" center to center
-Fuel tank bottom fittings:
-From seam end to first port is 4 1/2"
-From seam end to second port is 9"
-The holes are drilled for the toolbox mount
-Port Thread Size: 5/8" -18
-Prior to installation, anti-rust coating should be removed with mineral spirits or lacquer thinnerFits Massey Ferguson:
Tractor Models: TO20, TO30, TE20
Replaces Part Number(s): 181637M91-2PORTS, S42413, 9623-WITHCAP, 4477-WITH CAP, 181637M91W/CAP, 181637M91-WITHCAP, 181637V91-2PORTS, 181637M91, 4477
-Includes cap
-Tank Length: 23"
-Tank Width: 17 1/4"
-Tank Height: 7 1/2"
-Bottom Bolts holes: 7" center to center
-Top Bolt holes: 3" center to center
-Fuel tank bottom fittings:
-From seam end to first port is 4 1/2"
-From seam end to second port is 9"
-The holes are drilled for the toolbox mount
-Port Thread Size: 5/8" -18
-Prior to installation, anti-rust coating should be removed with mineral spirits or lacquer thinnerFits Massey Ferguson:
Tractor Models: TO20, TO30, TE20
Replaces Part Number(s): 181637M91-2PORTS, S42413, 9623-WITHCAP, 4477-WITH CAP, 181637M91W/CAP, 181637M91-WITHCAP, 181637V91-2PORTS, 181637M91, 4477
Models This Part Fits:
TEA20, TO20, TE20, TO30Additional Information:
Includes cap Tank Length: 23" Tank Width: 17 1/4" Tank Height: 7 1/2" Bottom Bolts holes: 7" center to center Top Bolt holes: 3" center to center Fuel tank bottom fittings: From seam end to first port is 4 1/2" From seam end to second port is 9" The holes are drilled for the toolbox mount Port Thread Size: 5/8" -18 Prior to installation, anti-rust coating should be removed with mineral spirits or lacquer thinner Fuel TankReference Numbers:
181637M91, 4477, 181637M91-2PORTS, S42413, 9623-WITHCAP, 4477-WITH CAP, 181637M91W/CAP, 181637M91-WITHCAP, 181637V91-2PORTS, 181637M91, 4477Makes This Part Fits:
