AL2116 Late Steering Clutch Kit Fits John Deere 1010 2510 2520 3020 320 330 40
AL2116 Late Steering Clutch Kit Fits John Deere 1010 2510 2520 3020 320 330 40
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

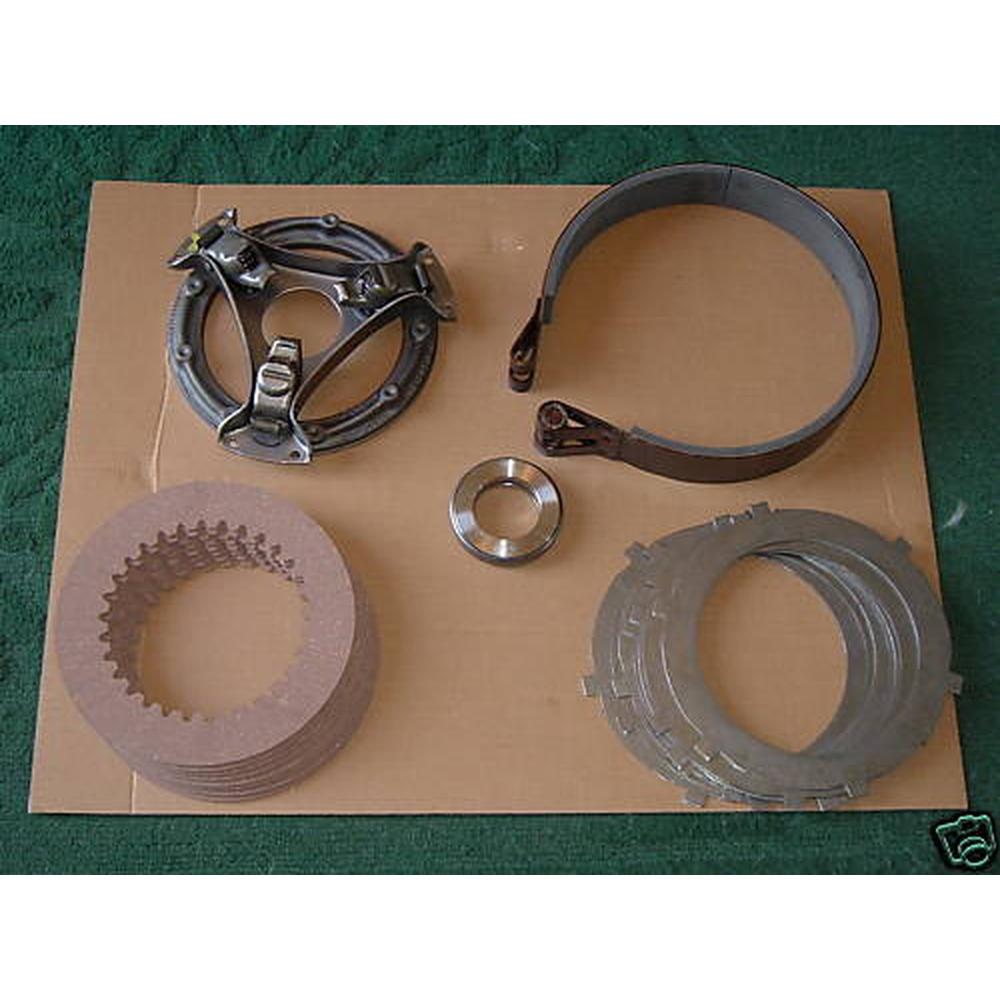

Aftermarket Late Steering Clutch KitTech Info:
-(8) Fiber Steering Clutch Discs
-8.554" O.D.
-5.620" Major I.D.
-26 Splines
-8 required per Machine
-Replaces Part Number(s): M3293T, AT314772, M3293
-
-(7) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 external ears
-Steel Disc
-Replaces Part Number(s): M872T
-

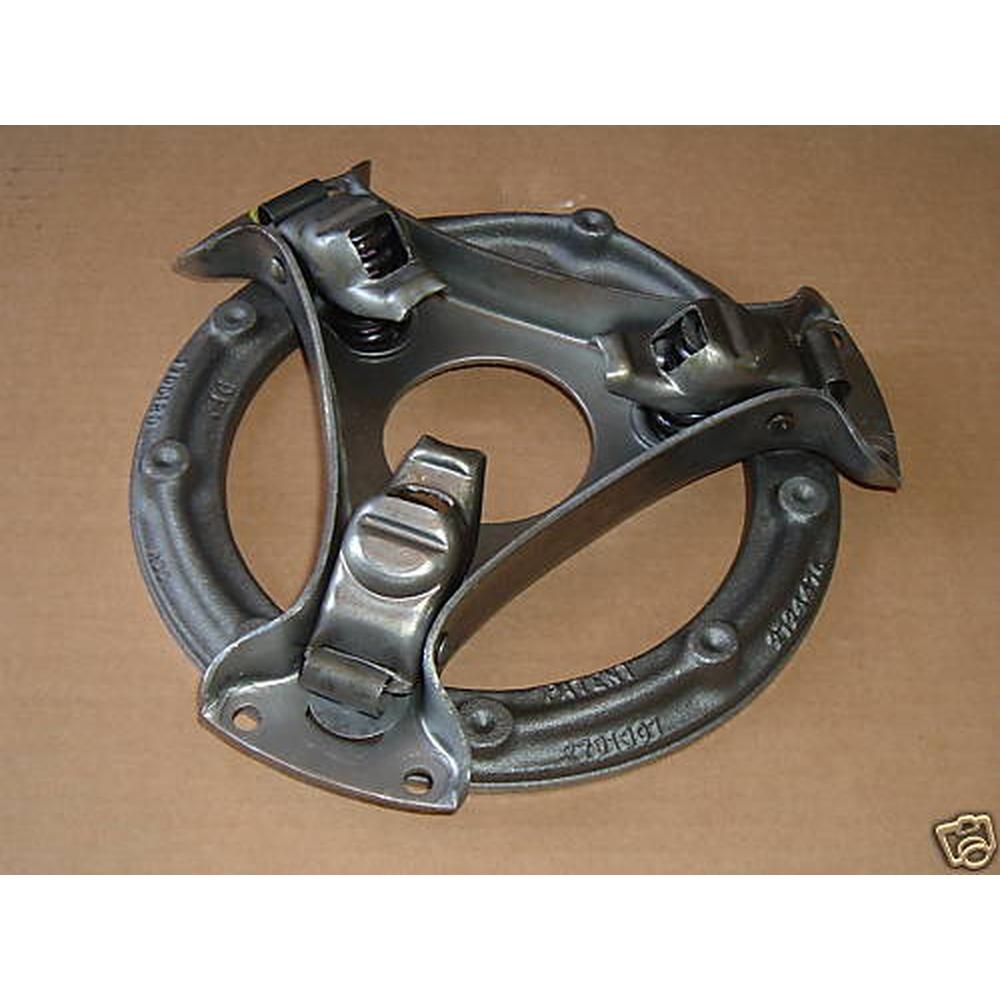

-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-
-(1) Brake Band
-Replaces Part Number(s): AT129805
-

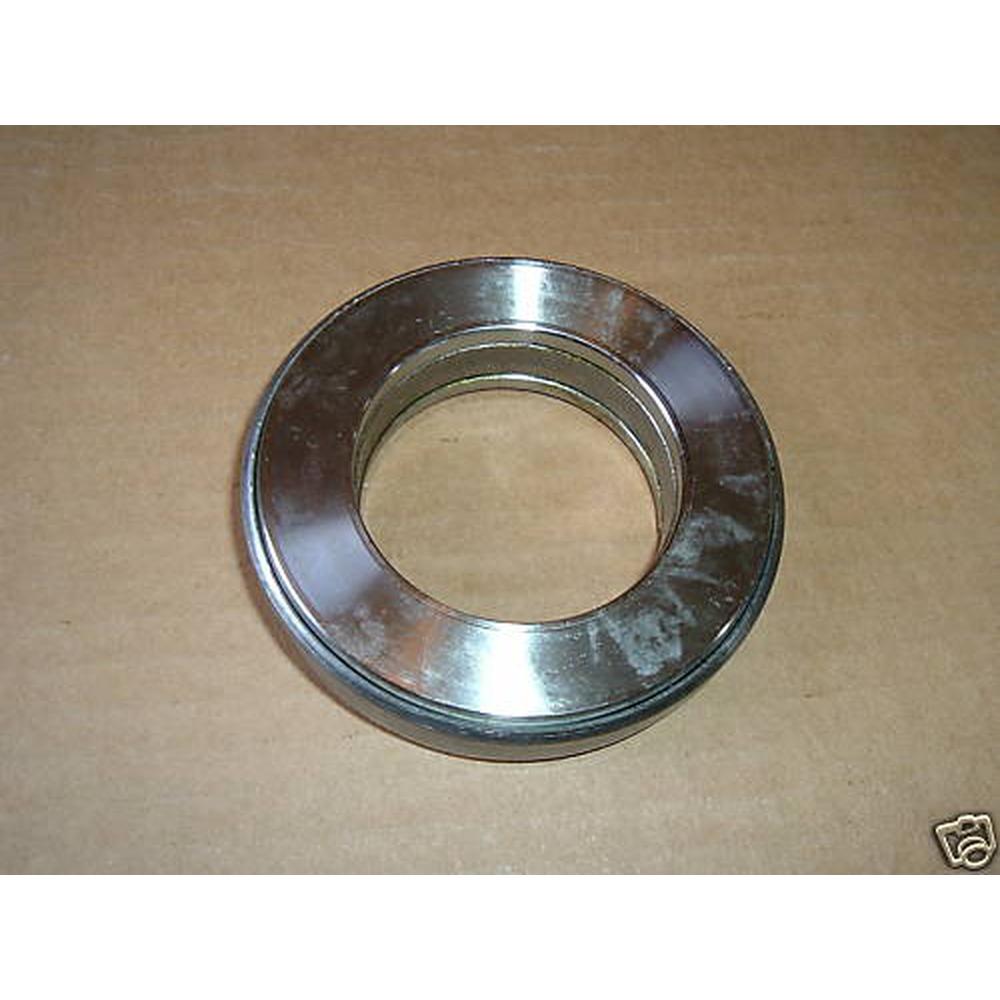

-(1) Release Bearing
-Bearing Type: Sealed Roller
-Grease Non-greaseable
-I.D.: 2.060"
-I.D. Type: Round
-O.D.: 3.560"
-Width Overall: 0.795"
-Replaces Part Number(s): AM3983T, AT2116TFits John Deere:
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
-(8) Fiber Steering Clutch Discs
-8.554" O.D.
-5.620" Major I.D.
-26 Splines
-8 required per Machine
-Replaces Part Number(s): M3293T, AT314772, M3293
-
-(7) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 external ears
-Steel Disc
-Replaces Part Number(s): M872T
-
-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-
-(1) Brake Band
-Replaces Part Number(s): AT129805
-
-(1) Release Bearing
-Bearing Type: Sealed Roller
-Grease Non-greaseable
-I.D.: 2.060"
-I.D. Type: Round
-O.D.: 3.560"
-Width Overall: 0.795"
-Replaces Part Number(s): AM3983T, AT2116TFits John Deere:
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
Models This Part Fits:
320, 4320, A, 2520, 4230, 4010, 435, 2510, 3020, L, 1010, MT, 430, MC, 420, 4000, 330, 40, 4430, M, 4240, 4040, 4020, 500Additional Information:
(8) Fiber Steering Clutch Discs 8.554" O.D. 5.620" Major I.D. 26 Splines 8 required per Machine Replaces Part Number(s): M3293T, AT314772, M3293 (7) Steel Discs 8.493" O.D. 6.380" I.D. 6 external ears Steel Disc Replaces Part Number(s): M872T (1) 8.5" Pressure Plate Assembly 3 Lever Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121 (1) Brake Band Replaces Part Number(s): AT129805 (1) Release Bearing Bearing Type: Sealed Roller Grease Non-greaseable I.D.: 2.060" I.D. Type: Round O.D.: 3.560" Width Overall: 0.795" Replaces Part Number(s): AM3983T, AT2116TReference Numbers:
AL2116, AL2116T, AM3983T, AR41942Makes This Part Fits:
