1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD

1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

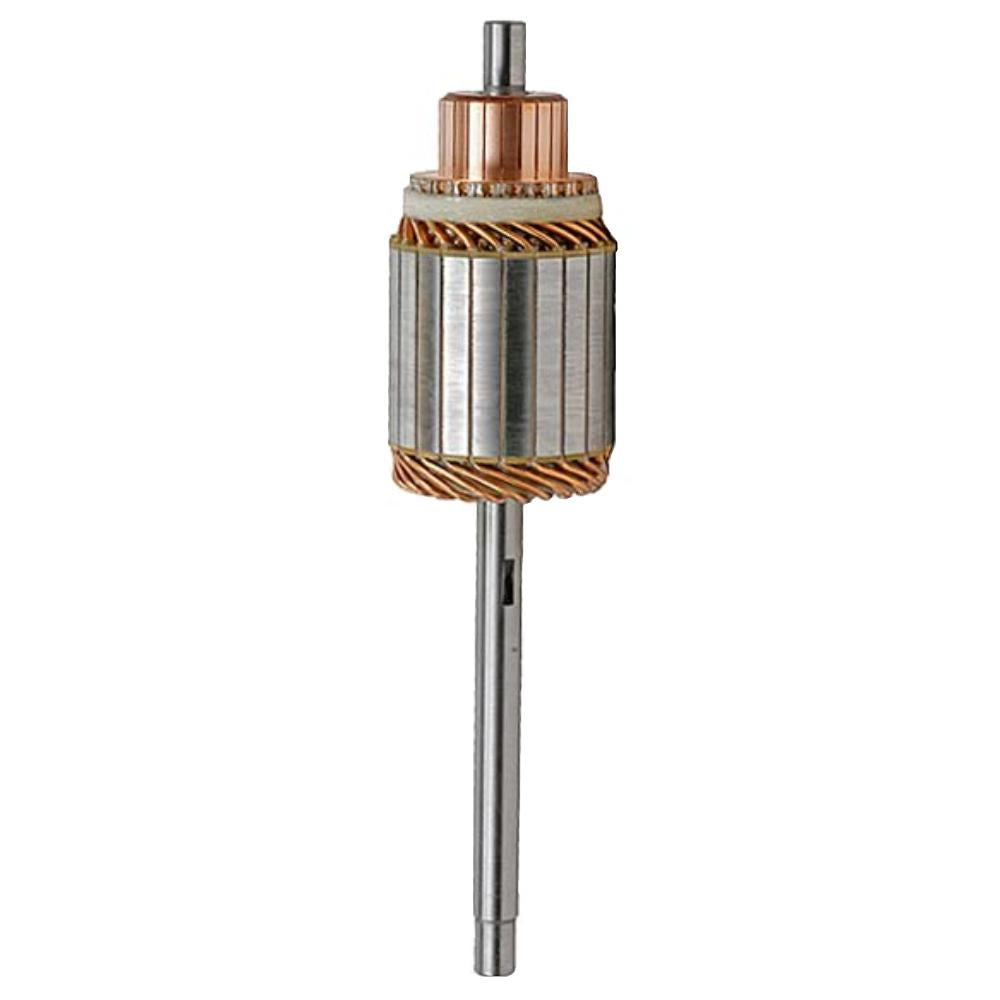

One New Aftermarket Replacement Armature Fits Delco 10MT Starters.

May also Fits Allis Chalmers models: IB, RC, WC, WD, WD45

DETAILS:
Voltage: 6/12
Rotation: CW/CCW
Body OD: 2.937" (74.6mm)
CE OD: 0.563" (14.3mm)
DE OD: 0.563" (14.3mm)
Length: 12.469" (316.7mm)
CE to Bearing/Bushing Stop: 0.827" (21mm)
DE to Bearing/Bushing Stop: 7.165" (182mm)
Number of Comm Bars: 23
Lam Stack Thickness: 2.614" (66.4mm)

-- High Torque
-- Set Screw & Keyway on DE

Replaces Part Numbers: 1872505, 1873354, 2027

Models This Part Fits:

440I, ZBN, Super 100, 445, 335, CA, UNI ZAS, 12, 206H-4B, C, D7, B15, IB, D12, M, 4000, B125, D10, W-25, WC, 40, 4 Star Super, 4 Star, 149, WD-45, 430C, RC, 430, 165-4A, MC, ZBU, G-4, 420, 320, MT, M69, B, 6000, D14, 330, WF, Jet Star, 206-4A, D8, 440, D / DD Series, ZBE, WD, W-226, M70, 206H-4A

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE Starter Armature

Reference Numbers:

2027,RSA2027, 1872505, 1873354

Makes This Part Fits:

Shop Allis Chalmers Wholesale Parts
Shop Caterpillar Wholesale Parts
Shop Clark Wholesale Parts
Shop Cockshutt Wholesale Parts
Shop John Deere Wholesale Parts
Shop Minneapolis Wholesale Parts
Shop Minneapolis-Moline Wholesale Parts

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:
