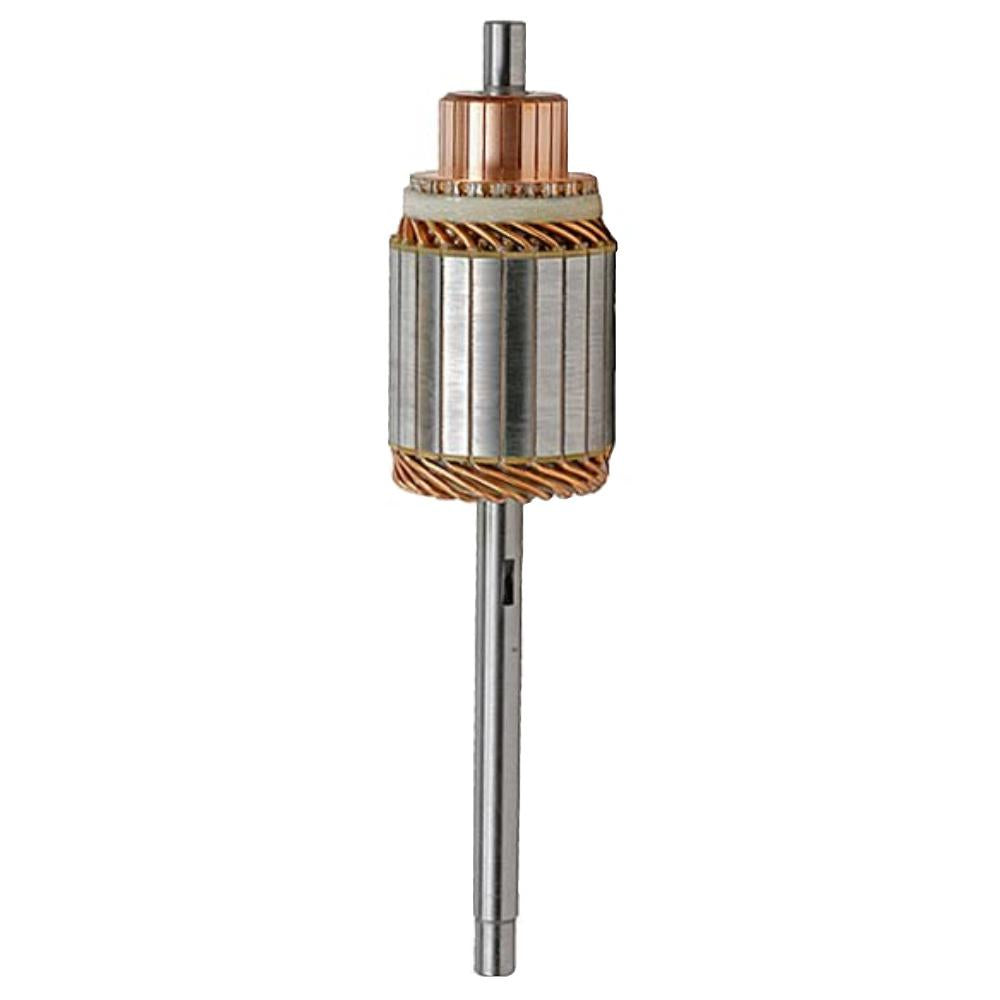

1872505 Starter Armature Fits Delco

1872505 Starter Armature Fits Delco

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket Starter Armature

Tech Info:
 -Voltage: 6/12
 -Rotation: CW/CCW
 -Body OD: 2.937" (74.6mm)
 -CE OD: 0.563" (14.3mm)
 -DE OD: 0.563" (14.3mm)
 -Length: 12.469" (316.7mm)
 -CE to Bearing/Bushing Stop: 0.827" (21mm)
 -DE to Bearing/Bushing Stop: 7.165" (182mm)
 -Number of Comm Bars: 23
 -Lam Stack Thickness: 2.614" (66.4mm)
 -High Torque
 -Set Screw & Keyway on DE

Fits Delco:
 Replaces Part Number(s): 1872505, 1873354

Models This Part Fits:

1107127, 1107165, B125, B15, D14, Early Delco 10MT Starters, WD45

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE Starter Armature

Reference Numbers:

1872505, 1873354

Makes This Part Fits:

Product Category:

Agriculture Replacement Parts
