1906945 Starter Repair Kit Fits Delco 10MT 20MT 25MT 27MT 5MT SD200 SD300 Series

1906945 Starter Repair Kit Fits Delco 10MT 20MT 25MT 27MT 5MT SD200 SD300 Series



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

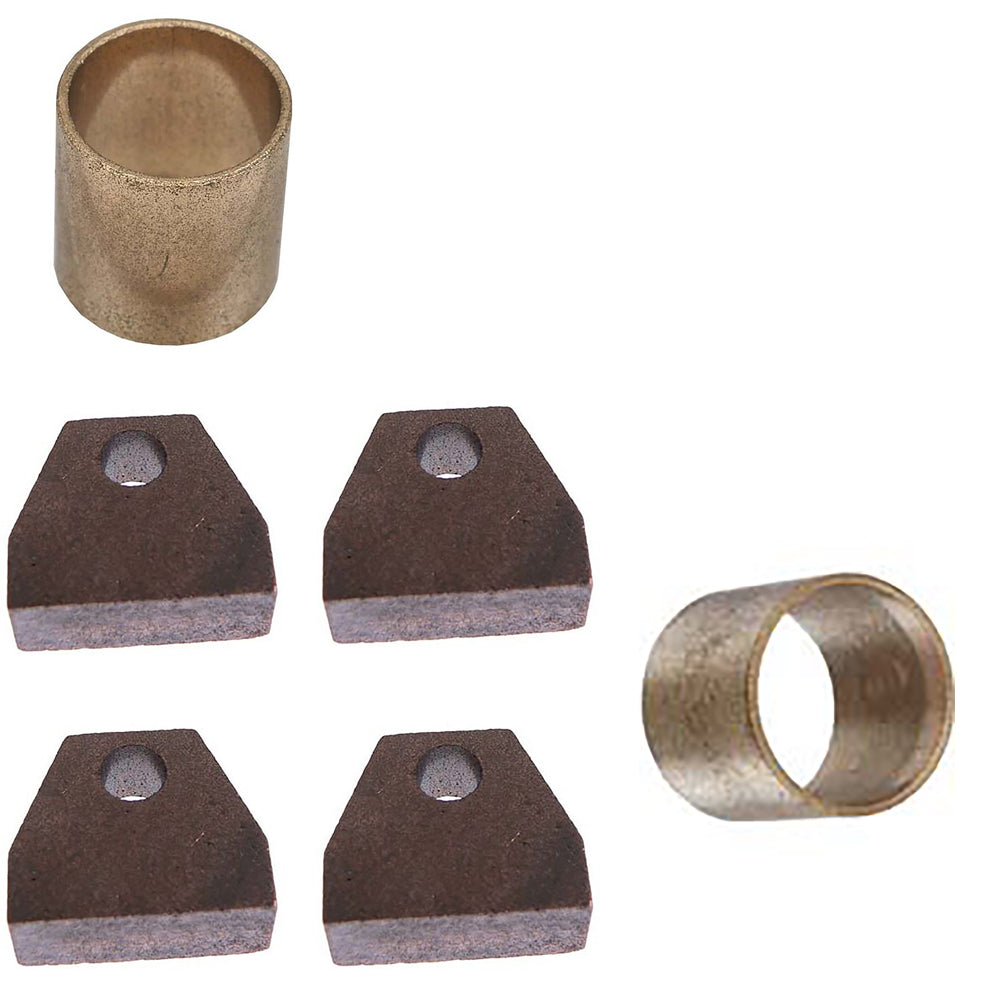

Aftermarket Starter Repair Kit

Tech Info:
 -(4) Starter Brushes
 -Length: 0.63" / 16mm
 -Width: 0.748" / 19mm
 -Height: 0.256" / 6.5mm
 -Replaces: 1906945, 1906966, 1946400
 -
 -(1) Starter Brush
 -ID: 0.564" / 14.33mm
 -OD: 0.629" / 15.98mm
 -Width: 0.65" / 16.51mm
 -Replaces: 1938743, 35058, 81062,0 9B-910,3 D1676, MCX203
 -

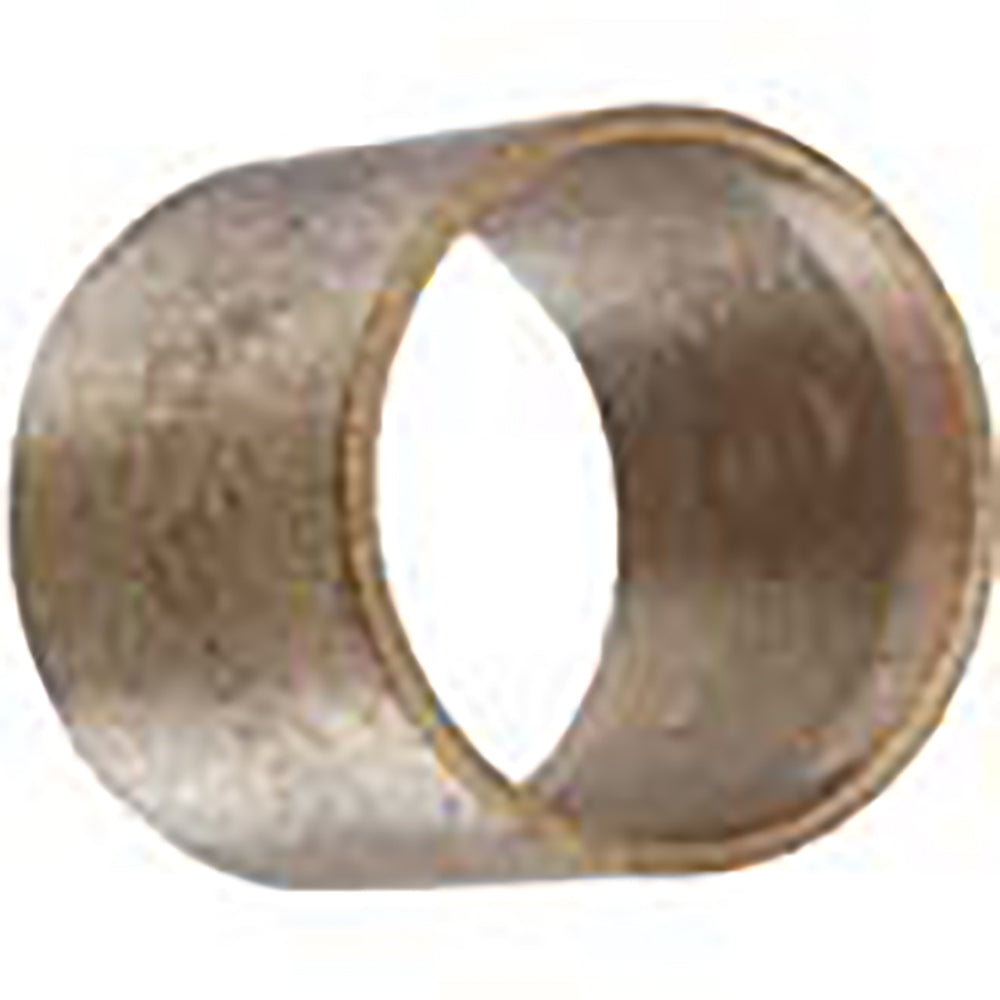

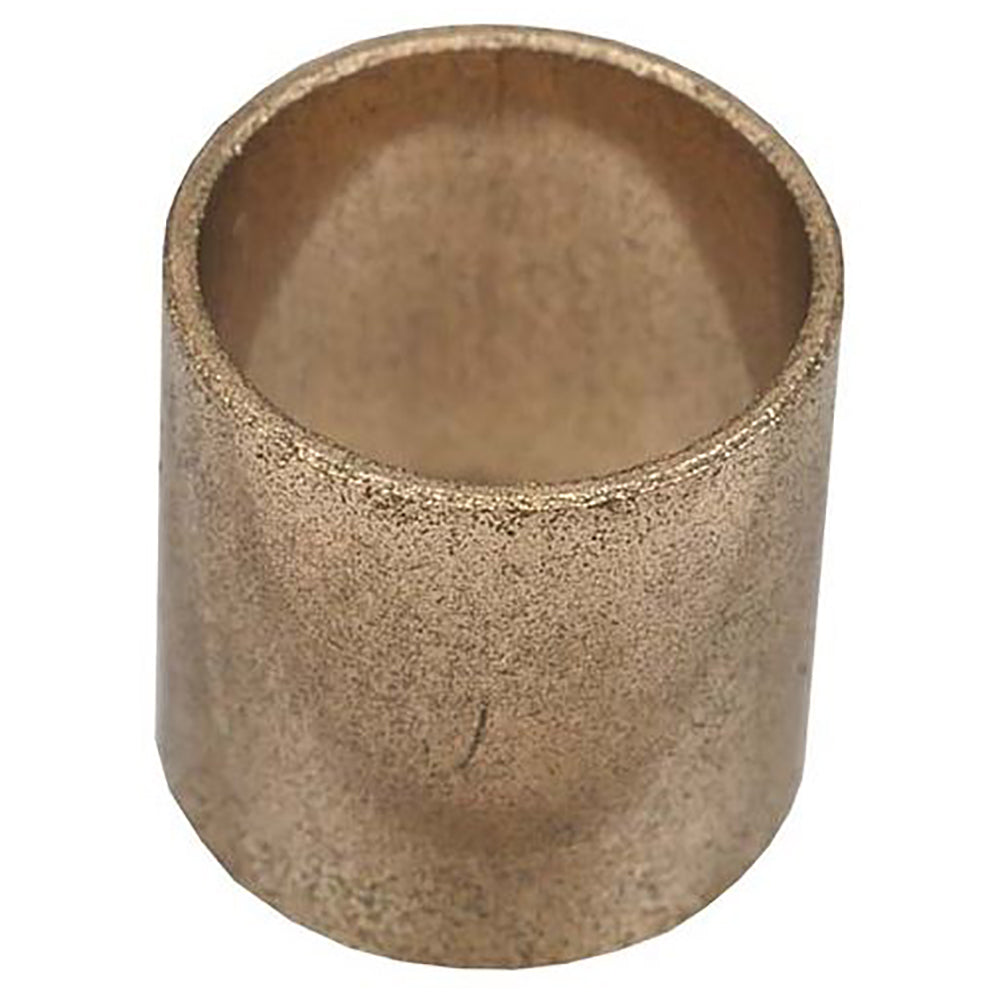

 -(1) Starter Bushing
 -Inner Diameter: 0.626" / 15.9mm
 -Outer Diameter: 0.688" / 17.48mm
 -Width: 0.625" / 15.88mm
 -Replaces: 1838670

Fits Delco:
 Starters Models: 5MT, 10MT, 20MT, 25MT, 27MT, SD200, SD300 Series
 Replaces Part Number(s): 1906945, 1938743

Models This Part Fits:

5MT, 20MT, 25MT, SD300 Series, 10MT, 27MT, SD200

Additional Information:

(4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces: 1906945, 1906966, 1946400 (1) Starter Brush ID: 0.564" / 14.33mm OD: 0.629" / 15.98mm Width: 0.65" / 16.51mm Replaces: 1938743, 35058, 81062,0 9B-910,3 D1676, MCX203 (1) Starter Bushing Inner Diameter: 0.626" / 15.9mm Outer Diameter: 0.688" / 17.48mm Width: 0.625" / 15.88mm Replaces: 1838670

Reference Numbers:

1906945, 1938743

Makes This Part Fits:

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:
