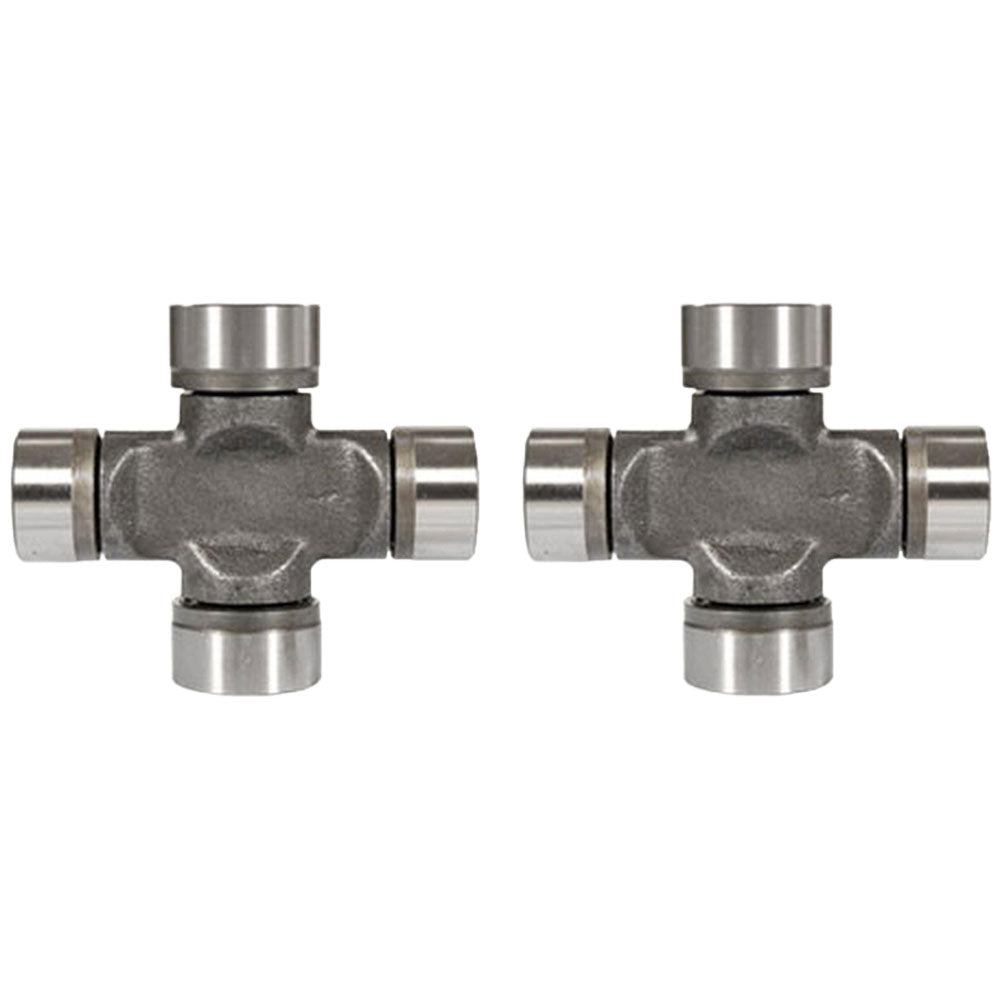

2 of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long
2 of Cross & Bearing 32MM x 36MM Caps x 88.8 MM x 106 MM Long
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

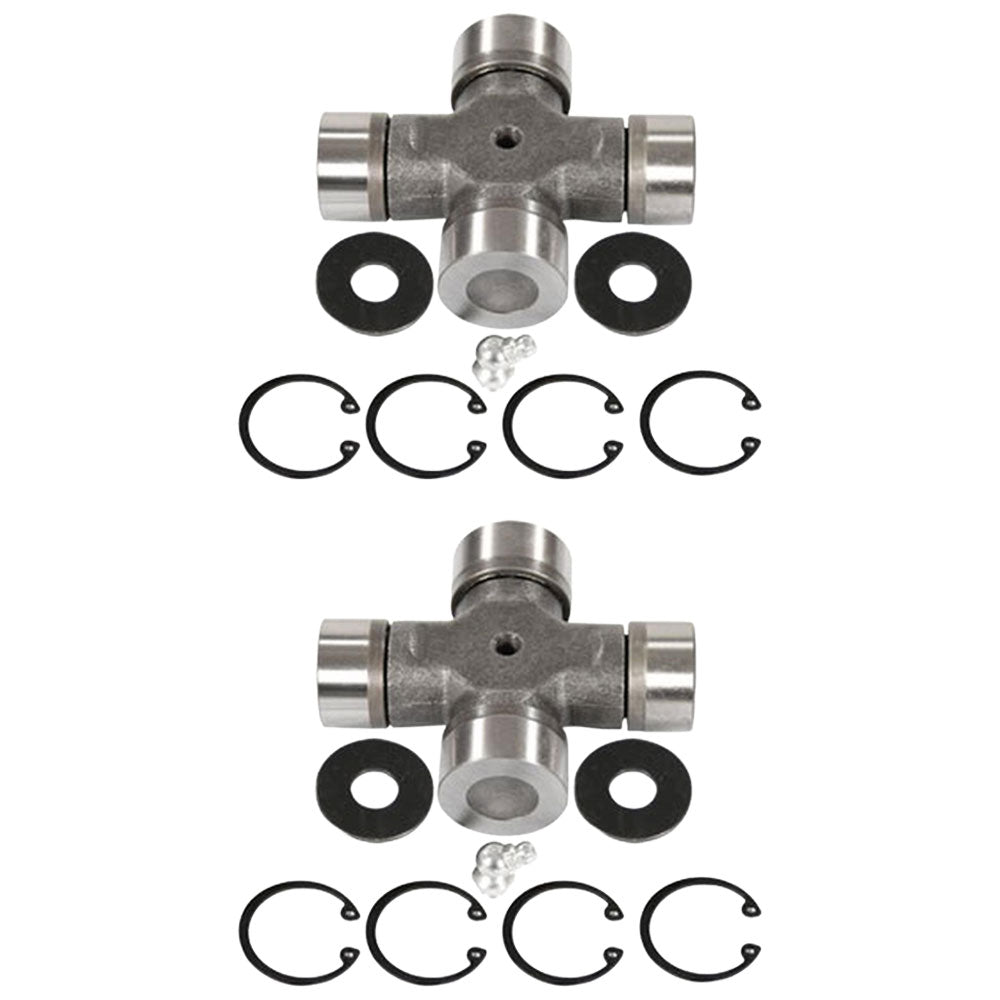

Two New Aftermarket Replacement Cross & Bearing Kits for Walterscheid PTO Drivelines
This listing includes two (2) aftermarket replacement Cross and Bearing Kits designed for Walterscheid WWE and WWZ Series 2580 constant velocity (CV) PTO drivelines. These U-joint cross kits are used on the CV end of the driveline and are a direct replacement for worn or damaged universal joint crosses. Each kit features dual-sized needle bearing caps, a center grease zerk for easy lubrication, and an external snap ring that locates in the yoke. Rated at 90 HP at 540 RPM and 139 HP at 1,000 RPM.
Specifications (per kit)
- Cap Diameter (A): 32.0 mm (1.259")
- Cap Diameter (B): 36.0 mm (1.41")
- Cross Length (C): 88.8 mm - 89.0 mm (3.49" - 3.50")
- Cross Length (D): 106.0 mm (4.17")
- Snap Ring Location: External - located in yoke
- Grease Zerk Location: Center
- Quantity: 2 kits included
Compatible Models
Walterscheid WWE Series: 2580
Walterscheid WWZ Series: 2580
Replaces Part Number(s):
W334109-A, W334109-A-A
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
Additional Information:
32 mm x 36 mm x 89.0 mm x 106 mm (External Snap Ring in Yoke) Center grease zerk location Fits Walterscheid WWE Series: 2580 Snap Ring Located in Yoke Size (A) 32.0mm x (B) 36.0mm x (C) 89.0mm x (D) 106.0mm Snap Ring Location: External Grease Zerk Location: Center Cross & Bearing KitReference Numbers:
W334109-A, W334109-A-AMakes This Part Fits:
