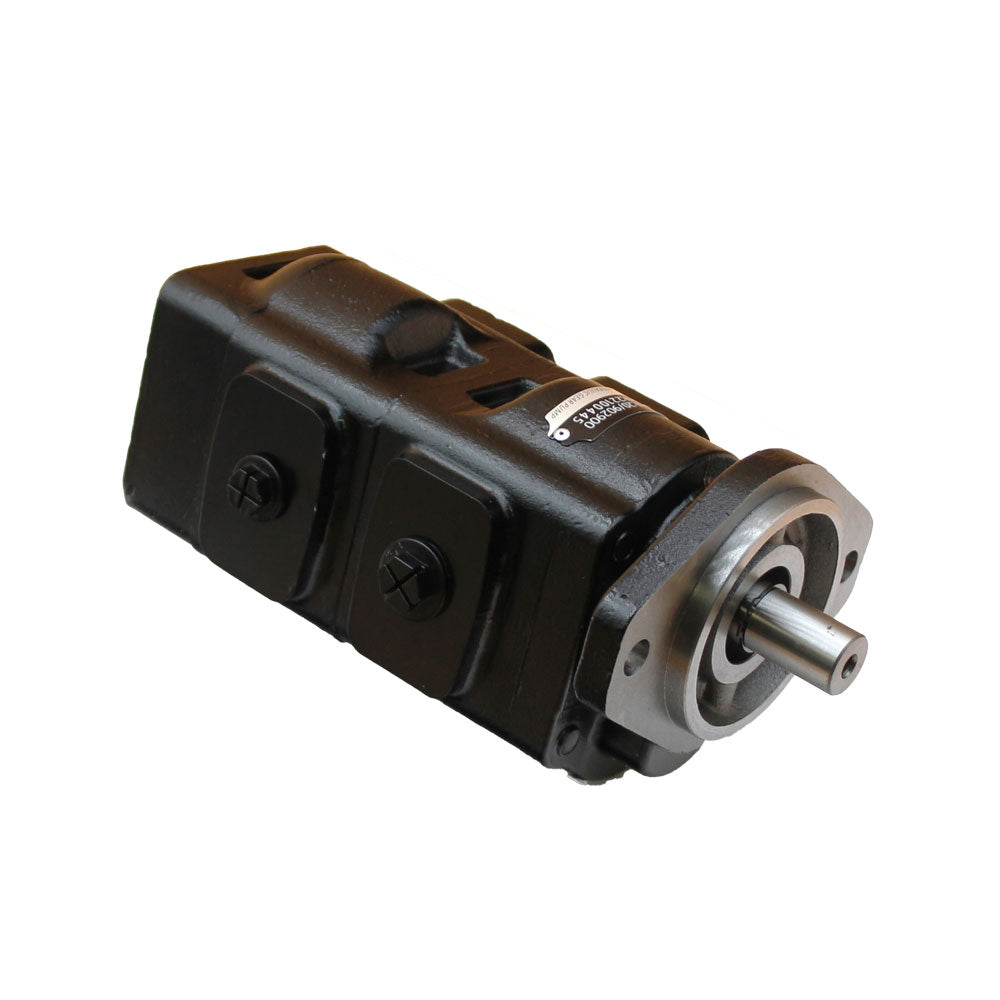

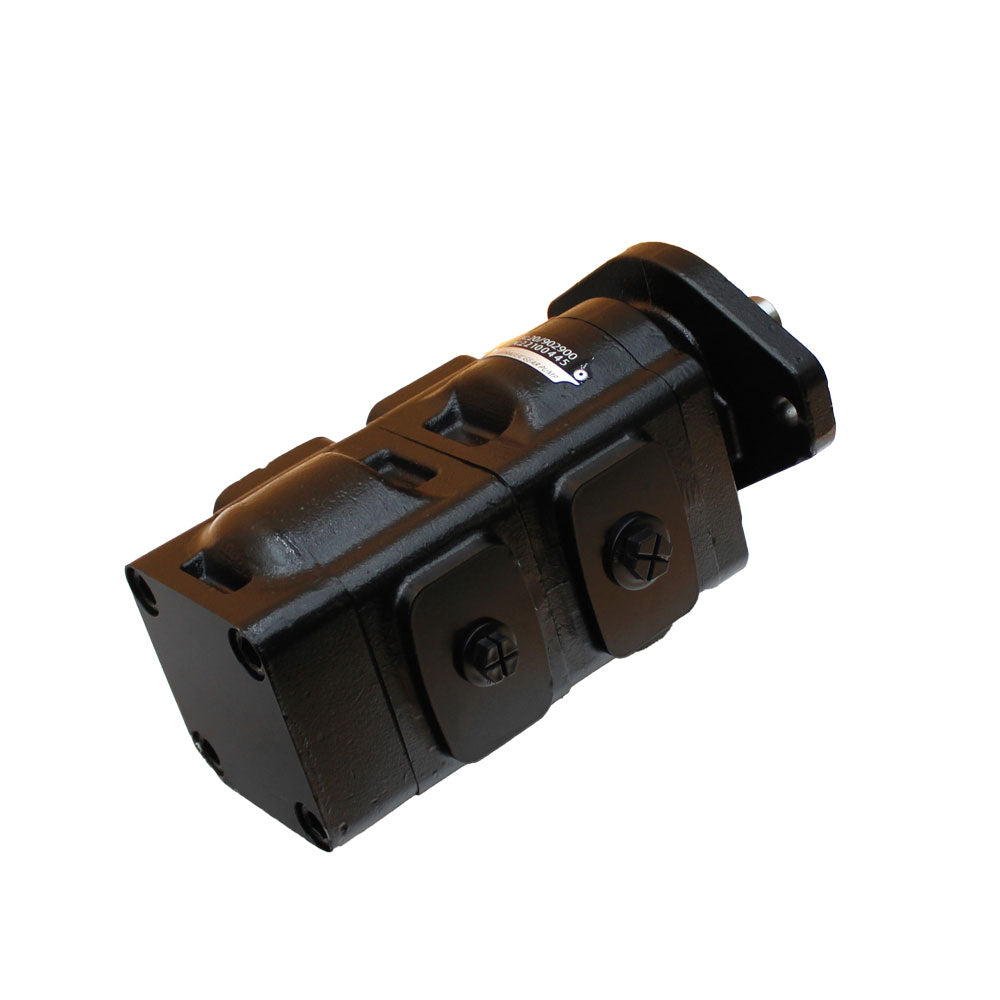

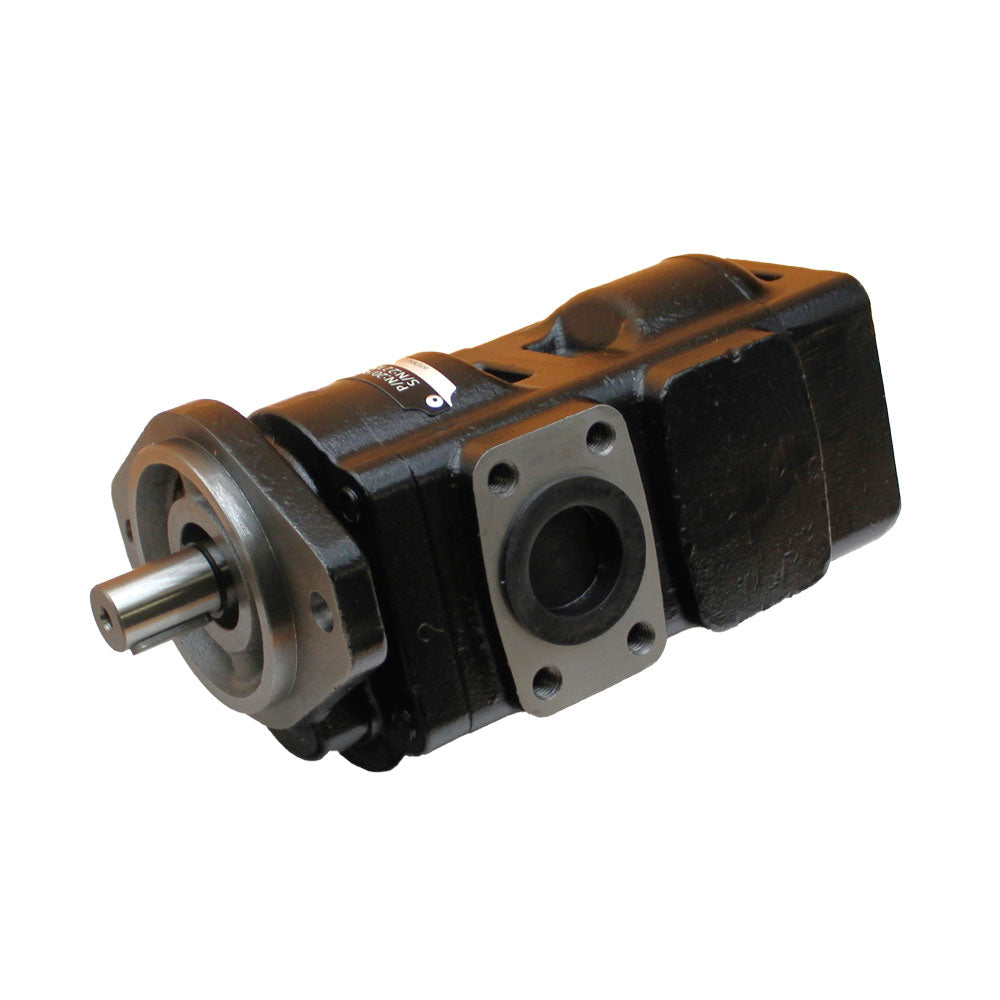

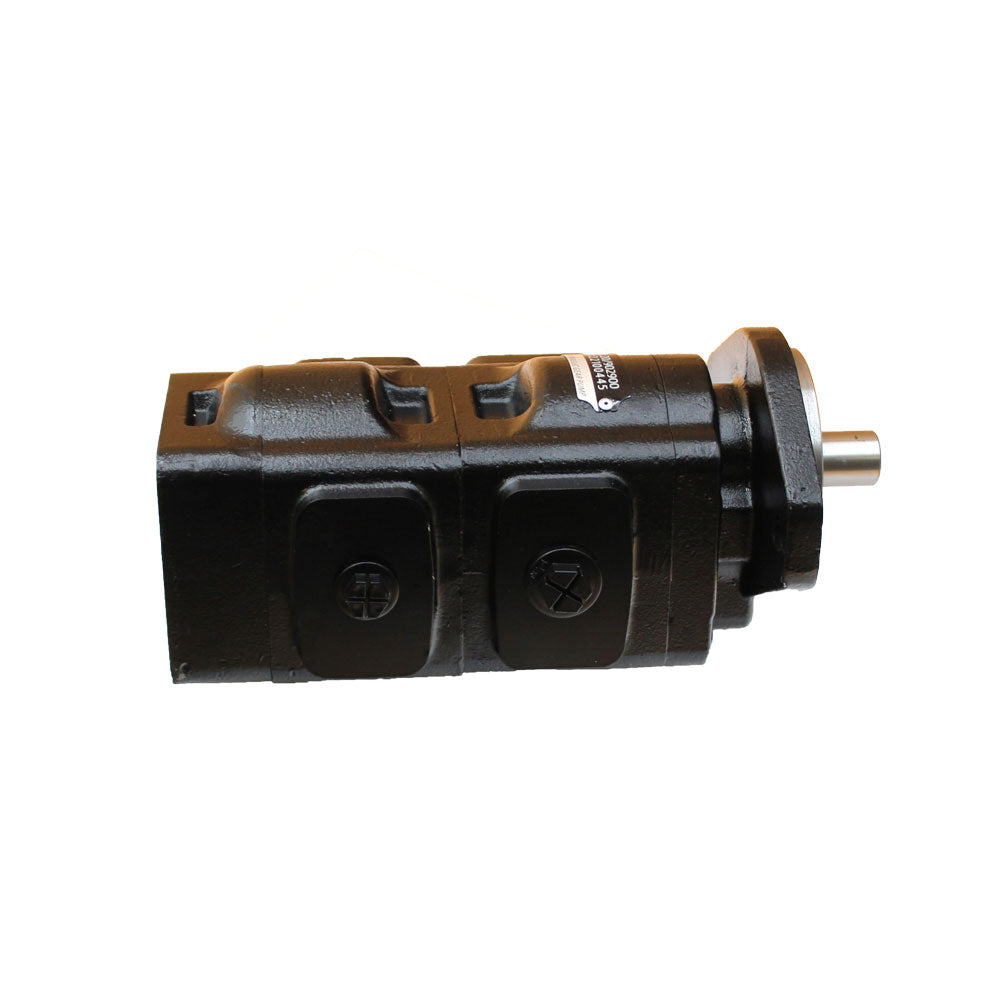

Main Hydraulic Pump Fits JCB Replaces 20/902900
Main Hydraulic Pump Fits JCB Replaces 20/902900
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Main Hydraulic PumpTech Info:
-Rotation: Counter-Clockwise (looking from shaft end)
-Shaft: 1” Diameter Parallel Keyed Shaft
-Mounting Flange: SAE B 2 Hole
-Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm)
-Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)
-Inlet: Combined 2” SAE Flange
-Front Pump Outlet: 1 1/16”-12 UNF Threaded
-Rear Pump Outlet: 7/8”-14 UNF Threaded
-Maximum Working Pressure On Front Pump: 275 bar
-Maximum Working Pressure On Rear Pump: 275 bar
-Max. Input Shaft Torque: 325 NmMade to Fit JCB:
Backhoe Models: 3CXSM AR AK 9802/9750, AA AB 9802/9730, PC Servo 9802/9770, 9802/9700, 35 Sideshift 9802/9600 3CX AA AB 9802/9730, AR AK 9802/9750, (CM) AA AB 9802/9720, PC Servo 9802/9770, 20 Sideshift 9802/9600, 35 Sideshift 9802/9600, 30 Sideshift 9802/9600, 9802/9700 3CX CONTRACTOR AA AB 9802/9730 3CX-4T AR AK 9802/9760, PC Servo 9802/9780 3CXHM 30 Sideshift 9802/9600, 35 Sideshift 9802/9600 3CXT 35 Sideshift 9802/9600, 20 Sideshift 9802/9600, 30 Sideshift 9802/9600
Replaces Part Number(s): 20/902900, 20/903100, 20/912800
Industrial/Construction Models: 3CXHM 30, 3CXSM 30, 3CXHM 35, 3CX 20, 3CX 35, 3CX 30, 3CXSM 9802/9700, 3CXT 35, 3CX 9802/9700, 3CXSM 35, 3CXT 20, 3CXT 30
Replaces Part Number(s): 20/902900, 20/903100, 20/912800
-Rotation: Counter-Clockwise (looking from shaft end)
-Shaft: 1” Diameter Parallel Keyed Shaft
-Mounting Flange: SAE B 2 Hole
-Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm)
-Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm)
-Inlet: Combined 2” SAE Flange
-Front Pump Outlet: 1 1/16”-12 UNF Threaded
-Rear Pump Outlet: 7/8”-14 UNF Threaded
-Maximum Working Pressure On Front Pump: 275 bar
-Maximum Working Pressure On Rear Pump: 275 bar
-Max. Input Shaft Torque: 325 NmMade to Fit JCB:
Backhoe Models: 3CXSM AR AK 9802/9750, AA AB 9802/9730, PC Servo 9802/9770, 9802/9700, 35 Sideshift 9802/9600 3CX AA AB 9802/9730, AR AK 9802/9750, (CM) AA AB 9802/9720, PC Servo 9802/9770, 20 Sideshift 9802/9600, 35 Sideshift 9802/9600, 30 Sideshift 9802/9600, 9802/9700 3CX CONTRACTOR AA AB 9802/9730 3CX-4T AR AK 9802/9760, PC Servo 9802/9780 3CXHM 30 Sideshift 9802/9600, 35 Sideshift 9802/9600 3CXT 35 Sideshift 9802/9600, 20 Sideshift 9802/9600, 30 Sideshift 9802/9600
Replaces Part Number(s): 20/902900, 20/903100, 20/912800
Industrial/Construction Models: 3CXHM 30, 3CXSM 30, 3CXHM 35, 3CX 20, 3CX 35, 3CX 30, 3CXSM 9802/9700, 3CXT 35, 3CX 9802/9700, 3CXSM 35, 3CXT 20, 3CXT 30
Replaces Part Number(s): 20/902900, 20/903100, 20/912800
Models This Part Fits:
PC Servo 9802/9780 3CXHM 30 Sideshift 9802/9600, 9802/9700 3CX CONTRACTOR AA AB 9802/9730 3CX-4T AR AK 9802/9760, 20 Sideshift 9802/9600, 3CXT 20, PC Servo 9802/9770, 9802/9700, 3CXSM 9802/9700, 3CXT 30, 3CX 9802/9700, 35 Sideshift 9802/9600, 3CXSM AR AK 9802/9750, 3CXT 35, AR AK 9802/9750, AA AB 9802/9730, 30 Sideshift 9802/9600, 3CX 35, 3CXSM 30, 3CXHM 30, 35 Sideshift 9802/9600 3CX AA AB 9802/9730, (CM) AA AB 9802/9720, 3CX 20, 3CXHM 35, 35 Sideshift 9802/9600 3CXT 35 Sideshift 9802/9600, 3CXSM 35, 3CX 30Additional Information:
Rotation: Counter-Clockwise (looking from shaft end) Shaft: 1” Diameter Parallel Keyed Shaft Mounting Flange: SAE B 2 Hole Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm) Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm) Inlet: Combined 2” SAE Flange Front Pump Outlet: 1 1/16”-12 UNF Threaded Rear Pump Outlet: 7/8”-14 UNF Threaded Maximum Working Pressure On Front Pump: 275 bar Maximum Working Pressure On Rear Pump: 275 bar Max. Input Shaft Torque: 325 Nm Main Hydraulic PumpReference Numbers:
20/902900, 20/903100, 20/912800Makes This Part Fits:
Shop Jcb Wholesale PartsProduct Category:
Construction Replacement PartsProduct Group:
Product Sub Group:
