18567D Clutch Kit Fits Case/International Harvester 100 130 140 200 230 240 300
18567D Clutch Kit Fits Case/International Harvester 100 130 140 200 230 240 300
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

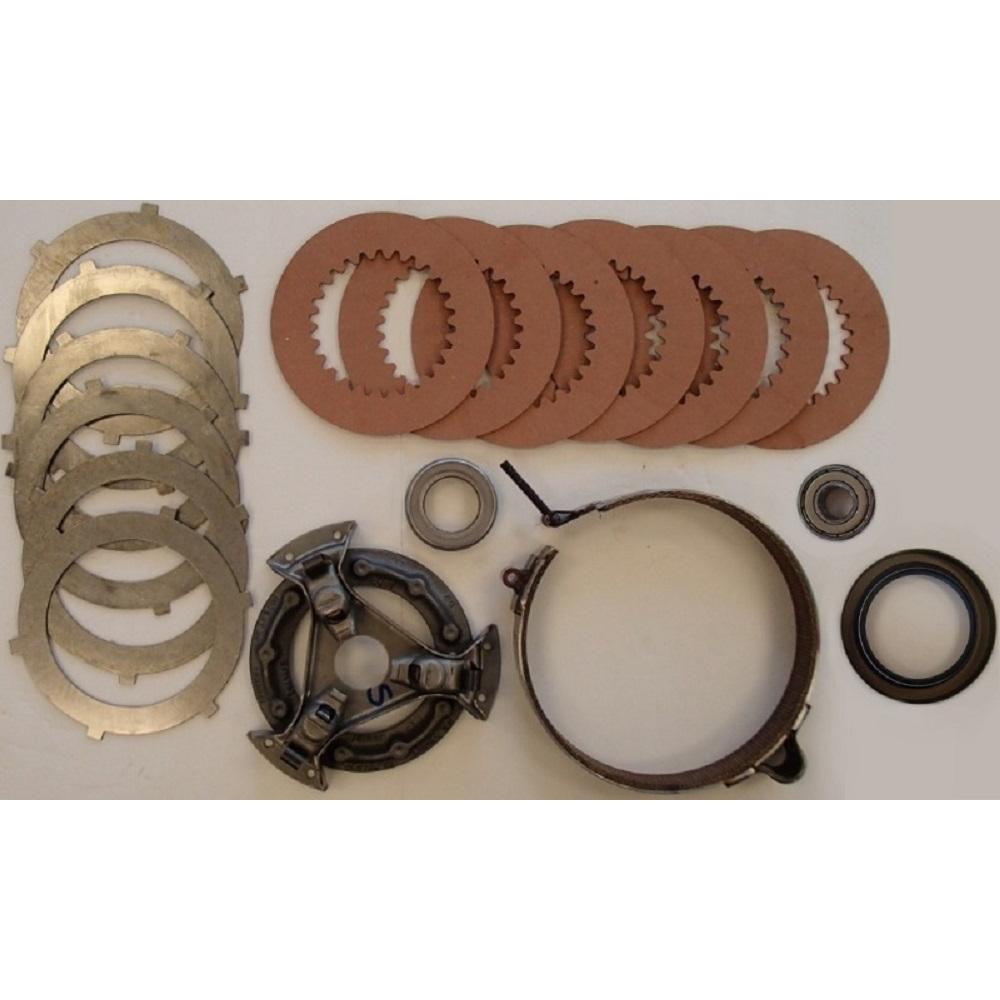

Aftermarket Clutch KitTech Info:

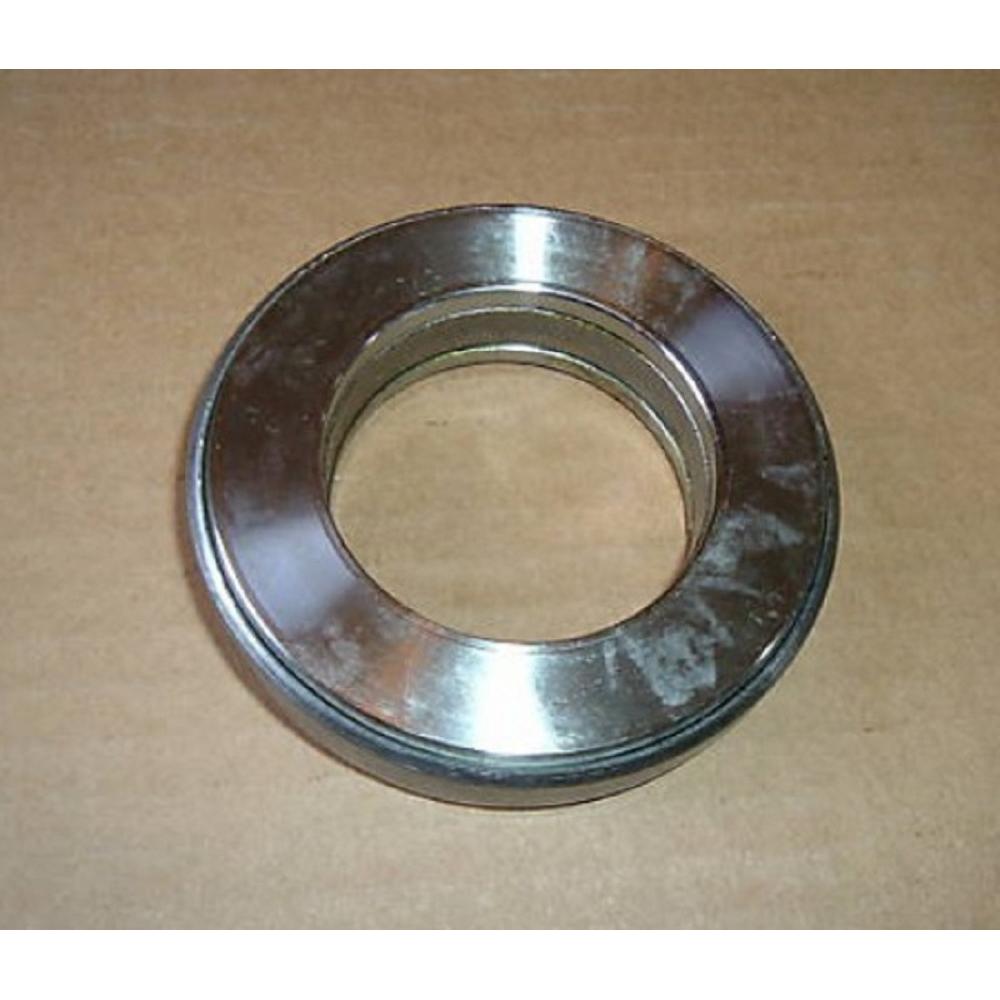

-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-ID 2.060"
-ID Type Round
-OD 3.560"
-Width Overall 0.795"
-Replaces: AM3983T
-

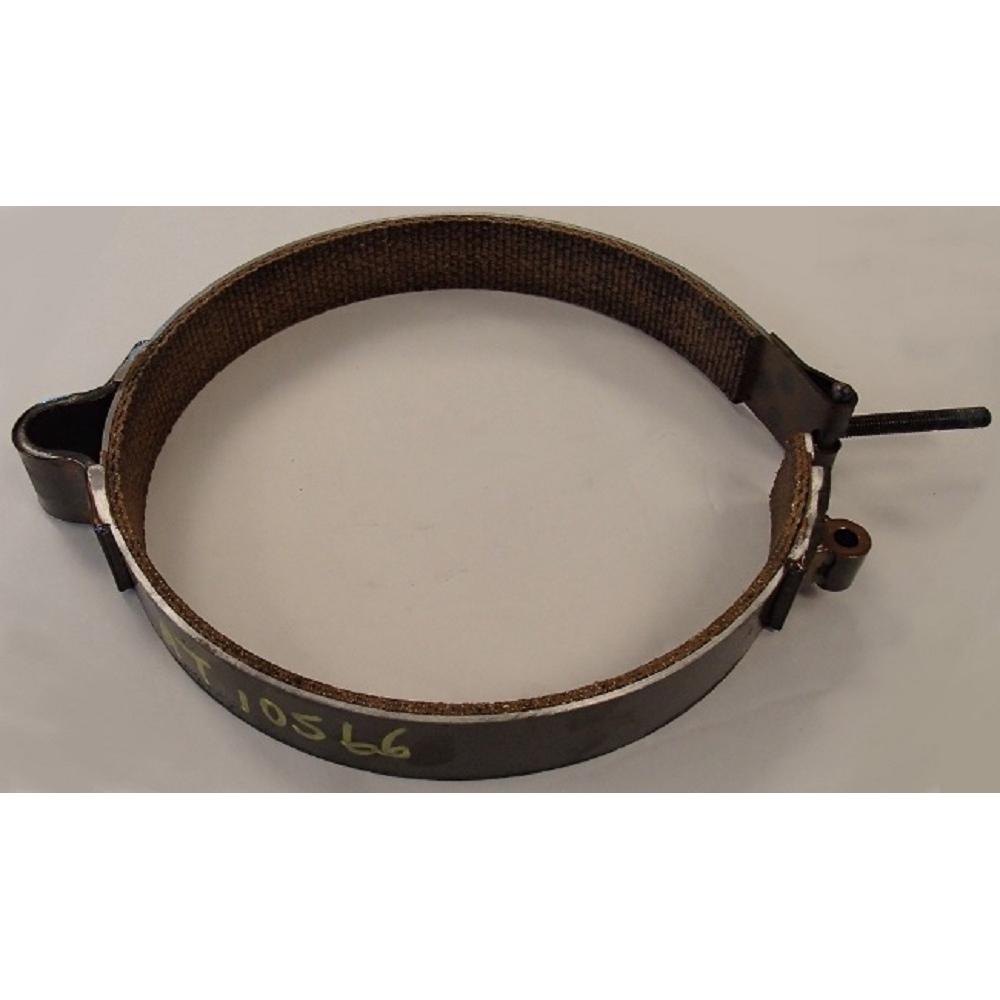

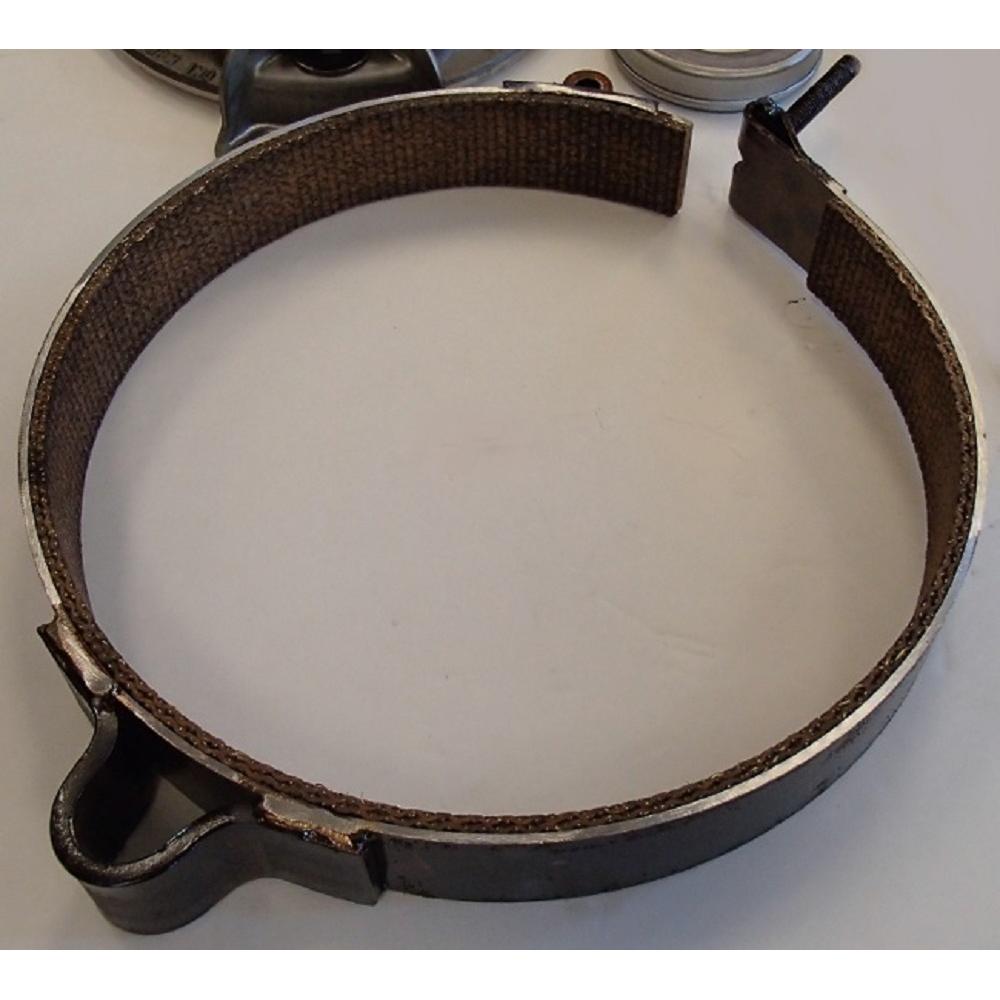

-(1) Brake Band Assembly
-Replaces Part Number(s): AT10566, AT129803, M695T
-

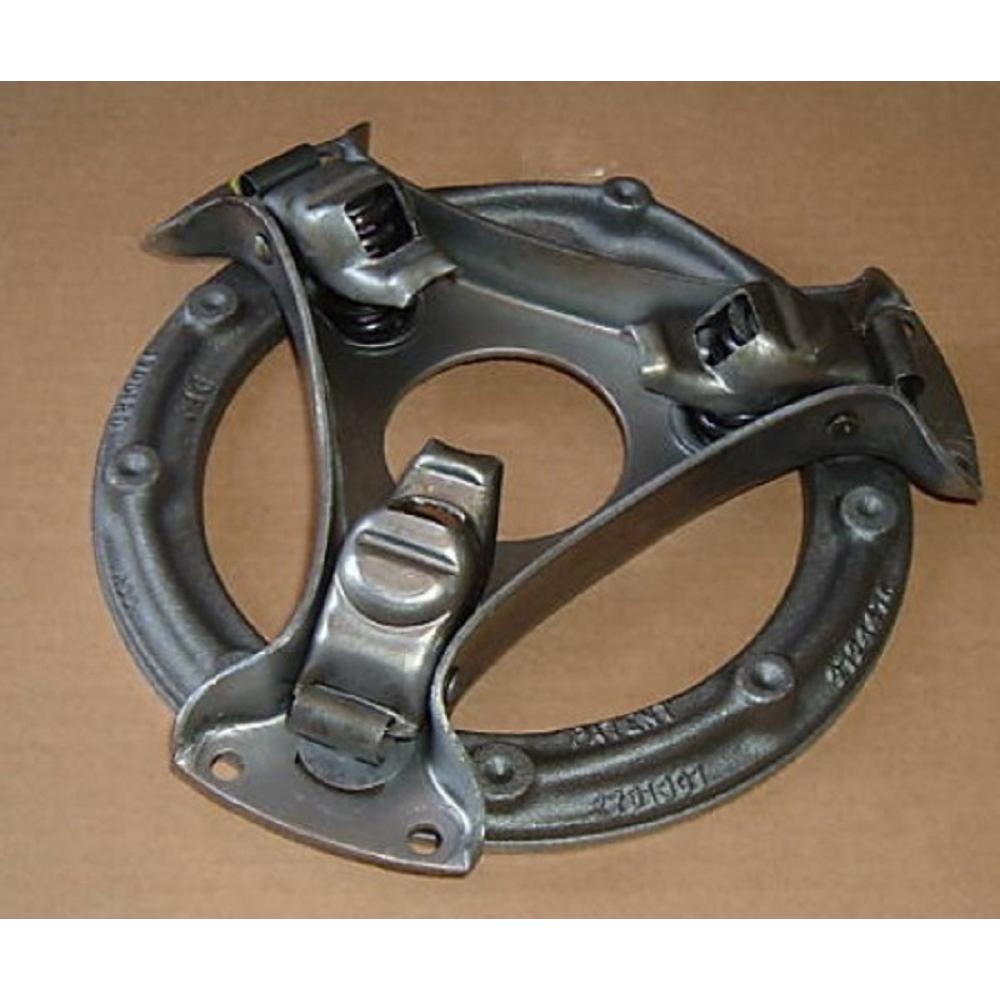

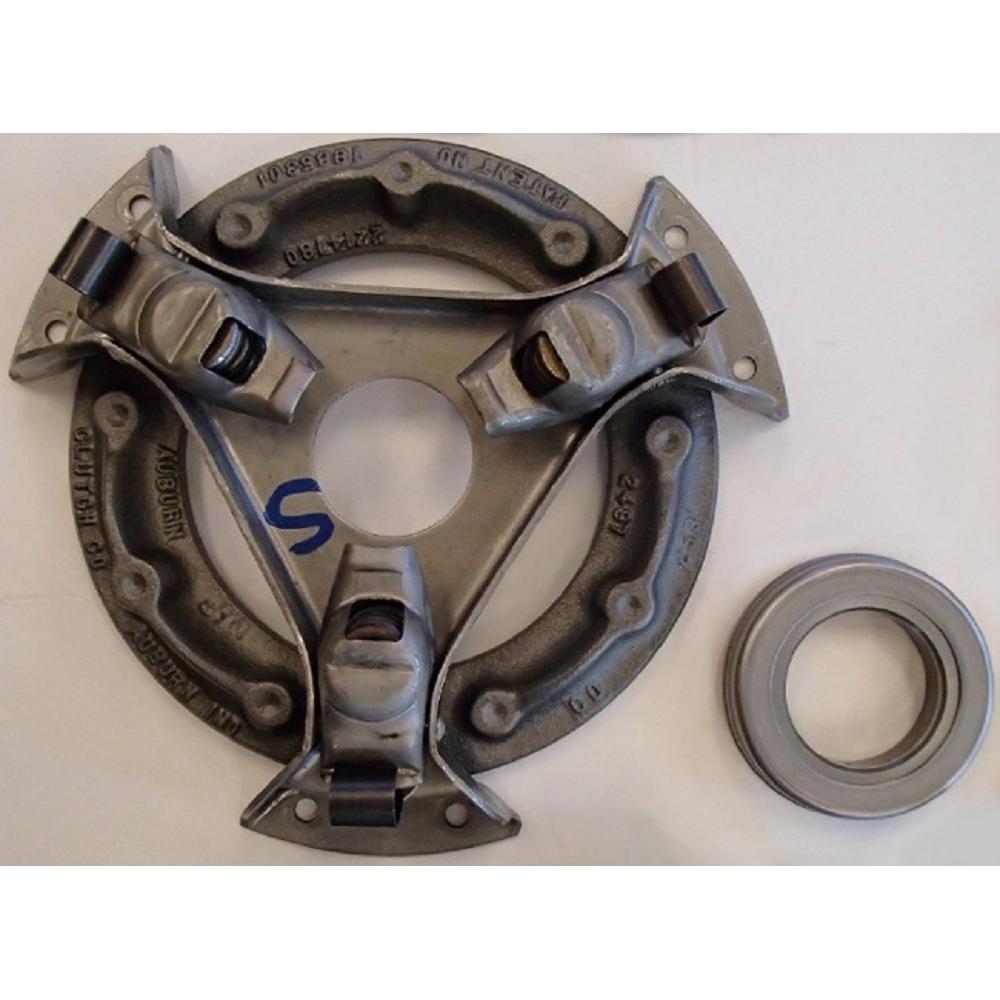

-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-

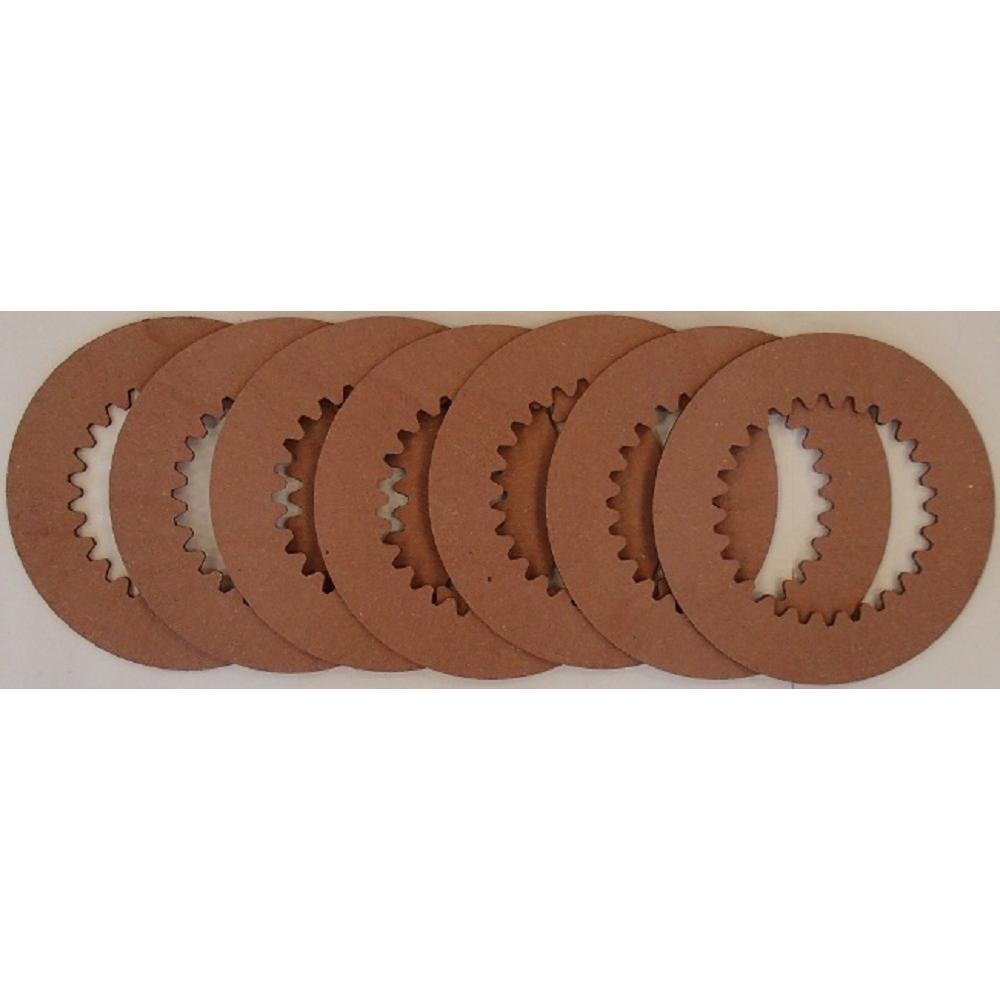

-(7) Fiber Steering Clutch Discs
-8.554" OD
-5.620" Major ID
-26 Splines
-Replaces Part Number(s): M3293T, AT314772, M3293
-

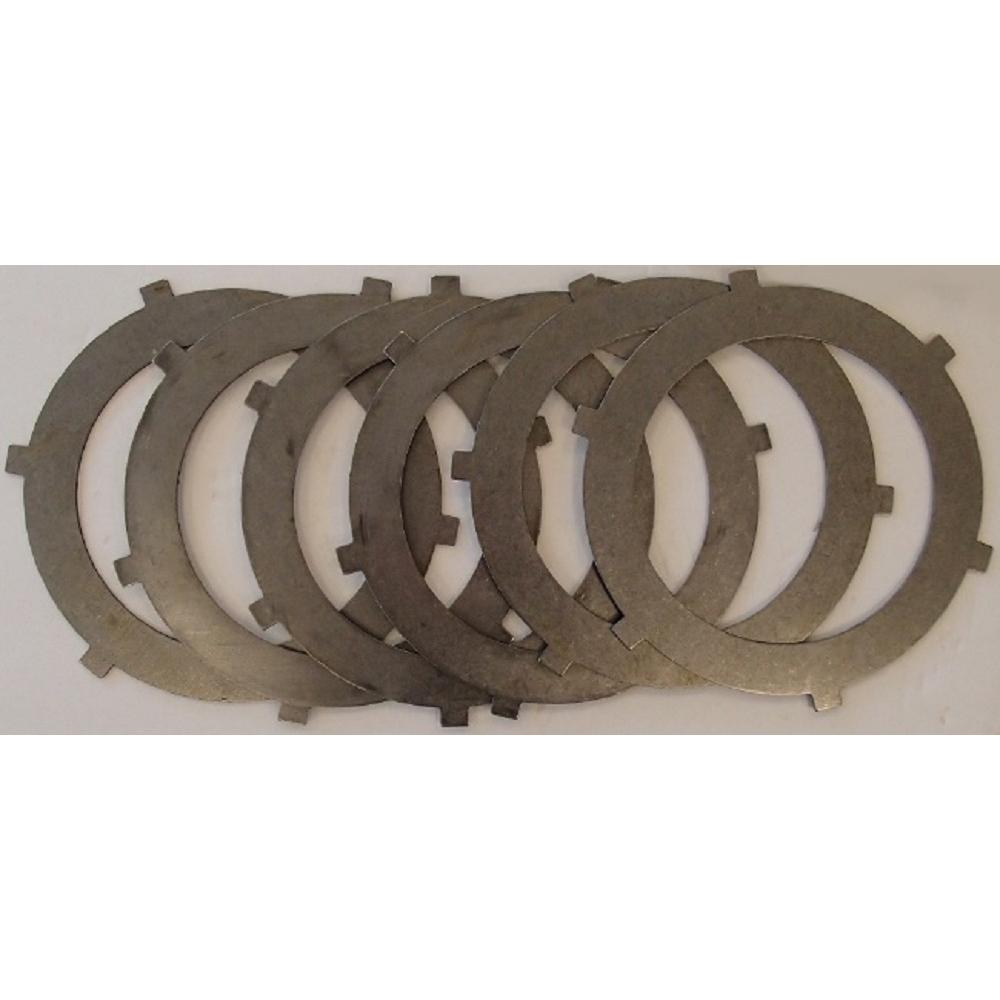

-(6) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 External Ears
-Replaces Part Number(s): M872T
-

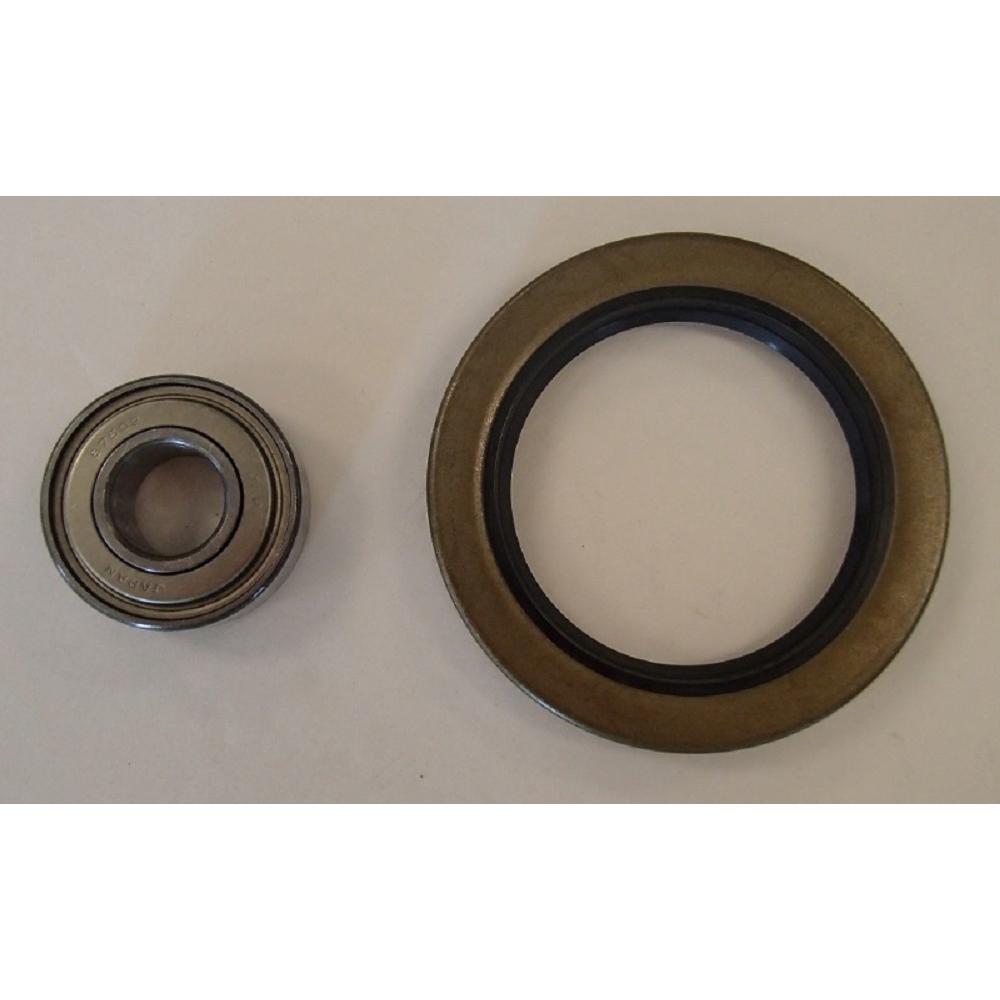

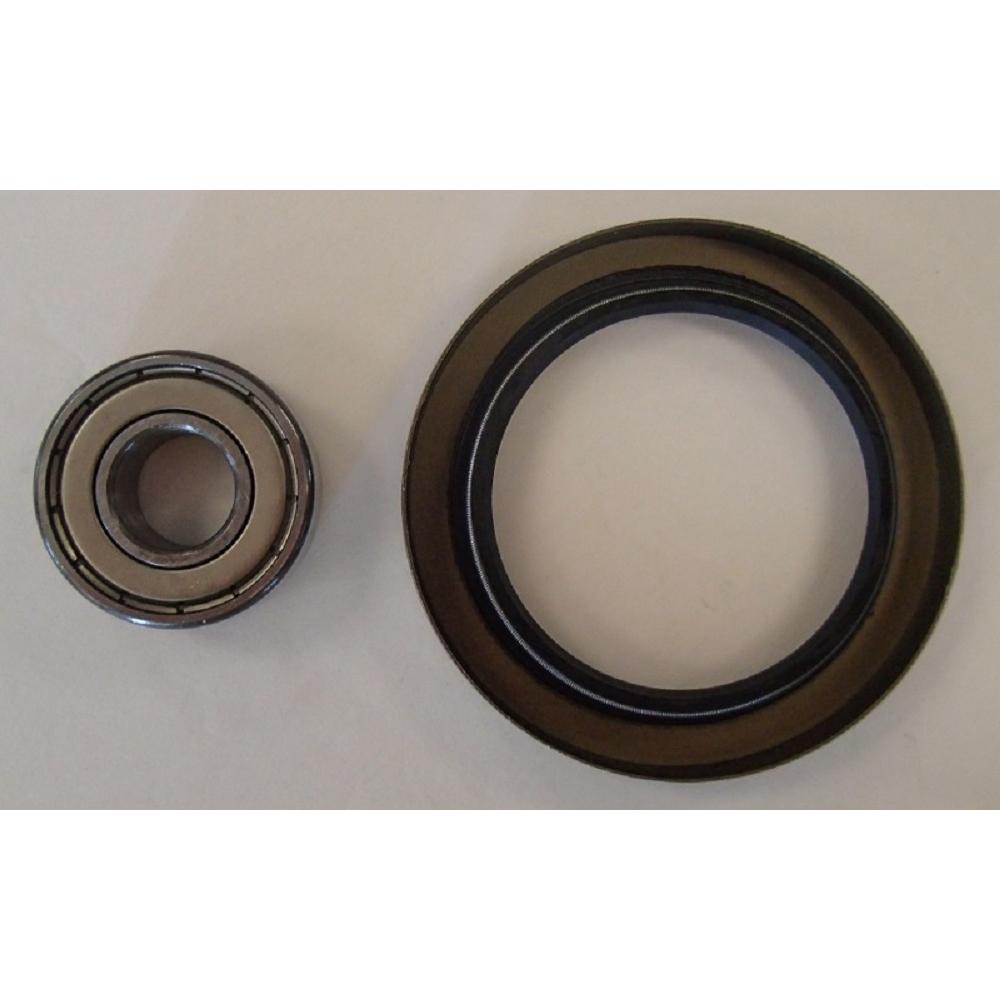

-(1) Rear Axle Inner Seal
-2.000” ID
-2.876” OD
-.468” wide
-Replaces: AM1717T
-
-(1) Pilot Bearing
-15 X 35 X 12.192 WI X 11 WOFits Case/International Harvester:
Tractor Models: A, AV, B, C, Super C, H, HV, Super H, Super MDTA, Super MDV-TA, MTA, Super MTA, Super MVTA, W12, W14, Super W6TA, F12, F14, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 450, 460, 504, 544, 560, 606, 656, 660, 664, 666, 686
Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D
Crawler Models: T5
Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D
-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-ID 2.060"
-ID Type Round
-OD 3.560"
-Width Overall 0.795"
-Replaces: AM3983T
-
-(1) Brake Band Assembly
-Replaces Part Number(s): AT10566, AT129803, M695T
-
-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-
-(7) Fiber Steering Clutch Discs
-8.554" OD
-5.620" Major ID
-26 Splines
-Replaces Part Number(s): M3293T, AT314772, M3293
-
-(6) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 External Ears
-Replaces Part Number(s): M872T
-
-(1) Rear Axle Inner Seal
-2.000” ID
-2.876” OD
-.468” wide
-Replaces: AM1717T
-
-(1) Pilot Bearing
-15 X 35 X 12.192 WI X 11 WOFits Case/International Harvester:
Tractor Models: A, AV, B, C, Super C, H, HV, Super H, Super MDTA, Super MDV-TA, MTA, Super MTA, Super MVTA, W12, W14, Super W6TA, F12, F14, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 450, 460, 504, 544, 560, 606, 656, 660, 664, 666, 686
Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D
Crawler Models: T5
Replaces Part Number(s): 18567D, 362028R91, 362028R92, 55211D, 55212D
Models This Part Fits:
660, T5, 340, 656, C, MTA, Super C, 460, Super MTA, B, 140, 330, H, W14, AV, 560, 100, 200, 400, 350, F14, 544, 606, 300, HV, 664, 686, 130, 240, Super H, F12, 504, Super MDTA, Super MVTA, 230, 666, A, Super W6TA, W12, Super MDV-TA, 450, 404Additional Information:
(1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall 0.795" Replaces: AM3983T (1) Brake Band Assembly Replaces Part Number(s): AT10566, AT129803, M695T (1) 8.5" Pressure Plate Assembly 3 Lever Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121 (7) Fiber Steering Clutch Discs 8.554" Outer Diameter 5.620" Major Inner Diameter 26 Splines Replaces Part Number(s): M3293T, AT314772, M3293 (6) Steel Discs 8.493" Outer Diameter 6.380" Inner Diameter 6 External Ears Replaces Part Number(s): M872T (1) Rear Axle Inner Seal 2.000” Inner Diameter 2.876” Outer Diameter .468” wide Replaces: AM1717T (1) Pilot Bearing 15 X 35 X 12.192 WI X 11 WOReference Numbers:
18567D, 362028R91, 362028R92, 55211D, 55212DMakes This Part Fits:
Shop Case/International Harvester Wholesale PartsShop International Harvester Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
