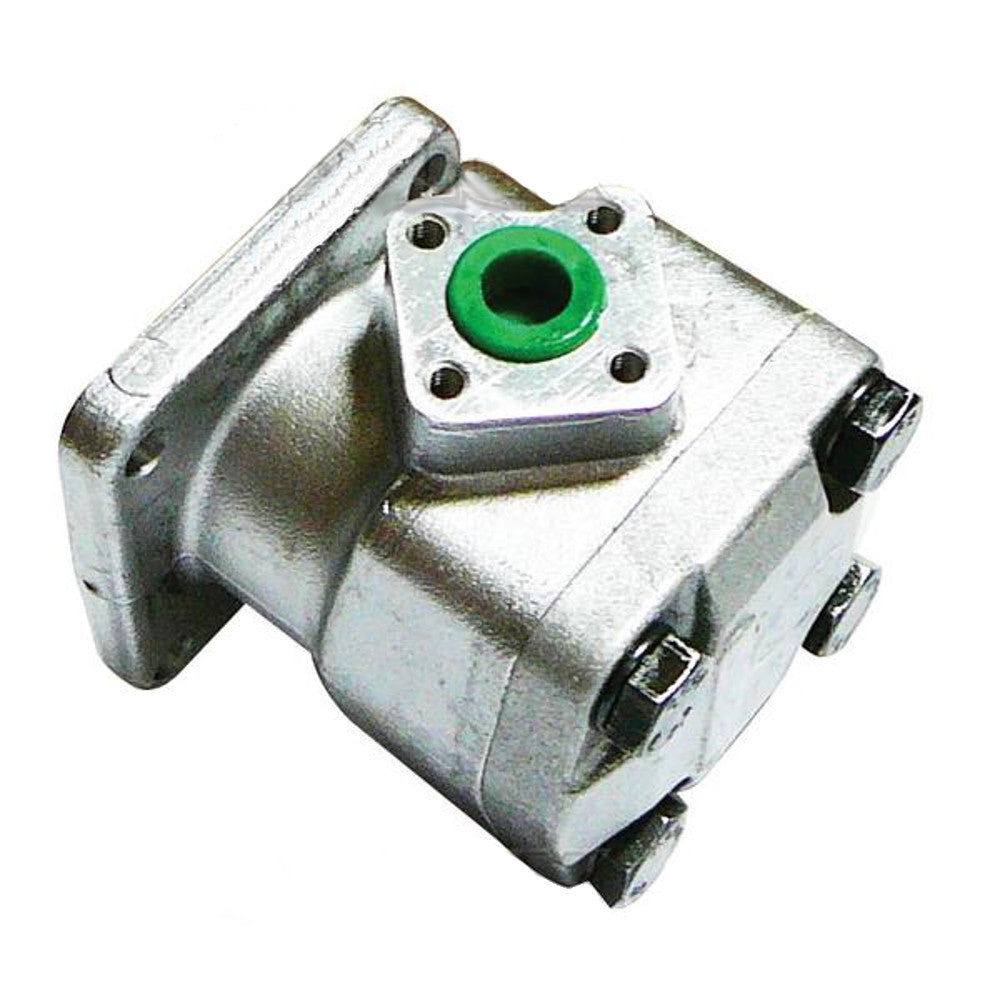

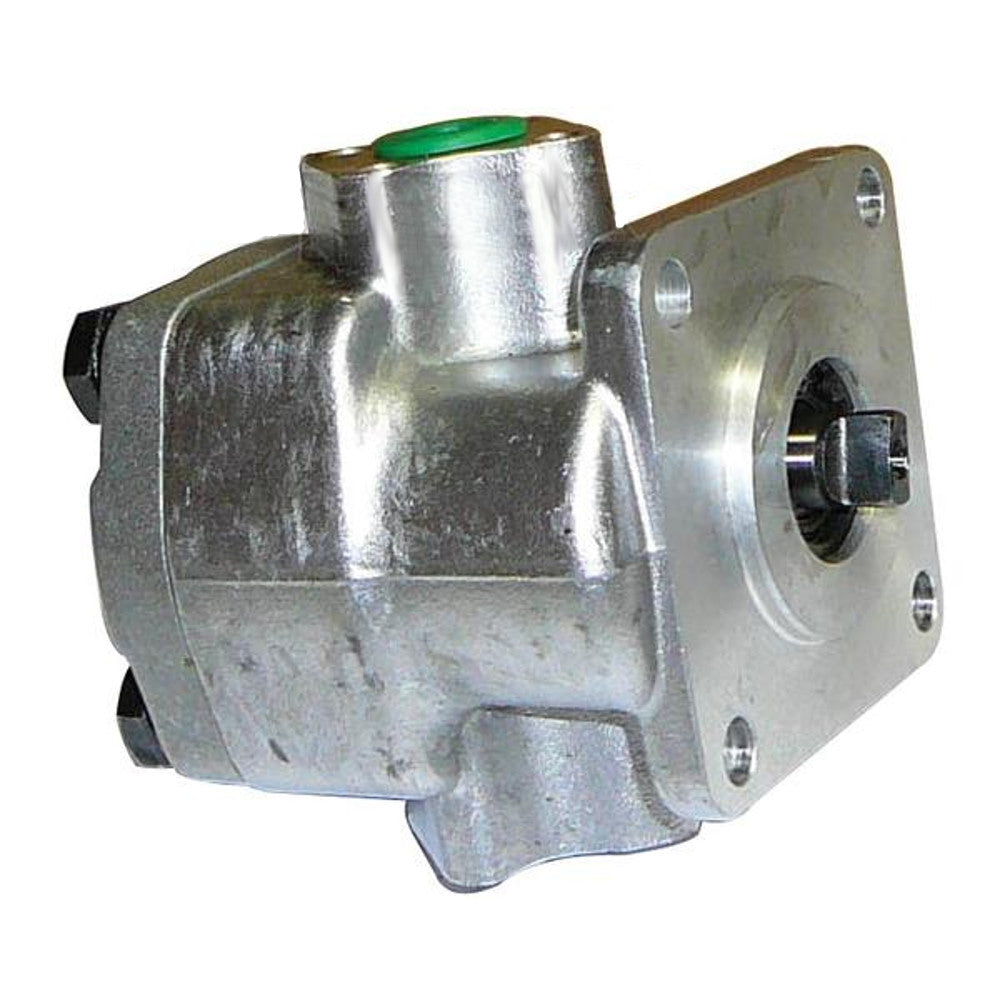

One New Aftermarket Replacement Hydraulic Pump for Satoh, Bolens, and Iseki Compact Tractors

This aftermarket replacement hydraulic gear pump services the tractor's rear hydraulic lift, 3-point hitch, and auxiliary hydraulic functions. It is a direct replacement for the original pump on Satoh, Bolens (Iseki-engined), and Fits Mitsubishi-built compact tractors sharing this common drivetrain platform.

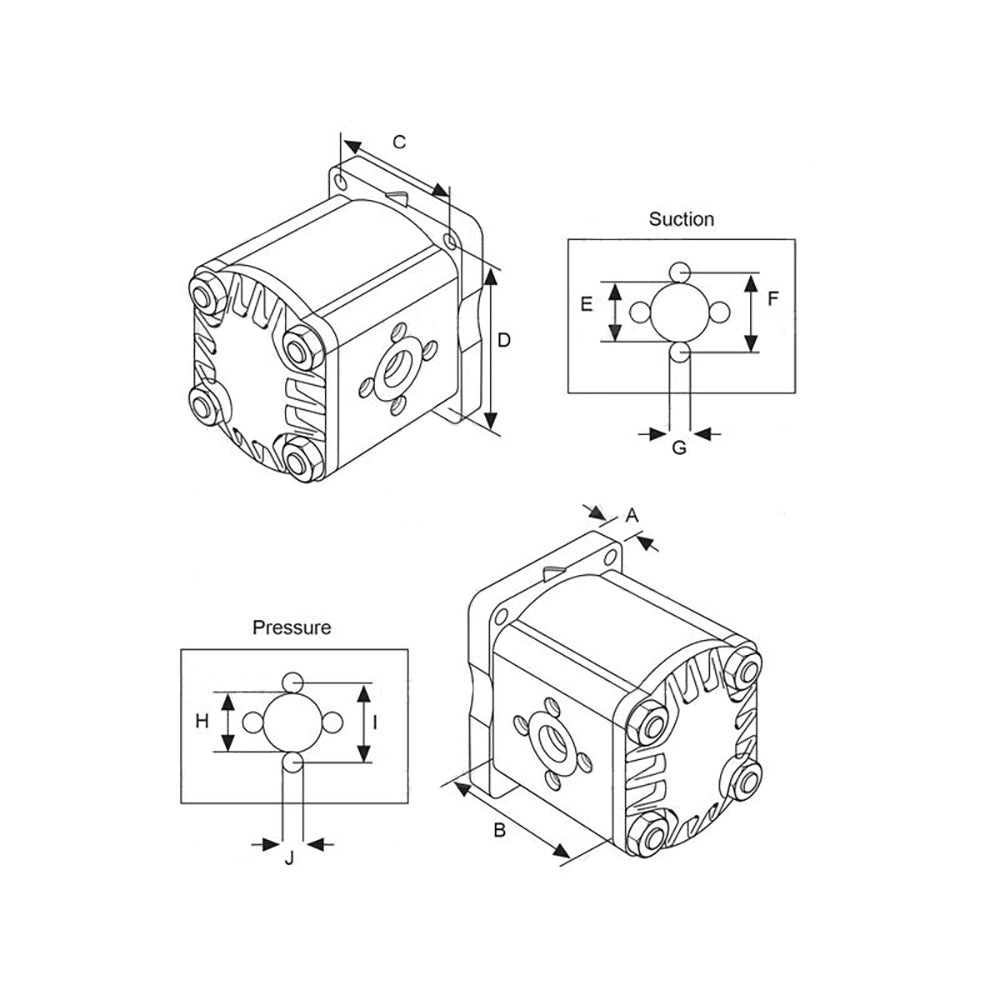

Specifications

• Overall Dimensions: 100 mm x 90 mm x 100 mm
• Port diameter: 16/16 mm
• Mounting bolt hole diameter: 8.80 mm
• Bolt hole spacing: 63 mm / 90 mm (diagonal)
• Inlet port spacing: 25 mm apart / 35.6 mm diagonal
• Outlet port spacing: 25 mm apart / 35.6 mm diagonal
• Pump rotation: counterclockwise
• Weight: 1.65 kg

Compatible Models

Satoh: S550, S550G (Elk), S650, S650G (Bison)

Bolens: G152, G154, G172, G174, H1502, H1704 (3-cylinder engine), TX1502, TX1504, TX1704

Iseki: TX2140, TX2140F, TX2140T, TX2160, TX2160F

Replaces Part Number(s):

1915-2451000, 19152451000, 1915-2451-000, 2451000, 187-4050, 1434-503-2000-0

Aftermarket Interchange Numbers

KP0540AHSS, KP0560AHSS, KP0570AHSS, KP0588AHSS, GP-3542A, GP33-40E, GP 3340E, GPL1-43L010, GPLI43L010, GPO-130, GP-8.5-3844B, 5KI/43000BOL, 2001011566, 2001073009, 20010-73009, K1350010000, 440588

New aftermarket replacement part - not remanufactured, not used.
