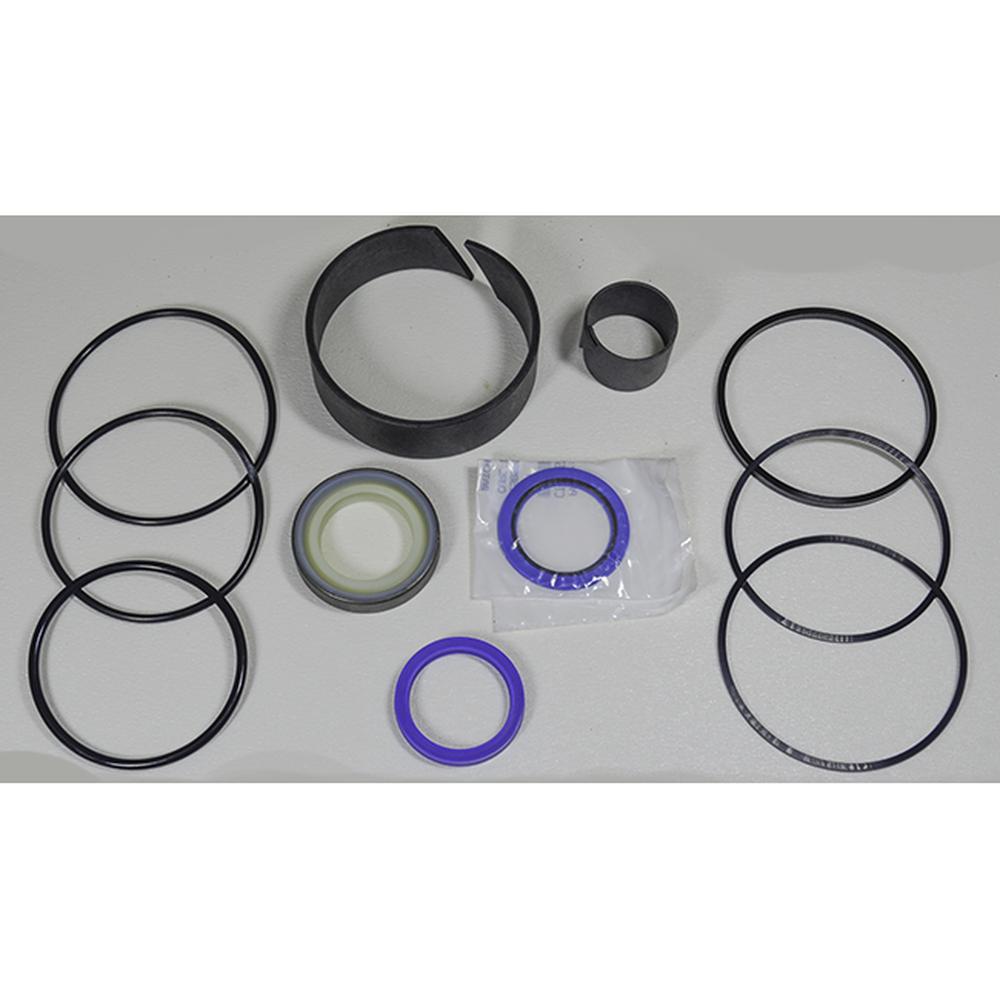

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit for Caterpillar (Cat) Crawler Dozers and Motor Graders

This aftermarket hydraulic cylinder seal kit replaces Caterpillar (Cat) OEM part 246-5917 and is designed to rebuild and reseal lift, tilt, angling, and wheel lean cylinders on a wide range of Cat crawler dozers and motor graders. The kit contains all seals required for a complete standard-size cylinder reseal. Rod diameter is 1-1/2" and bore is 3-1/2".

Specifications

• Rod: 1-1/2"
• Bore: 3-1/2"
• Application: Lift, Tilt, Angling, and Wheel Lean Hydraulic Cylinders

Compatible Models

Caterpillar Crawler Dozers (Angling Cylinders): D3B (Cylinder: 9J8698), D3C (Cylinders: 1026237, 1363155, 1363156, 9J8698), D4C (Cylinder: 1363156, 9J8698), D5C (Cylinder: 1363156, 9J8698)

Caterpillar Crawler Dozers (Lift Cylinders): D3B, D4B (Cylinders: 7J9223, 9T6652), D3C, D4C, D5C (Cylinders: 1412915, 7J9223)

Caterpillar Crawler Dozers (Tilt Cylinders): D3B, D4B (Cylinder: 9J8674), D3C, D4C, D5C (Cylinders: 1437219, 9J8674)

Caterpillar D3G and D4G Dozers (Tilt Cylinder - Serial Number Restricted):

• D3G, D3G-XL, D3G-LGP
• D4G, D4G-XL, D4G-LGP -- Serial Numbers: FDC1-520, CFN1-1071, HYD1-Up, TLX1-Up

Caterpillar Motor Graders (Wheel Lean Cylinders): 12G, 12H, 120G, 120H, 130G, 135H, 140G, 140H, 143H, 160G, 160H, 163H (Cylinder: 9T2520); 14E, 14G, 14H (Cylinder: 9T3219)

Replaces Part Number(s):

1327058, 132-7058, 2465917, 246-5917, 7X2735, 7X-2735

New aftermarket replacement part - not remanufactured, not used.
