249022A3 Backhoe Brake Pack Assembly Fits Case 430 530 470 570 480 580 480B

249022A3 Backhoe Brake Pack Assembly Fits Case 430 530 470 570 480 580 480B



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Pre-Assembled Brake Pack Assembly

Fits Case/International Harvester Tractor:
430, 530, 470, 570, 480, 580, 480B

Tech Info:
10.5" diameter
2.5" height

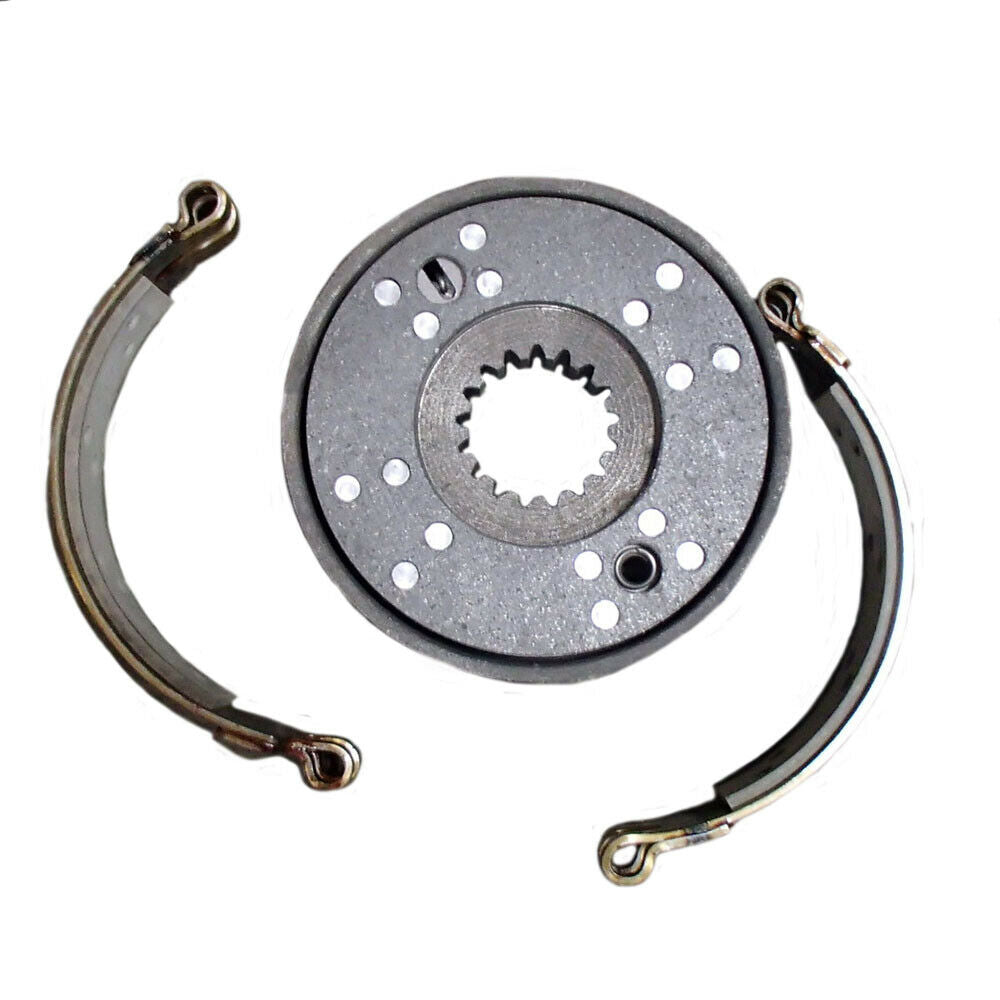

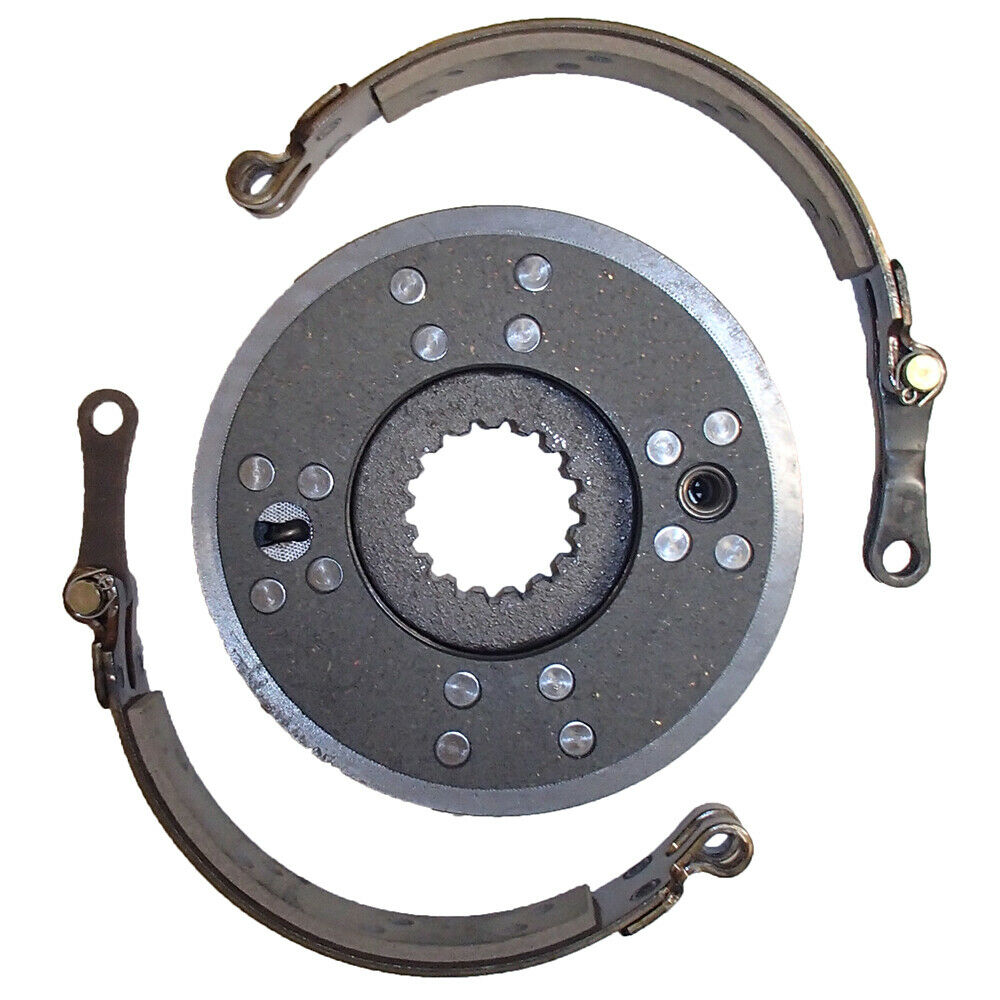

Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.

We also sell the lining kits to rebuild your drums #22 or brake bands #23

Instillation: When installing brake pack be sure housing is in a vertical (stand up) position. Install brake bands first. This allows brake bands to center themselves upright and brake pack to slide into position.

Replaces Part Numbers:
249022A3, A154350, A157157, 249022A1, A142979

Models This Part Fits:

430, 470, 480, 480B, 480C, 480D (2WD), 530, 570, 580, 580B, 580C, 580D, 580D (2WD), Case 430, Case 470, Case 530, Case 570, Case 580, and 580D ("Non Turbo" 4WD)

Additional Information:

*The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15 Actual measurements 10-1/2" diameter, 2-1/2" height 2 used per tractor WILL NOT WORK ON TURBO MACHINES!. Brake Pack Assembly

Reference Numbers:

249022A1, 249022A1-A, 249022A3, 249022A3-A, A142979, A142979-A, A154350, A154350-A, A155474, A155474-A, A156383, A157, A157157, A157157-A

Makes This Part Fits:

Shop Case/International Harvester Wholesale Parts
Shop International Harvester Wholesale Parts

Product Category:

Construction Replacement Parts

Product Group:

Product Sub Group:
