249022A3 Differential Brake Assembly Fits Case 480B 480C 580B 580C

Name: 249022A3 Differential Brake Assembly Fits Case 480B 480C 580B 580C
Brand: AIC Replacement Parts
SKU: 249022A3_6
Price: 169.0 USD
Availability: InStock

249022A3 Differential Brake Assembly Fits Case 480B 480C 580B 580C

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Pre-Assembled Brake Assembly

Fits Case Backhoe Models:
430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D "Non Turbo" 2WD

Will Not Work On The Turbo 4WD Models.

Dimensions
10.5" diameter
2.5" height

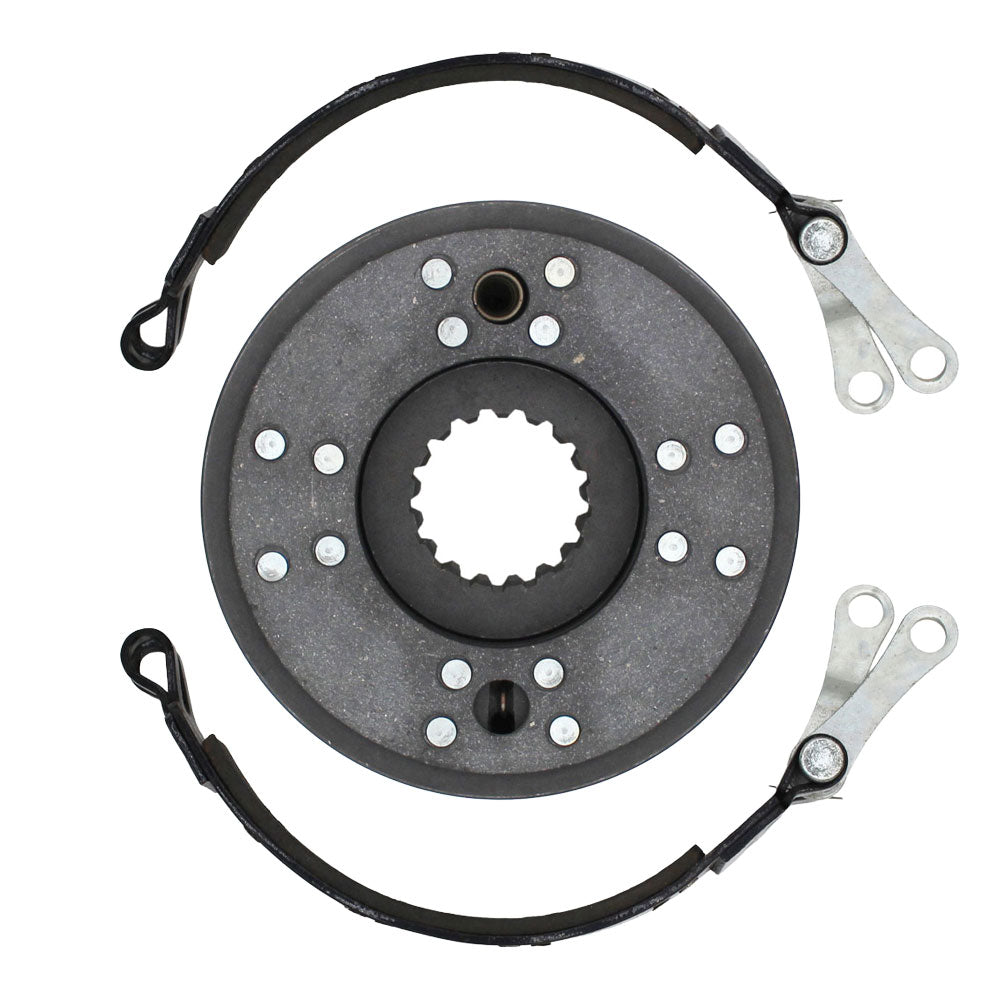

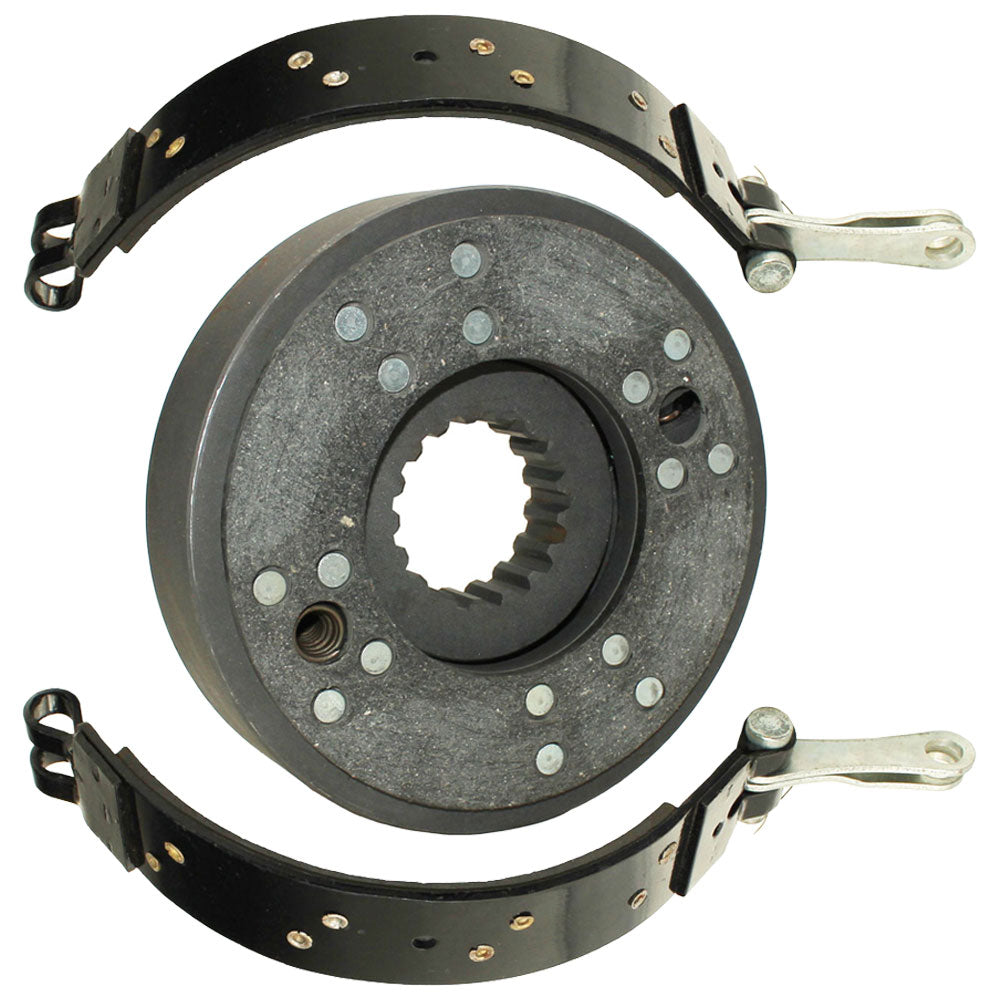

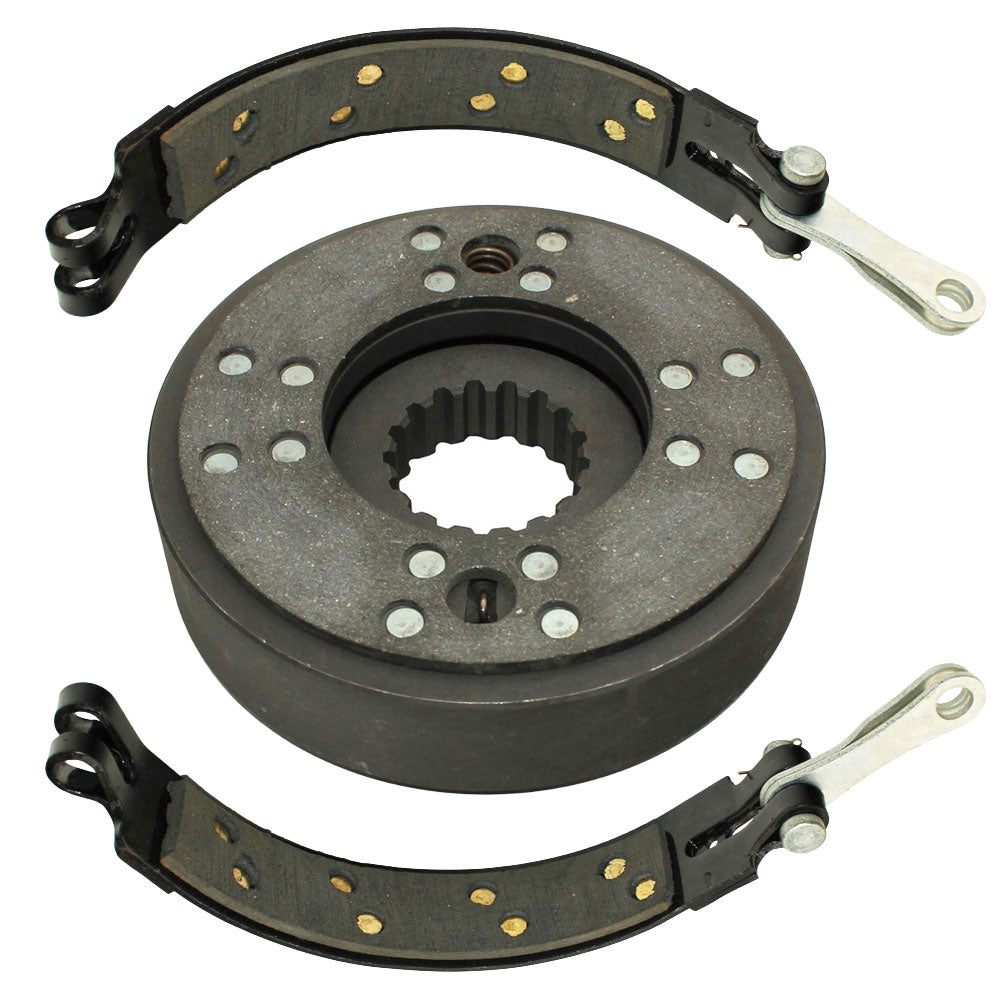

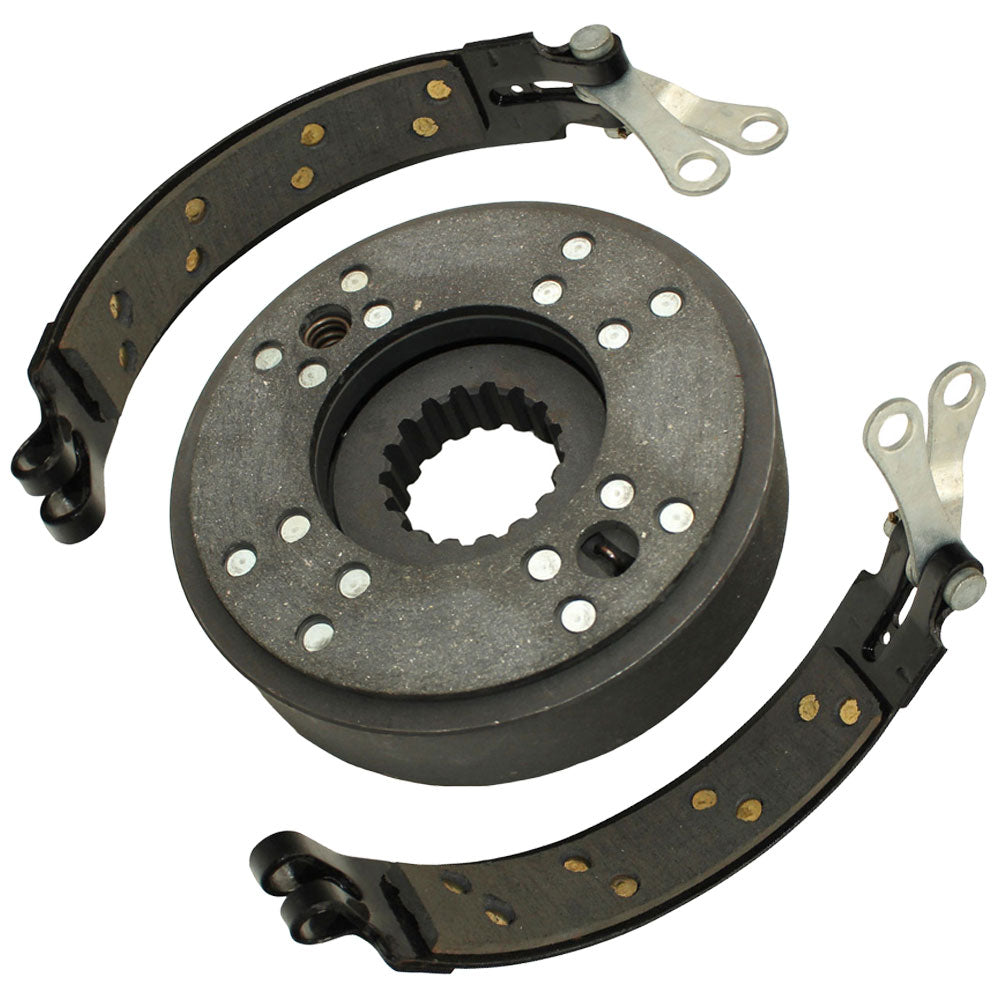

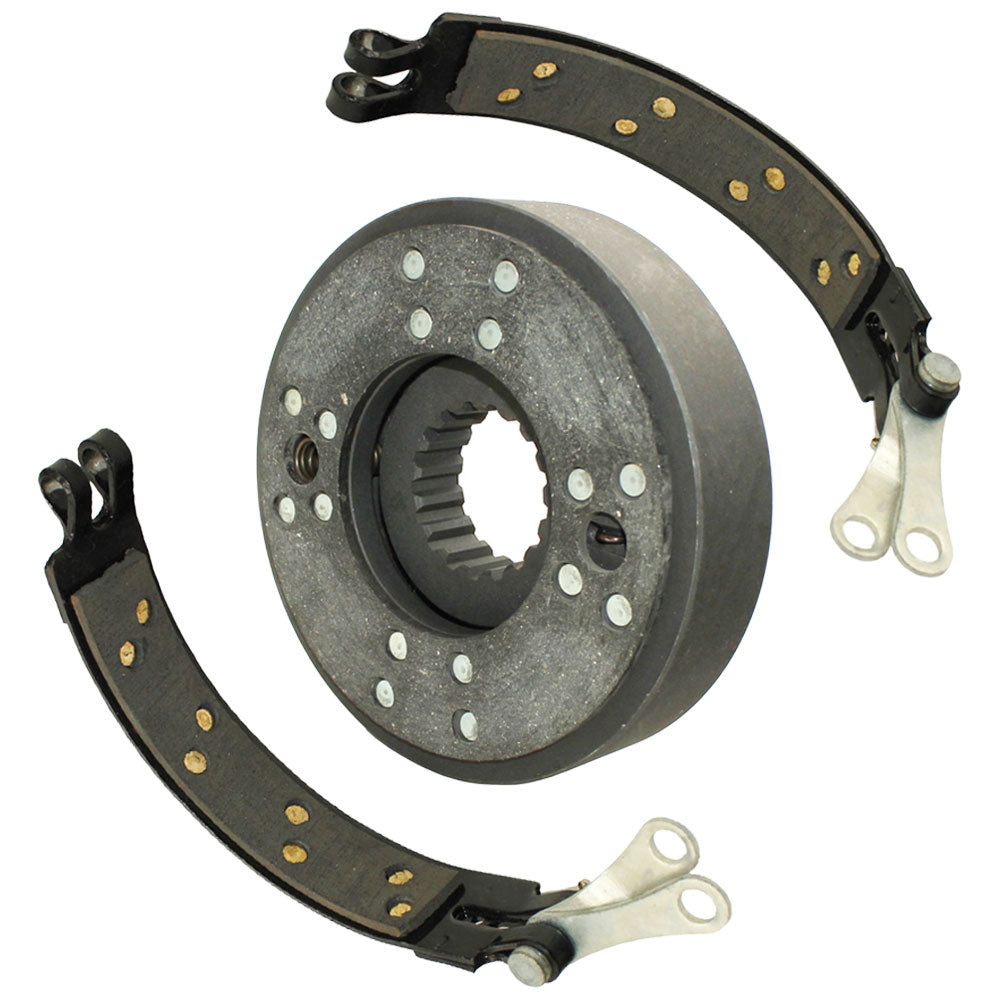

Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.

We also sell the lining kits to rebuild your drums #22 or brake bands #23

Instillation: When installing brake pack be sure housing is in a vertical (stand up) position. Install brake bands first. This allows brake bands to center themselves upright and brake pack to slide into position.

Replaces Pa

Models This Part Fits:

441, 580CK, 530CK, 580C, 531, 431, 540, 630, 641, 480C, 634, 580B, W5, 580D 2WD, 586, 541, 535, 445, 580D, 580D NON TURBO 4WD, 480CK, 631, 632, 430, 640, 585D, 480, 642, W3, 586C, 586D, 480B, 530, 580 Loader, 584, 545, 480 Loader, 580, 470, 480D 2WD, 480D, 430CK, 644, 570, 435, 584D

Additional Information:

Brake Drum 1.560" wide 7.250" OD Brake Plate 6.500" OD 17 Splines Comes with 2 brake bands halves. WILL NOT WORK ON TURBO MACHINES!. Brake Pack Assembly

Reference Numbers:

249022A1 249022A2 249022A3 249022A3CCT A142979 A154350 A157157 A55474, A41728, A47885, A55474, G46345, G45468, A142979, 249022A3, A44719, G45362, G48508, A44713, A44756, G46344, A47683, A47716, A156383, 249018A3, 135578A1, 1995400C1, G49082, A44721, A42043, A47886, A51814, 249020A1, A142980, 1995399C1, 135576A1, A154350, 135577A1, 249022A1, 249022A2, A44714, 1995396C1, A47524, G45361, 1995397C1, 249021A1, A157157, 249018A2
