25 RH Disc Mower Blades (55903310K) Bolts & Nuts for Gehl 2345 2365 2412 DC2345
25 RH Disc Mower Blades (55903310K) Bolts & Nuts for Gehl 2345 2365 2412 DC2345
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

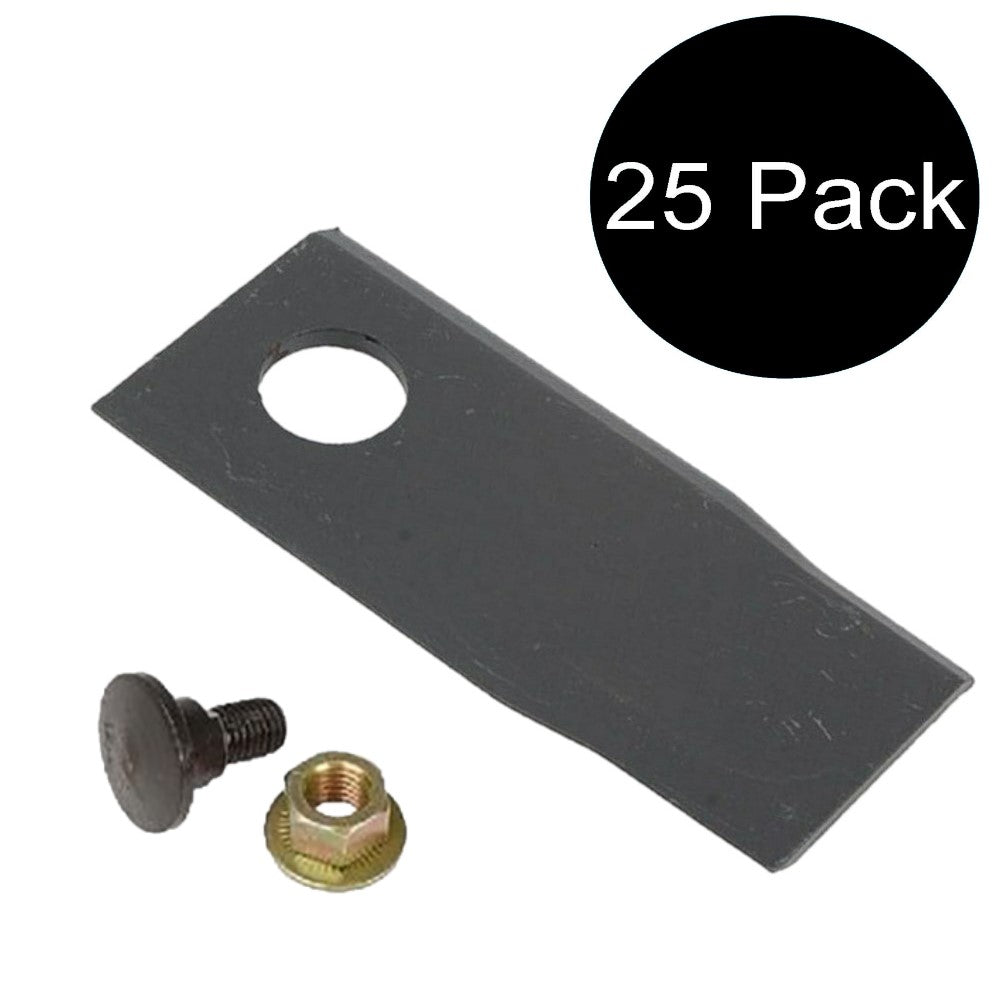

One New Aftermarket Replacement Kit of 25 RH Blades with Blade Bolts & Nuts Fits Gehl Disc Mowers
Kit Contains:
(25) Right Hand Disc Mower Blades - Part #55903310K
(25) Disc Mower Blade Bolts & Nuts - Part #125448, 125445
Fits Models:
2345, 2365, 2412, 2415, 2418,
DC2345, DC2365, DC2412, DC2415, DC2418
Tech Info:
Blade -Length: 4.33" (109.98 mm)
Width: 1.85" (46.99 mm)
Hole Diameter: 0.719" (18.27 mm)
Right Hand, CW Rotation
7 Degree Twist
Bolt -12 mm x 27 mm
30 mm Round Head
6 mm Shoulder Length
17.8 mm (45/64") Shoulder Diameter
Nut -19 mm x 10 mm
Use with 0.157"(4 mm) Thick Blades
Models This Part Fits:
DC2365, FC352, FC350, FC300, DC2415, GMD500, GMD800GII, 2365, FC301, GMD800, GMD700, GMD700GII, 2345, FC243, FC813, FC313, FC250, FC283, DC2418, GMD400, FC302, FC883, DC2412, GMD600, GMD600GII, GMD283TG, DC2345, FC4000, FC303, FC353, GMD801Additional Information:
Includes: (25) Right Hand Disc Mower Blade Bolt Hole Size: 0.720" (18.3 mm) Length: 4.3" (109 mm) Rotation: CW Shape: 9 Thickness: 0.16" (4.0 mm) Twist Degree: 7 Degree Width: 1.9" (48 mm) Left/Right: RH Replaces Part Numbers: 559.033.10, 559-033-10, 55903310, 55903310K, 86625669, 700712888, 798-RM3310 (25) Disc Mower Blade Bolts & Nut Kit Kit Includes: 25 Bolts / Nuts 12mm Thread With Flex Washer Nut Bolt 12mm x 27mm 30mm Round Head, 6mm Shoulder Length Bolt Replaces Part Numbers: 798-RF5800, 561.158.00, 802.012.62, 697552, 125448, CC19994, PMLBF0007, 798-RF1262, 802.10.262, 697550, 125445, DC19996, BK007, 56115800, K56115800KZ, K56115800Z, ES10592Reference Numbers:
798-RM3310, BK007, 559.033.10, 559-033-10, 55903310, 55903310K, 798-RM3310, 56115800Makes This Part Fits:
Shop Gehl Wholesale PartsShop Kuhn Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
