25580 ENDURO TAPERED ROLLER BEARING CONE

25580 ENDURO TAPERED ROLLER BEARING CONE

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Enduro Tapered Roller Bearing Cone - Part Number 25580

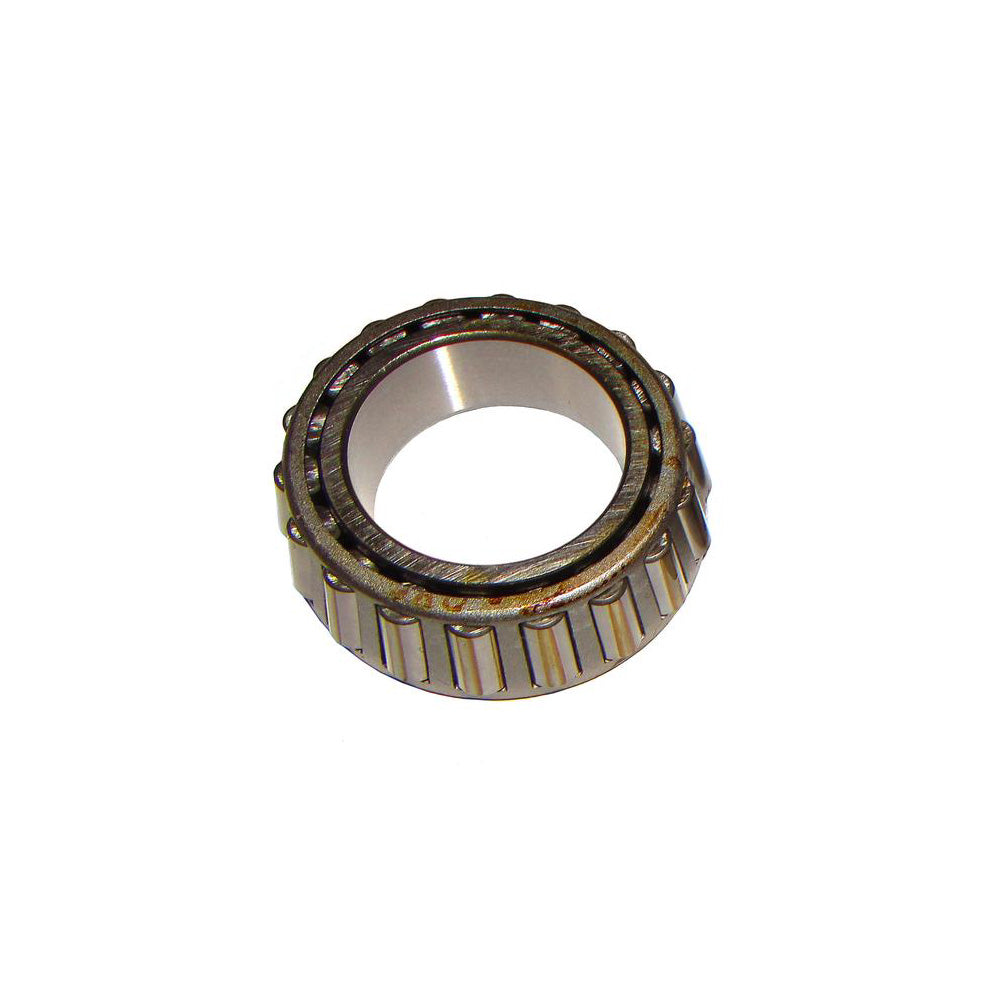

This 25580 tapered roller bearing cone (inner ring assembly) is a single-row, imperial-series bearing designed to handle combined radial and axial loads in wheel hubs, axle assemblies, steering knuckles, and final drives across a wide range of agricultural, construction, and industrial equipment. It is part of the 25500 series and is typically mounted in opposing pairs on a shaft. For maximum reliability, replace the cone and cup together.

Specifications

  • Bore (ID): 1.750 in (44.45 mm)
  • Cone Width: 1.000 in (25.4 mm)
  • Maximum Shaft Fillet Radius: 0.14 in
  • Outer Diameter: 2.47 in
  • Series: 25500
  • Bearing Material: 52100 Bearing Grade Chromium Steel
  • Cage Material: Stamped Steel
  • Compatible Cups: 25519, 25520, 25521, 25521B, 25522, 25523, 25524, 25526

Compatible Models

Case / Case IH / International Harvester: 380B, 480A, 480B (580A), 580B, 1175, 1212, 1212Q, 1212SD, 1212SK, 1412Q, 1412SK, 1460, 1480, 1482, 1490, 1494, 1594, 1650, 1682, 1690, 1850, 1855, 1870, 1896, 1950, 1950T, 1955, 2090, 2094, 2096, 2155 (G2155), 2270, 2290, 2294

Massey Ferguson / White / AGCO: 303, 315, 403, 503, 600, 700, 800, 900 Series, 930, 960, 970, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, 1030, 1200, 1210, 1210Q, 1210SD, 1210SK

Minneapolis Moline / White: G900, G950, G1050, G1350, G1355, G2155, 2-70, 2-78, 2-85, 2-88, 2-105, 2-110, 2-135, 2-150, 2-155, 2-180

John Deere: 615, 730, 770, 830, 870, 915, 1750, 1755

Ford / New Holland: 160, 170 WORKHORSE, 185 FIELD BOSS, 195 WORKHORSE

Deutz / Hesston / GEHL / Long / David Brown: 403, 503, 615, 8816, 8824, 9130, 9150, 9170, 9190, 9523, 9524, 9531, 9812, 9816, 9824

Caterpillar (Cat): Verify specific model application before ordering.

Applications include: Steering Knuckles, Axle Assemblies, Front Wheel Hubs, Final Drives

Replaces Part Number(s):

25580, 25580TIM, WBA5018B, 055278, 1H4493, 8J0412, 990045, 711218, A29063, ST2118, 050260M1, NCB44135B, 13540, JD7395

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

303, 480A, 160, 2255, 2094, 615, 1412SK, G950, 1682, 2-155, 1210SD, 990SK, 580A, 2096, 1212, 380B, 870, 9150, 1175, 1490, 2-150, 2-105, 2-88, 185 FIELD BOSS, 9824, Steering Knuckles, 1950T, 9170, 503, 1482, 1850, 9130, 2-85, 2090, 1210SK, 315, 900 Series, G1050, 9523, 1412Q, 1750, 9524, 970, 1950, 2290, 1494, 995Q, 915, 996Q, 1030, 580B, 170 WORKHORSE, G900, 4-78, 2-135, 9531, 996SK, 700, 1212Q, 9190, G1350, 9812, 930, 1955, 2-110, 1690, 730, 2-180, 800, 600, 8816, 1210, 960, 990Q, 770, G955, 1070, 1855, 830, 9816, 403, G1355, Axle Assemblies, 1755, Front Wheel Hubs, 995SK, 1650, 2294, 8824, 2-70, 1594, Final Drives, 195 WORKHORSE, 1460, 1480, 1655, 1210Q, 1200, G2155, 1896, 1212SK, 2-78, 1870, 1212SD, 2270

Additional Information:

Bore: 1.750" Radius: .14" Width" 1" Bearing Cone

Reference Numbers:

NCB44135B, 13540, WBA5018B, 711218, 055278, 050260M1, JD7395, 1H4493, 8J0412, 25580TIM, 25580, A29063, ST2118, 990045
