One New Aftermarket Replacement Multiple Speed Belt for Agricultural, Industrial, and Variable Speed Drive Applications

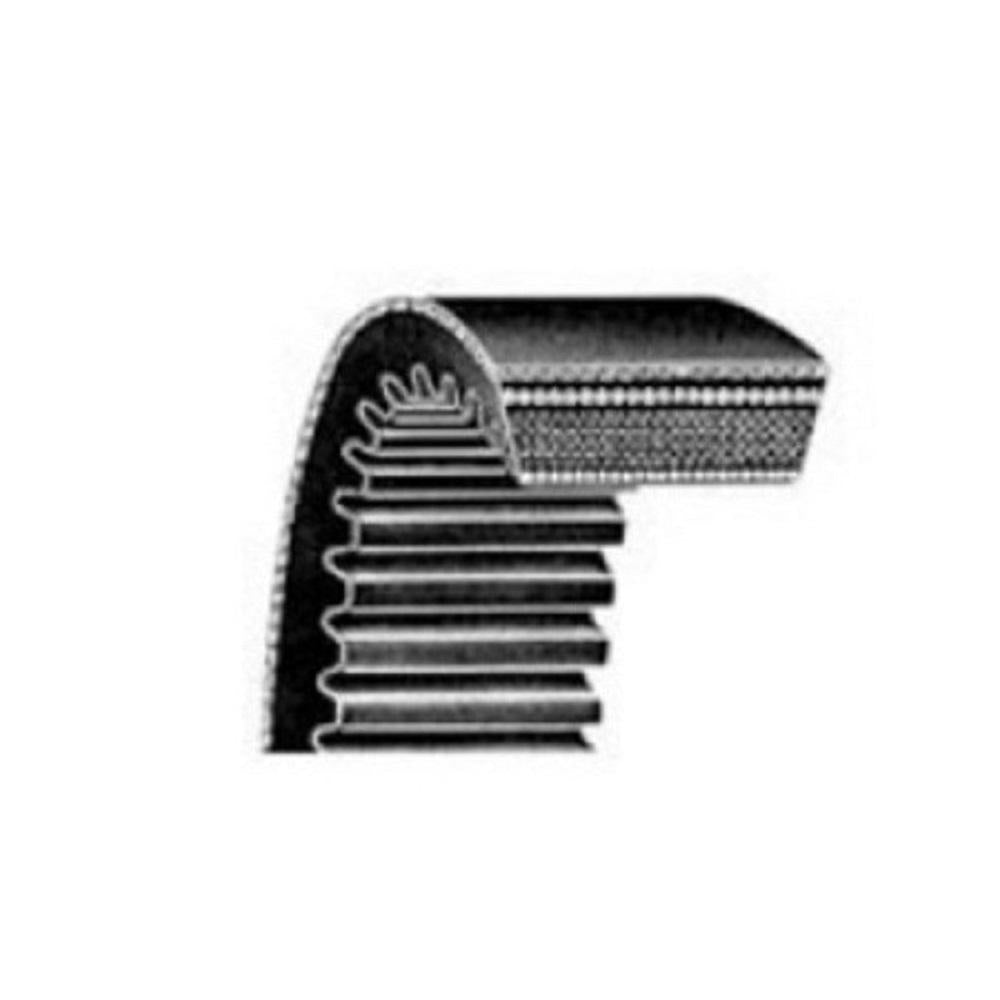

This aftermarket replacement 2630V345 multiple speed belt (also called a variable speed or multi-speed V-belt) is a power transmission belt engineered for variable speed drive systems. With a trapezoidal cross-section and notched underside, it wedges into variable-angle sheaves or pulleys to deliver reliable torque transmission across a wide range of speeds and speed ratios. Suitable for open pulley and enclosed variable speed drives found in agricultural equipment, industrial machinery, lawn and garden equipment, and related applications.

Specifications

• Belt Type: Multiple Speed (Variable Speed) V-Belt
• Top Width: 1-5/8" (1.63")
• Outside Circumference (O.C.) Length: 35.3"
• Sheave Angle: 30 degrees
• Series: 2630V
• Gates Product ID: 9800-0616

Compatible Applications

This is a universal variable speed belt compatible with any equipment using a 2630V345 multi-speed belt. Common applications include: agricultural equipment variable speed drives (combines, grain handling, hay equipment), industrial variable speed drives, lawn and garden equipment, and other machinery using 30-degree angle variable speed sheaves. Verify your equipment's belt specification (top width, O.C. length, and sheave angle) before ordering.

Replaces Part Number(s):

2630V345, 2630V345-A

Aftermarket Interchange Numbers

Gates: 2630V345 (9800-0616) | D&D PowerDrive: A-2630V345 | V-Belt Guys: VBG13654, VBL10539

New aftermarket replacement part - not remanufactured, not used.
