What This Is

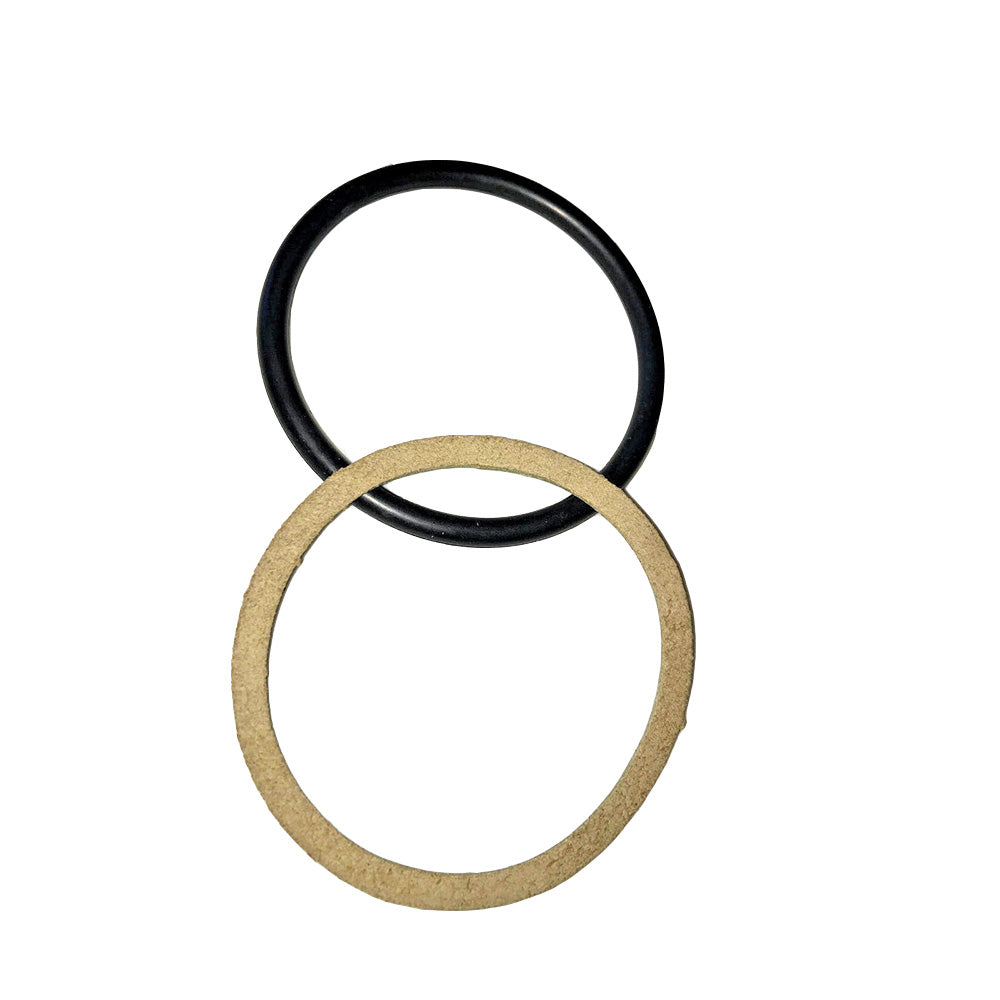

This is a two-piece hydraulic lift piston seal set for the Ford 3-inch lift cylinder piston. The set contains one piston O-ring seal, Ford part number 87111S95, and one anti-extrusion back-up ring, Ford part number NCA473A. Together these two parts form the complete sealing pair for the 3-inch lift piston inside the hydraulic lift (top cover) assembly that raises and lowers the three-point hitch.

How It Works

The O-ring rides in the groove on the outside of the lift piston and seals it against the cylinder bore so hydraulic pressure can push the piston and lift the hitch arms. The back-up ring sits next to the O-ring and keeps it from being forced (extruded) into the clearance gap under the high pressures the lift system generates. When either piece hardens, cracks, or wears, the hitch lifts slowly, drifts down under load, or will not hold position. Replacing both at the same time is the correct repair and restores firm, smooth lift.

Fitment

This set fits the Ford 3-inch diameter lift cylinder piston (Ford piston C5NN530B, superseding older NCA560B). That 3-inch piston is used on Ford 600, 601, 700, 701, 800, 801, 900 and 901 hundred series, Ford 2000, 2600, 3000, 3600 and 4000 four-cylinder thousand series, and the Fordson Dexta and Super Dexta. Important: this is the 3-inch set only. It does not fit the smaller 2-1/2 inch lift piston (NAA530B) used on the NAA, NAB, Jubilee, 8N, 9N and 2N, which takes a different O-ring (NAA533A) and washer (NAA473A). Because Ford revised the lift cylinder across the production run, measure your piston or confirm it is the 3-inch type before ordering.

Specifications

Contents: one O-ring seal (87111S95) and one back-up ring (NCA473A). The O-ring is an oil-resistant rubber ring of roughly 2-5/8 inch inside diameter with a 3/16 inch cross-section, sized for the 3-inch piston groove; the back-up ring is the flat anti-extrusion support ring that installs against it. Quantity shipped is the 2-piece set.

What's Included

Each order includes the 2-piece set: one piston O-ring (87111S95) and one back-up ring (NCA473A). The lift piston, connecting rod, and other lift cover gaskets are not included and are ordered separately.

Cross-Reference

NCA473A back-up ring also appears as D1NN473C, 724777, 370R, BUW10 and Agriline reference 81801439. The matching 3-inch piston O-ring (87111S95) corresponds to the OEM O-ring family listed as C5NNF844A and 81815734 in current Ford or Fordson lift-cylinder catalogs. Use these numbers to confirm you are matching the 3-inch piston rather than the 2-1/2 inch version.

Ordering Guidance

If your lift raises slowly, creeps down, or loses lift under load and your piston measures 3 inches, this O-ring and back-up ring pair is the correct seal kit. Verify the piston diameter and part number against your parts diagram before ordering, since Ford used both 2-1/2 inch and 3-inch lift pistons across these models. If you are unsure, check the piston part number stamped on your lift cylinder against the numbers listed here.
