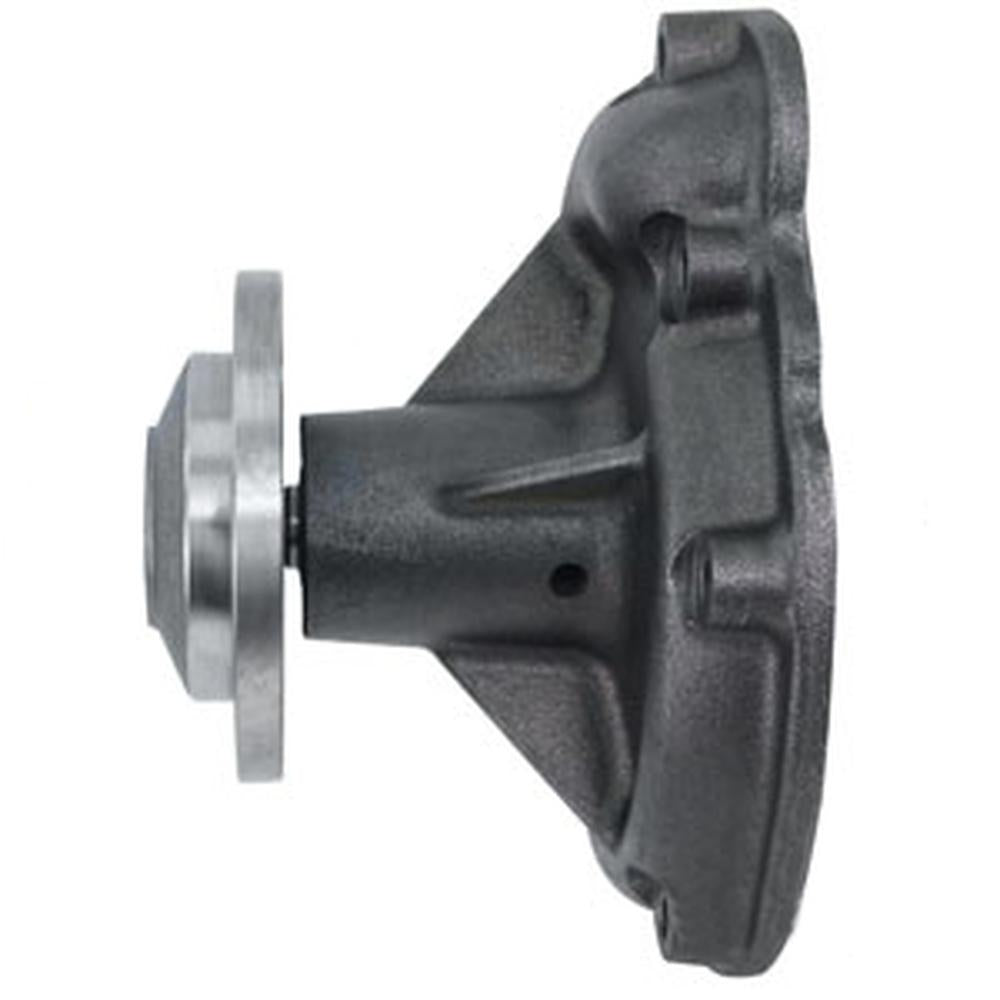

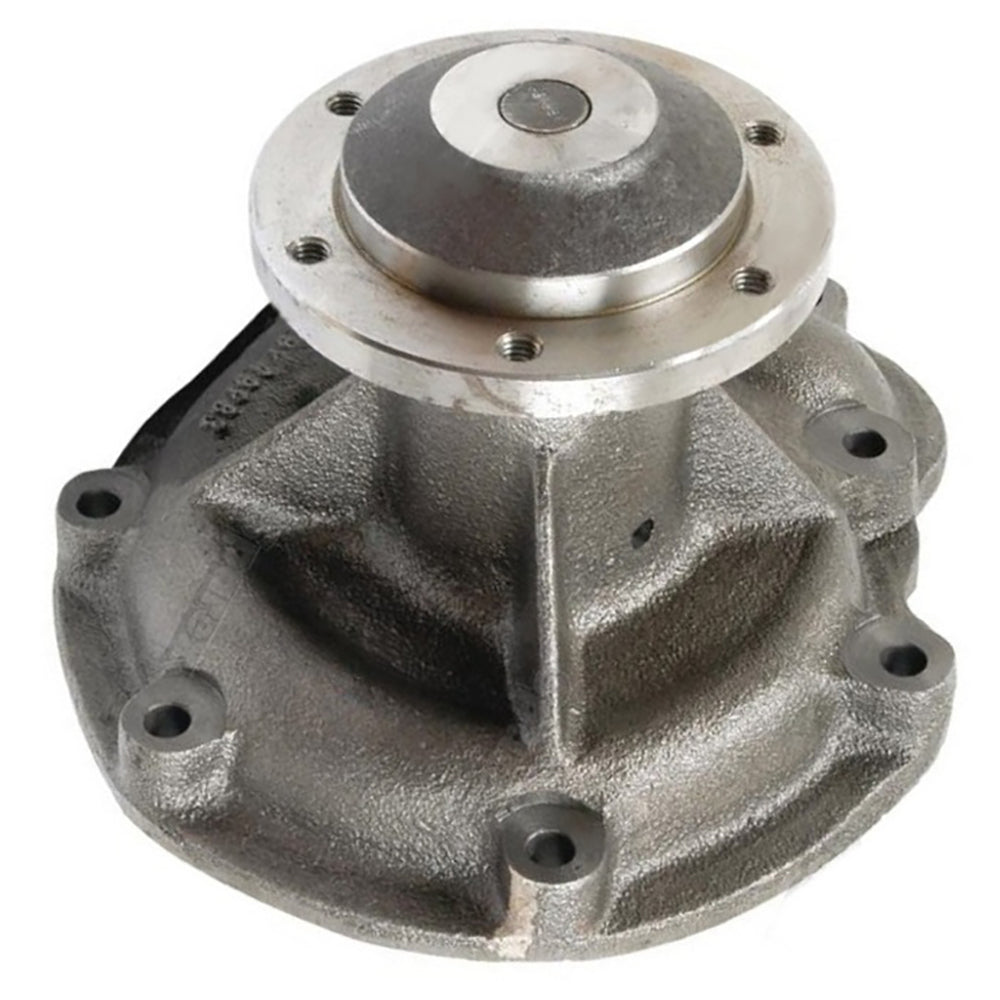

3144456R93 Water Pump Fits Case-IH Tractor Engines D(DT)239 D268 D310 D358 D402
3144456R93 Water Pump Fits Case-IH Tractor Engines D(DT)239 D268 D310 D358 D402
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Water Pump Fits Case IH Fits International Tractors: 644, TD7E, TD8E, 125E, 744, 745, 844XL, 845XL, 856, 946, 955, 956, (With either the D237, DT237, D268, D310, D358, or D402 Engine).
For the following motors: D(DT)239, D268, D310, D358, and D402.

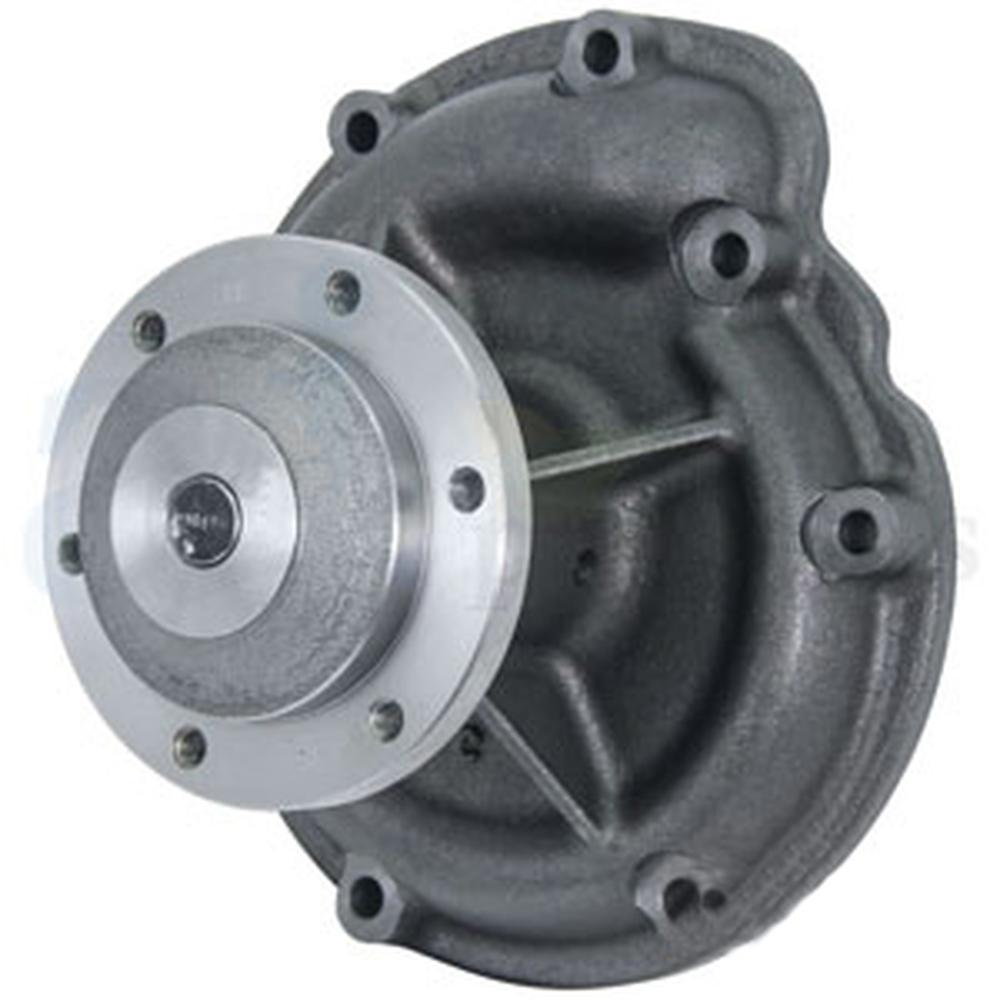

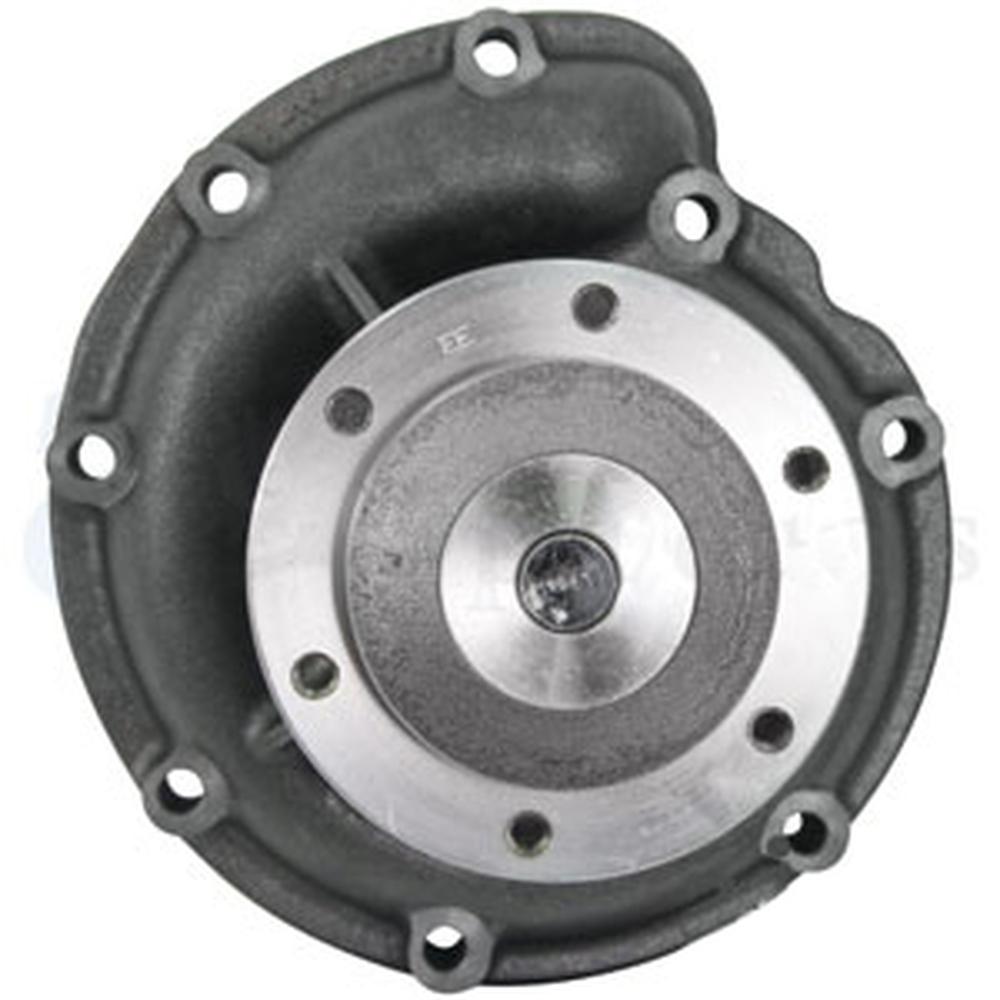

NOTE! This Pump Comes with the Fan Hub as Pictured. The Shaft Diameter is 5/8". The Hub Mounting Bolt Holes are 1 7/8" Center to Center. The Raised Center Hub is: 3" in Diameter.
We do also have this Pump available WITHOUT the Fan Hub. Please contact us for more information.
Replaces Part Numbers: 3132741R93, 3132741R94, 3132741R92, 3144456R93
For the following motors: D(DT)239, D268, D310, D358, and D402.
NOTE! This Pump Comes with the Fan Hub as Pictured. The Shaft Diameter is 5/8". The Hub Mounting Bolt Holes are 1 7/8" Center to Center. The Raised Center Hub is: 3" in Diameter.
We do also have this Pump available WITHOUT the Fan Hub. Please contact us for more information.
Replaces Part Numbers: 3132741R93, 3132741R94, 3132741R92, 3144456R93
Models This Part Fits:
745S, International Tractor: 644, 745, 955, 824, 745XL, 845XL, 844XL, TD8E, 743XL, 856XL, 744, 125E, 845Xl, 845, 743, 844, 946, 844S, 844Xl, 856, TD7E, 1046, 956, 644Additional Information:

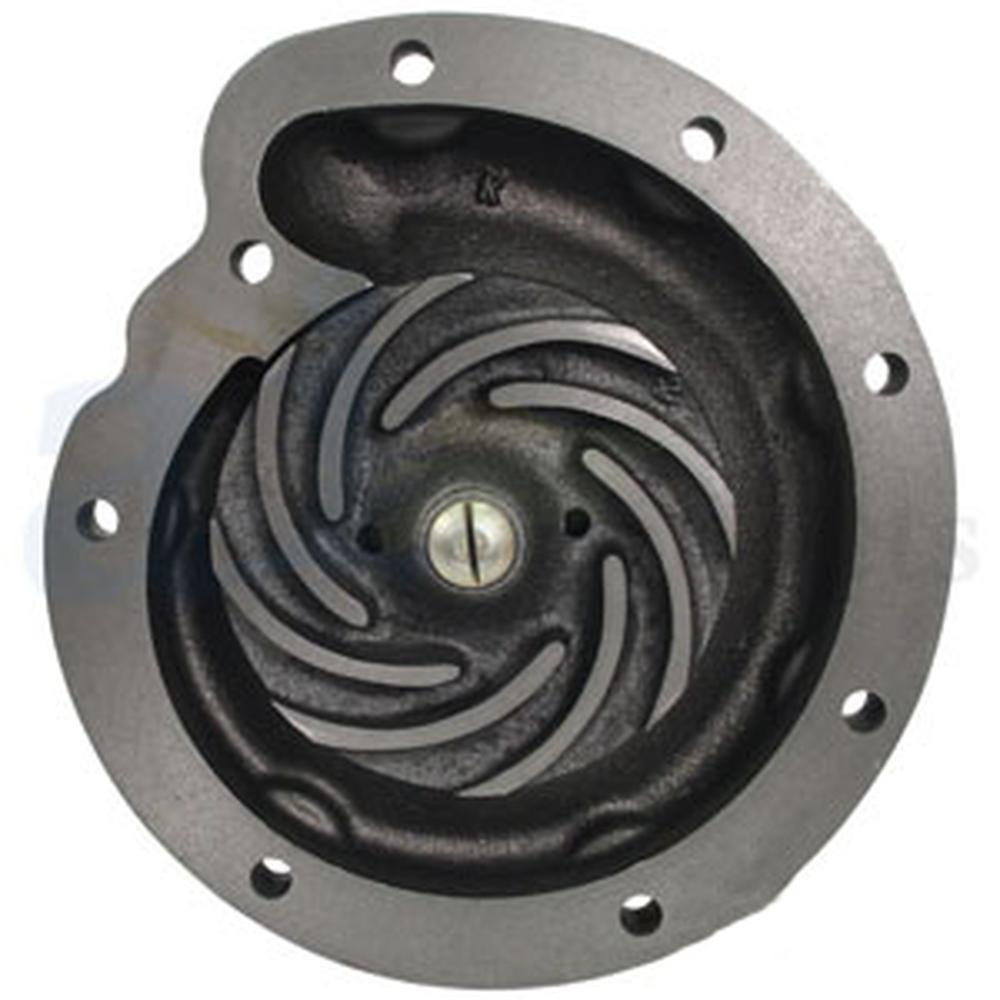

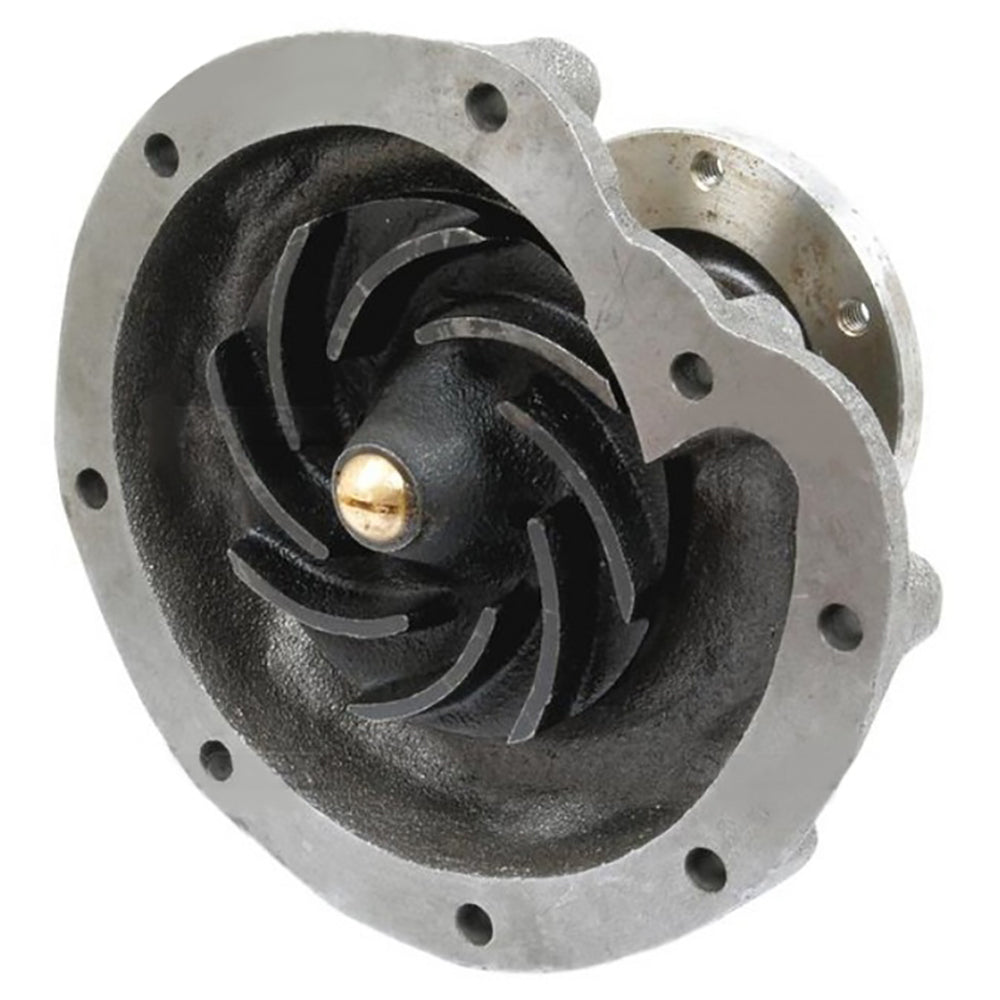

Hub OD is 4.364", center to center of the hub bolt holes is 3.7", impeller is 4.43" wide, Number of Hub Holes: 6, Thread Size for the hub: nut holes Water PumpReference Numbers:
3132741R93 3132676R94 3132741R92 3132741R94 74702002 3132741R91, 3132741R91, 3132741R93, 3132741R94Makes This Part Fits:
