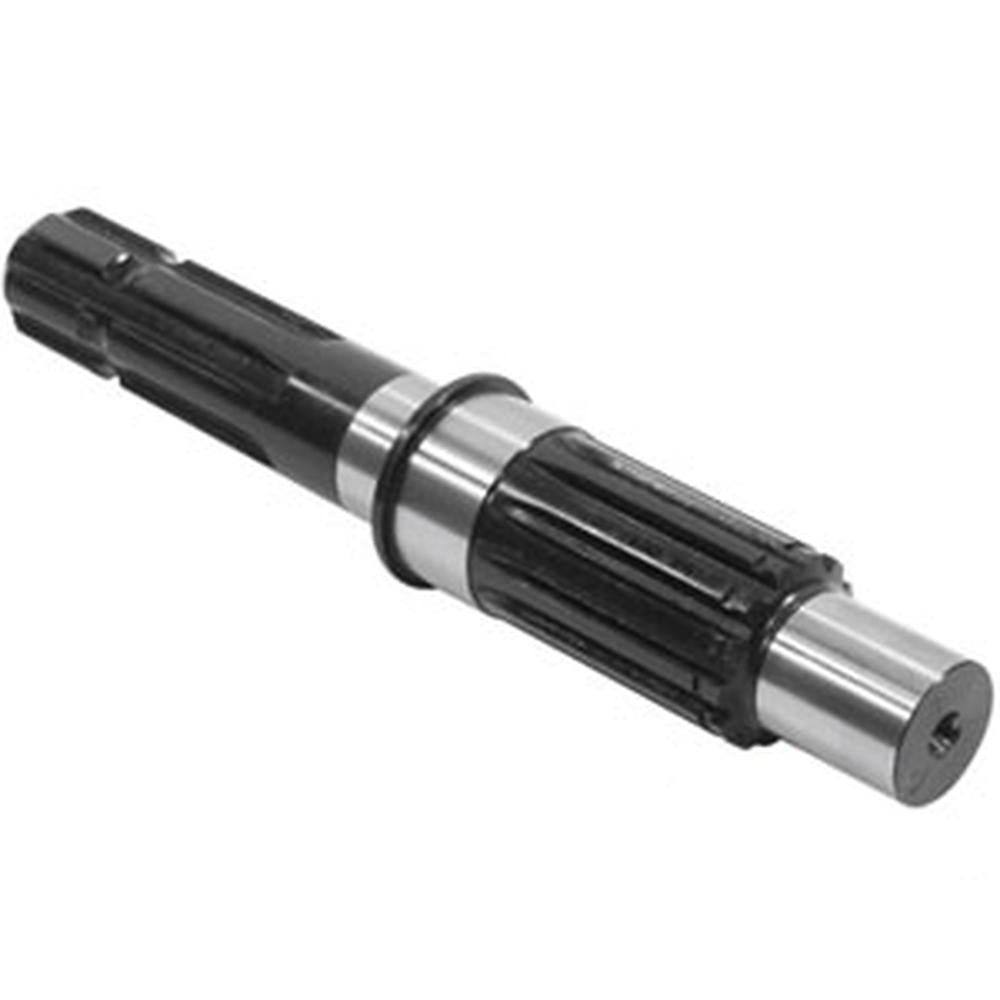

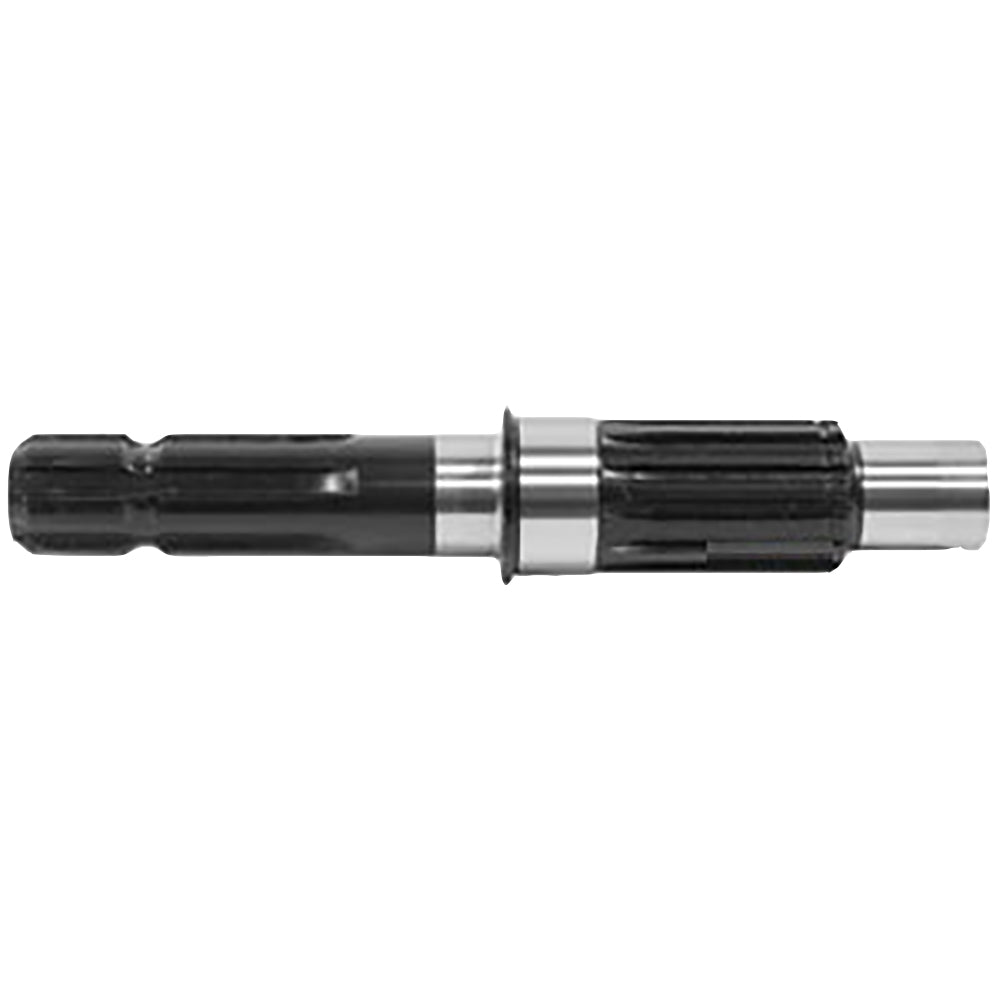

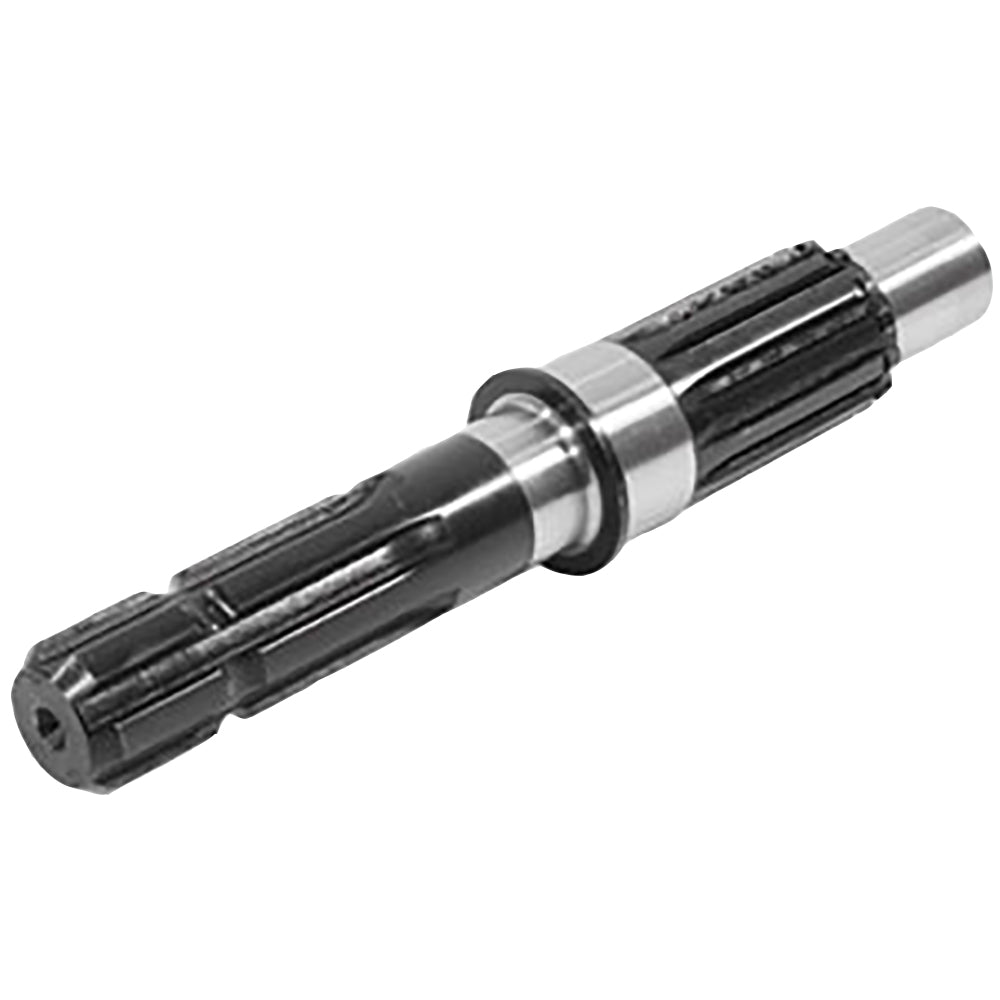

One New Aftermarket Replacement PTO Shaft Fits Case/International Harvester (IH) Tractors

This aftermarket 540 RPM PTO shaft is a direct replacement for the dual-speed PTO assembly used across a wide range of Fits Case and Fits International Harvester (IH) tractors. Featuring 13 front splines and measuring 10.815 inches in length, it restores full power take-off function for implements requiring a 540 RPM output. The shaft carries an outer diameter of 1-3/8 inches on the front end and 1-3/16 inches on the rear, with a center width of 2-1/4 inches. This part fits units equipped with a 2-speed (dual-speed) PTO assembly.

Specifications

• PTO Speed: 540 RPM
• Front Spline Count: 13 teeth
• Length: 10.815 in.
• Outside Diameter 1 (front): 1-3/8 in.
• Outside Diameter 2 (rear): 1-3/16 in.
• Center Width: 2-1/4 in.
• Application: 2-speed (dual-speed) PTO assembly

Compatible Models

Fits Case/International Harvester (IH) Tractors: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3488, 3688, 6388, 21026, 21206, 21256, 21456, Hydro 100, Hydro 186, Hydro 1066, Hydro 3488

Replaces Part Number(s):

393111R1, 393111R1-A, 393111R2, 393111R2-A, A-393111R2, 396111N

New aftermarket replacement part - not remanufactured, not used.
