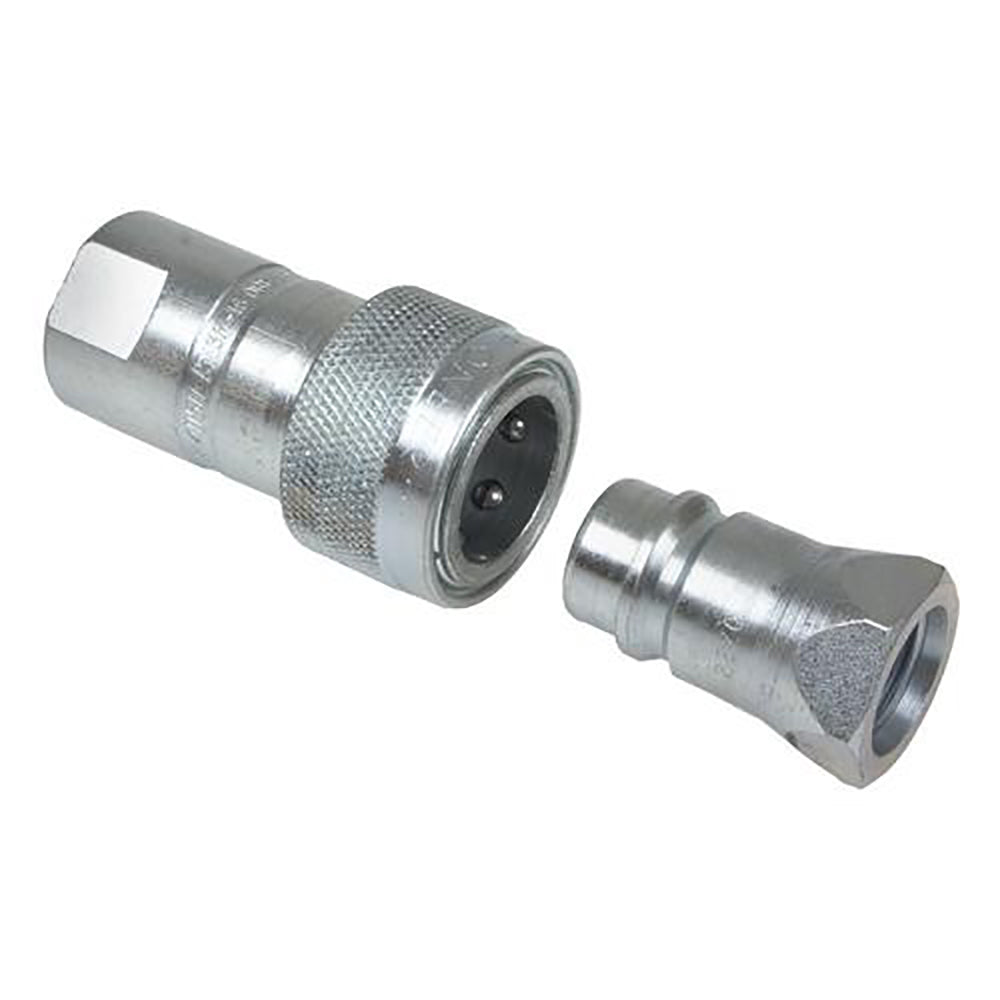

One New Aftermarket Replacement Universal Hydraulic Quick-Disconnect Coupler - Complete Set

This aftermarket replacement complete coupler set includes both the male tip and female body in the Parker/Pioneer 4000 Series style, with a 3/4"-16 ORB (O-Ring Fits Boss) port thread. The 4000 Series is a double shut-off hydraulic quick-disconnect design rated at 3,000 PSI, widely used on tractors, agricultural equipment, loaders, hydraulic tools, and construction machinery. The 1/2" body size is globally compatible with Pioneer universal male tips (nipples) conforming to ISO 5675. Ball-style valve provides positive shutoff and reliable, leak-resistant connection.

Specifications

• Body Size: 1/2"
• Thread Size: 3/4"-16 ORB (O-Ring Fits Boss, SAE)
• Valve Style: Ball
• Pressure Rating: 3,000 PSI
• Material: Steel
• Interchange Standard: ISO 5675 / Pioneer-compatible
• Includes: Male tip (nipple) and female coupler body (complete set)

Compatible Applications

Universal Fit: Tractors, agricultural equipment, hydraulic loaders, add-on hydraulic circuits, hydraulic tools, snow plow attachments, construction equipment, forestry equipment, and other demanding hydraulic applications using 3/4"-16 ORB ports and ISO 5675 / Pioneer-style connections.

Replaces Part Number(s):

4000-15, 4000-15-A

Aftermarket Interchange Numbers

31-0193 (Farm Oyl), 4796-45996 (John Day), 400015

New aftermarket replacement part - not remanufactured, not used.
