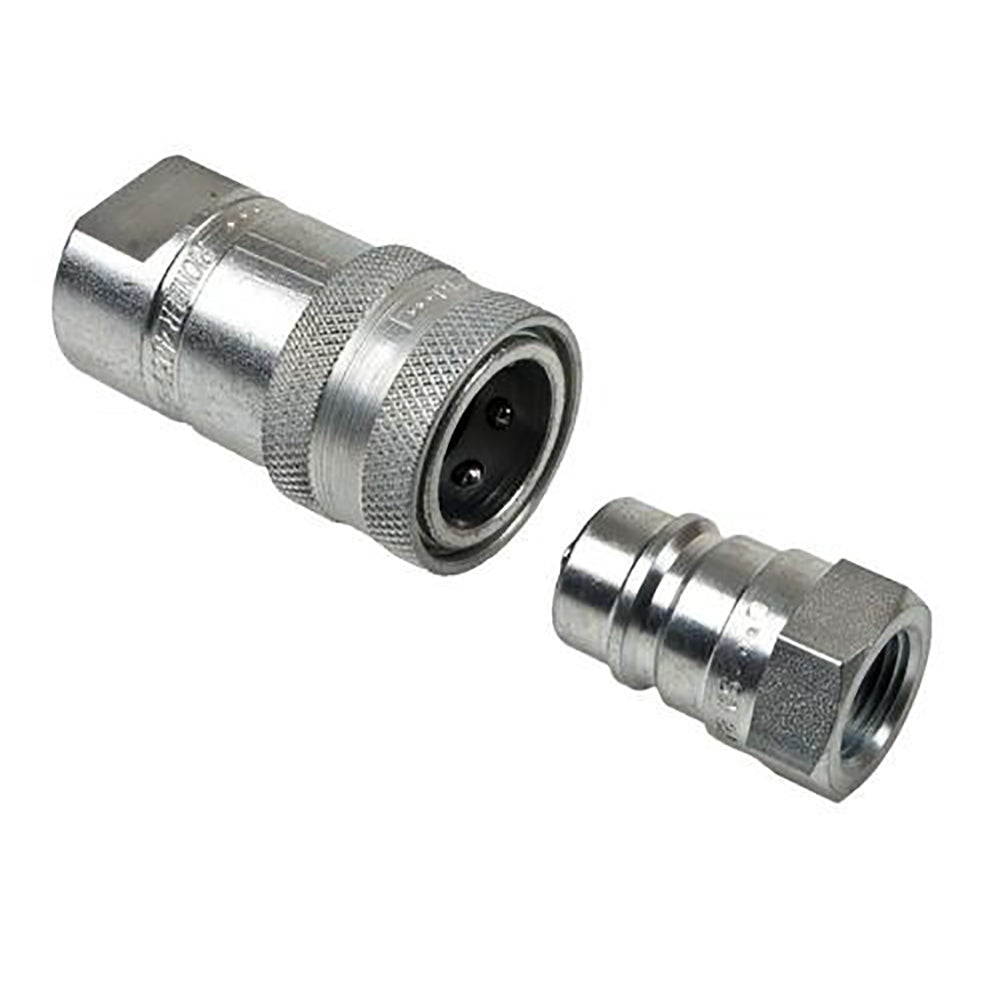

One New Aftermarket Replacement Parker Pioneer 4000 Series Complete Quick Coupler Set - 3/8" NPT

This Parker Pioneer 4000-3P is a complete hydraulic quick coupler set consisting of a matched male tip (4010-3P) and female coupler body (4050-3P), both built to ISO 5675 agricultural-style specifications. The double shut-off design uses poppet valves on both halves to prevent fluid loss and contamination during connection and disconnection. A manually retracted sleeve on the female body allows controlled one-handed hookup. Widely used on tractors, loader implements, add-on hydraulic circuits, hydraulic tools, and snow plow attachments across multiple equipment brands.

Specifications

• Thread Connection: 3/8" NPT (3/8"-18 NPTF)
• Body Size: 3/8"
• Series: Parker Pioneer 4000
• Valve Type: Poppet (double shut-off)
• Sleeve Operation: Manual
• Maximum Working Pressure: 3,000 PSI
• Flow Rate: 6 GPM
• Temperature Range: -40 to +250 degrees F
• Seal Material: Nitrile
• Body Material: Steel with zinc clear-trivalent chromate plating
• Standard: ISO 5675

Kit Includes

• 4010-3P Male Tip (Nipple) - 3/8" NPT, Poppet Valve
• 4050-3P Female Coupler Body - 3/8" NPT, Manual Sleeve, Poppet Valve

Compatible Applications

This is a universal Pioneer-style ISO 5675 quick coupler set compatible with tractors and agricultural equipment, hydraulic loaders, construction and forestry machinery, snow plow attachments, and general mobile hydraulic systems requiring a 3/8" NPT double shut-off quick coupler. Interchangeable with standard ISO 5675 Pioneer male tips. Fits John Deere, Fits Case IH, Fits Kubota, Fits New Holland, and other brands using Pioneer-pattern hydraulic quick couplers in this body size.

Replaces Part Number(s):

4000-3P, 4HTF6-HT4F6-USA, 4HTF6-HT4F6-USA-A

New aftermarket replacement part - not remanufactured, not used.
