42" Deck Rebuild Kit Blade Spindle Idler Pulley Belt Bolt Fits JD 100 Series
42" Deck Rebuild Kit Blade Spindle Idler Pulley Belt Bolt Fits JD 100 Series
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement 42" Deck Rebuild Kit Fits John Deere 100 Series Mowers
Fits John Deere Models With 42" Decks
Tech Info:

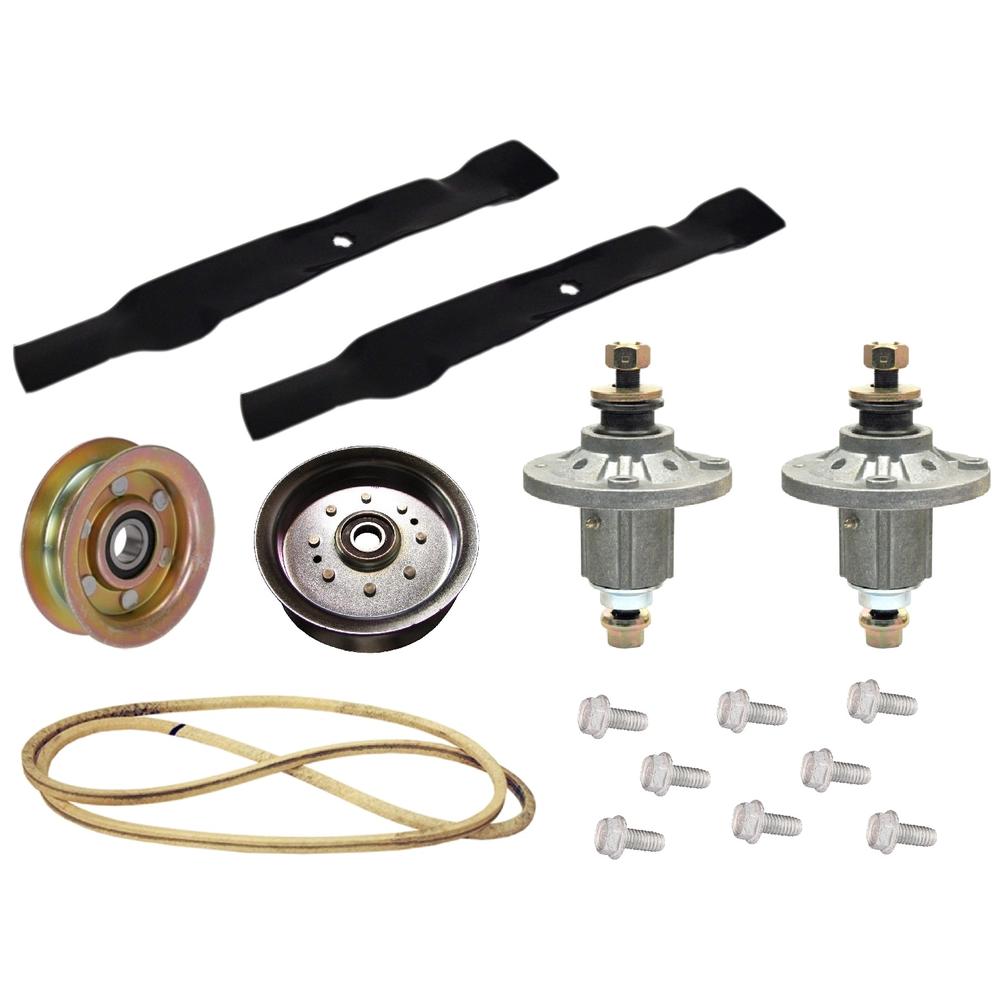

Kit Includes - 2 Mower Blades, 2 Spindles Assemblies With Nuts, 8 Threaded Bolts, 1 Drive Belt, 1 Flat Idler & 1 Flat Idler With Flanges

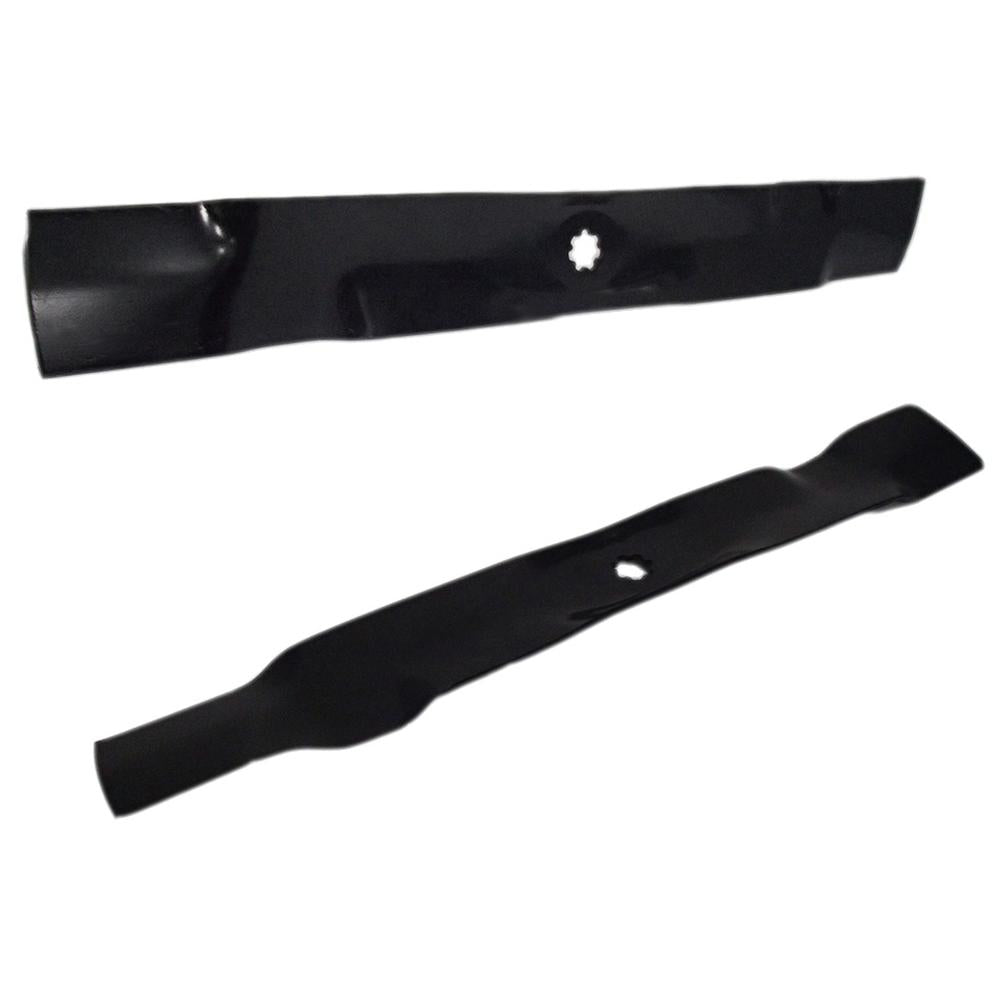

Two (2) Mower Blades
42" Cut Requires 2 Blades
Length: 21.50"
Width: 2.50"
Center Hole: 7 Lobe
Thickness: 0.1550"

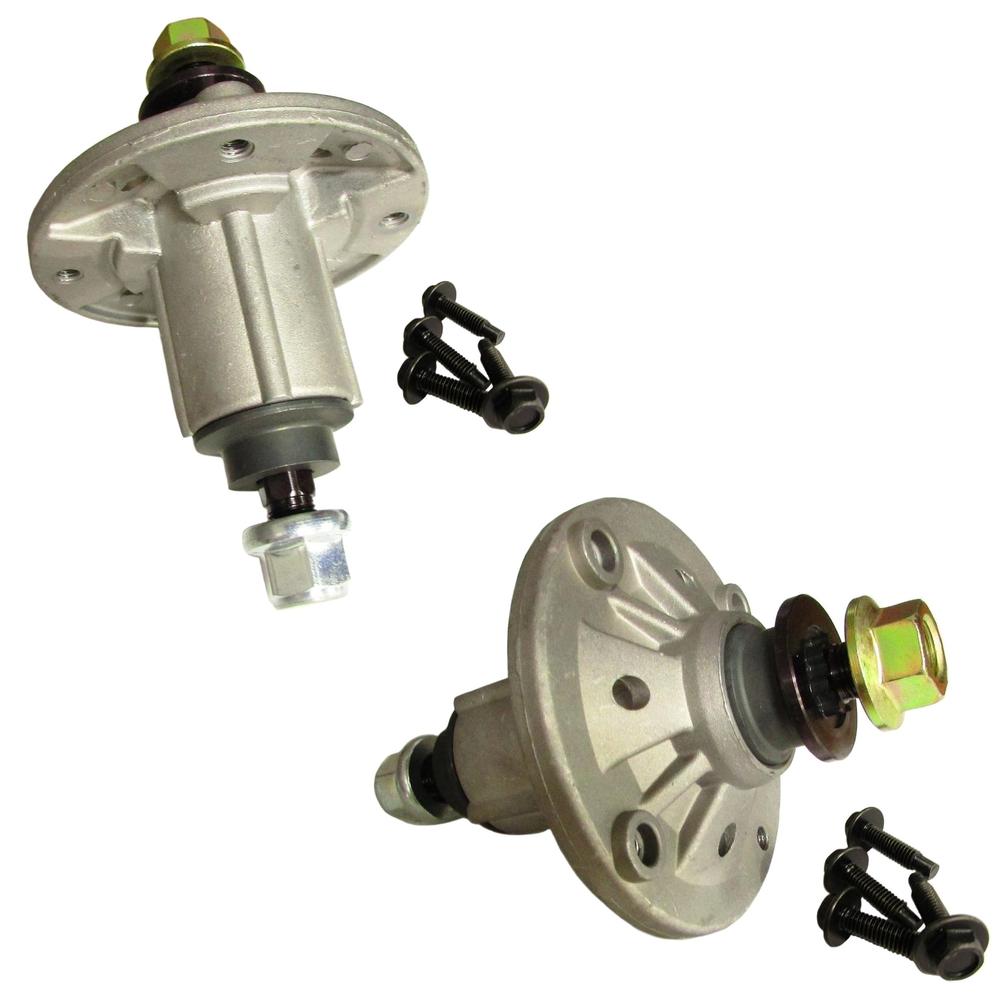

Two (2) Spindle Assemblies With Nuts
7 Lobe Center Hole
Outer Diameter: 5
Height: 7

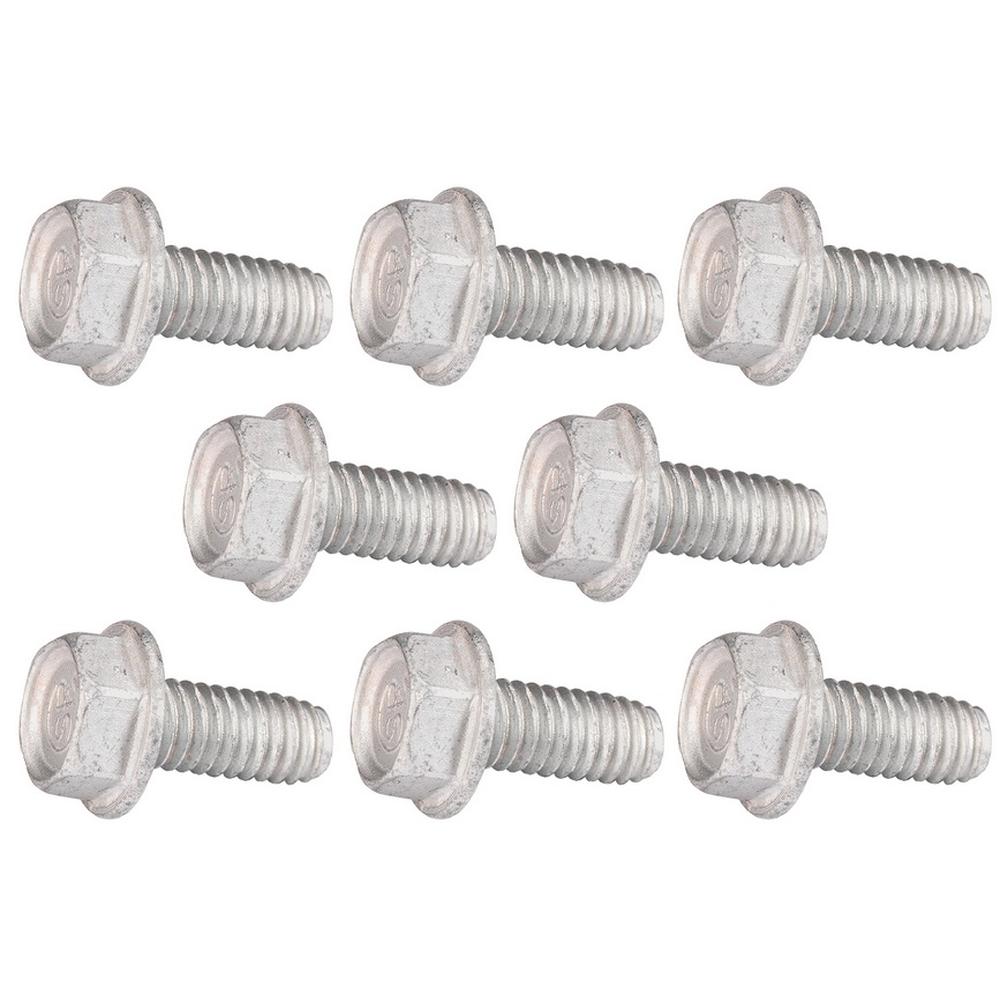

Eight (8) Threaded Bolts
Thread: 5/16"-18
Length: 3/4"

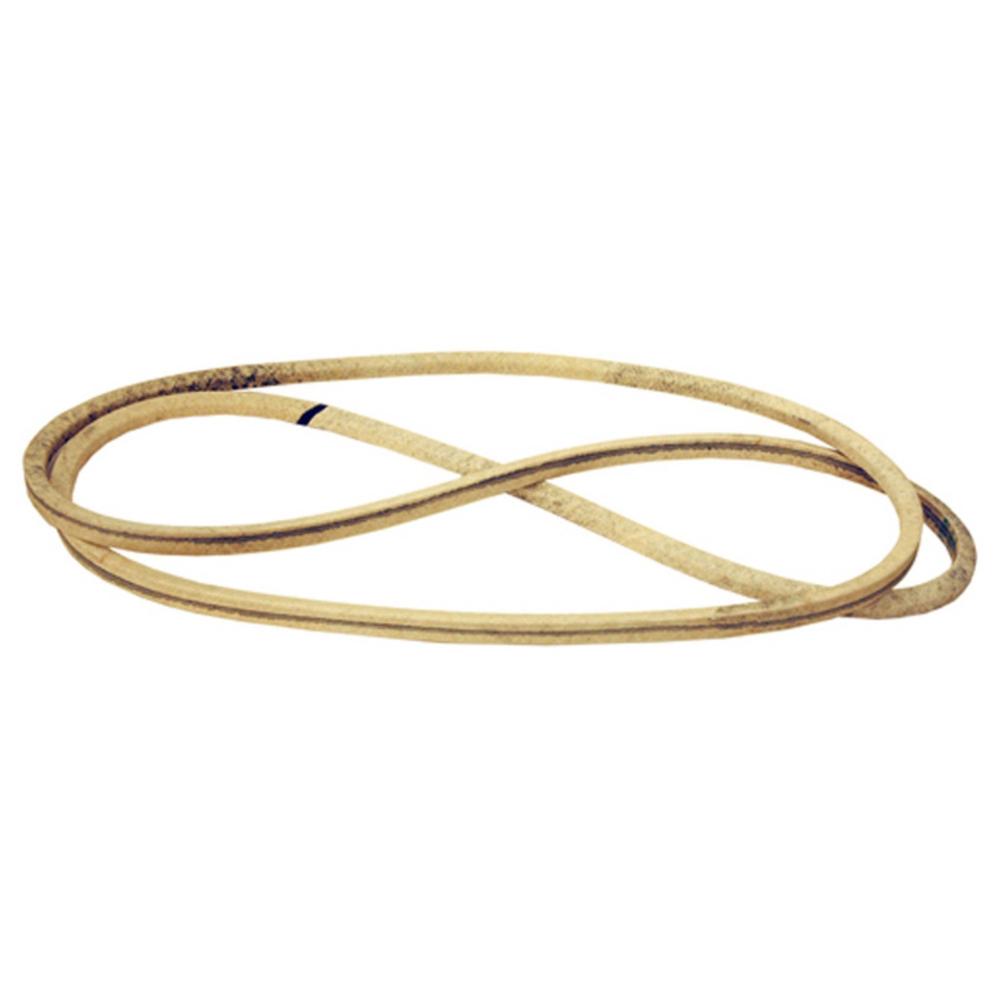

One (1) Platform Drive Mower Belt
Width: 1/2"
Length: 103.75
Material: Made With Aramid Fiber (Made With Kevlar)

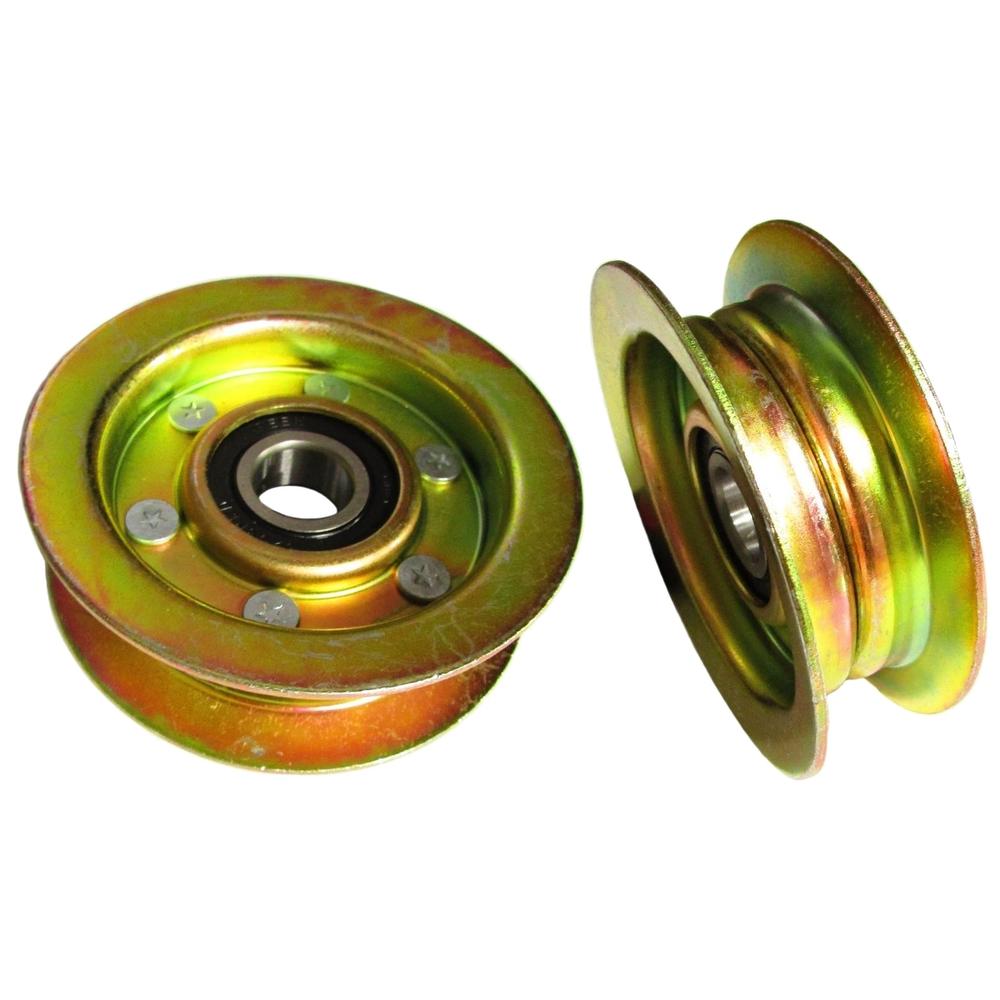

One (1) Flat Idler Pulley
Outer Diameter: 3-5/8"
Inner Diameter: 11/16"
Height: 1-3/16"

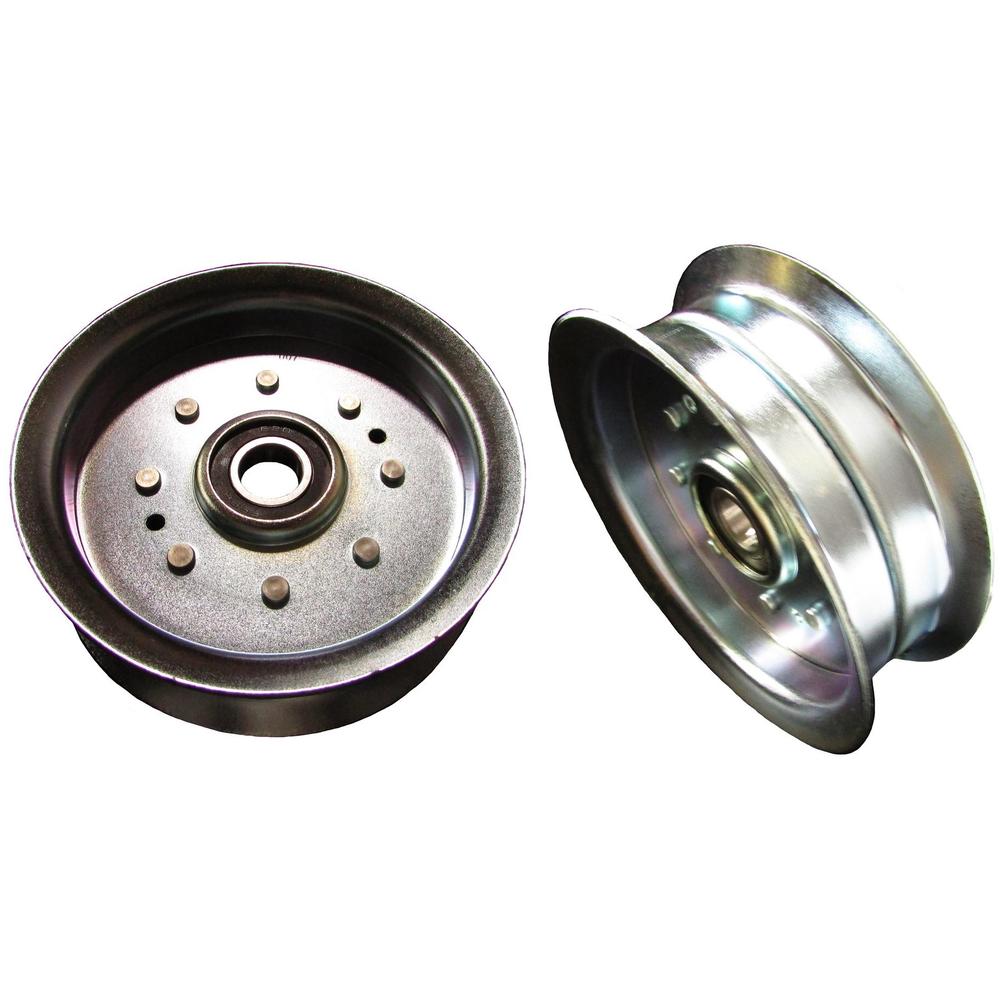

One (1) Steel Flat Idler Pulley With Flanges
Outer Diameter: 5-1/4" Including Flanges
Inner Diameter: 11/16"
Height: 1-3/4"
Replaces Part Numbers:
(Steel Flanged Flat Idler Pulley)756-05034, 756-05034A, AUC17621, GY20110, GY20629, GY22082
(Spindle Assembly) AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625, GY20893
(Bolt) 159830, 1724491, 710-0650, 710-1260A, 112-0395
(Belt) SPM215471655, GX20072, GY20570, 2704496
(Flat Idler Pulley) GY20067, GY22172, 781180, 95608, 10741
(Blade) 578431911, AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, AM137327, AM137329, AM137330, AM141031, GX22151, M145969, M145970, M149421, M154061, M154062, UC21583, 503231, 92106, 7044073
Fits John Deere Models With 42" Decks
Tech Info:
Kit Includes - 2 Mower Blades, 2 Spindles Assemblies With Nuts, 8 Threaded Bolts, 1 Drive Belt, 1 Flat Idler & 1 Flat Idler With Flanges
Two (2) Mower Blades
42" Cut Requires 2 Blades
Length: 21.50"
Width: 2.50"
Center Hole: 7 Lobe
Thickness: 0.1550"
Two (2) Spindle Assemblies With Nuts
7 Lobe Center Hole
Outer Diameter: 5
Height: 7
Eight (8) Threaded Bolts
Thread: 5/16"-18
Length: 3/4"
One (1) Platform Drive Mower Belt
Width: 1/2"
Length: 103.75
Material: Made With Aramid Fiber (Made With Kevlar)
One (1) Flat Idler Pulley
Outer Diameter: 3-5/8"
Inner Diameter: 11/16"
Height: 1-3/16"
One (1) Steel Flat Idler Pulley With Flanges
Outer Diameter: 5-1/4" Including Flanges
Inner Diameter: 11/16"
Height: 1-3/4"
Replaces Part Numbers:
(Steel Flanged Flat Idler Pulley)756-05034, 756-05034A, AUC17621, GY20110, GY20629, GY22082
(Spindle Assembly) AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625, GY20893
(Bolt) 159830, 1724491, 710-0650, 710-1260A, 112-0395
(Belt) SPM215471655, GX20072, GY20570, 2704496
(Flat Idler Pulley) GY20067, GY22172, 781180, 95608, 10741
(Blade) 578431911, AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, AM137327, AM137329, AM137330, AM141031, GX22151, M145969, M145970, M149421, M154061, M154062, UC21583, 503231, 92106, 7044073
Models This Part Fits:
LA115, LA125, LA110, LA100, LA135, LA105, LA120Additional Information:
Kit Includes: (2) Blades - 2 Blades needed for 42" Cut, Length: 21.50", Width: 2.50", 7 Lobe CH, Thickness: 0.1550" (2) Spindle Assemblies w/ Nut 7 Lobe Center Hole (1) Flat Idler Pulley O.D.: 3-5/8", I.D.: 11/16", Height: 1-3/16" (1) Steel Flat Idler Pulley w/ Flanges O.D.: 5-1/4" Including Flanges, I.D.: 11/16", Height: 1-3/4" (1) Platform Drive Mower Belt Width: 1/2", Length: 103.75", Aramid Fiber (Kevlar) Belt (8) Thread Cutting Bolt - 5/16"-18 3/4" Long 42" Deck Rebuild KitReference Numbers:
GX21694, GY20454, GY20867, GY20962, GY21098, M149625, GY20893, 159830, 1724491, 710-0650, 710-1260A,112-0395, SPM215471655, GX20072, GY20570, 2704496, GY20067, GY22172, 781180, 95608, 10741, 756-05034, 756-05034A, AUC17621, GY20110, GY20629, GY22082, 578431911, AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, AM137327, AM137329, AM137330, AM141031, GX22151, M145969, M145970, M149421, M154061, M154062, UC21583, 503231, 92106, 7044073, AUC15811Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
