46 Deck Rebuild Kit Fits Sears Spindles Belt Blades Pulleys" Fits Craftsman
46 Deck Rebuild Kit Fits Sears Spindles Belt Blades Pulleys" Fits Craftsman
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One (1) New Aftermarket Replacement 46" Deck Rebuild Kit
Fits AYP, Fits Craftsman, Fits Husqvarna, Fits Poulan, and Fits Roper 46" Mower Decks

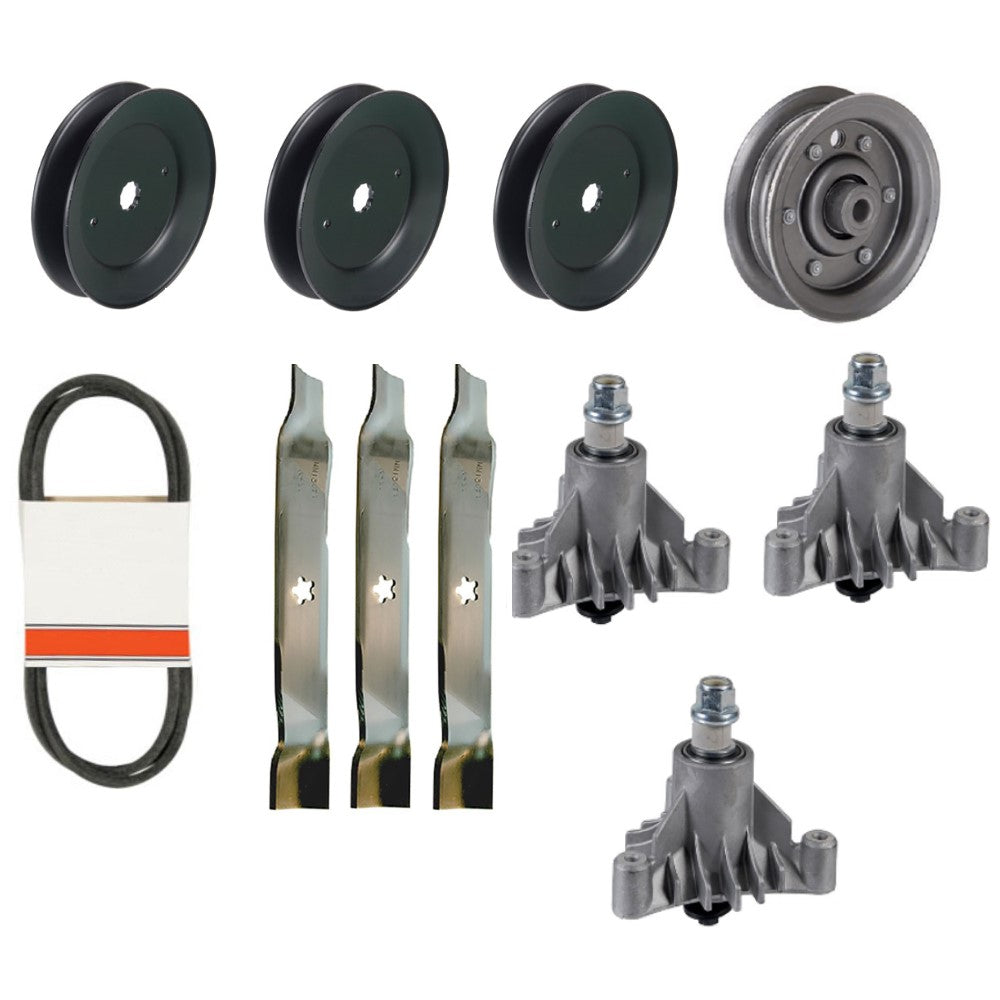

Kit Contains:
(3) Mulching Blades
(3) Steel Deck Pulleys
(3) Spindle Assemblies
(1) Flat Idler Pulley
(1) Deck Belt
The following is the tech info for each part in the kit:
Mulching Blades -
Fits 46" Decks.
Length: 15-1/2"
Width: 2-1/4"
Thickness: 0.149"
Center Hole: 5 pt. star
Requires (3) Blades for 46" Decks
Replaces Part Numbers: 143651, 144767, 145708, 157033, 159705, 163819, 170698, 176084, 532144767, 532157353
Steel Deck Pulleys -
Double Hex ID
Height: 7/8"
Inside Diameter: 5/8" Splined
Keyway: 3/16"
Outside Diameter: 4-5/8"
Fits 36" and 46" Cut Mower Models: GT200, GTH225, LT125, YT180, YTH 180
Replaces Part Numbers: 129207, 153531, 173434, 532129207, 532153531, 532173434, 810-C-PLY-0004
Flat Idler Pulley -
Flat Idler w/ Flanges
Made of Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375'' (3/8") ID
Spindle Assembly -
Includes blade bolt and washers
Does NOT include mounting bolts
Replaces Part Numbers: 137152, 37553, 143651, 176084, 192-653, 192653, 36-51, 532 14 36-51, 5321436-51, 532143651, 9519, B1AY25, RLG143651
Deck Belt -
Color: Brown
Length: 95-1/2"
Thickness: 0.374"
Type: Wrapped
Width: 1/2"
Replaces Part Numbers: 144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 531300766, 490-500-0051, 690-500-0008
Fits AYP, Fits Craftsman, Fits Husqvarna, Fits Poulan, and Fits Roper 46" Mower Decks
Kit Contains:
(3) Mulching Blades
(3) Steel Deck Pulleys
(3) Spindle Assemblies
(1) Flat Idler Pulley
(1) Deck Belt
The following is the tech info for each part in the kit:
Mulching Blades -
Fits 46" Decks.
Length: 15-1/2"
Width: 2-1/4"
Thickness: 0.149"
Center Hole: 5 pt. star
Requires (3) Blades for 46" Decks
Replaces Part Numbers: 143651, 144767, 145708, 157033, 159705, 163819, 170698, 176084, 532144767, 532157353
Steel Deck Pulleys -
Double Hex ID
Height: 7/8"
Inside Diameter: 5/8" Splined
Keyway: 3/16"
Outside Diameter: 4-5/8"
Fits 36" and 46" Cut Mower Models: GT200, GTH225, LT125, YT180, YTH 180
Replaces Part Numbers: 129207, 153531, 173434, 532129207, 532153531, 532173434, 810-C-PLY-0004
Flat Idler Pulley -
Flat Idler w/ Flanges
Made of Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375'' (3/8") ID
Spindle Assembly -
Includes blade bolt and washers
Does NOT include mounting bolts
Replaces Part Numbers: 137152, 37553, 143651, 176084, 192-653, 192653, 36-51, 532 14 36-51, 5321436-51, 532143651, 9519, B1AY25, RLG143651
Deck Belt -
Color: Brown
Length: 95-1/2"
Thickness: 0.374"
Type: Wrapped
Width: 1/2"
Replaces Part Numbers: 144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 531300766, 490-500-0051, 690-500-0008
Models This Part Fits:
46" Deck, 8188A89, 8196A89, SGT18H46A, 8196B89, 9209A99, 8188B89, 8196A99Additional Information:
(3) Mulching Blades Length: 15-1/2" Width: 2-1/4" Thickness: 0.149" Center Hole: 5 pt. star Replaces Part Numbers: 143651, 144767, 145708, 157033, 159705, 163819, 170698, 176084, 532144767, 532157353 (3) Steel Deck Pulleys Height: 7/8" Inside Diameter: 5/8" Splined Keyway: 3/16" Outside Diameter: 4-5/8" Replaces Part Numbers: 129207, 153531, 173434, 532129207, 532153531, 532173434, 810-C-PLY-0004 (3) Spindle Assemblies Replaces Part Numbers: 137152, 37553, 143651, 176084, 192-653, 192653, 36-51, 532 14 36-51, 5321436-51, 532143651, 9519, B1AY25, RLG143651 (1) Flat Idler Pulley 3.875" (3 7/8'') OD, .375'' (3/8") ID Replaces Part Numbers: 173438, B1AY35 (1) Deck Belt Length: 95-1/2" Thickness: 0.374" Type: Wrapped Width: 1/2" Replaces Part Numbers: 144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 531300766, 490-500-0051, 690-500-0008 46" Deck Rebuild KitReference Numbers:
173434, 532173434, 143651, 144767, 145708, 157033, 159705, 163819, 170698, 176084, 532144767, 532157353, 129207, 153531, 173434, 532129207, 532153531, 532173434, 810-C-PLY-0004, 137152, 37553, 143651, 176084, 192-653, 192653, 36-51, 532 14 36-51, 5321436-51, 532143651, 9519, B1AY25, RLG143651, 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 137152, 137553, 143651, 532137152, 532137553, 532143651, 129207, 153531, 173434, 532129207, 532153531, 532173434, 145708, 152443, 159705, 163819, 176084, 532159705, 532176084, 104360X, 131494, 173438, 532131494, 532173438, 21547026, 21547027, 21547082, 21547188, 532144959, 144959, 144959D, 24690, 531300766, 532144959, 7-05668, 705668Makes This Part Fits:
