46" Mower Deck Kit Fits Husqvarna Replaces 192870 Made With Aramid

46" Mower Deck Kit Fits Husqvarna Replaces 192870 Made With Aramid



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

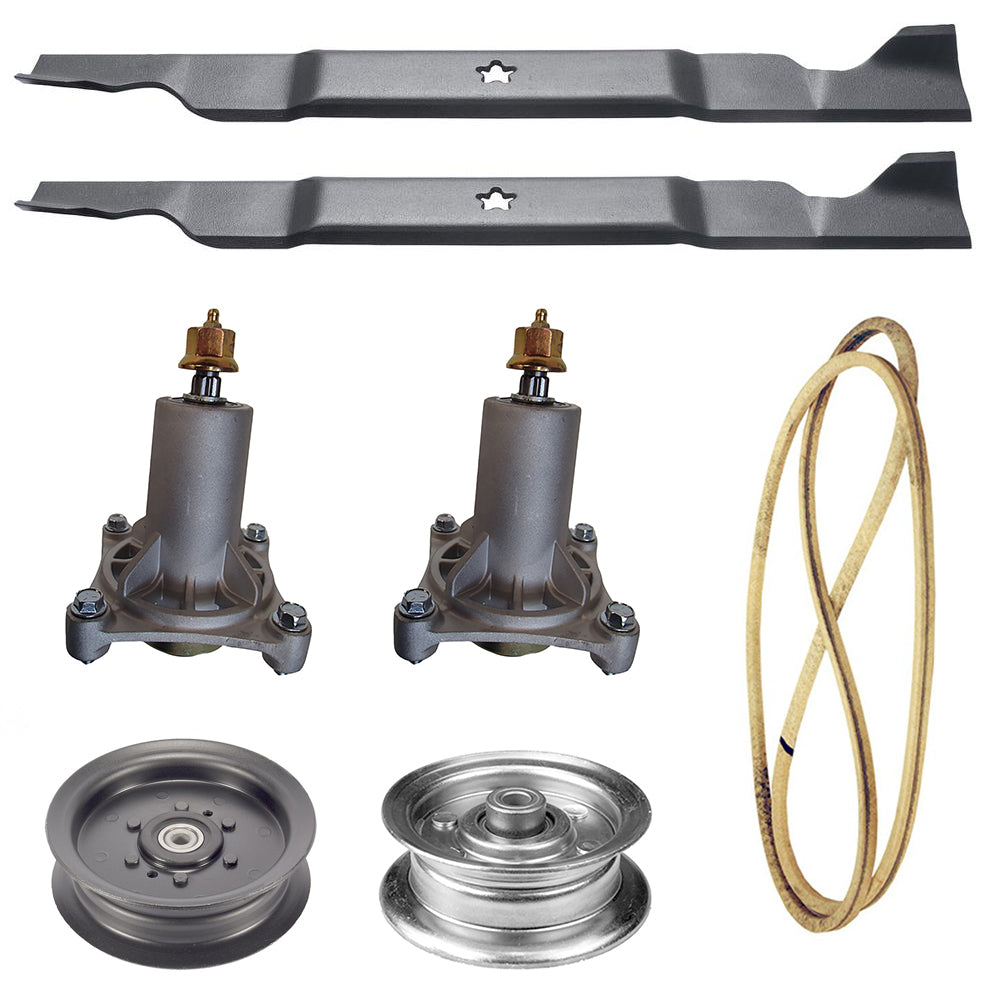

One New Aftermarket 46" Mower Deck Kit

Tech Info:

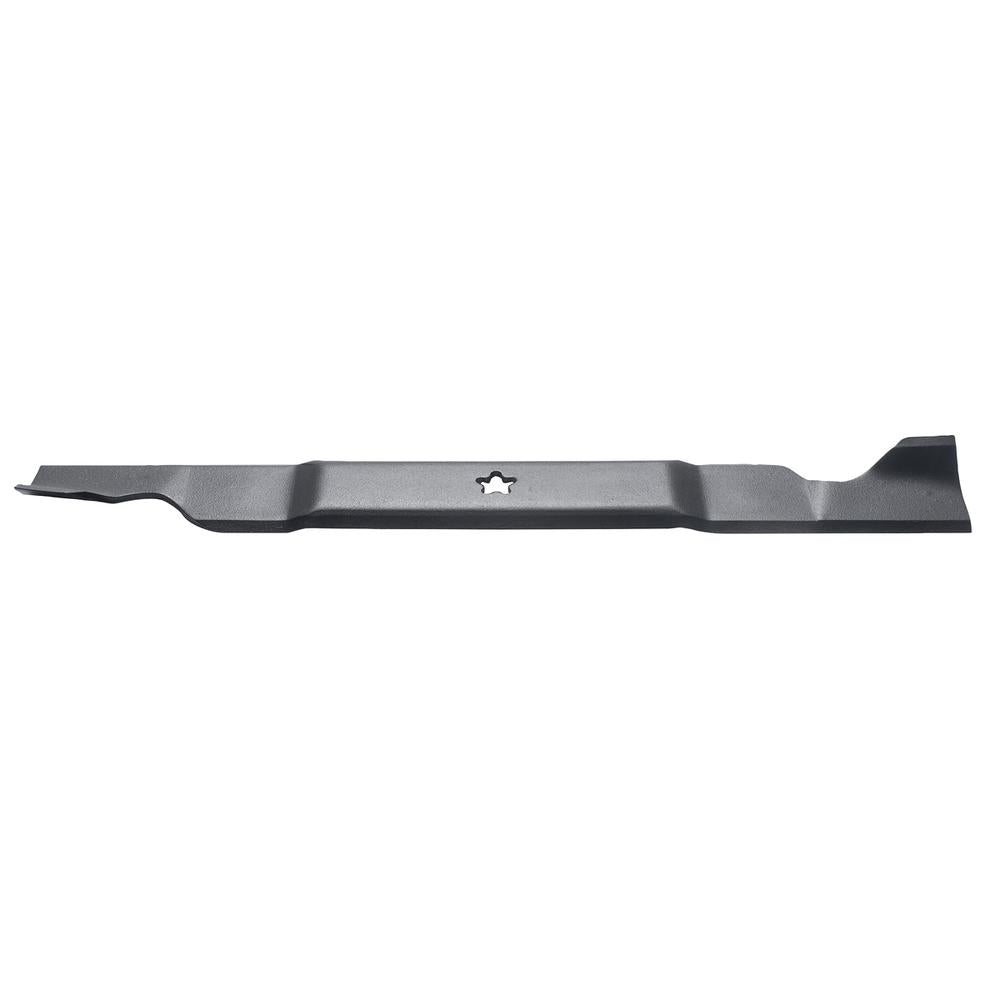

 -(2) Mower Blades
 -Length: 22-7/8"
 -Width: 2-3/4"
 -Thickness: 0.156"
 -Center Hole: 5 point star
 -Replaces Part Number(s):
 -403107, 503405380, 532403107, 532405380, 594892801
 -

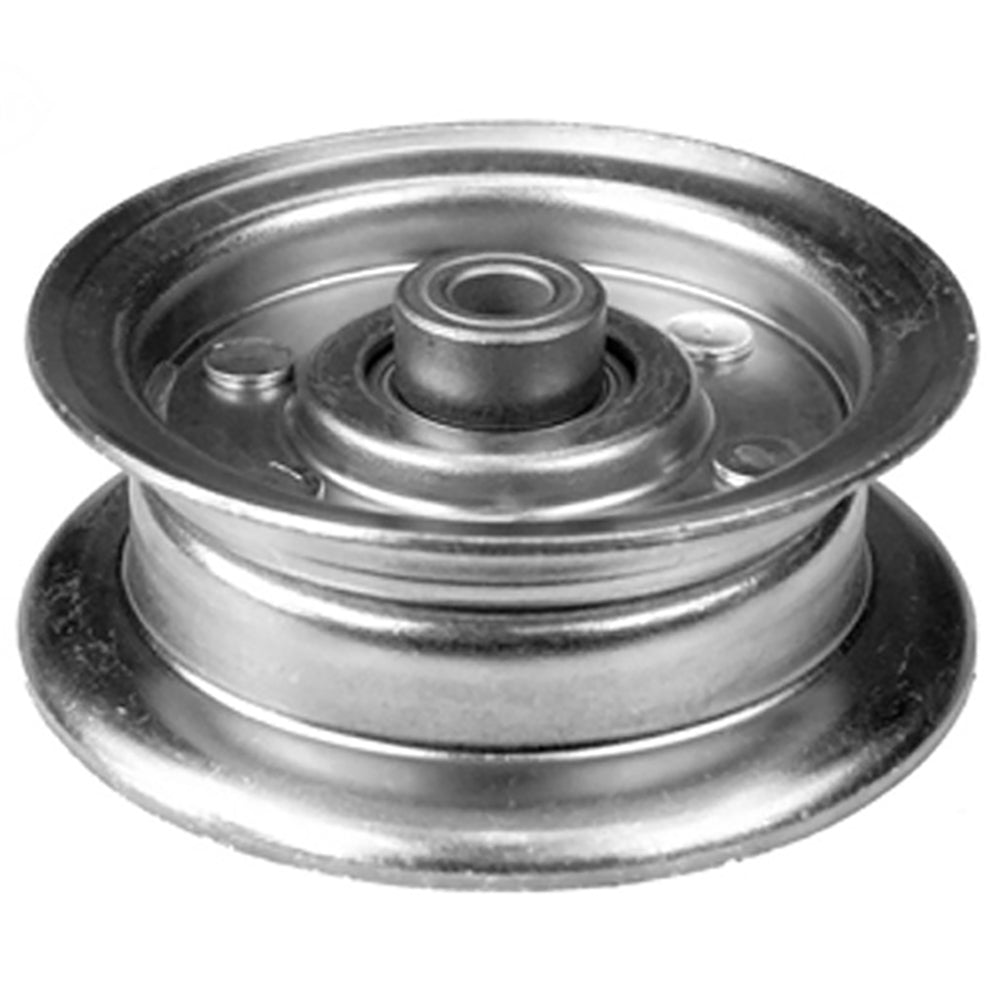

 -(1) Flat Idler Pulley
 -Inner Diameter: 3/8"
 -Outer Diameter: 5-3/8"
 -Height: 1-5/8"
 -Painted
 -Replaces Part Number(s):
 -196106, 197379, 532196106
 -

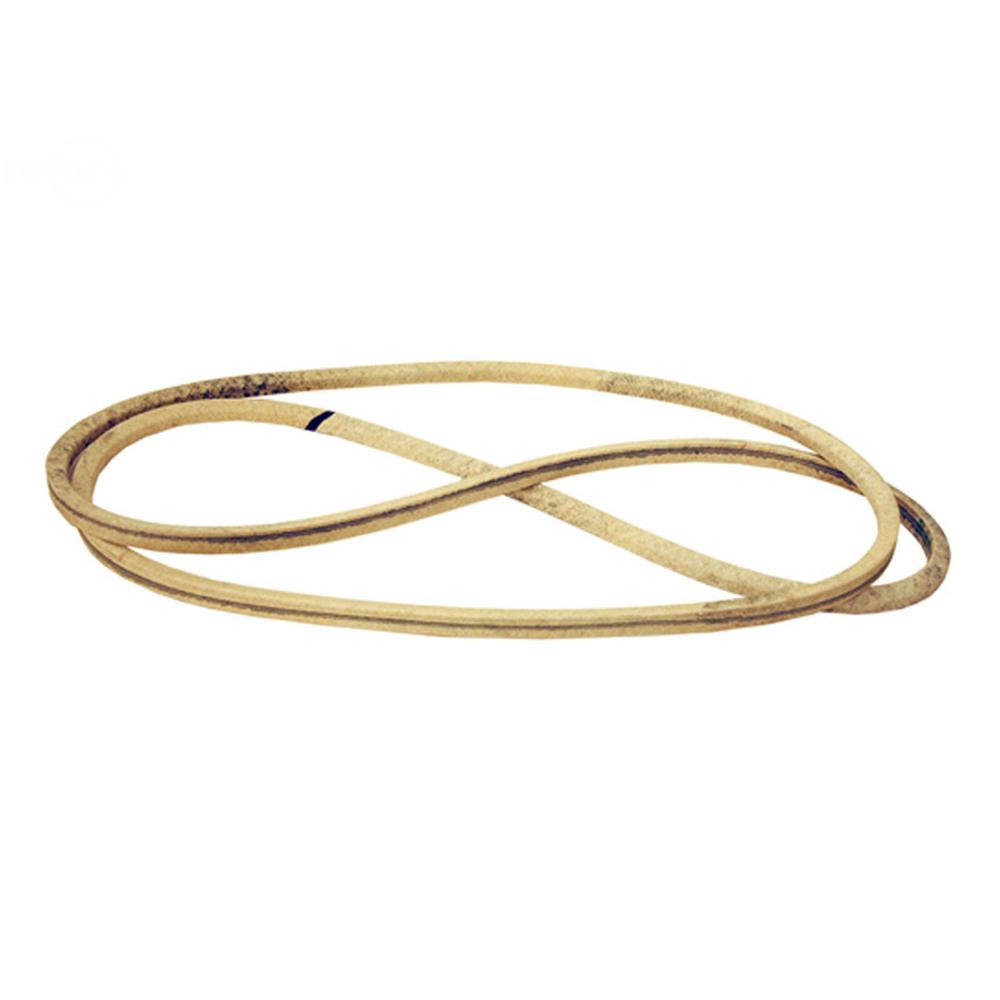

 -(1) Deck Belt
 -1/2" x 105.875"
 -Thickness: 0.35"
 -Made With Aramid Cord
 -Replaces Part Number(s):
 -532405143, 584453101
 -

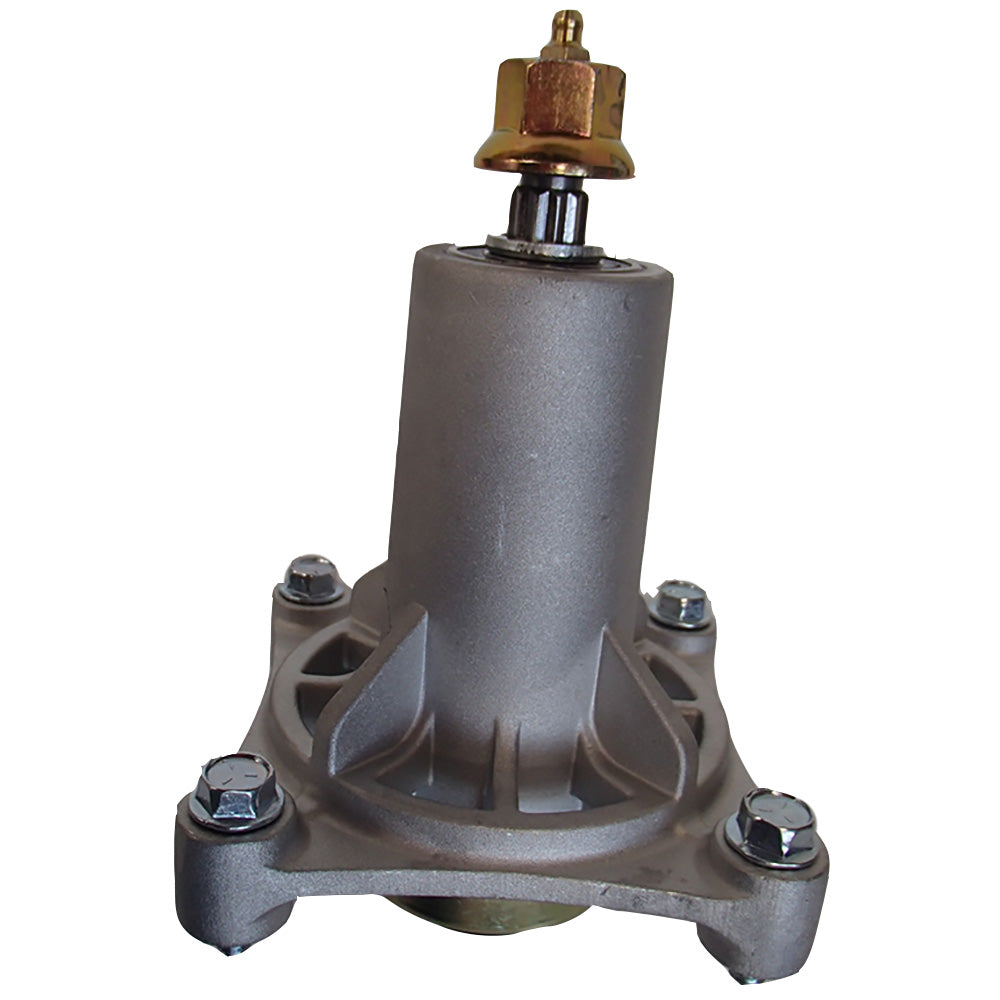

 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -
 -Includes:
 -Pulley Locknut
 -Blade Bolt/Washer
 -Spacer
 -4 Mounting Bolts
 -Replaces Part Number(s):
 -192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -

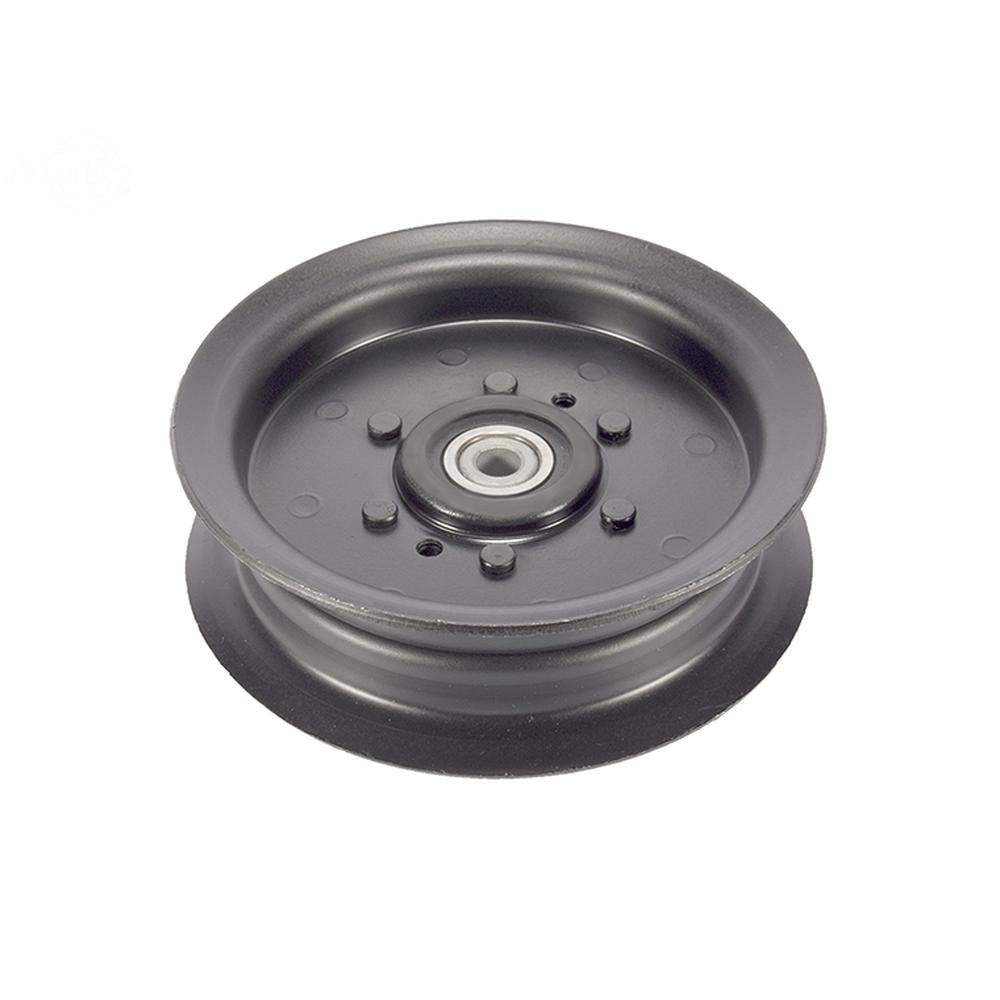

 -(1) Flat Idler Deck Pulley
 -Height: 1-7/16"
 -Inner Diameter: 3/8"
 -Outer Diameter: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -Replaces Part Number(s):
 -532177968, 532193197

Made to Fits Husqvarna:
Zero-Turn Mower Models: EZ17 968999502
Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Riding Mower Models: GTH26K54 96043003101, LGTH24V54 96048006200, YTH24K54 (96045003300)
Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Models This Part Fits:

LGTH24V54 96048006200, YTH24K54 (96045003300), EZ17 968999502, GTH26K54 96043003101

Additional Information:

(2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 403107, 503405380, 532403107, 532405380, 594892801 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 532405143, 584453101 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (1) Flat Idler Deck Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197 46" Mower Deck Kit

Reference Numbers:

192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:
