4757882, 504090936 Fuel Pump Fits Ford/New Holland

4757882, 504090936 Fuel Pump Fits Ford/New Holland



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

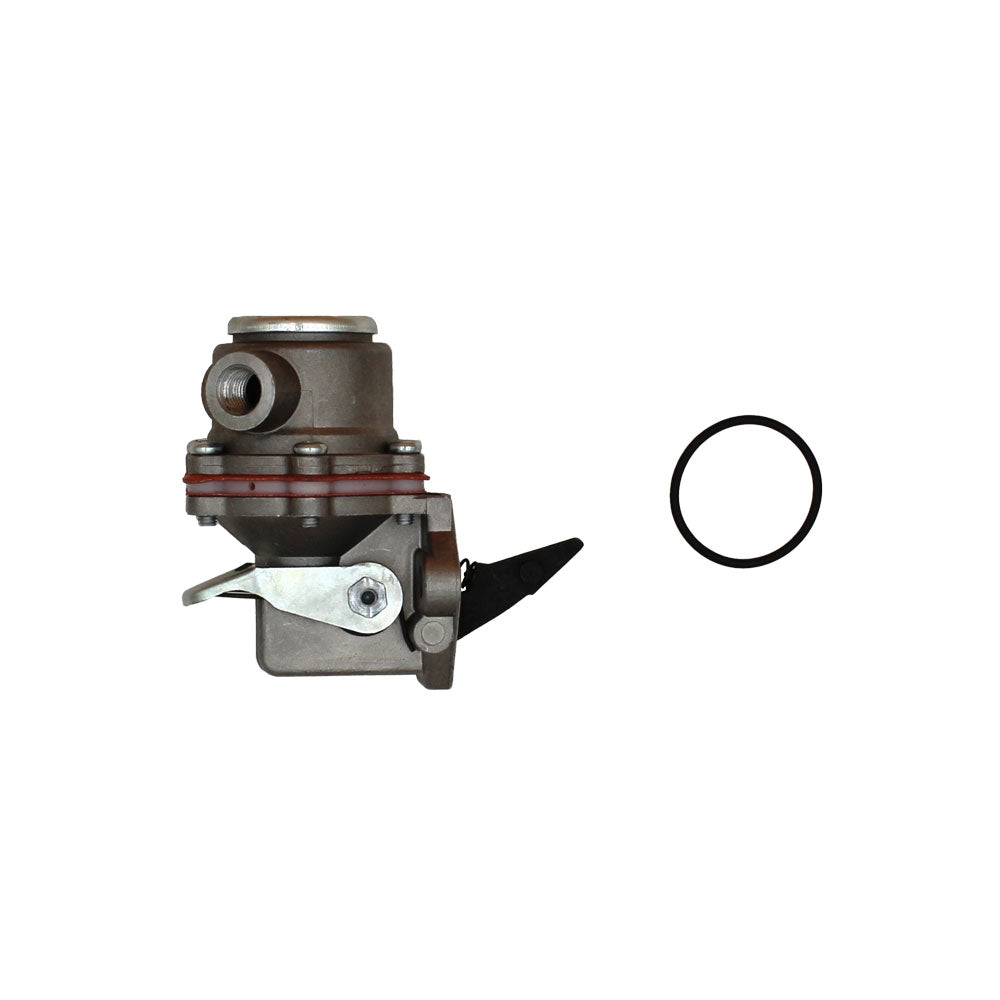

One New Aftermarket Replacement Fuel Lift Pump for Ford/New Holland, Fiat, and Case IH Tractors

This mechanical fuel lift pump draws diesel fuel from the tank and delivers it to the injection pump at the correct pressure, ensuring reliable engine starting and steady power under load. It features a 2-bolt mounting flange with an M12x1.5 mm thread size and uses an O-ring style seal for a leak-free connection. Designed as a direct-fit replacement for Ford (New Holland), Fiat, Case IH, and Farmall diesel tractors across multiple series including the TL, TN, TD, TK, TT, JX, and classic numeric series.

Specifications

  • Mounting: 2-bolt flange
  • Thread Size: M12x1.5 mm
  • Seal Type: O-ring (included)
  • Pump Type: Mechanical fuel lift pump (cam-actuated)

Compatible Models

New Holland TL Series: TL70, TL80, TL90, TL100

New Holland TN Series: TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA

New Holland TD Series: TD3.50, TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110, TD55D, TD60, TD60D, TD65B, TD65D, TD65F, TD70, TD70D, TD75D, TD75F, TD80, TD80D, TD85D, TD85F, TD90, TD90D, TD95, TD95D, TD95D HC PLUS

New Holland TK Series: TK65, TK65F, TK65V, TK70, TK70FA, TK70VA, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK76M, TK80, TK80A, TK80MA, TK85, TK85M, TK90, TK90A, TK90MA, TK95, TK95M, TK100A

New Holland TT Series: TT35, TT39, TT40, TT50, TT55, TT60A, TT65, TT65D, TT75, TT75A, TT4.55, TT4.75, TT4.80, TT4.90

New Holland JX/JXM Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100, JX100U, JX110, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX1095C, 55JXM, 65JXM, 75JXM, 80JXM, 90JXM

New Holland T-Series: T3.50F, T3.55F, T3.65F, T3.75F, T4.65S, T5.100

New Holland Numeric Series: 4835, 5635, 6635, 7635, 3830, 75A, 65A, L65

Ford Numeric Series: 3830, 4010S, 4030, 4230, 4330, 4330V, 4430, 4635, 4835, 5010S, 5500, 5530, 5635, 6530, 6610S, 7610S, 7635

Case IH / Farmall JX Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, MX100C, CX100

Fiat Numeric Series: 45-46, 45-46DT, 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 55-46, 55-46DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 65A, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66S, 70-66SDT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-93, 72-93DT, 72-94, 72-94DT, 75A, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT

Replaces Part Number(s):

4757882, 504090936, 84550751, 84550742, 84281012, 84281011, 84280977, 5803087486, 5802322849, 5801833326, 5097152, 48076416, 47750097, 4740718, 4709283, 4667510

Aftermarket Interchange Numbers

Also interchanges with: FSG60-0092 (item number). Cross-references with applications for Allis Chalmers 5040/5045/5050 (72093848), Hesston (4740717, 504090935), Long Tractor (TX10289), and Oliver (31-2900044, 31-2905019) -- verify fitment for those applications before ordering.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

JX1070N, JX1075C, 65A, 60-86FDT, TN75D, 50-66, 65-90DT, TD60D, 65-46DT, 80-66F, TN55, TN65F, 55-76F, TK70, 60-93DT, TN60A, TD65B, 70-56, 65-94DT, 55-56, TK75MA, TK100A, TT4.90, TN70NA, TN70SA, 80-76F, TN70, TN70F, 65-56DT, TN65, TD95D HC PLUS, JX80, 82-93DT, TK65, JX1075N, 75A, 70-76V, 45-66, TN90F, TL100, TN70D, TK75M, TN85FA, 70-88, TN70DA, 3830, JX110, JX1060C, 80-66FDT, 82-94, 4010S, 60-86VDT, TT35, JX55, T3.75F, TK80MA, 70-76F, 85-90, JX85, 75JXM, 5500, JX1095C, 65-93, 70-76FDT, TD5.80, TK76, TD75F, 55-66DT, 88-94, TK90MA, TD70, 65-46, TK85, 70-76LP, 4230, TN70VA, TN75V, TN55S, T4.65S, TK76M, TK85M, JX80U, 60-66, 70-56DT, 70-66S, 72-94, 60-86SVDT, 70-66FDT, 60-56DT, 5635, 70-66, 70-76LPDT, 80-88DT, 70-66DT, 65-56, 88-93DT, TN70S, 70-66SDT, 60-90DT, 60-86SV, TD5.75, TN75N, TN65S, 60-76F, 72-94DT, TD85D, TN65D, 70-66F, 55-76FDT, 80-76FDT, TD5.110, TN75FA, JX75, TD60, T3.65F, TD5.100, TT60A, 55-46, JX100U, 60-76FDT, TK65V, 60-90, TK65F, 65-94, 70-66LP, TD95, 82-93, JX95, TK90, 5530, TT75, 6610S, TT75A, JX1060V, 82-94DT, CX100, 80JXM, 80-88, TD3.50, 55-56DT, 4635, 4030, 85-90DT, TK80, TK95M, TN60SA, TL80, L65, TN70A, MX100C, 60-86V, TD5.90, TN60DA, TT4.80, 55-76V, 80-90DT, TT50, TN60VA, 70-90DT, 4330, T3.55F, TT4.55, TN65V, TN75A, 90JXM, 4330V, TL70, 65JXM, 60-94, TD55D, TN75, 60-86F, 88-93, TK90A, 72-93, T3.50F, TD90, 65-90, TD90D, JX1070V, 80-90, TL90, TN65N, 55-66, 45-76V, TD95D, 4835, TN95VA, 55JXM, 55-46DT, TD75D, 6635, TK75F, TN80F, TT65D, JX70, JX90, TK75FA, 7610S, TN75S, 70-90, 72-93DT, TT4.75, JX1075V, 5010S, TK80A, TN55V, TT39, JX1070C, 70-88DT, JX65, TK75V, TT55, TN95F, JX70U, TD70D, TN75NA, TT65, JX90U, 4430, 60-94DT, 6530, TD65F, 70-66V, 80-66, TK95, TN55D, TK75, TN75F, JX60, TN75SA, 50-66DT, T5.100, 45-66DT, TN75DA, 80-66DT, JX100, 60-56, TK70FA, TD5.65, 60-93, TK70VA, TT40, 88-94DT, TN95FA, 7635, TD80D, TN75VA, TD65D, TK75VA, 60-66DT, TD85F, 65-93DT, 55-76VDT, TD80

Additional Information:

Thread Size: M12x1.5 MM Number of Bolt Holes: 2 Fuel Lift Pump

Reference Numbers:

84550742, 84550751, 84281012, 84281011, 5803087486, 504090936, 5802322849, 47750097, 5801833326, 48076416, 4757882, 5097152, 84280977, 504090936, 84550751, 84281012, 84281011, 5803087486, 504090936, 5802322849, 47750097, 5801833326, 48076416, 4757882, 5097152, 84280977, 84550742, 5803087486, 4667510, 4709283, 5802322849, 5801833326, 84280977, 504090936, 84281011, 84281012, 84550742, 84550751, 48076416, 4757882, 47750097, 4740718, 48076416, 4757882, 47750097, 4740718, 5803087486, 4667510, 4709283, 5802322849, 5801833326, 84280977, 504090936, 84281011, 84281012, 84550742, 84550751
