4D4431 Bushing Tube & Rod End Fits CAT D4H, D5M

Name: 4D4431 Bushing Tube & Rod End Fits CAT D4H, D5M
Brand: AIC Replacement Parts
SKU: 4D4431-PVE
Price: 14.9 USD
Availability: OutOfStock

4D4431 Bushing Tube & Rod End Fits CAT D4H, D5M

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

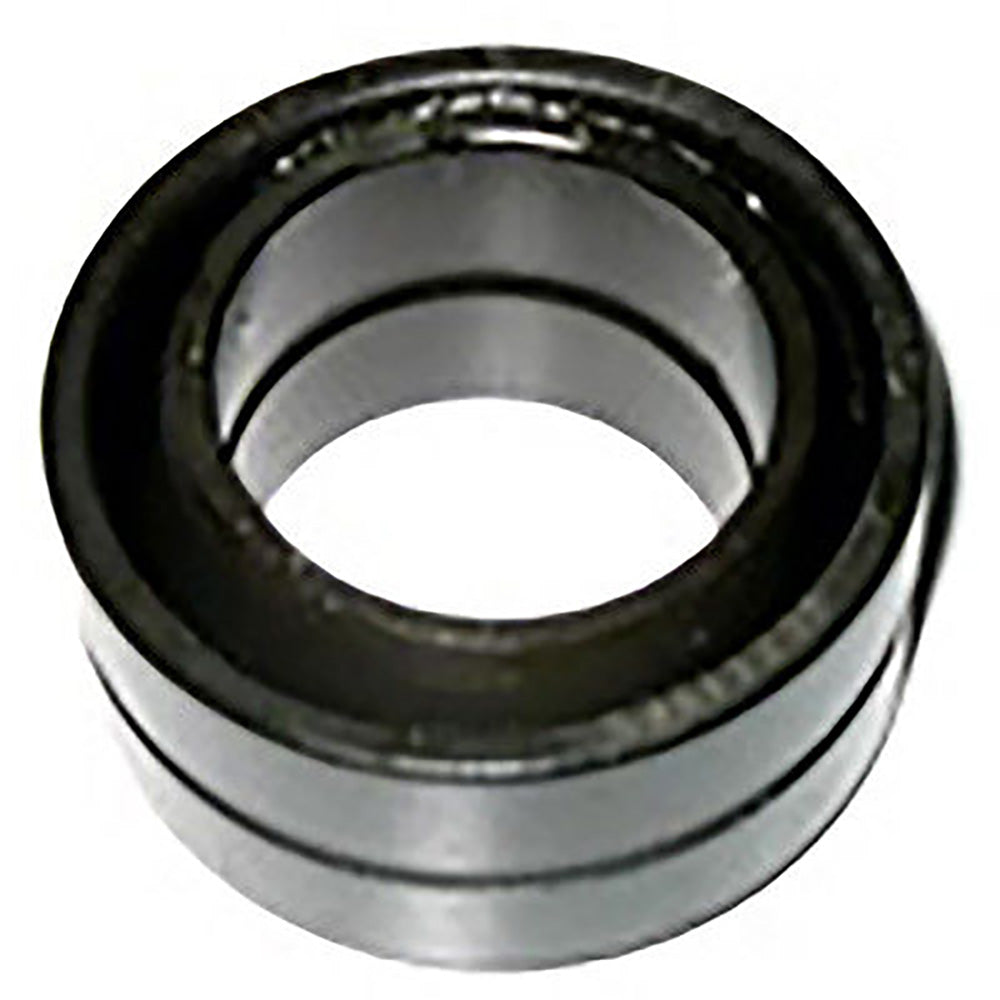

One New Aftermarket Replacement Spherical Bushing Fits Caterpillar (Fits CAT) Crawler Dozers

This aftermarket replacement spherical bushing (self-aligning) fits the tube end and rod end of the dozer blade angle cylinder on Fits Caterpillar (Fits CAT) crawler dozers. Also known as a rod and tube end bushing or spherical bearing, part number 4D4431 seats at both ends of the angle cylinder and is used with 2H5549 snap rings.

Specifications

Height: 1.52 in (39.4 mm)
Outer Diameter: 2.8 in
Inner Diameter: 1.7 in
Type: Spherical / Self-Aligning Bushing
Weight: approx. 1.4 lbs

Compatible Models

Fits Caterpillar Crawler Dozers: D2, D3, D3C III, D3G, D3K LGP, D3K XL, D3K2 LGP, D3K2 XL, D4, D4C III, D4G, D4H, D4H III, D4H LGP, D4H XL, D4H TSK II, D4H TSK III, D4K LGP, D4K XL, D4K2 LGP, D4K2 XL, D5C III, D5G, D5K LGP, D5K XL, D5K2 LGP, D5K2 XL, D5M, D5N, D6K, D6K LGP, D6K XL, D6K2, D6K2 LGP, D6K2 XL, D6M, D6N, D1

Fits Caterpillar Compact Track Loaders / Multi-Terrain Loaders: 247B, 252, 252B, 252B3, 262, 262B, 262C, 262C2, 262D, 262D3, 268B, 272C, 272D, 272D2, 272D2 XHP, 272D3, 272D3 XE, 272D XHP, 287, 287B, 287C, 287C2, 287D, 289C, 289C2, 289D, 289D3, 297C, 297D, 297D2, 297D2 XHP, 297D XHP, 299C, 299D, 299D2, 299D2 XHP, 299D3, 299D3 XE, 299D XHP

Fits Caterpillar Wheel Loaders: 906, 908, 918F, 924F, 924G, 924GZ, 924H, 924HZ, 924K, 928F, 928G, 928H, 928HZ, 930K, IT18F, IT24F, IT28F, IT28G

Fits Caterpillar Excavators: 315C, 315D L

Fits Caterpillar Motor Graders: 12H, 12H NA, 140H, 140H NA, 24, 24H, 24M

Fits Caterpillar Scrapers / Other: 4A, 4P, 4S, 35, 45, 54, 55, 65, 65B, 65C, 65D, 70C, 75, 75C, 75D, 85C, 85D, 517, 527, 535B, 525B, 574, 650B, 660B, 666, 666B, HF201B, HFW221, PM-201, PM-565B, RM-350B, 30/30 DEUCE

Replaces Part Number(s):

4D4431, 613524C91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

IT18F, 924F, 535B, 299C, D5K2 XL, 287D, 924K, 65D, 85C, 140H NA, 299D2, 527, 297D, 272D XHP, 75C, 928G, IT24F, 297C, D4K2 XL, 45, D6M, 299D2 XHP, 252, 272D, 299D XHP, 30/30 DEUCE, 924H, 55, 289C2, 65, D4, 75D, D4HTSK III, RM-350B, 262C2, IT28G, 666B, 12H NA, D6K2, D4H XL, D6K, D3C III, 315D L, D4K2 LGP, 315C, 262D3, 262C, 289D3, 35, 65C, D3K2 XL, 70C, HFW221, D6N, 24, 930K, 928F, 287C2, 272D3, D6K XL, D4H, 650B, 908, 75, 268B, 4P, D5K2 LGP, 297D XHP, D4K XL, D3K XL, 299D, 660B, D6K LGP, 262B, 272D3 XE, 24M, 252B, D5G, PM-201, 287C, D4H III, D3, 297D2 XHP, D6K2 XL, 85D, 24H, D5K XL, 517, 299D3, D5N, 525B, 574, D5C III, 272D2, D3K2 LGP, 54, 287B, D3G, 272C, 297D2, 666, 4S, 289D, 262D, 918F, D5M, D6K2 LGP, 65B, D3K LGP, D4HTSK II, 906, 928HZ, 299D3 XE, D4C III, 924GZ, 4A, D5K LGP, IT28F, 287, 924G, D1, HF201B, D4G, D4K LGP, D2, 262, 272D2 XHP, 12H, 252B3, 140H, 924HZ, 928H, D4H LGP, PM-565B, 289C
