AIC Replacement Parts

**TO VIEW PRICE**

LOGIN or REGISTER

Models This Part Fits:

4D-4785, M4006-4

Additional Information:

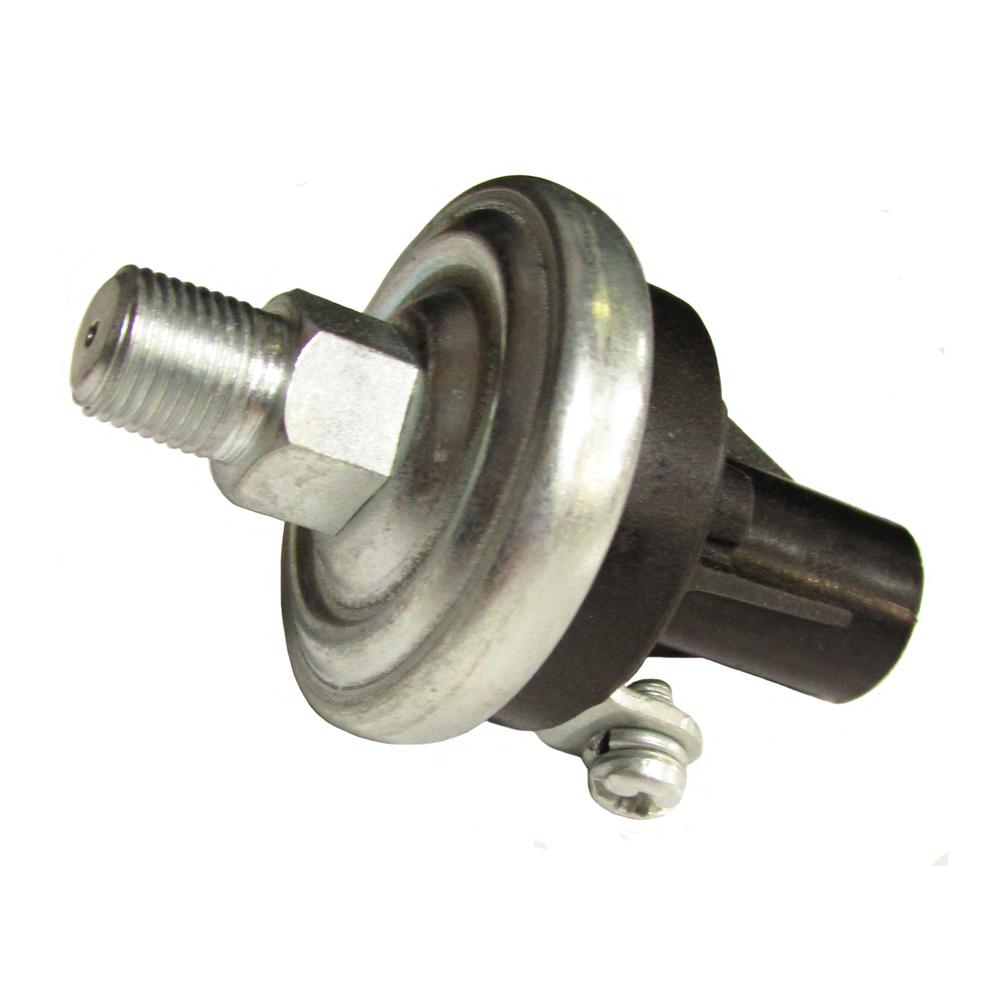

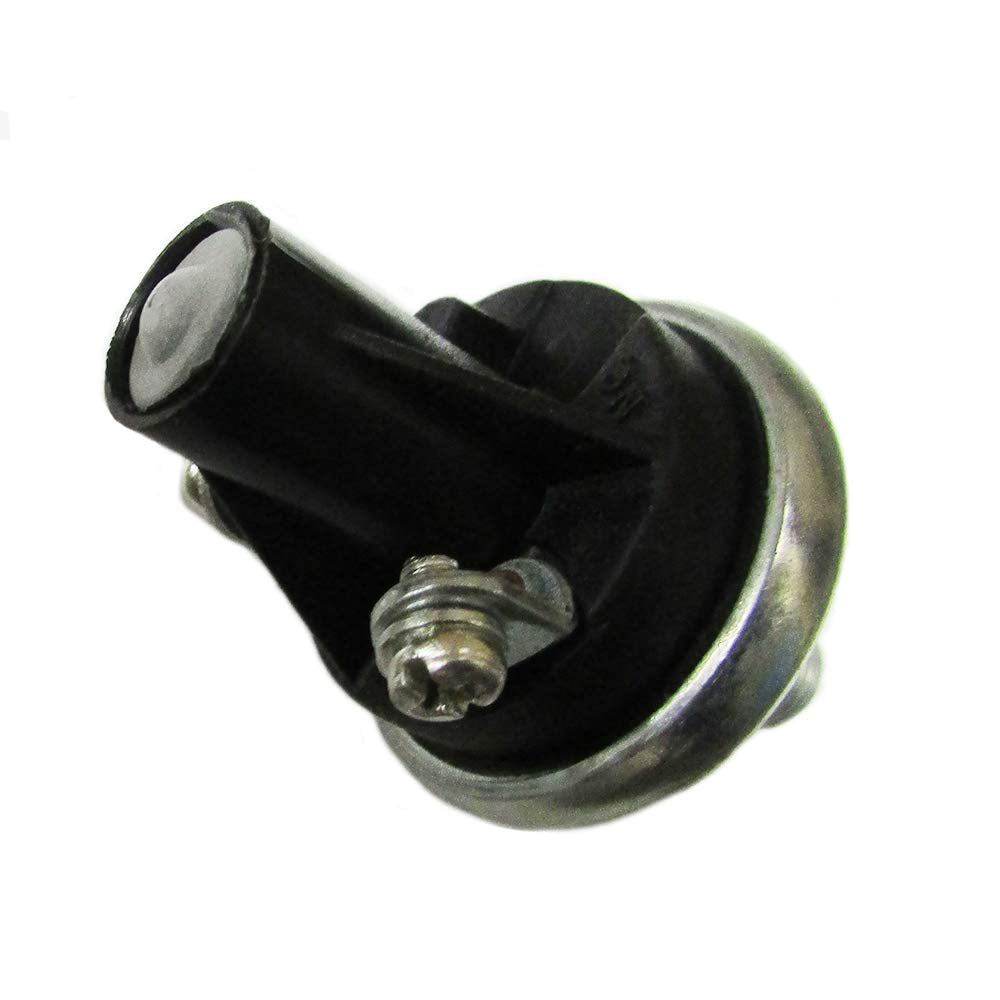

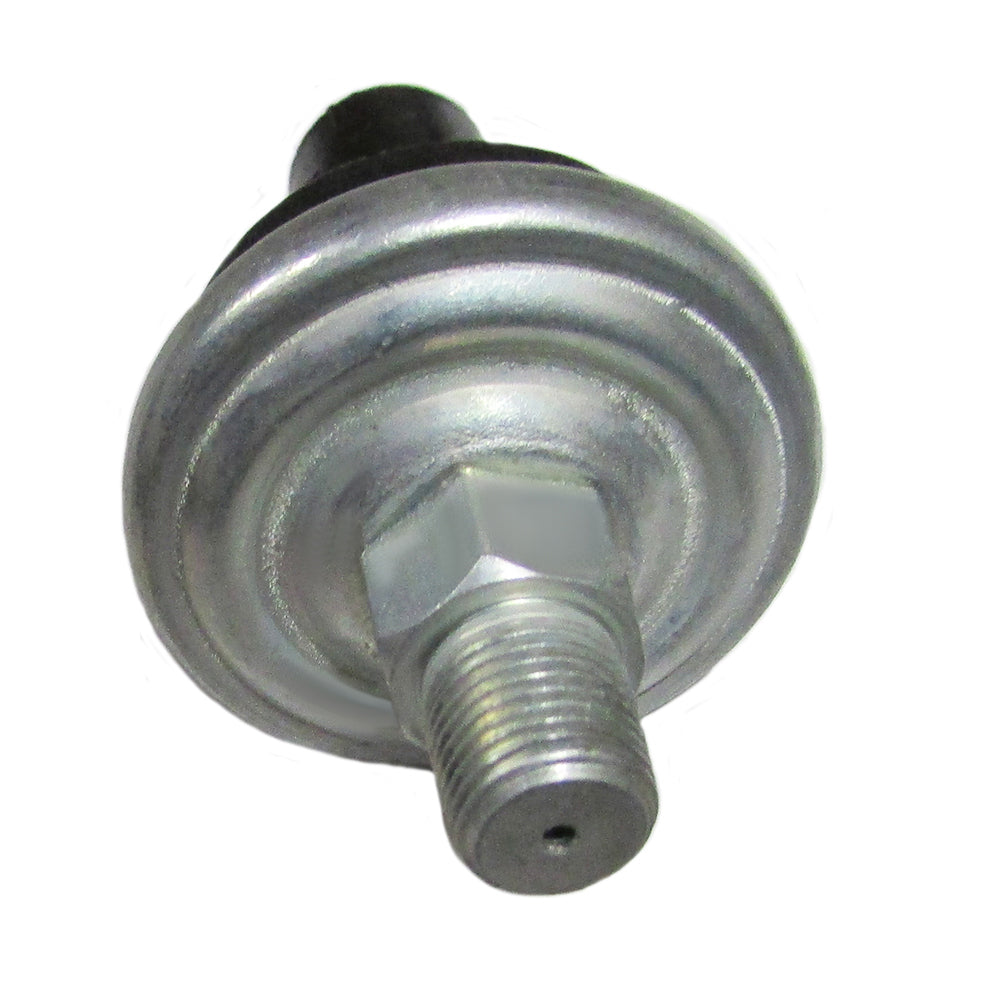

Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature. Adjustable Pressure Switch

Reference Numbers:

4D-4785, 4D4785, 76575-4

Makes This Part Fits:

Shop Caterpillar Wholesale Parts

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:

View full details
