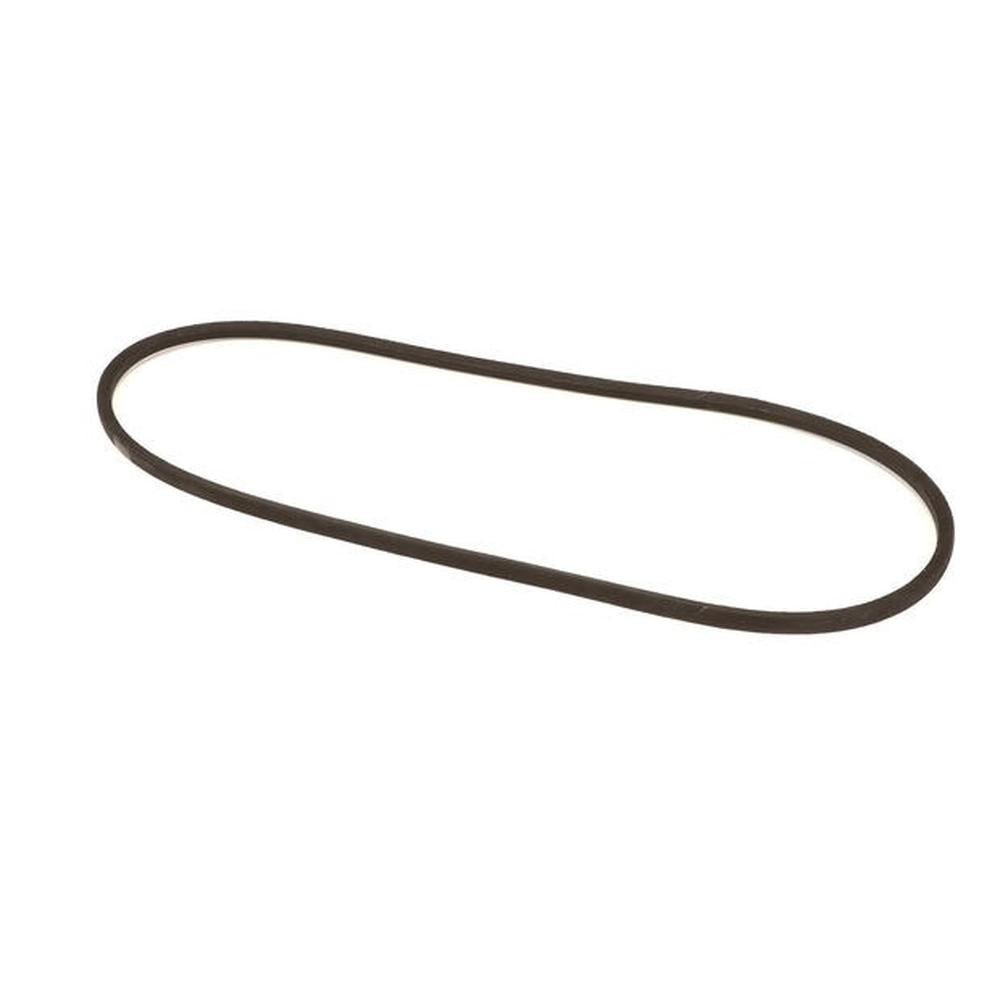

One New Aftermarket Replacement 4L Fractional V-Belt (Drive Belt) for MTD, Troy-Bilt, Bolens, Fits Toro and More

This 4L540 fractional horsepower V-belt is a direct-drive replacement belt used on lawn mowers and tillers from MTD, Troy-Bilt, Bolens, Fits Toro, and many other brands. The belt transfers power from the engine to the drive or blade assembly and features a wrapped polyester cord construction for cool running, crack resistance, and oil and heat resistance.

Specifications

• Belt Section: 4L (Fractional Horsepower / FHP)
• Top Width: 1/2"
• Outside Length: 54"
• Thickness/Height: 5/16" (0.315")
• Construction: Wrapped, helically wound polyester cord tensile member
• Application: Low horsepower electric motors and gasoline engines; compatible with backside idler drives

Compatible Equipment

MTD / Fits Cub Cadet / Troy-Bilt / Bolens / White / Yard-Man / Yard Machines / Huskee: Lawn mowers and tillers using MTD drive system

Fits Toro: Walk-behind mowers and tillers

Also fits equipment from: Fits Case/International Harvester, Deutz, Dexter, White, Oregon, Atlas, AGCO, Hesston, Dayco, Fits Vapormatic, and other OEMs using the standard 4L540 belt size

Replaces Part Number(s):

4L540, A52, 754-0195, 754-0195A, 7540195, 954-0195, 954-0195A, 9540195, 5016906M1, 9040-073-005, 9040-077-001, 12-6550, 382922, AP52, 785513, 1108487, 1723056, 1737574, 1170.290.110.00, V9L0015, 475834R1, 829920C1, AF1618, AF1649, MHC00758, 007-0069, 0070069, 242-0693, 2420693, 248-5054, 2485054, 62052, 886747, 75-754, 75754, 130-527-000, 210-405-009, 210-405-031, 210-405-046, 210-405-103, 210-405-141, 210-405-145, 210-405-192, 210-405-205, 210-405-206, 210-406-000, 210-406-138, 211-405-000, 211-405-009, 211-405-023, 211-405-131, 211-405-192, 15337, 15537, 10532, RB-530, RB-550

New aftermarket replacement part - not remanufactured, not used.
