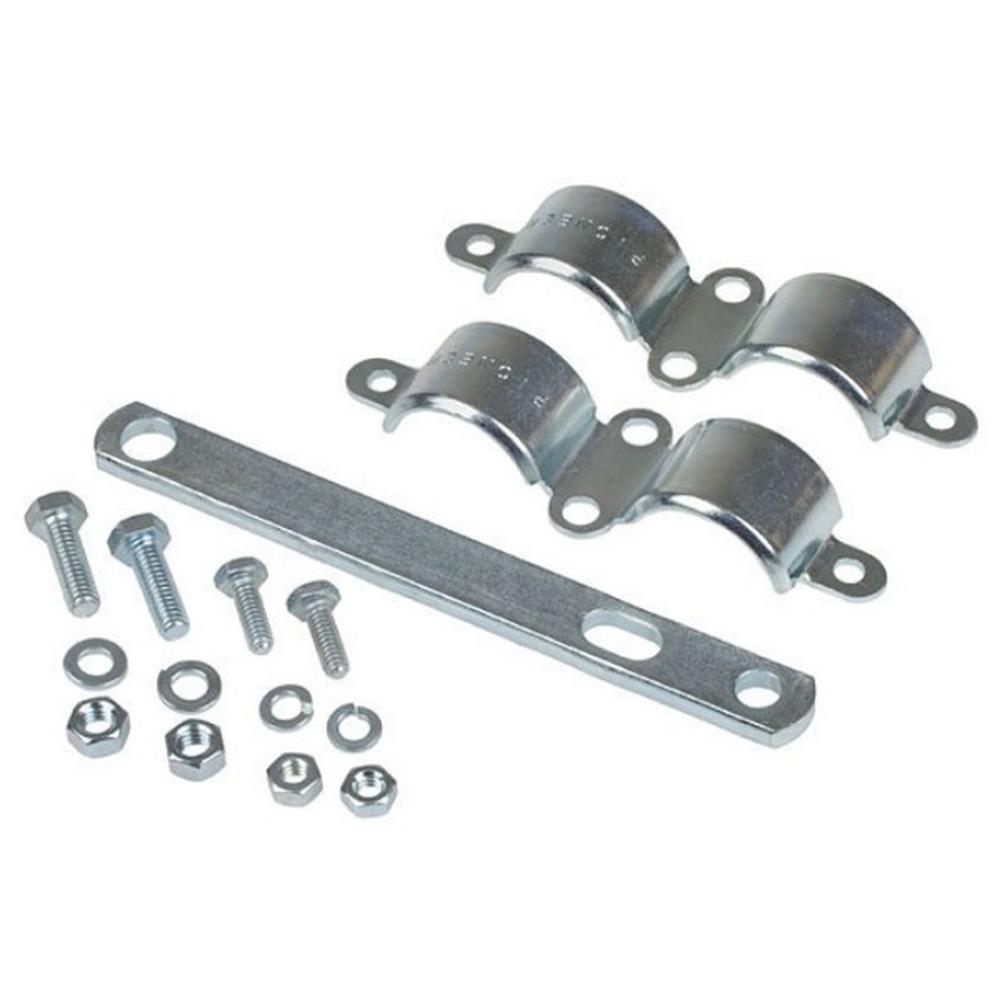

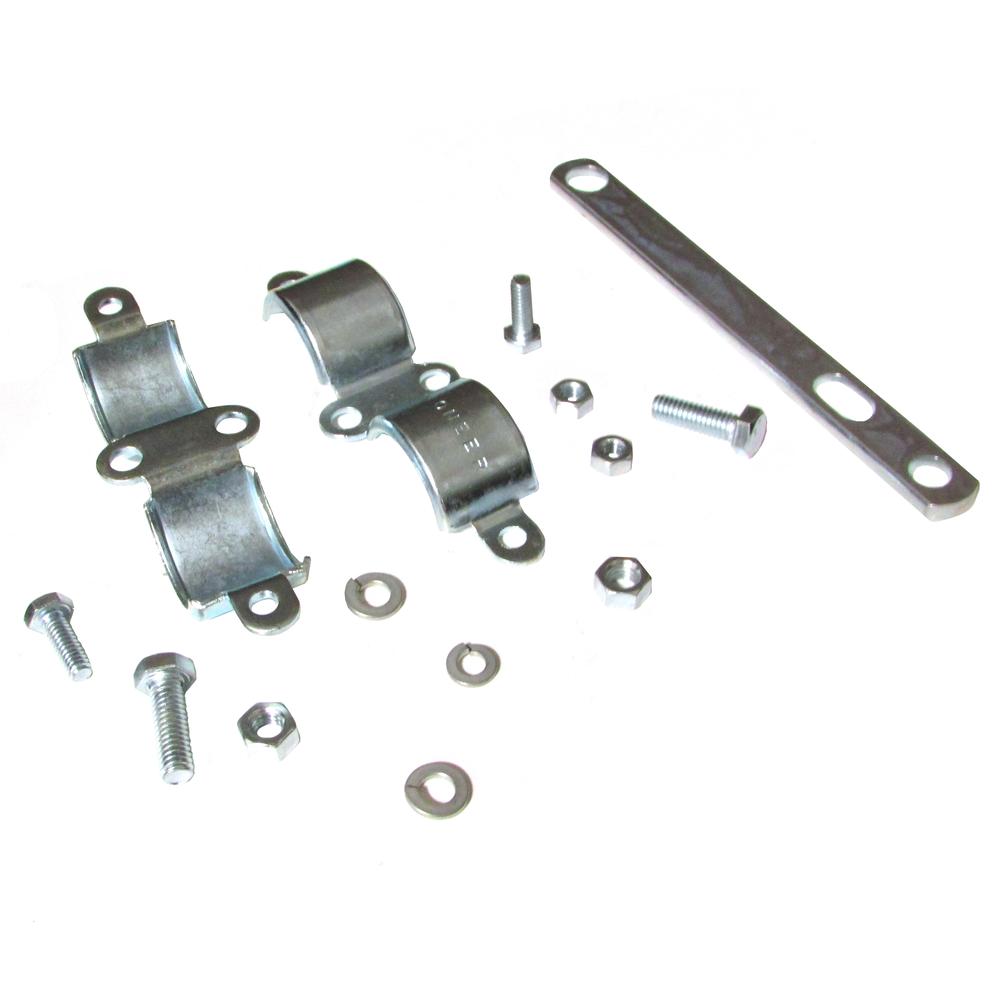

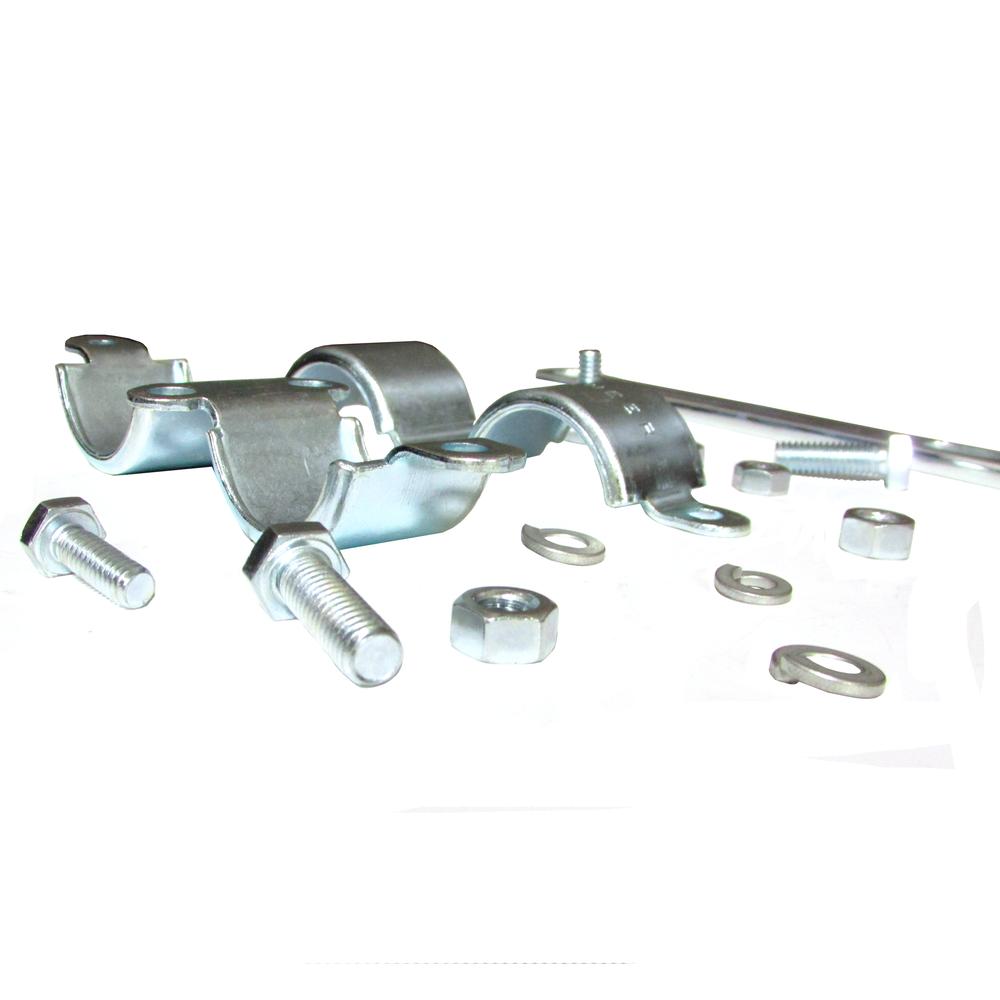

One New Aftermarket Replacement Double Breakaway Clamp for Pioneer Hydraulic Quick Couplings

This Pioneer (Parker Hannifin) double breakaway clamp is designed for use with 1/2" body size agricultural hydraulic quick couplings that have 1-1/2" diameter push-pull / double acting sleeves. When the coupler female bodies are properly installed in the clamp, the push-pull sleeve allows the coupler and male tip to automatically disconnect in a breakaway situation -- protecting against costly hose damage and hydraulic fluid spillage. Features heavy-duty zinc-plated yokes, braces, and hardware. Compatible with Pioneer 4200, 8200, and 8450 series couplers. Suitable for tractors, mobile farm equipment, and agricultural implement attachments requiring breakaway protection.

Specifications

• Coupler Body Size: 1/2"
• Sleeve Diameter: 1-1/2" push-pull / double acting
• Compatible Coupler Series: Pioneer 4200, 8200, 8450
• Construction: Zinc-plated yokes, braces, and hardware
• Style: Double clamp (holds two couplers)

Compatible Models

Pioneer (Parker Hannifin) Coupler Series: 4200, 8200, 8450

Massey Ferguson Tractors (general hydraulic coupler fitment): 2000, 3000, 4000, 5000, 600, 700, 800, 900

Replaces Part Number(s):

1900970M1, 1900970M91, 44A50064, 5006-4

New aftermarket replacement part - not remanufactured, not used.
