One New Aftermarket Replacement Drive Belt for MTD, Cub Cadet, John Deere, Lawn-Boy, and White Lawn & Garden Equipment

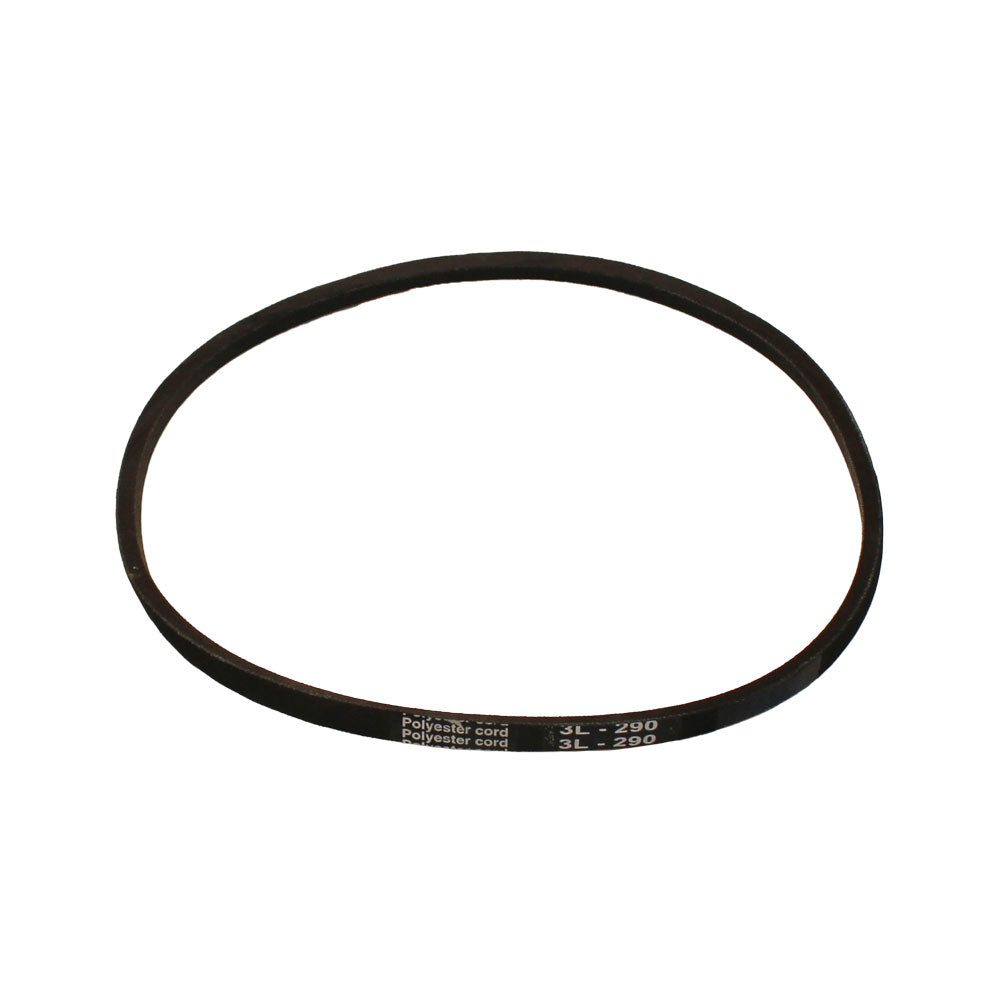

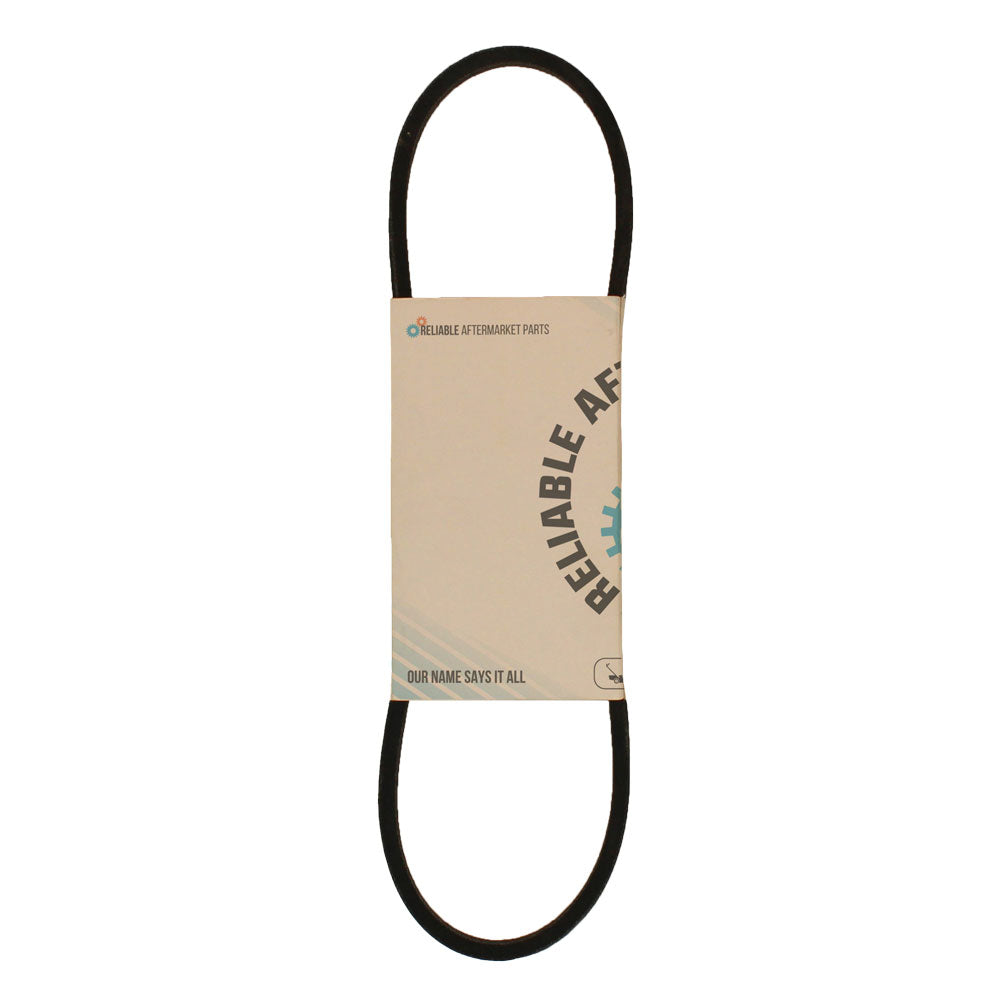

This 3L-section premium wrapped V-belt is a direct drive belt replacement for a wide range of MTD, Cub Cadet, John Deere, Lawn-Boy, White, and Case/International Harvester lawn and garden equipment including snow blowers, walk-behind mowers, and related outdoor power equipment. The belt features a wrapped polyester cord construction and a synthetic rubber outer covering that provides excellent resistance to heat, oil, and abrasion for long service life.

Specifications

• Belt Section: 3L (Classic V-Belt)
• Top Width: 3/8"
• Length: 29"
• Thickness: 0.22"
• Construction: Wrapped Polyester Cord
• Cover: Synthetic rubber compound, heat and oil resistant

Compatible Equipment

MTD / Cub Cadet / White / Troy-Bilt Snow Blowers and Mowers: 524, 826, 826 CV, 1028, 420, 565, 555, 5, 5A, 5B, SB-410, SB-510, SB-520, SB-800, YB-950

Additional Models: 0349, 0573896, 0573917, 06-010706, 06-348080, 132-446, 223-9014-00, 223-9113-00, 240-550-000, 240-586-000, 245-315B190, 246-315B190, 250-586-059, 250-586-083, 250-586-087, 250-586-092, 250-586-138, 252-586-190

John Deere: Compatible via John Deere part numbers LG38-290 and M44178 (44178)

Lawn-Boy: Compatible via Lawn-Boy part number 602956

Case / International Harvester: Compatible via part numbers 363977R1 and 61383C1

Replaces Part Number(s):

MTD: 754-0216, 754-0256, 954-0256, 954-0216 | John Deere: M44178, LG38-290, 44178 | Case/IH: 363977R1, 61383C1 | Industry: 3L290, 1290 | Lawn-Boy: 160150, 602956 | Additional: 238-5029, 452-3072, 4523072, 742201, GAT1290, 3L290DC

Aftermarket Interchange Numbers

Rotary: 5012, 7434 | Oregon: 75-629 | Stens: 238-029 | Prime Line: 7-3H290 | Sunbelt: B1SB5012

New aftermarket replacement part - not remanufactured, not used.
